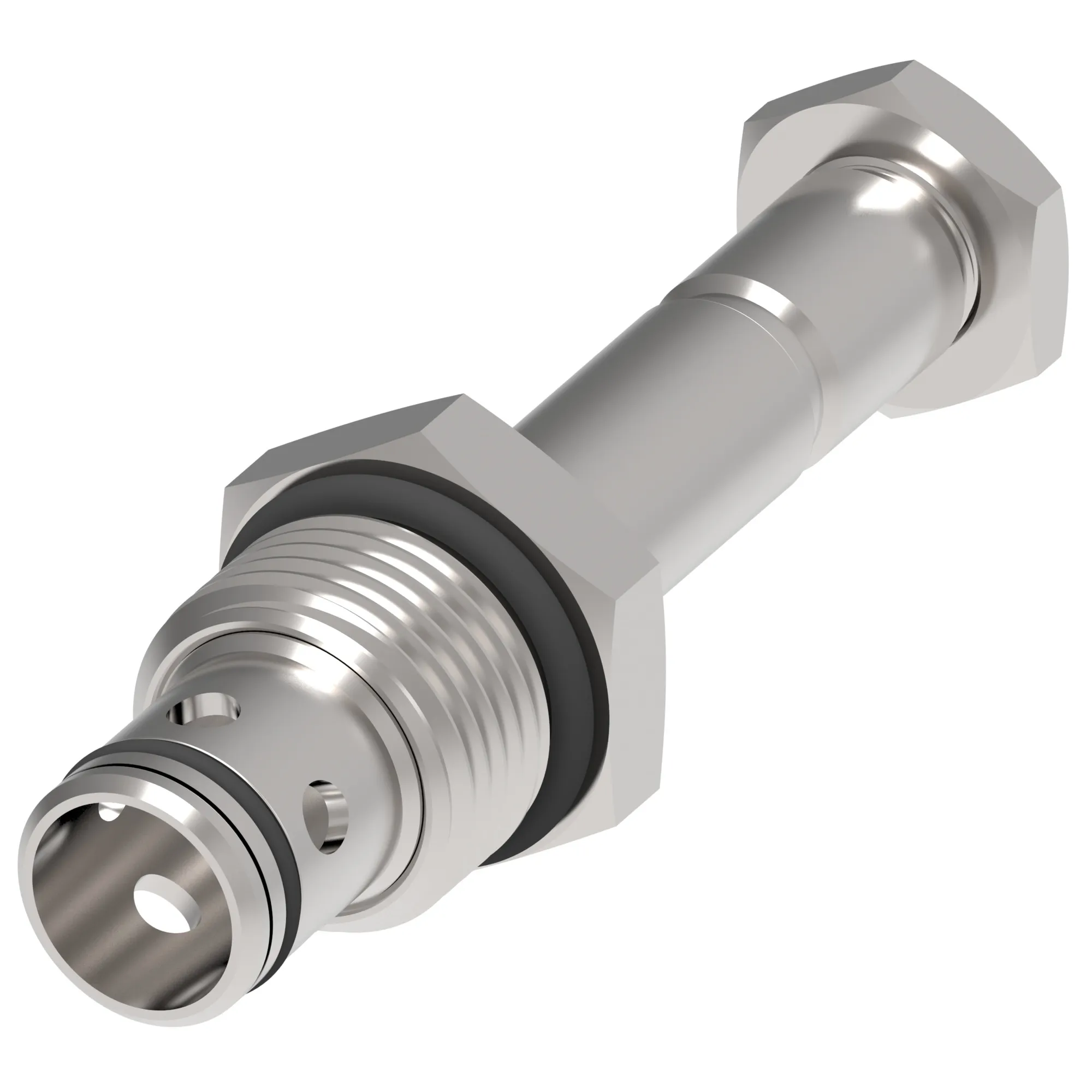

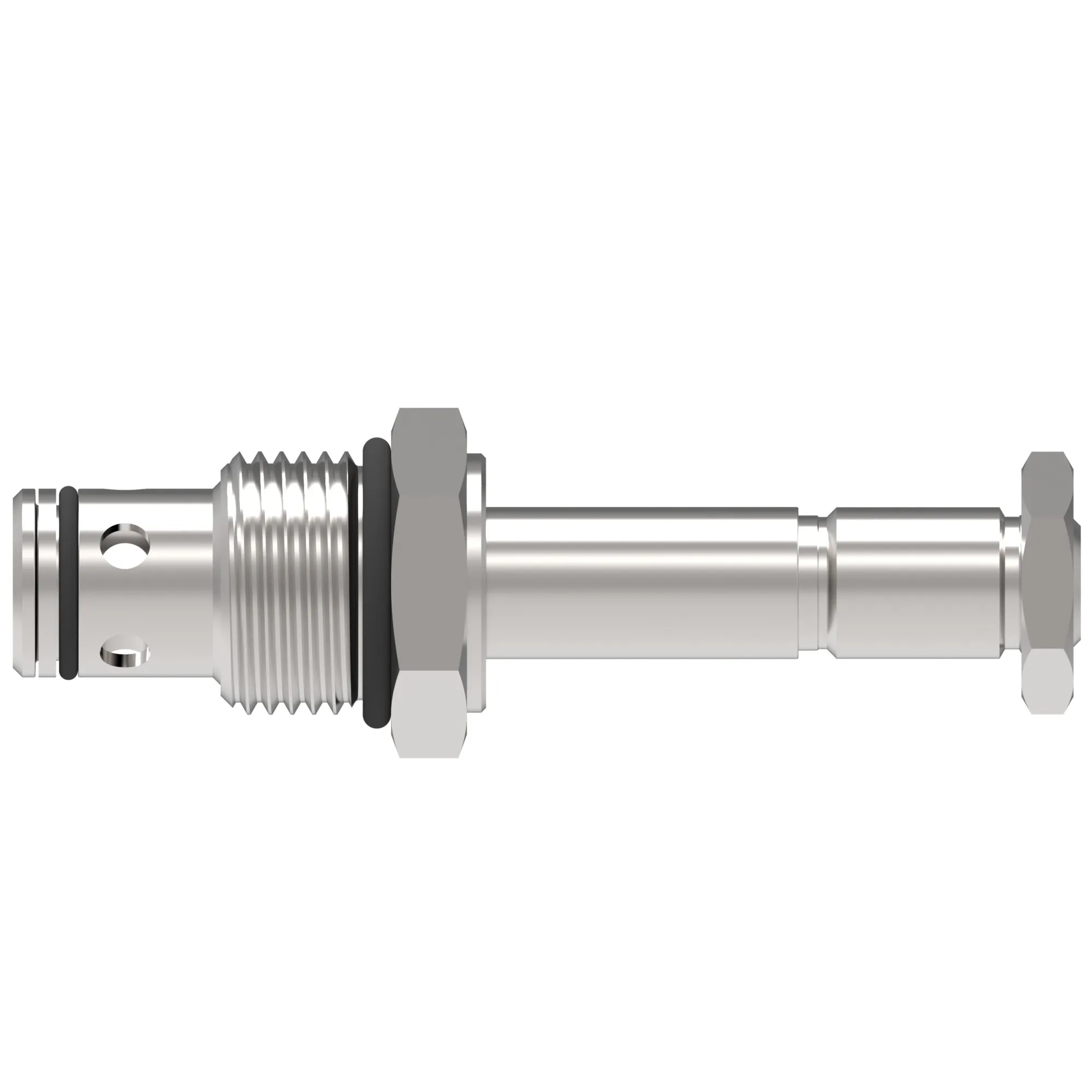

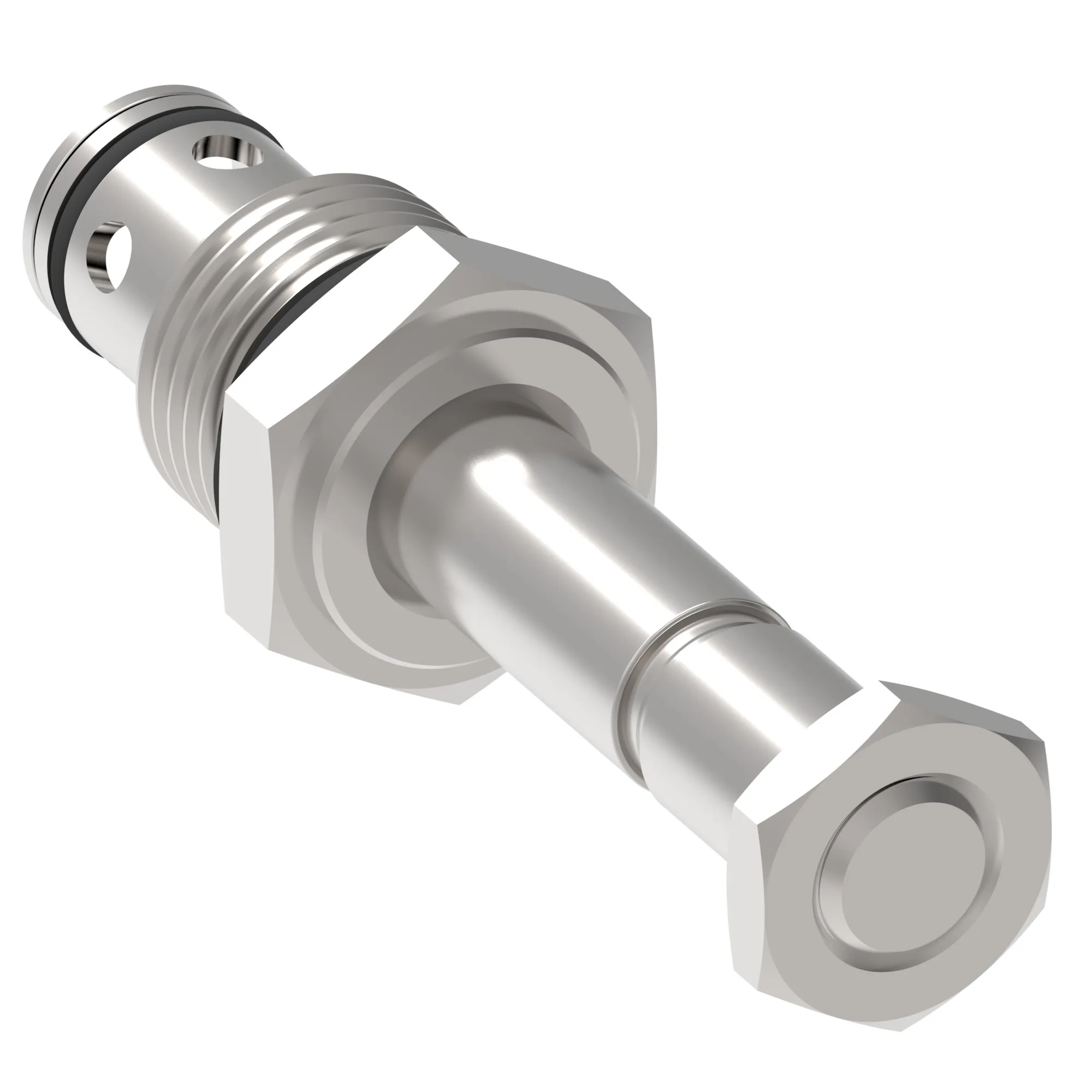

Danfoss (Drives) 02-166995
SV5-10V-0-0-00, SV5-10-V-O-0-00 – 02-166995
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
SV5-10V-0-0-00, SV5-10-V-O-0-00 – 02-166995
Specification
| Brand | Vickers by Danfoss |
|---|---|
| Cavity | C-10-2 |
| Flow Rate Gpm | 12.00 |
| Flow Rate Lpm | 45.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Solenoid Valve |
| Housing | No |
| Installation Type | Screw-in Cartridge |
| Leakage | Less than 5 drops/min |
| Model Code 1 | SV5-10-V-O-0-00 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Electrically operated |
| Override Type | None |
| Port Size | None |
| Port Type | Cartridge Only |
| Pressure Rating Bar | 210.00 |
| Pressure Rating Psi | 3000.00 |
| Product Height In | 1.920 |
| Product Height Mm | 48.768 |
| Product Length In | 4.000 |
| Product Length Mm | 101.600 |
| Product Width In | 1.530 |
| Product Width Mm | 38.862 mm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Viton |
| Special Features | None |
| Style | 2-Way, 2-Position, Poppet, NO |
