Danfoss (Drives) 02-165979

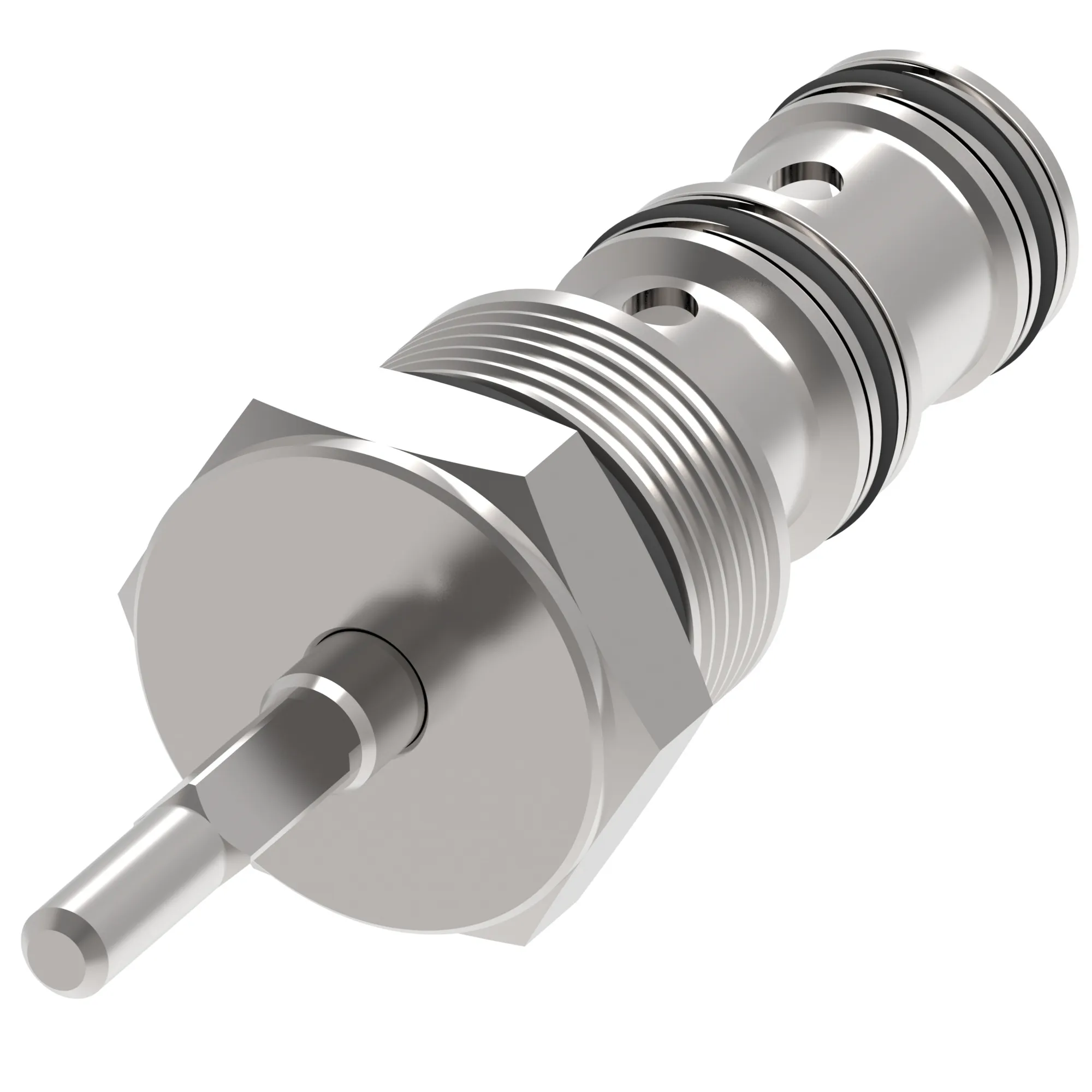

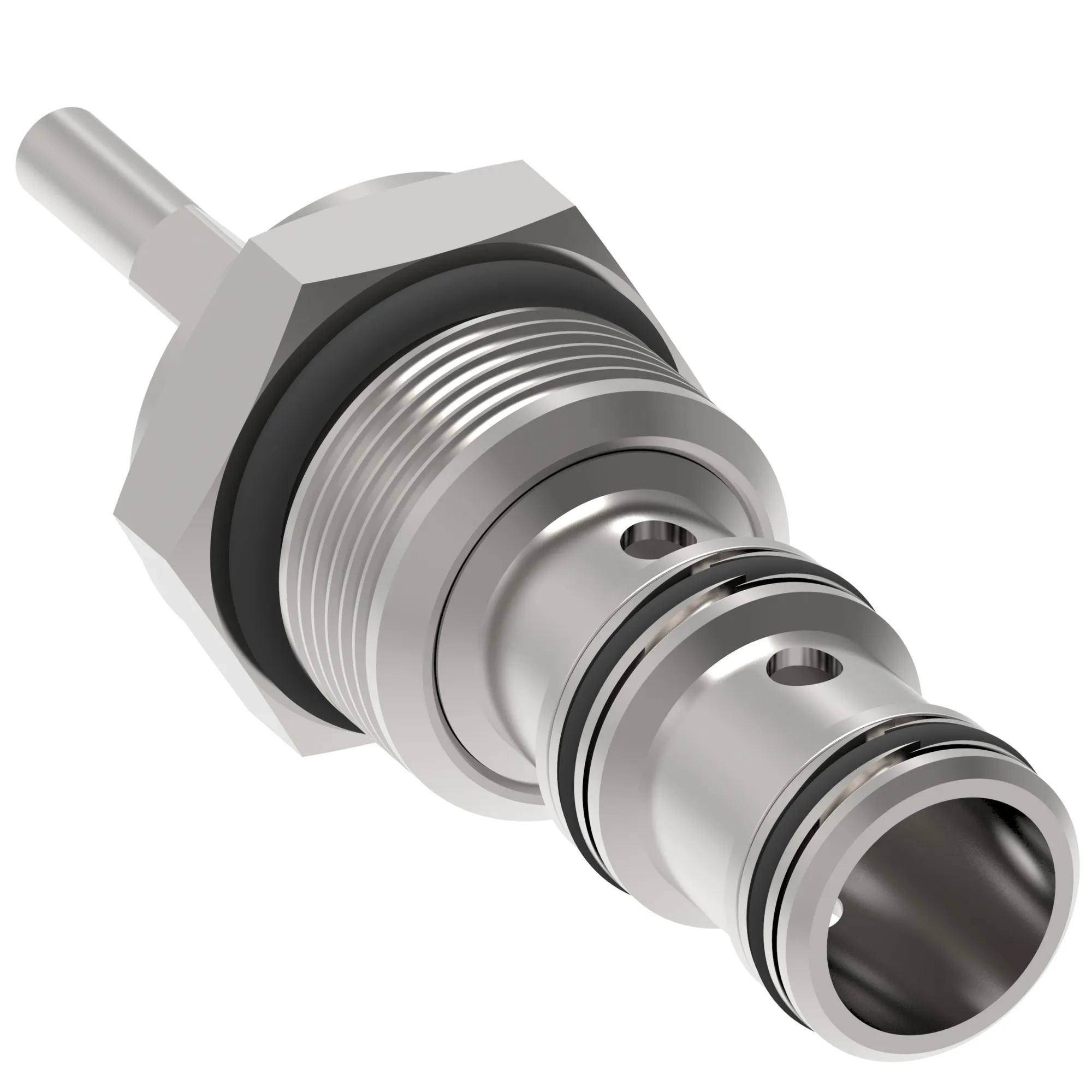

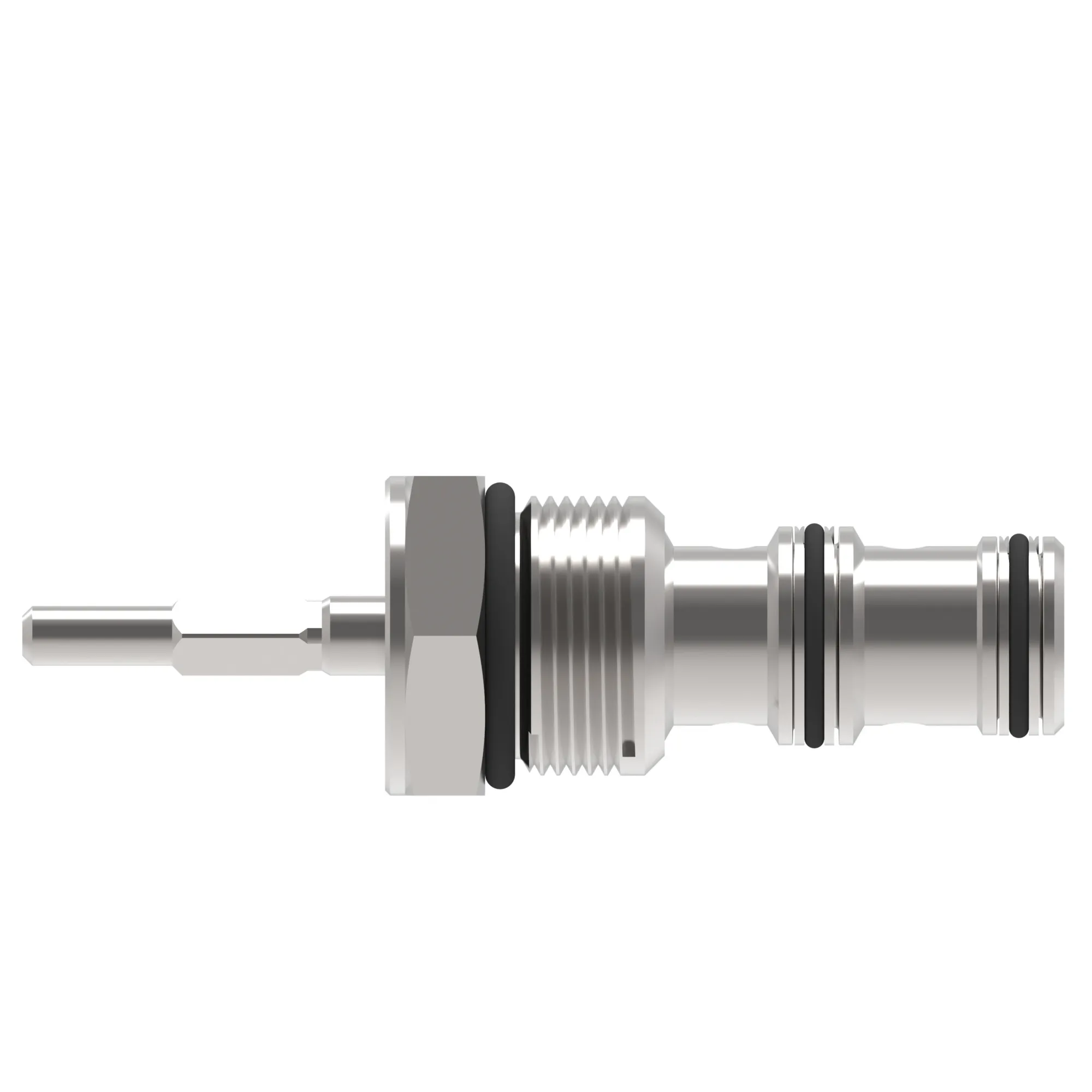

MRV3-16V-0-0, MRV3-16-V-0-0 – 02-165979
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MRV3-16V-0-0, MRV3-16-V-0-0 – 02-165979
Specification
| Actuation Option | None |
|---|---|
| Adjustment Type | No Operator |
| Brand | Vickers by Danfoss |
| Cavity | C-16-3 |
| Detent Option | No |
| Flow Rate Gpm | 17.00 |
| Flow Rate Lpm | 64.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Manual semi-rotary valve |
| Housing | No |
| Housing Material | None |
| Installation Type | Screw-in Cartridge |
| Leakage | 655 cc/min |
| Model Code 1 | MRV3-16-V-0-0 |
| Number Of Housing Ports | 3 |
| Number Of Valve Ports | 3 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Direct acting |
| Port Size | None |
| Port Type | Cartridge Only |
| Pressure Rating Bar | 210.00 |
| Pressure Rating Psi | 3000.00 |
| Product Height In | 2.400 |
| Product Height Mm | 60.960 |
| Product Length In | 4.950 |
| Product Length Mm | 125.730 |
| Product Width In | 2.400 |
| Product Width Mm | 60.960 mm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Viton |
| Style | 3-Way 3-Position |
| Torque Into Aluminium Cavity | 108-122 Nm |
| Torque Into Steel Cavity | 136-149 Nm |
