Danfoss (Drives) 02-165976

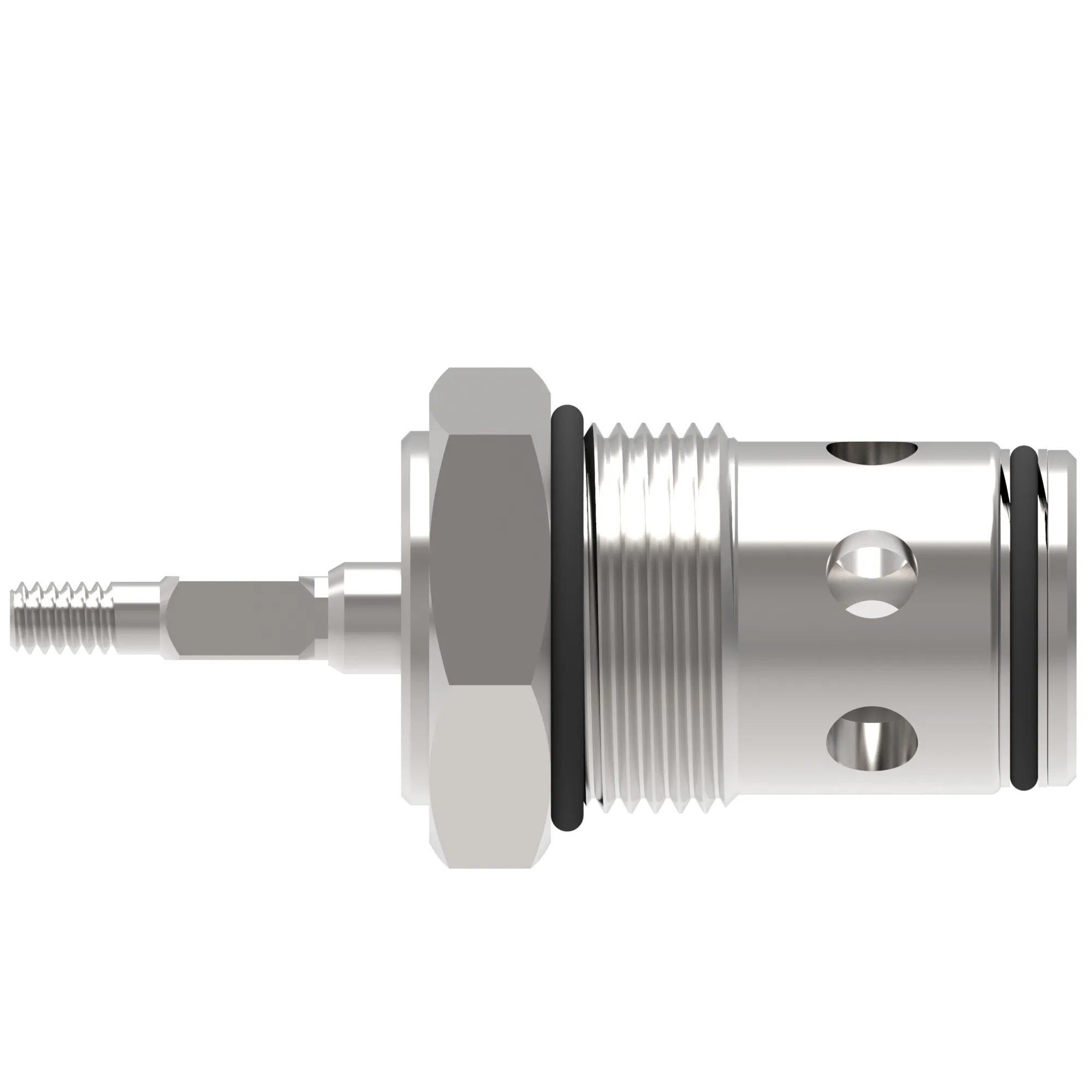

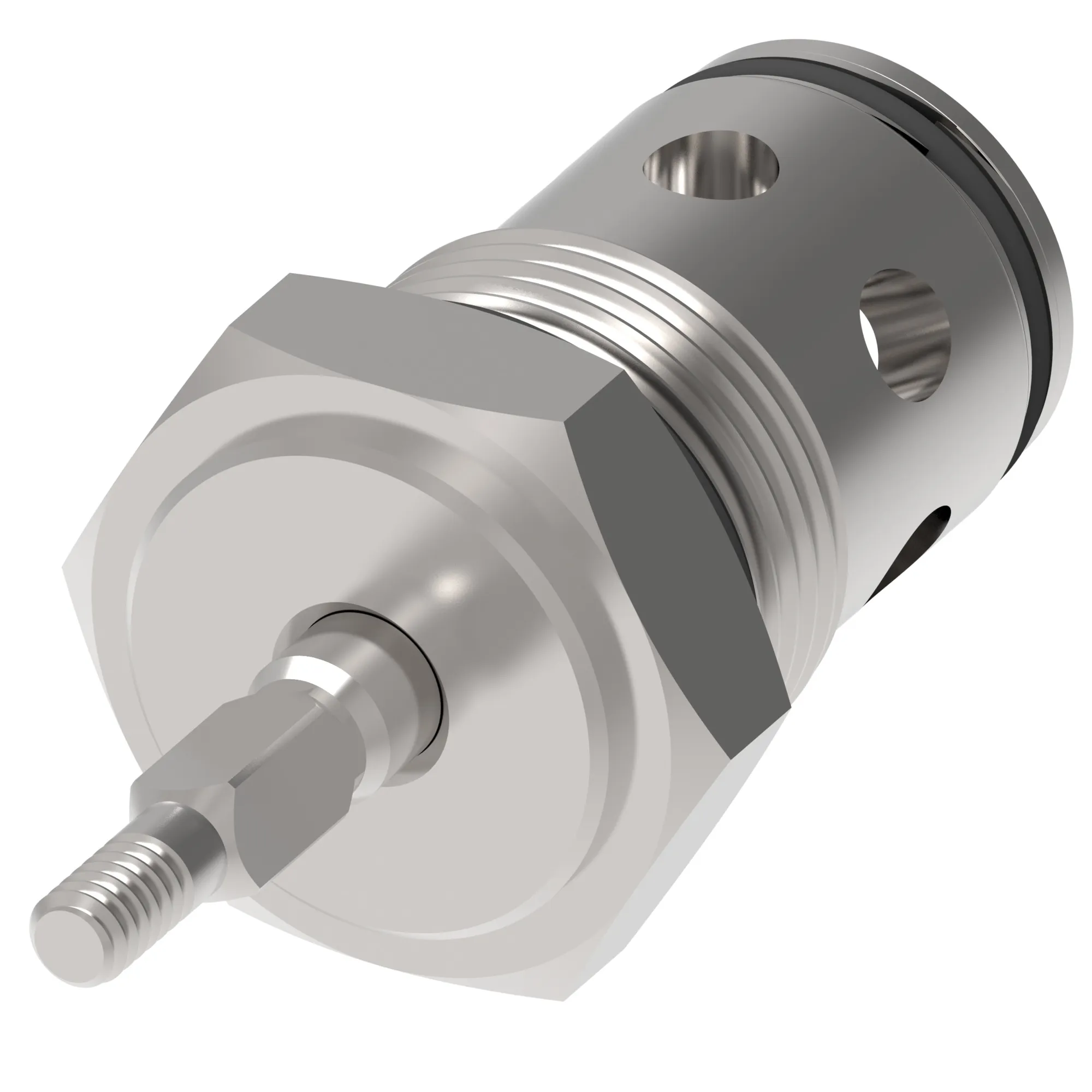

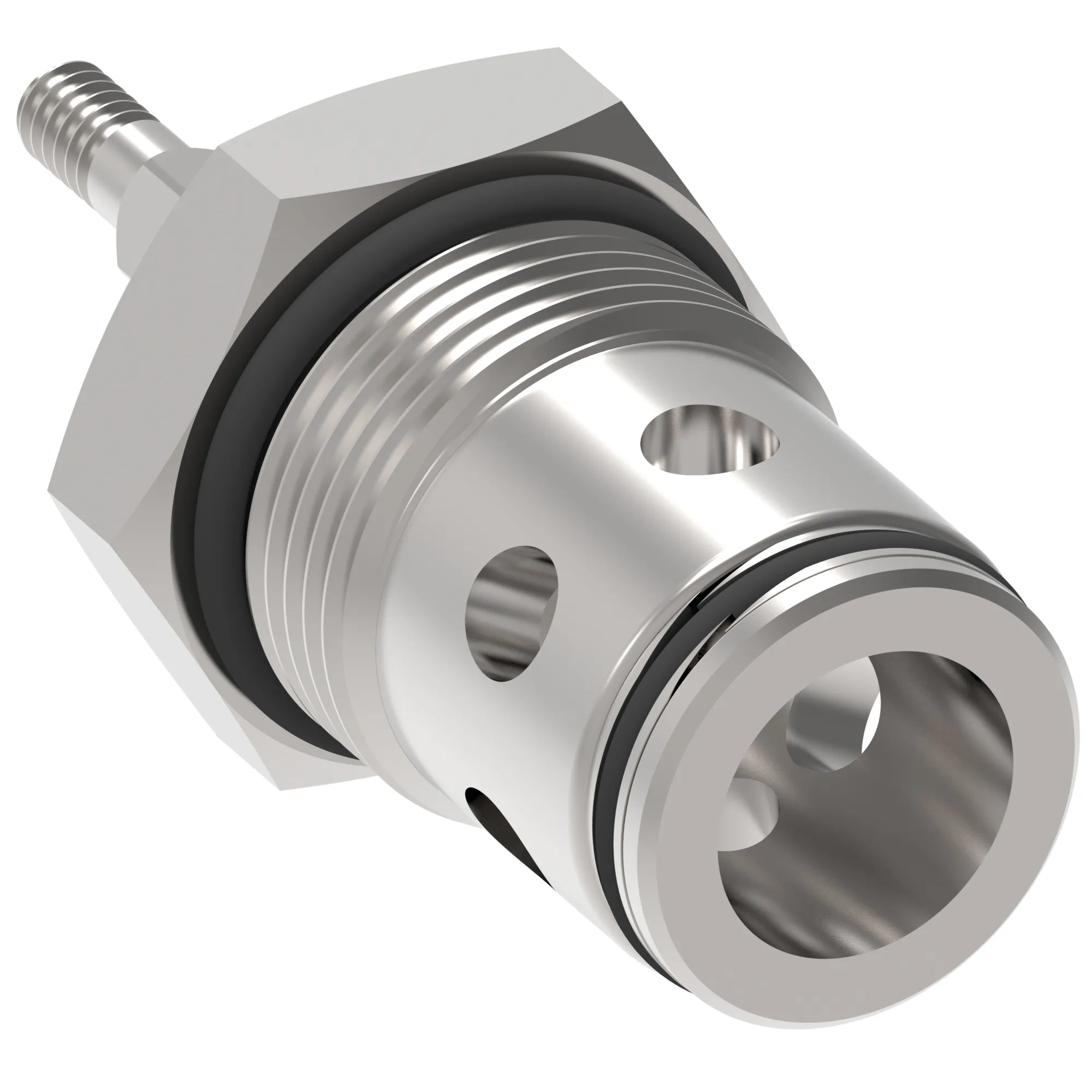

MRV2-16-0-0-45, MRV2-16-0-0-45 – 02-165976
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MRV2-16-0-0-45, MRV2-16-0-0-45 – 02-165976
Specification
| Adjustment Type | Stem |
|---|---|
| Brand | Vickers by Danfoss |
| Cavity | C-16-2 |
| Factory Set Flow Rate Gpm | 22.000 |
| Factory Set Flow Rate Lpm | 85.00 |
| Flow Rate Gpm | 45.000 |
| Flow Rate Lpm | 170.00 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Manual Rotary Flow Control |
| Housing | No |
| Installation Type | Screw-in Cartridge |
| Leakage | 82 cc/min |
| Maximum Flow Rate Lpm | 45.00 |
| Model Code 1 | MRV2-16-0-0-45 |
| Number Of Housing Ports | 2 |
| Number Of Valve Ports | 2 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Port Type | Cartridge Only |
| Pressure Rating Bar | 210.00 |
| Pressure Rating Psi | 3000.00 |
| Product Height In | 2.400 |
| Product Height Mm | 60.960 |
| Product Length In | 3.560 |
| Product Length Mm | 90.424 |
| Product Width In | 2.400 |
| Product Width Mm | 60.960 mm |
| Rec Filtration Level | 18/16/13 |
| Seal Type | Buna-N |
| Special Features | None |
| Spool Seal | No |
| Style | Spool |
| Torque Alu Cavity | 108-122 Nm |
| Torque Steel Cavity | 139-149 Nm |
