Description

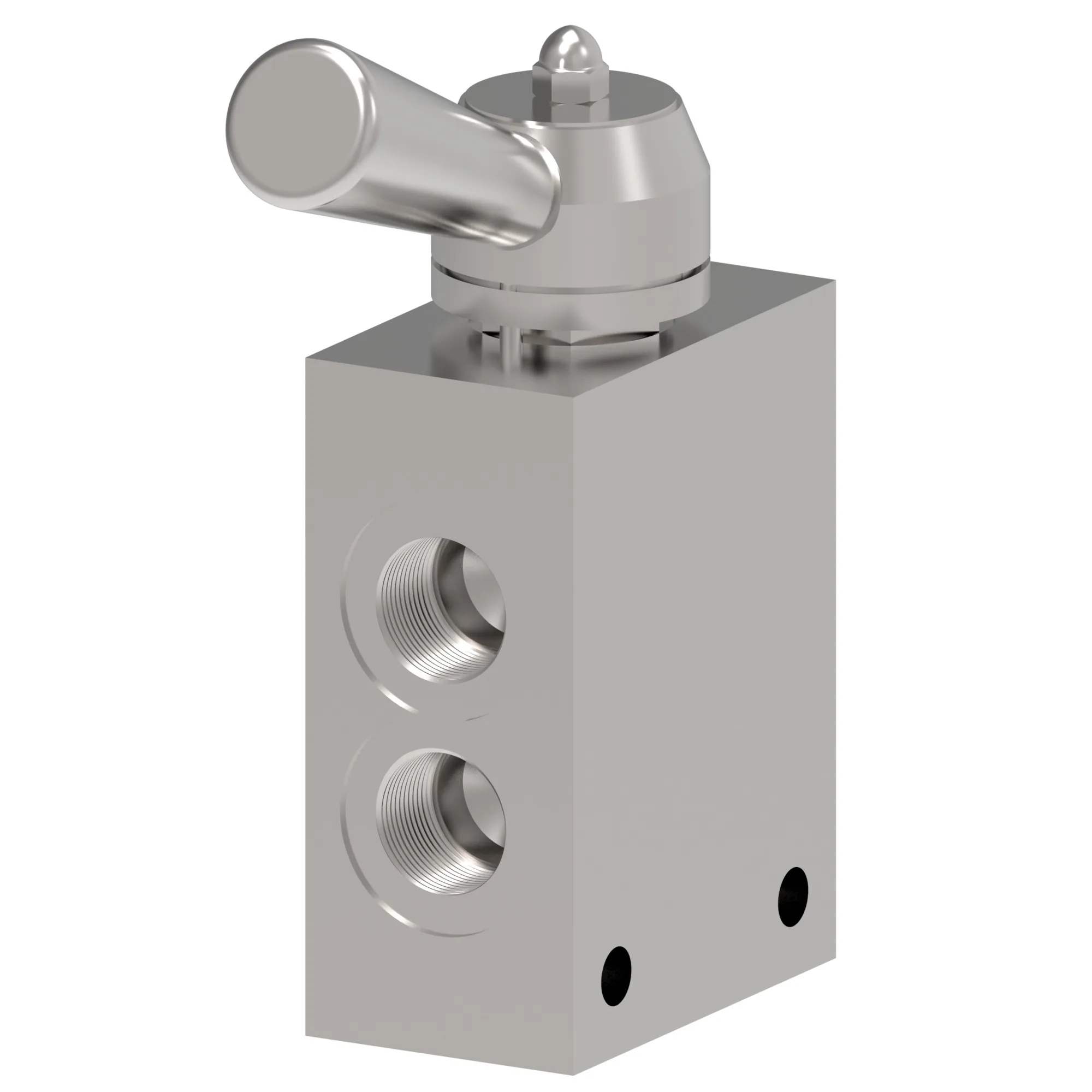

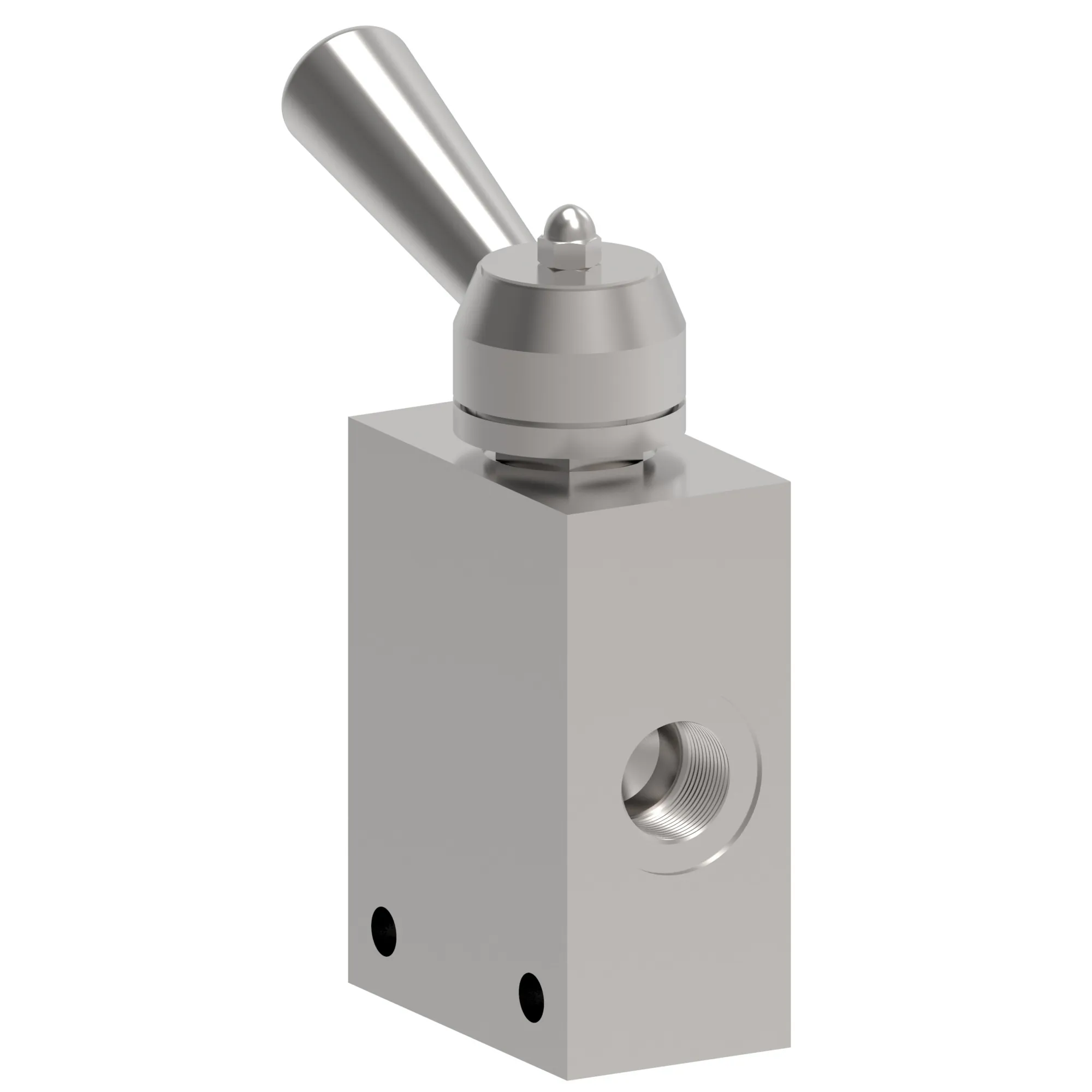

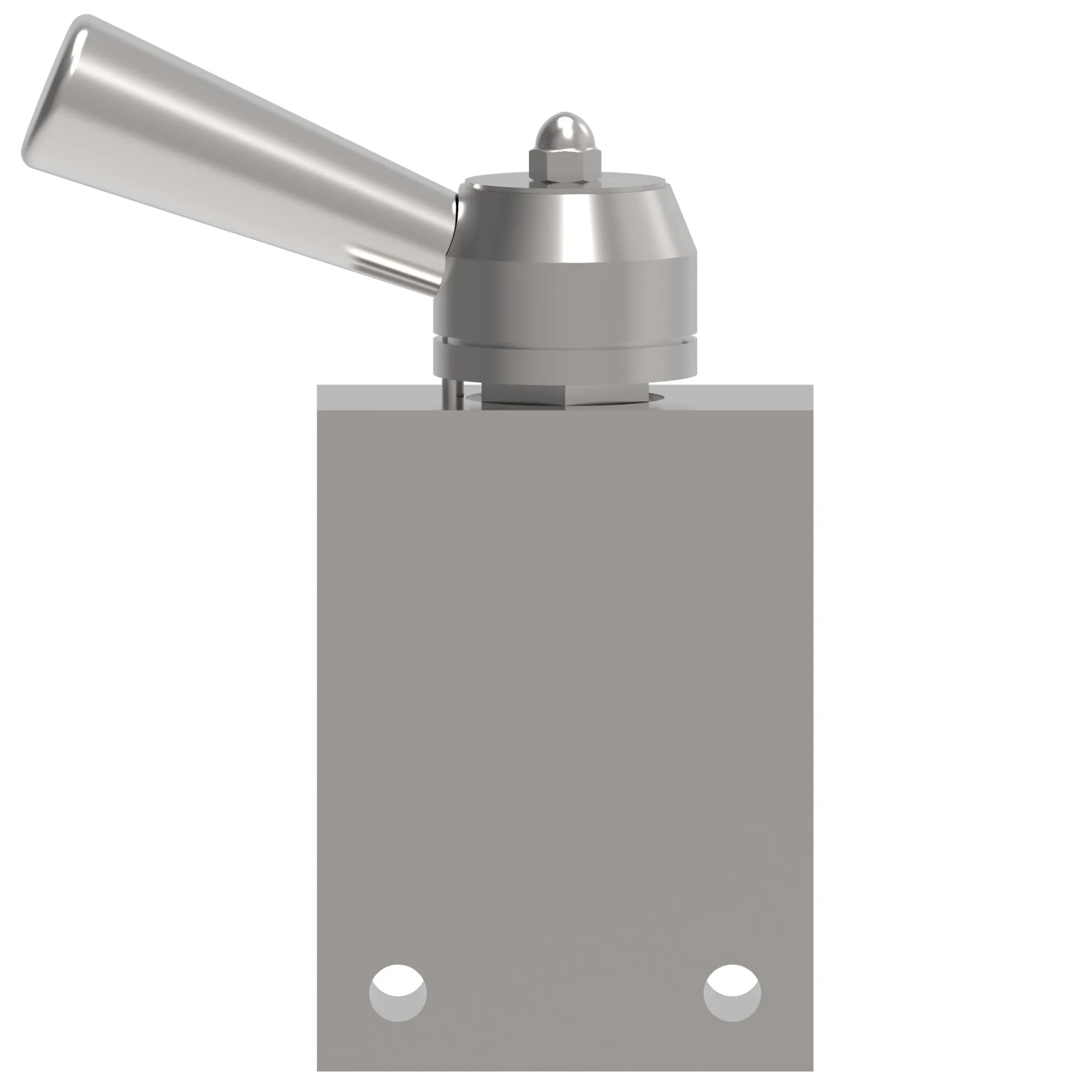

MRV4-10-D-6T, MRV4-10-D-6T – 02-165956
Specification
| Actuation Option | None |
|---|---|
| Adjustment Type | Lever (3-position detent) |
| Brand | Vickers by Danfoss |
| Cavity | C-10-4 |
| Detent Option | Yes |
| Flow Rate Gpm | 3.00 |
| Flow Rate Lpm | 11.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Manual semi-rotary valve |
| Housing | Yes |
| Housing Material | Aluminum |
| Installation Type | Screw-in Cartridge |
| Leakage | 300 cc/min |
| Model Code 1 | MRV4-10-D-6T |
| Number Of Housing Ports | 4 |
| Number Of Valve Ports | 4 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Direct acting |
| Port Size | 3/8″ |
| Port Type | SAE |
| Pressure Rating Bar | 210.00 |
| Pressure Rating Psi | 3000.00 |
| Product Height In | 5.000 |
| Product Height Mm | 127.000 |
| Product Length In | 3.000 |
| Product Length Mm | 76.200 |
| Product Width In | 2.000 |
| Product Width Mm | 50.800 mm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Buna-N |
| Style | 4-Way 3-Position |
| Torque Into Aluminium Cavity | 47-54 Nm |
| Torque Into Steel Cavity | 68-75 Nm |
