Danfoss (Drives) 02-165480

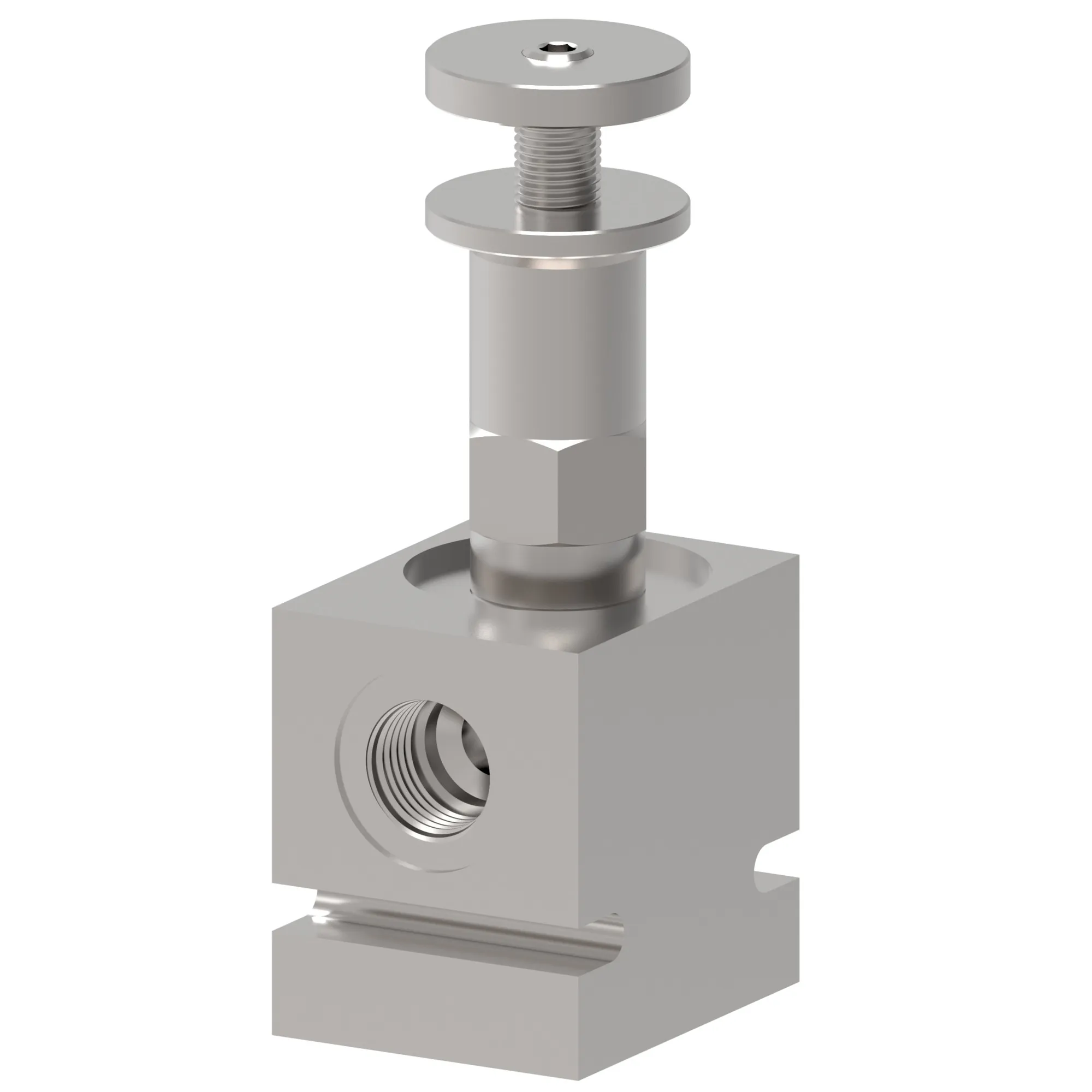

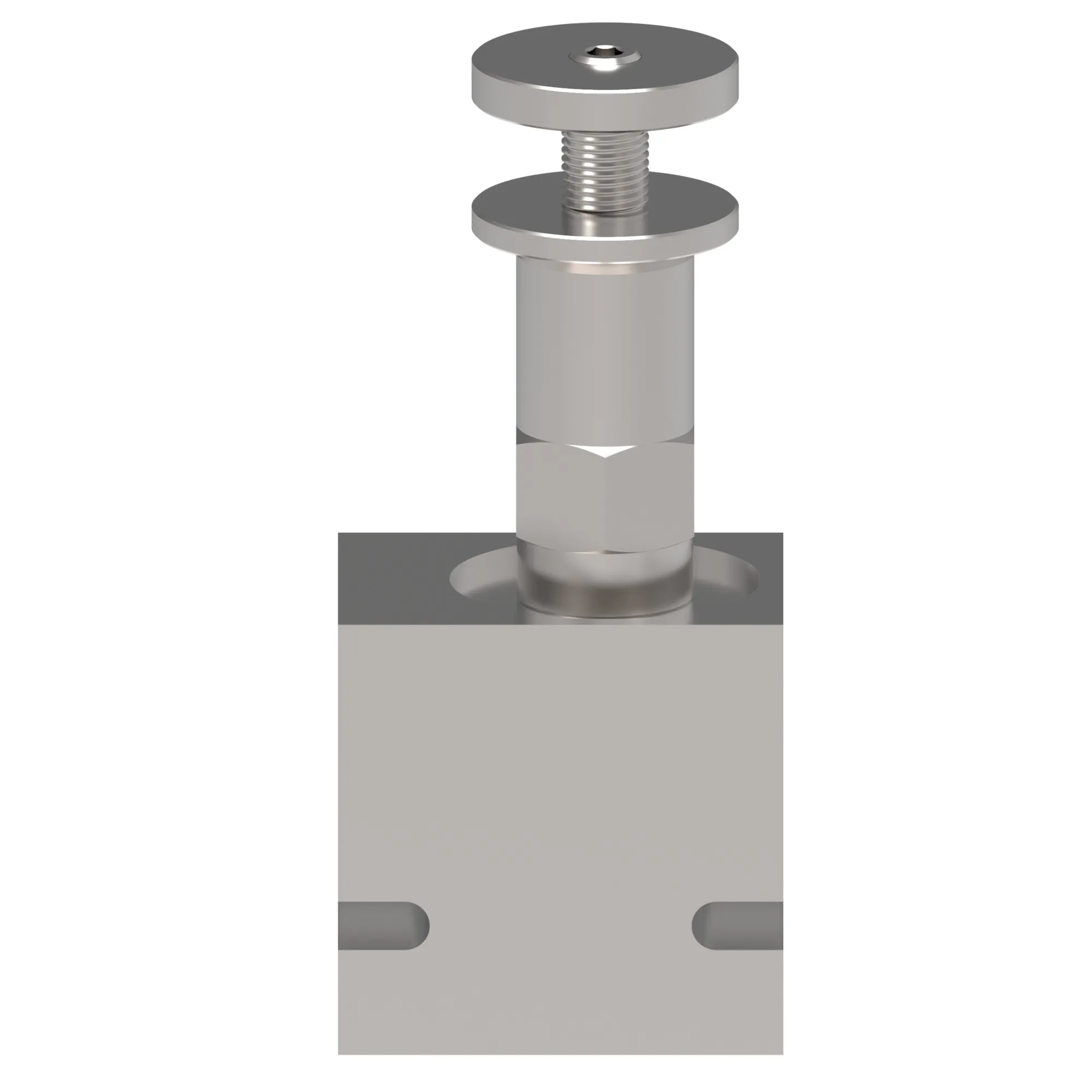

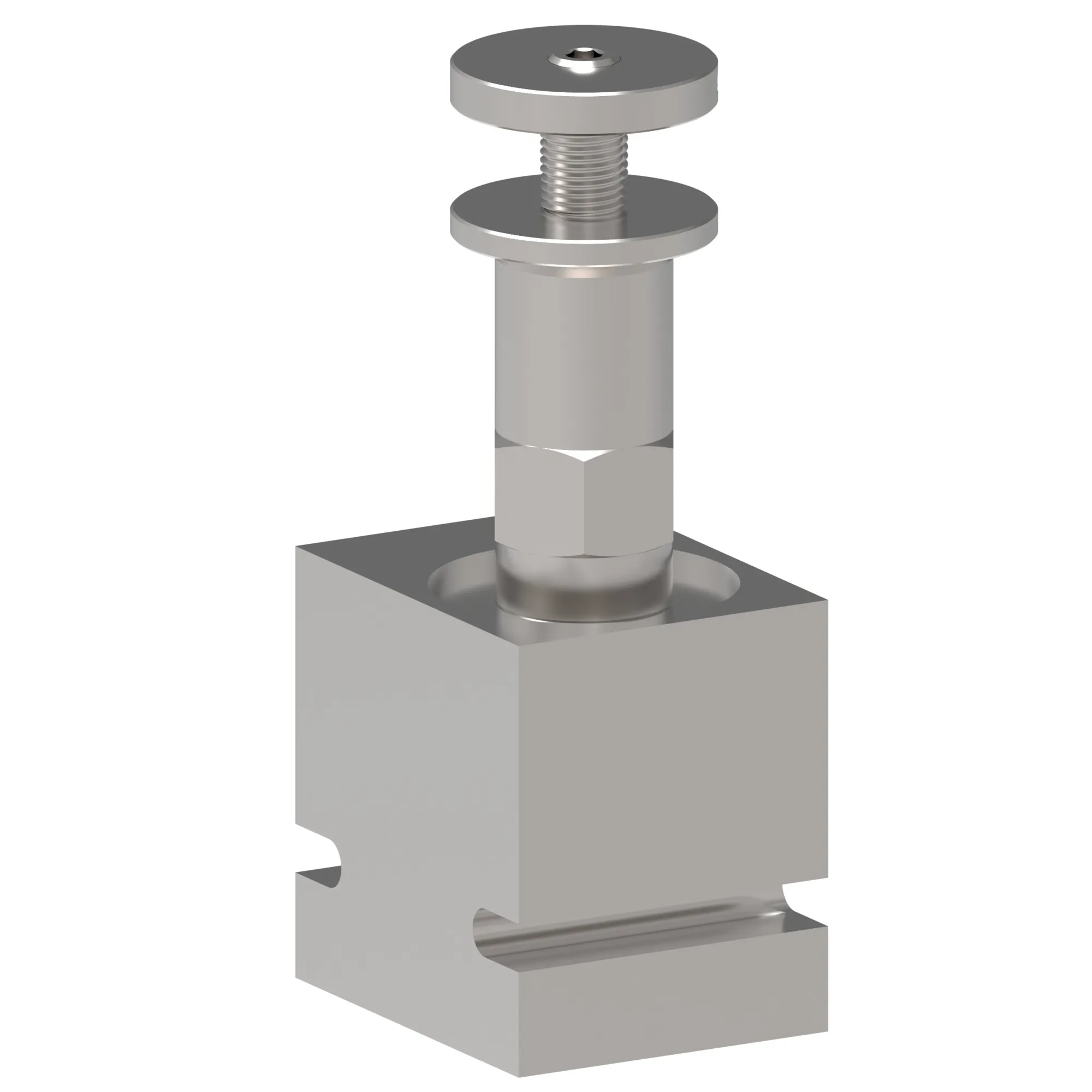

PFR2-16-K-12T-/20.00, PFR2-16-K-12T-20.0 – 02-165480
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PFR2-16-K-12T-/20.00, PFR2-16-K-12T-20.0 – 02-165480
Specification
| Adjustment Type | Knob |
|---|---|
| Brand | Vickers by Danfoss |
| Cavity | C-16-3 |
| Factory Set Flow Rate Gpm | 20.000 |
| Factory Set Flow Rate Lpm | 76.00 |
| Flow Rate Gpm | 30.000 |
| Flow Rate Lpm | 114.00 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Priority Flow Reg Adjust type |
| Housing | Yes |
| Housing Material | Aluminum |
| Installation Type | Line Mounted |
| Maximum Flow Rate Lpm | 114.00 |
| Minimum Flow Rate Gpm | 3.000 |
| Minimum Flow Rate Lpm | 11.00 |
| Model Code 1 | PFR2-16-K-12T-20.0 |
| Number Of Housing Ports | 3 |
| Number Of Valve Ports | 3 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Port Size | 3/4″ |
| Port Type | SAE |
| Pressure Rating Bar | 210.00 |
| Pressure Rating Psi | 3000.00 |
| Product Height In | 8.470 |
| Product Height Mm | 215.138 |
| Product Length In | 4.000 |
| Product Length Mm | 101.600 |
| Product Width In | 2.000 |
| Product Width Mm | 50.800 mm |
| Rec Filtration Level | 18/16/13 |
| Seal Type | Buna-N |
| Special Features | None |
| Spool Seal | No |
| Style | Spool |
| Torque Alu Cavity | 108-122 Nm |
| Torque Steel Cavity | 139-149 Nm |
