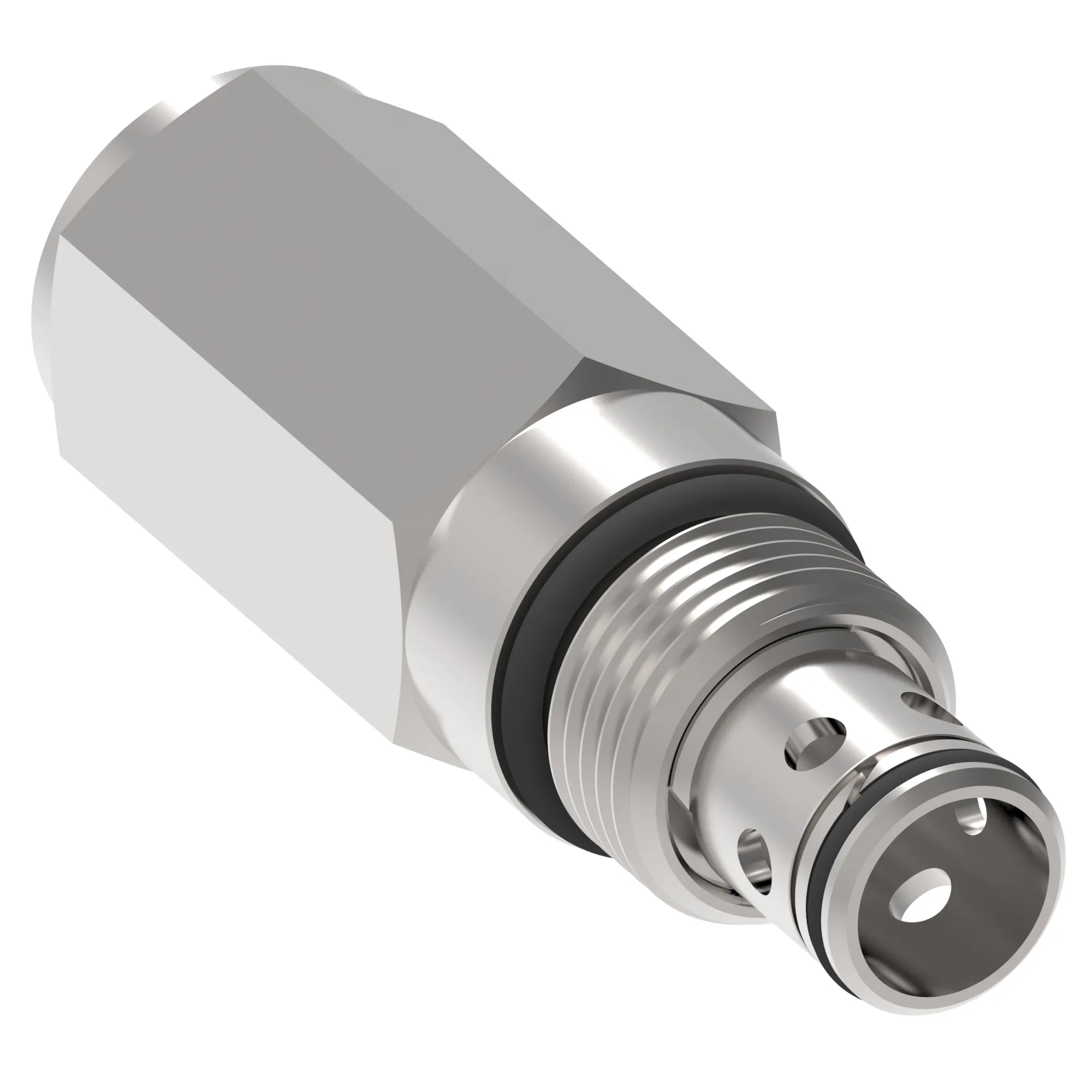

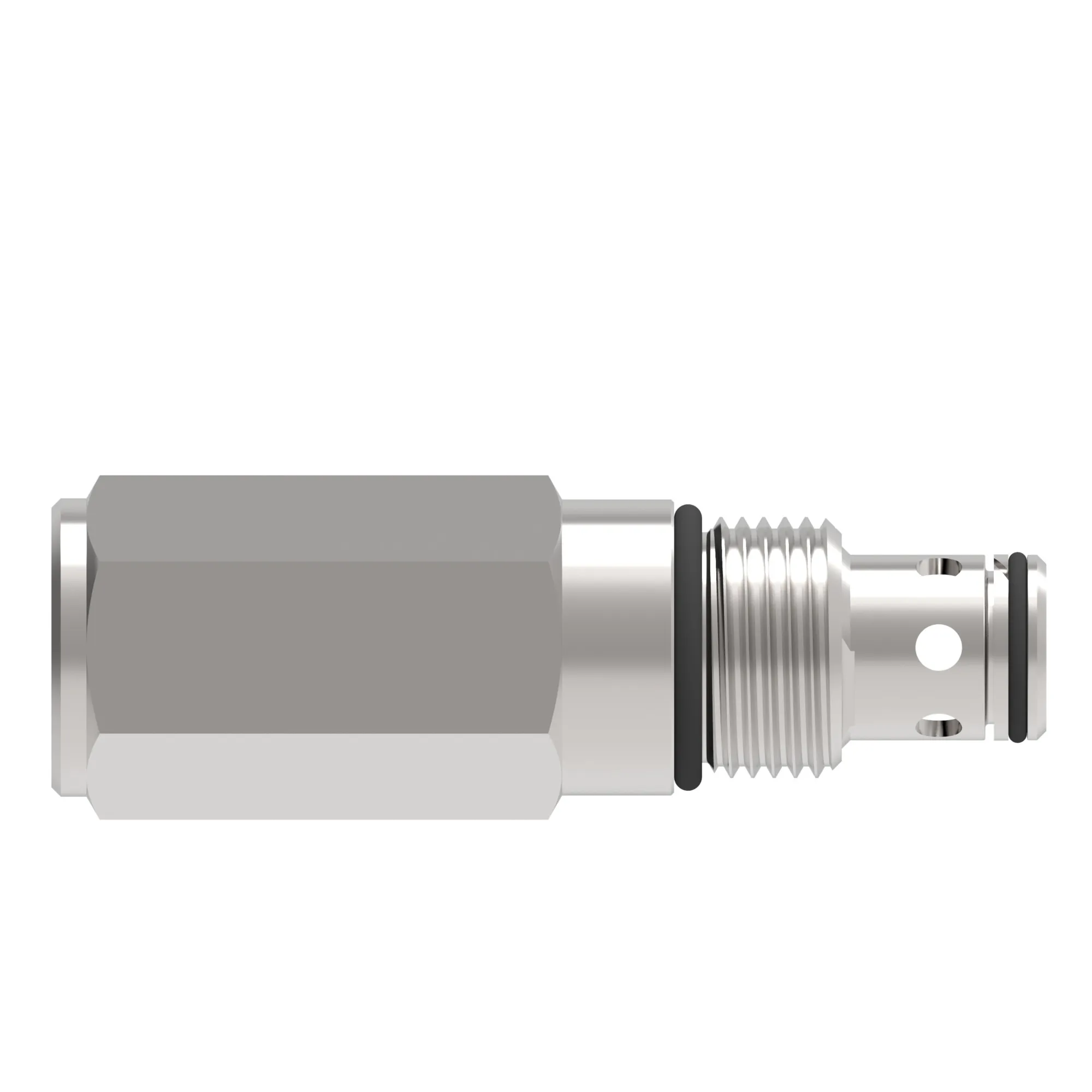

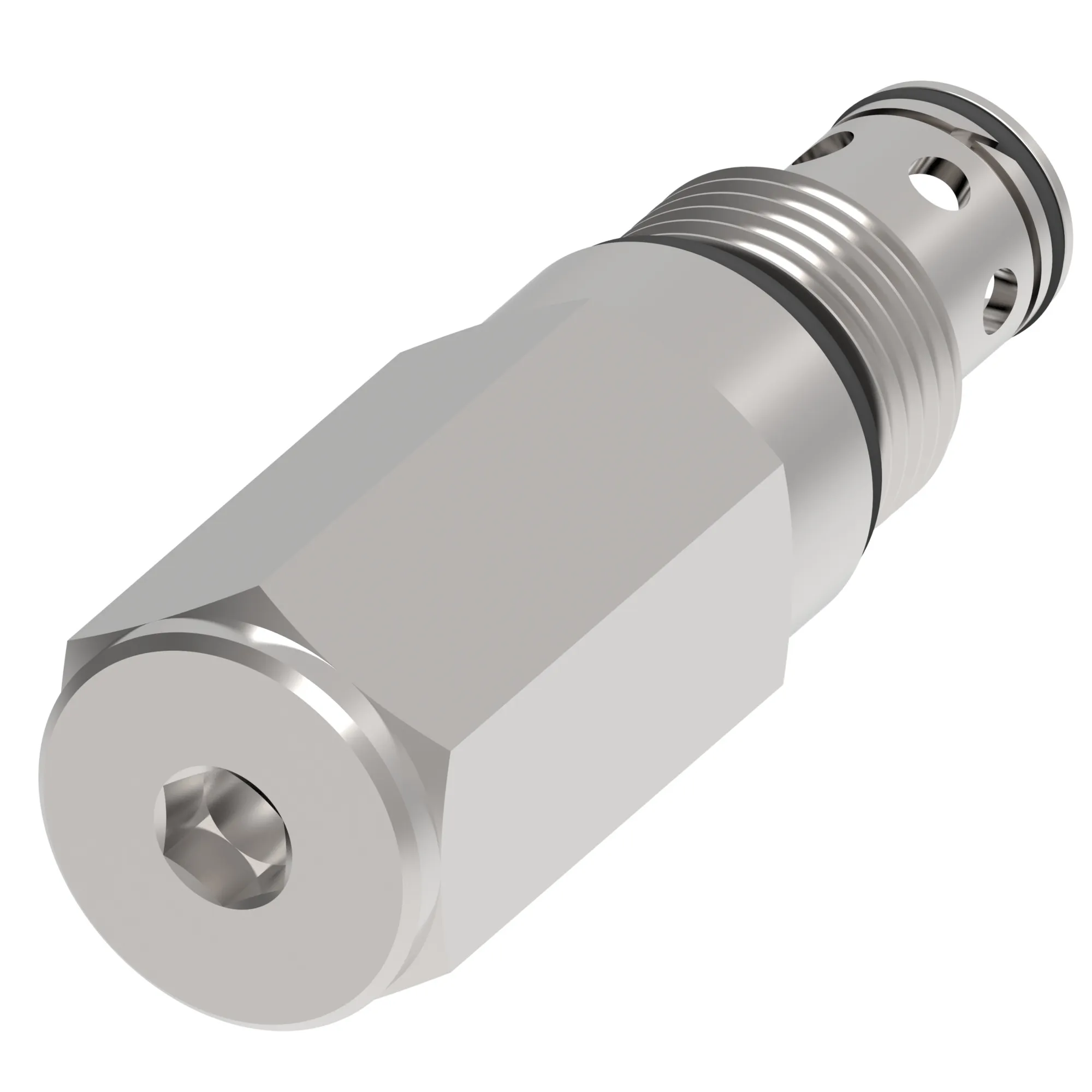

Danfoss (Drives) 02-164958
RV1-10-I-0-30/10, RV1-10-I-0-30/10 – 02-164958
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RV1-10-I-0-30/10, RV1-10-I-0-30/10 – 02-164958
Specification
| Adjustment Type | Internal |
|---|---|
| Brand | Vickers by Danfoss |
| Cavity | C-10-2 |
| Factory Set Pressrue Bar | 69.000 |
| Factory Set Pressrue Psi | 1000.000 |
| Flow Rate Gpm | 8.00 |
| Flow Rate Lpm | 30.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Pressure Relief Valve |
| Housing | No |
| Housing Material | None |
| Installation Type | Screw-in Cartridge |
| Leakage | 0.3 cc/min |
| Max Working Pressure Bar | 210.000 |
| Max Working Pressure Psi | 3000.000 |
| Min Working Pressure Bar | 34.000 |
| Min Working Pressure Psi | 600.000 |
| Model Code 1 | RV1-10-I-0-30/10 |
| Number Of Housing Ports | 2 |
| Number Of Valve Ports | 2 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Direct acting |
| Port Type | Cartridge Only |
| Pressure Rating Bar | 250.000 |
| Product Height In | 1.000 |
| Product Height Mm | 25.400 |
| Product Length In | 3.330 |
| Product Length Mm | 84.582 |
| Product Width In | 1.000 |
| Product Width Mm | 25.400 mm |
| Proposition 65 | Cancer and Reproductive Harm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Buna-N |
| Special Features | None |
| Style | Poppet |
| Valve Torque Into Cavity | 47-54 Nm |
