Danfoss (Drives) 02-164865

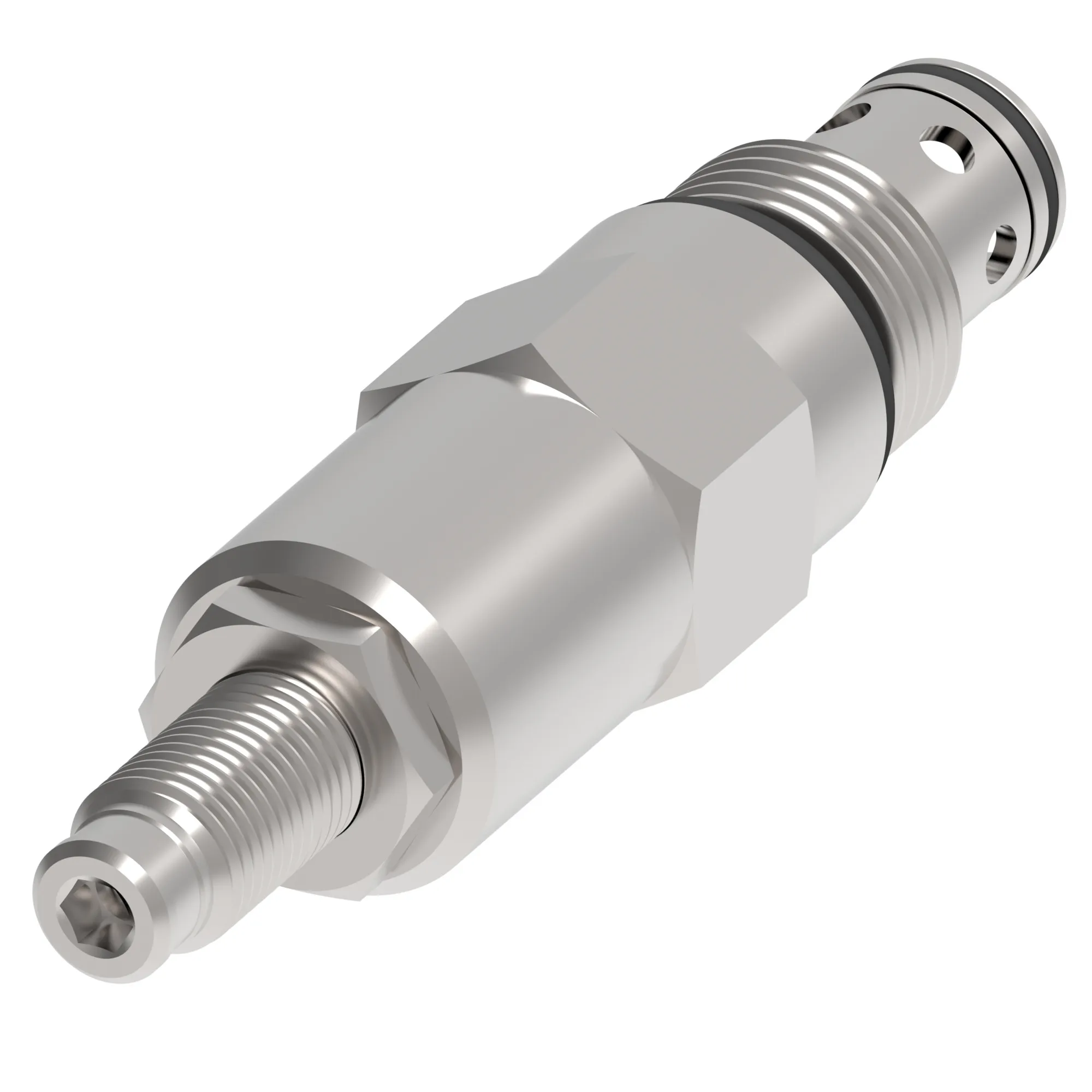

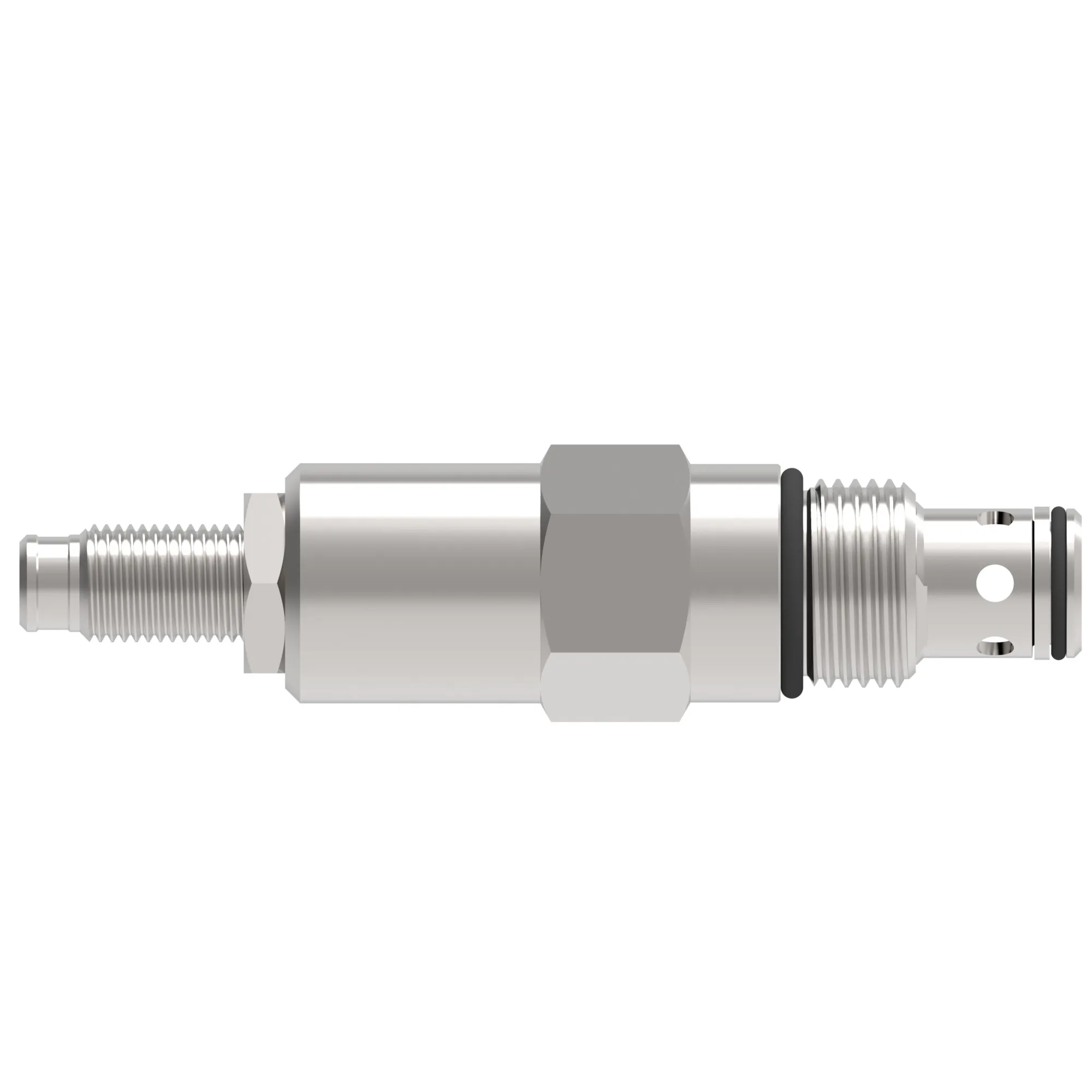

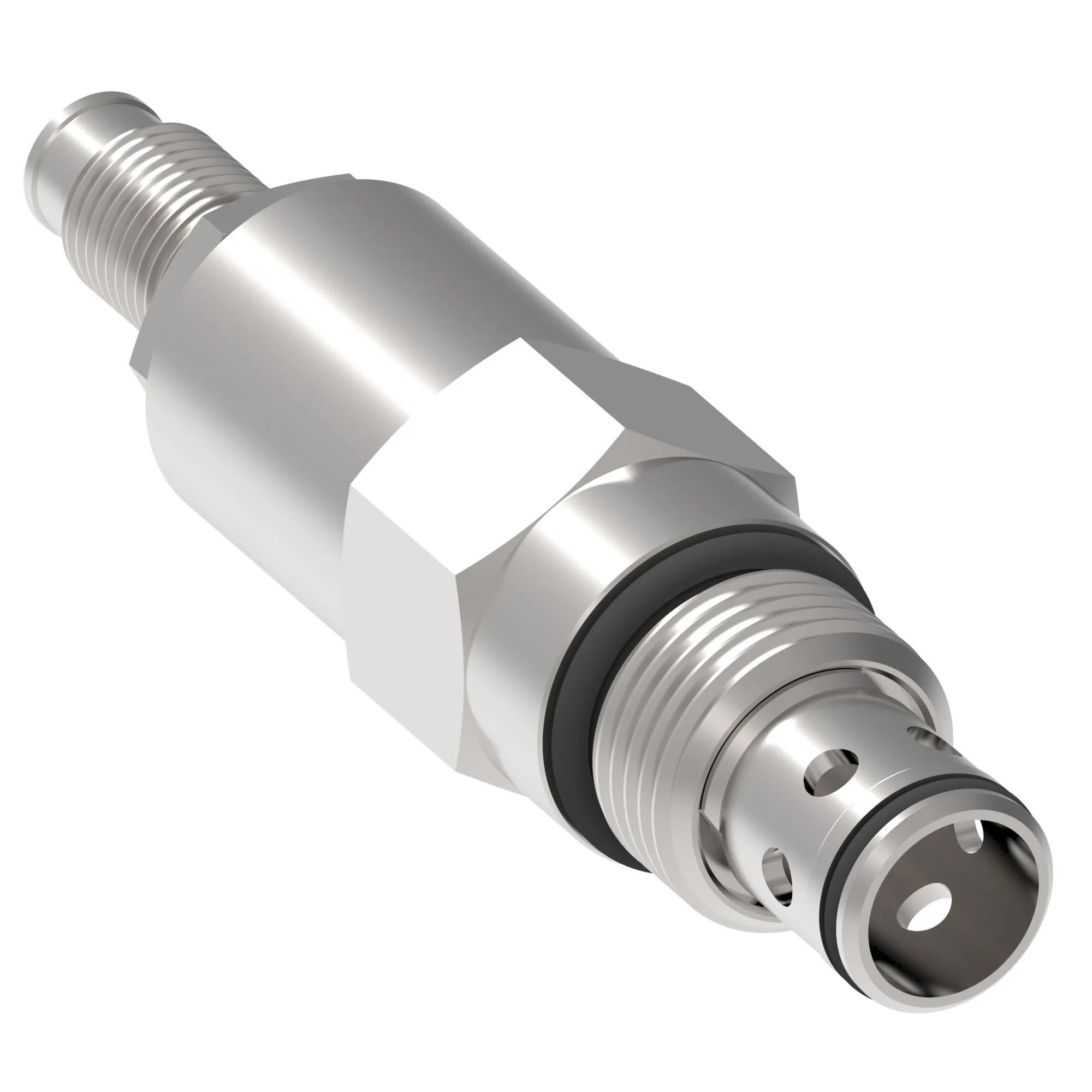

RV11-12-S-0-30/, RV11-12-S-0-30-XXX – 02-164865
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RV11-12-S-0-30/, RV11-12-S-0-30-XXX – 02-164865
Specification
| Adjustment Type | Screw |
|---|---|
| Brand | Danfoss |
| Cavity | C-12-2 |
| Factory Set Pressrue Bar | 113.500 |
| Flow Rate Gpm | 50.19 |
| Flow Rate Lpm | 190.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Pressure Relief Valve |
| Housing | No |
| Installation Type | Screw-in Cartridge |
| Leakage | 0.3 cc/min |
| Max Working Pressure Bar | 210.000 |
| Min Working Pressure Bar | 17.000 |
| Model Code 1 | RV11-12-S-0-30-XXX |
| Number Of Housing Ports | 2 |
| Number Of Valve Ports | 2 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Direct acting |
| Port Size | None |
| Port Type | Cartridge Only |
| Pressure Rating Bar | 350.000 |
| Product Height In | 1.250 |
| Product Height Mm | 31.750 |
| Product Length In | 4.640 |
| Product Length Mm | 117.856 |
| Product Width In | 1.250 |
| Product Width Mm | 31.750 mm |
| Proposition 65 | Cancer and Reproductive Harm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Buna-N |
| Special Features | None |
| Style | Spool |
| Valve Torque Into Cavity | 81-95 Nm |
