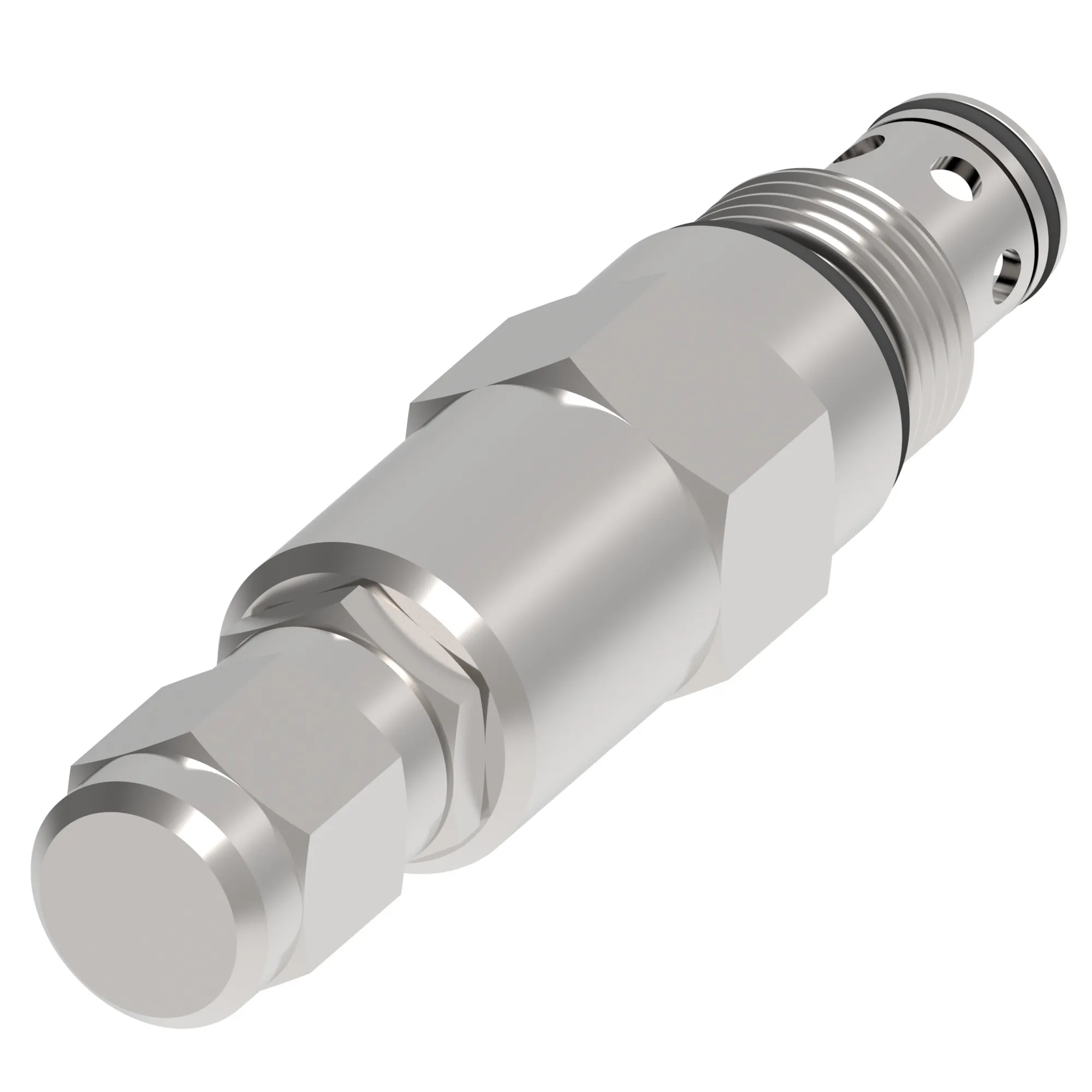

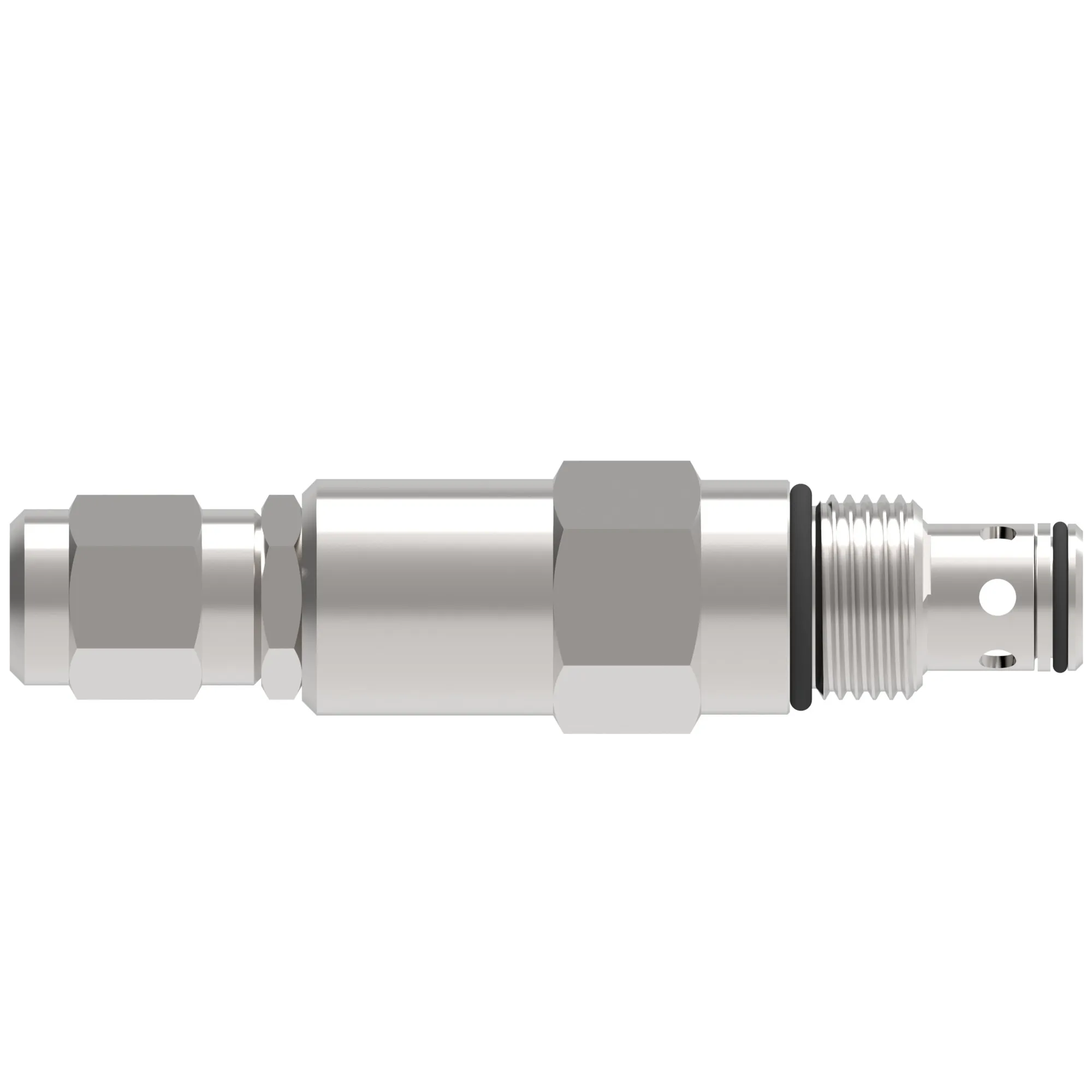

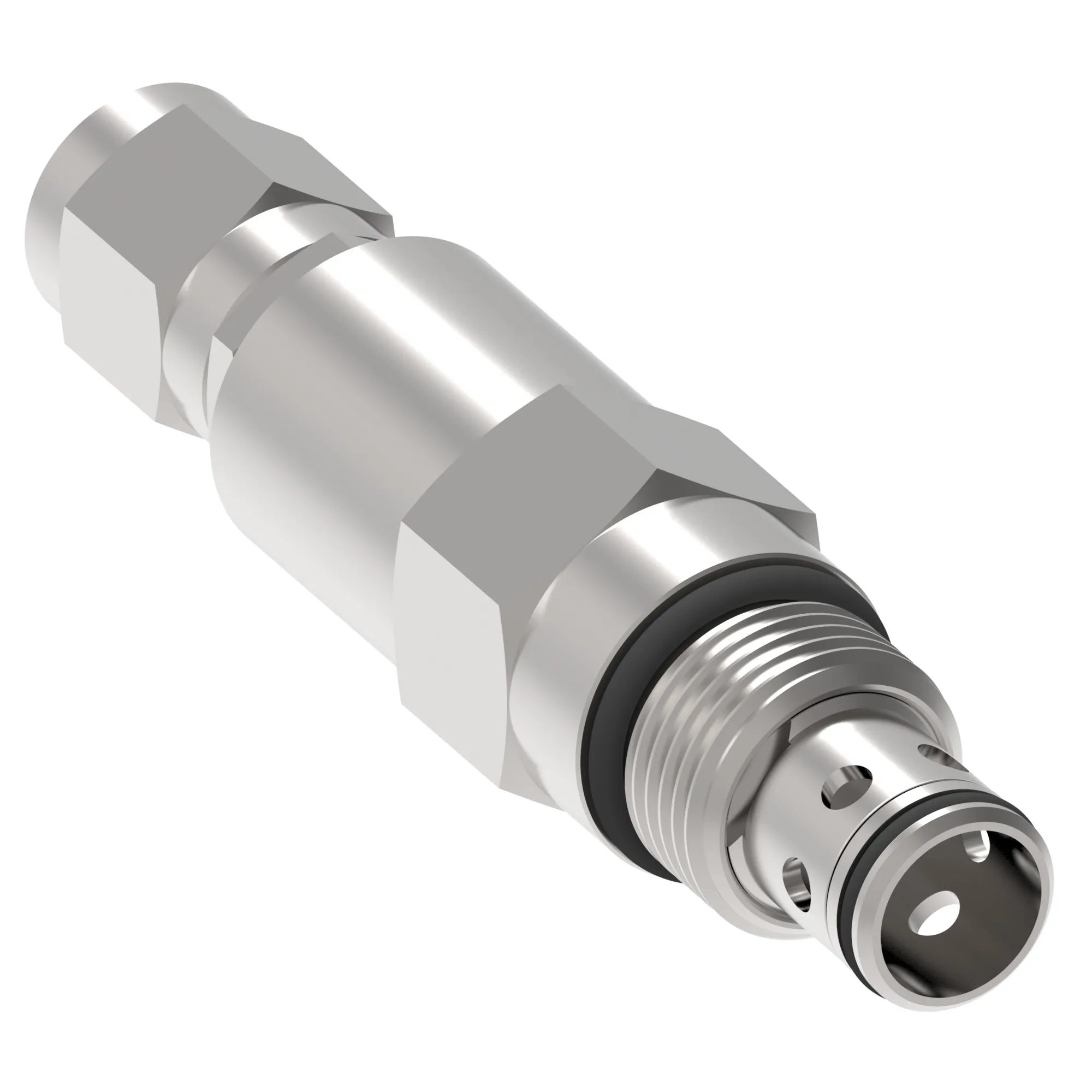

Danfoss (Drives) 02-164619
RV1-10-C-0-9/4.5, RV1-10-N-C-0-9-4.5 – 02-164619
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RV1-10-C-0-9/4.5, RV1-10-N-C-0-9-4.5 – 02-164619
Specification
| Adjustment Type | Cap |
|---|---|
| Brand | Vickers by Danfoss |
| Cavity | C-10-2 |
| Factory Set Pressrue Bar | 31.000 |
| Factory Set Pressrue Psi | 451.000 |
| Flow Rate Gpm | 8.00 |
| Flow Rate Lpm | 30.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Pressure Relief Valve |
| Housing | No |
| Housing Material | None |
| Installation Type | Screw-in Cartridge |
| Leakage | 0.3 cc/min |
| Max Working Pressure Bar | 62.000 |
| Max Working Pressure Psi | 901.000 |
| Min Working Pressure Bar | 7.000 |
| Min Working Pressure Psi | 102.000 |
| Model Code 1 | RV1-10-N-C-0-9-4.5 |
| Number Of Housing Ports | 2 |
| Number Of Valve Ports | 2 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Direct acting |
| Port Size | None |
| Port Type | Cartridge Only |
| Product Height In | 1.000 |
| Product Length In | 4.380 |
| Product Length Mm | 111.252 |
| Product Width In | 1.000 |
| Product Width Mm | 25.400 mm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Buna-N |
| Special Features | None |
| Style | Poppet |
