Description

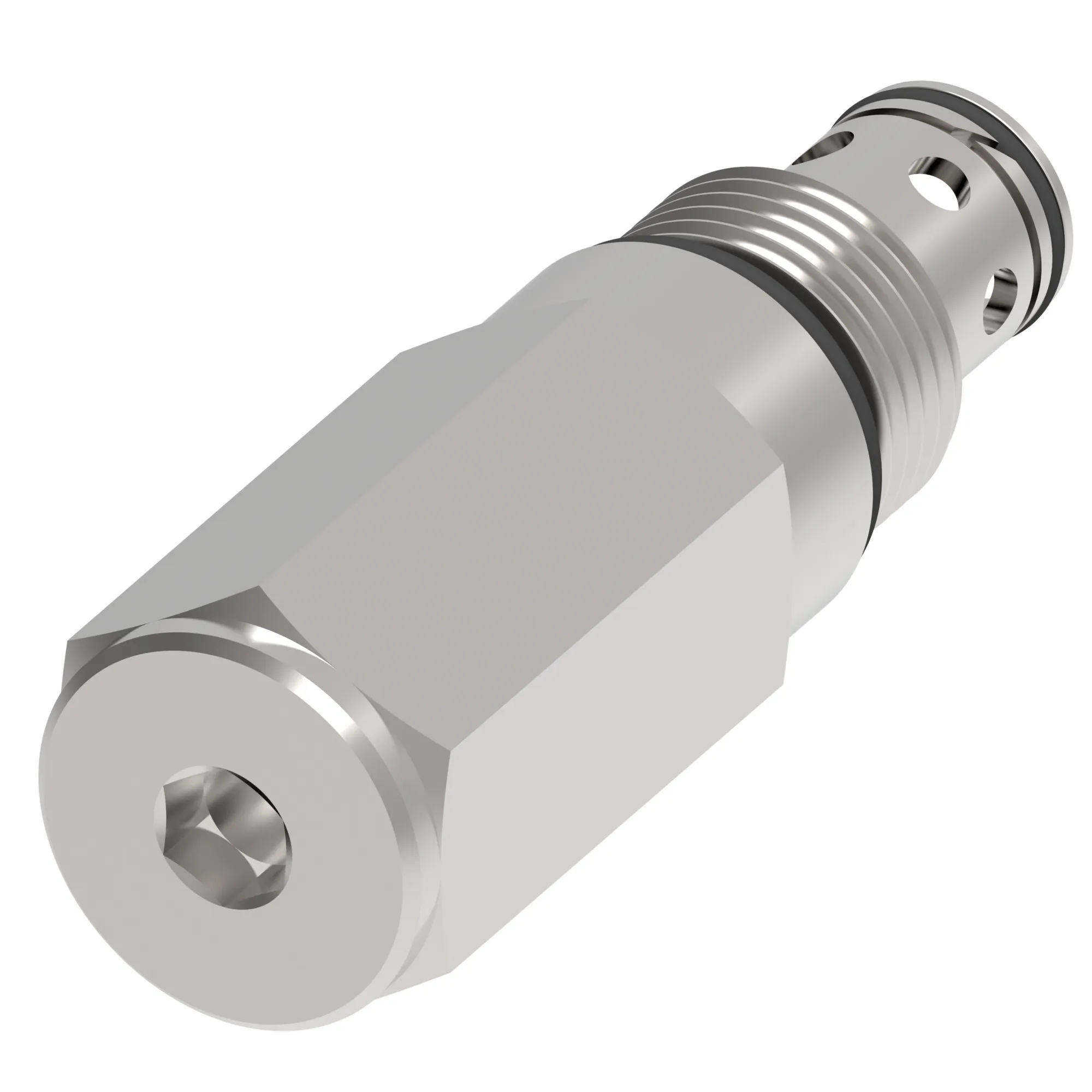

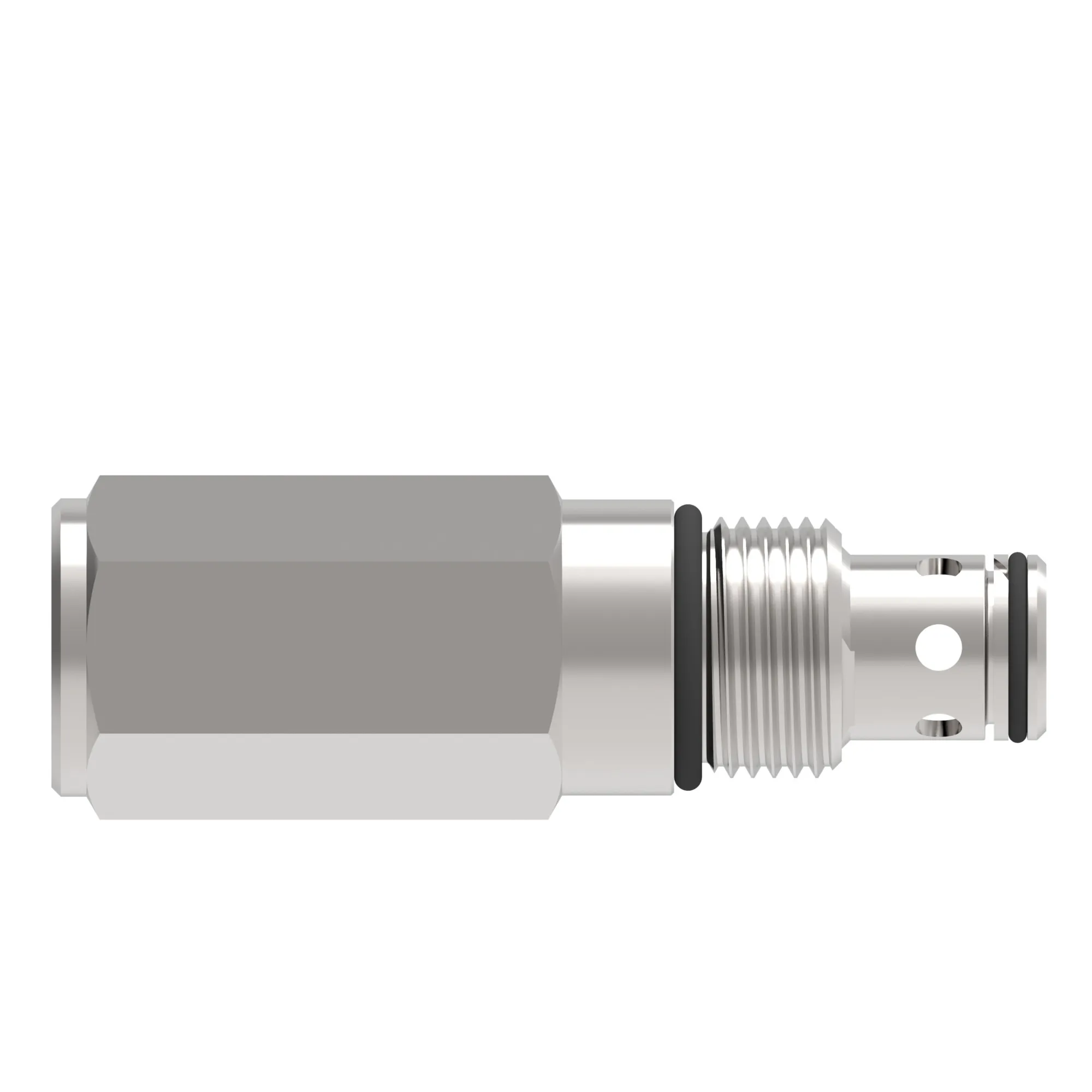

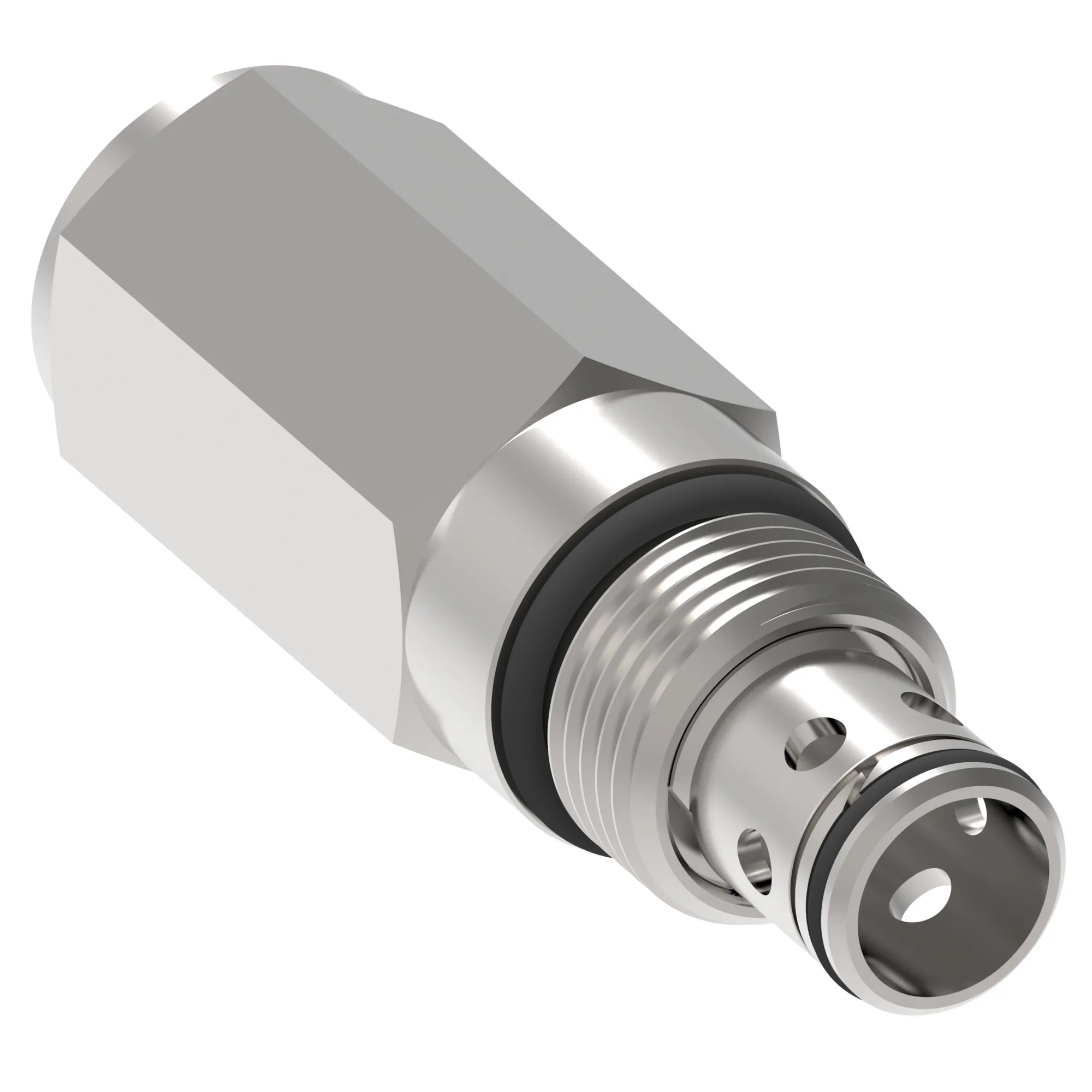

RV3-10V-I-0-3/, RV3-10-V-I-0-3-XXX – 02-164317
Specification
| Adjustment Type | Internal |
|---|---|
| Brand | Vickers by Danfoss |
| Cavity | C-10-2 |
| Factory Set Pressrue Bar | 10.000 |
| Factory Set Pressrue Psi | 150.000 |
| Flow Rate Gpm | 20.00 |
| Flow Rate Lpm | 76.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Pressure Relief Valve |
| Housing | No |
| Housing Material | None |
| Installation Type | Screw-in Cartridge |
| Leakage | 0.3 cc/min |
| Max Working Pressure Bar | 21.000 |
| Max Working Pressure Psi | 305.000 |
| Min Working Pressure Bar | 4.000 |
| Min Working Pressure Psi | 51.000 |
| Model Code 1 | RV3-10-V-I-0-3-XXX |
| Number Of Housing Ports | 2 |
| Number Of Valve Ports | 2 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Direct acting |
| Port Size | None |
| Port Type | Cartridge Only |
| Product Height In | 1.000 |
| Product Height Mm | 25.400 |
| Product Length In | 3.330 |
| Product Length Mm | 84.582 |
| Product Width In | 1.000 |
| Product Width Mm | 25.400 mm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Viton |
| Special Features | None |
| Style | Poppet |
