Danfoss (Drives) 02-163847

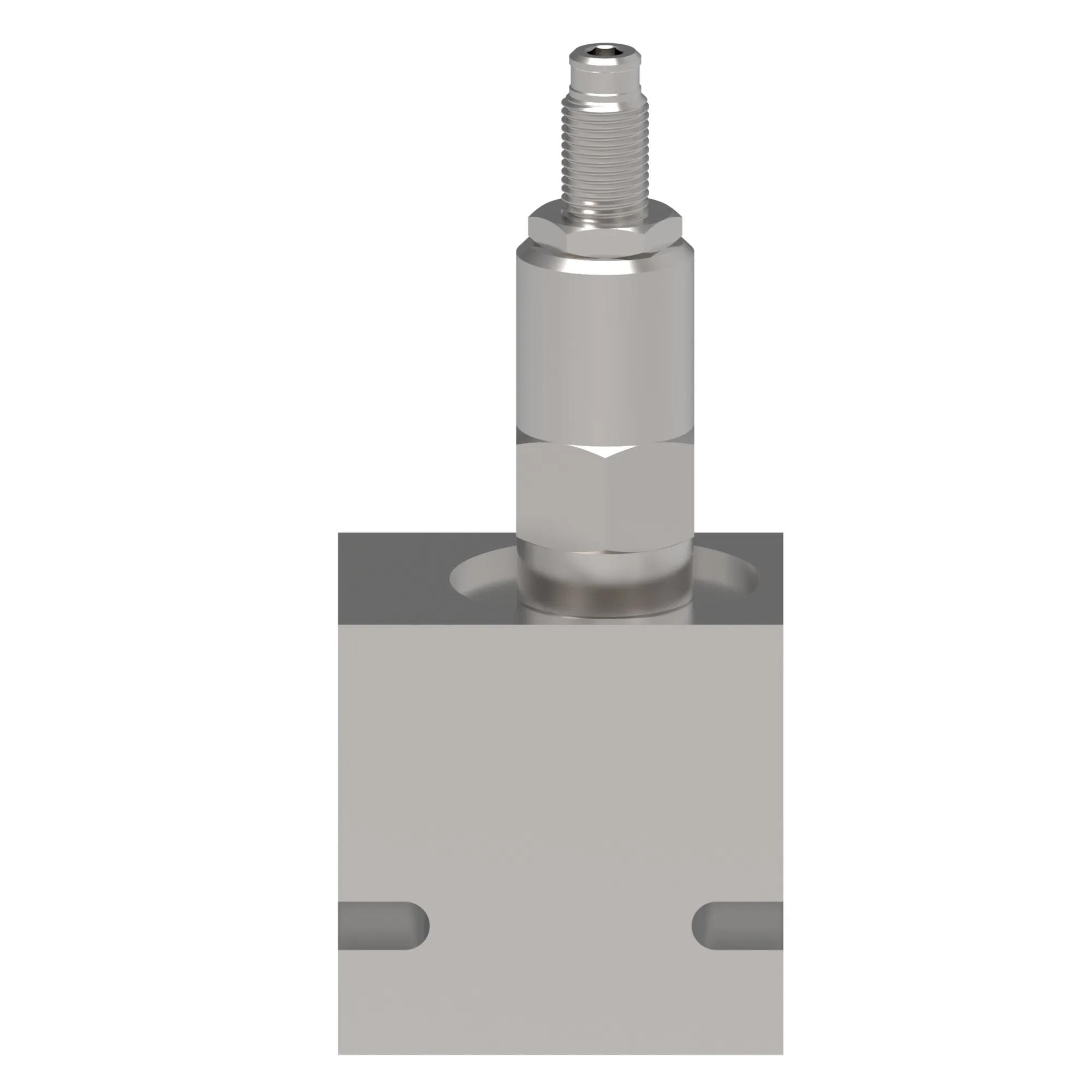

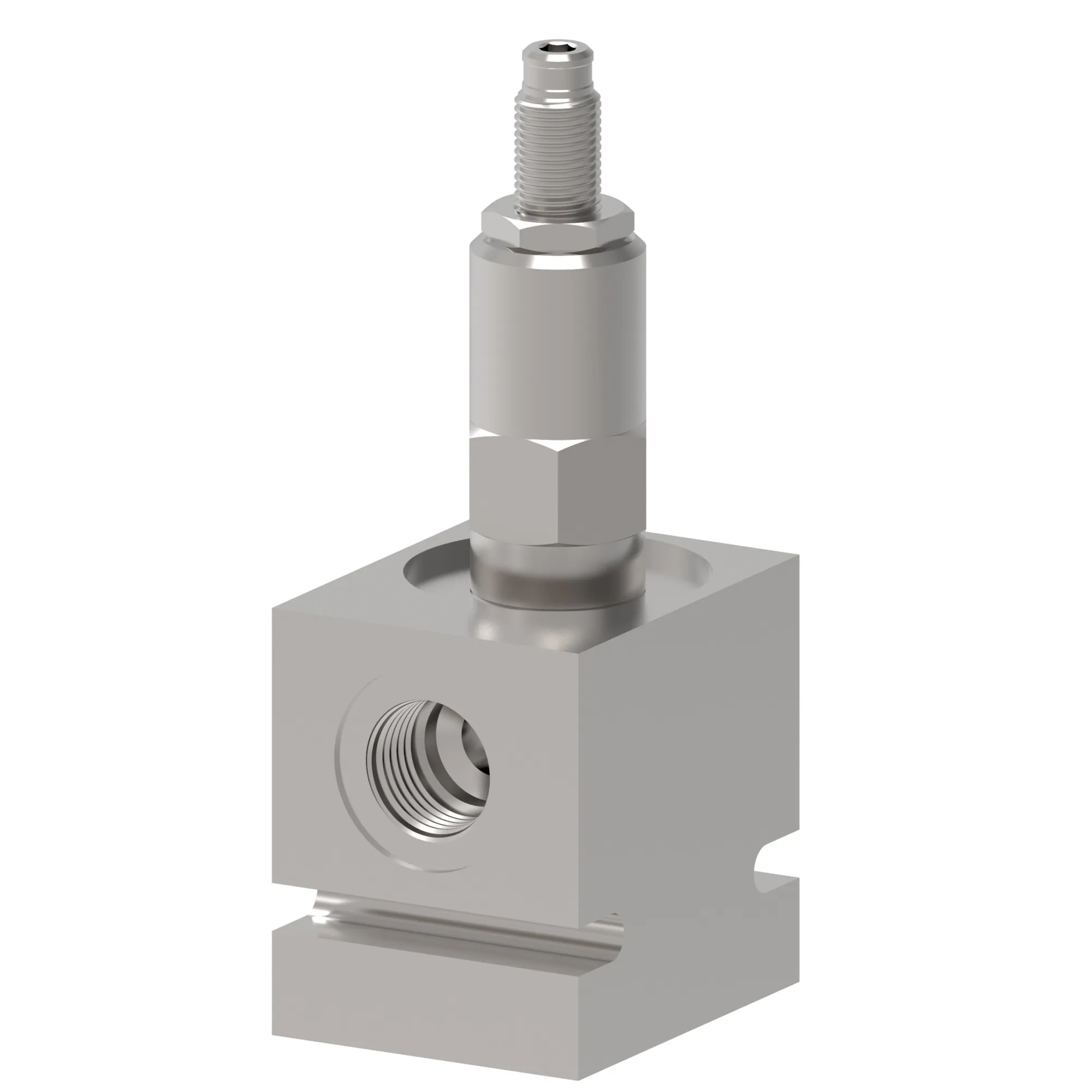

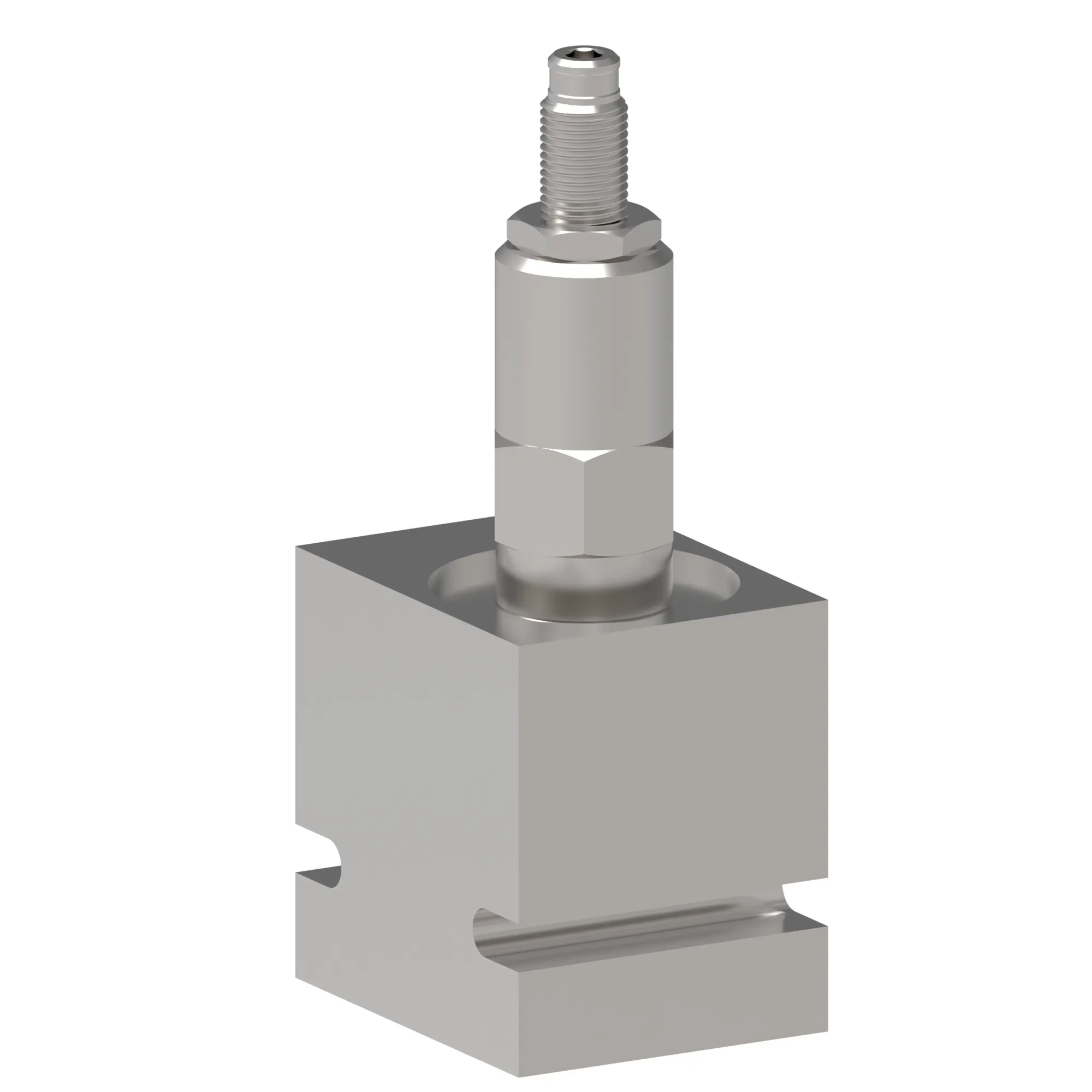

RV1-10-S-8T-18/, RV1-10-N-S-8T-18-XXX – 02-163847
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RV1-10-S-8T-18/, RV1-10-N-S-8T-18-XXX – 02-163847
Specification
| Adjustment Type | Screw |
|---|---|
| Brand | Vickers by Danfoss |
| Cavity | C-10-2 |
| Factory Set Pressrue Bar | 62.000 |
| Factory Set Pressrue Psi | 902.000 |
| Flow Rate Gpm | 8.00 |
| Flow Rate Lpm | 30.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Pressure Relief Valve |
| Housing | Yes |
| Housing Material | Steel |
| Installation Type | Screw-in Cartridge |
| Leakage | 0.3 cc/min |
| Max Working Pressure Bar | 124.000 |
| Max Working Pressure Psi | 1803.000 |
| Min Working Pressure Bar | 17.000 |
| Min Working Pressure Psi | 247.000 |
| Model Code 1 | RV1-10-N-S-8T-18-XXX |
| Number Of Housing Ports | 2 |
| Number Of Valve Ports | 2 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Direct acting |
| Port Size | 1/2″ |
| Port Type | SAE |
| Product Height In | 5.800 |
| Product Height Mm | 147.320 |
| Product Length In | 2.500 |
| Product Length Mm | 63.500 |
| Product Width In | 2.000 |
| Product Width Mm | 50.800 mm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Buna-N |
| Special Features | None |
| Style | Poppet |
