Danfoss (Drives) 02-163653
PTS1-10-6T-80, PTS1-10-6T-80 – 02-163653
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

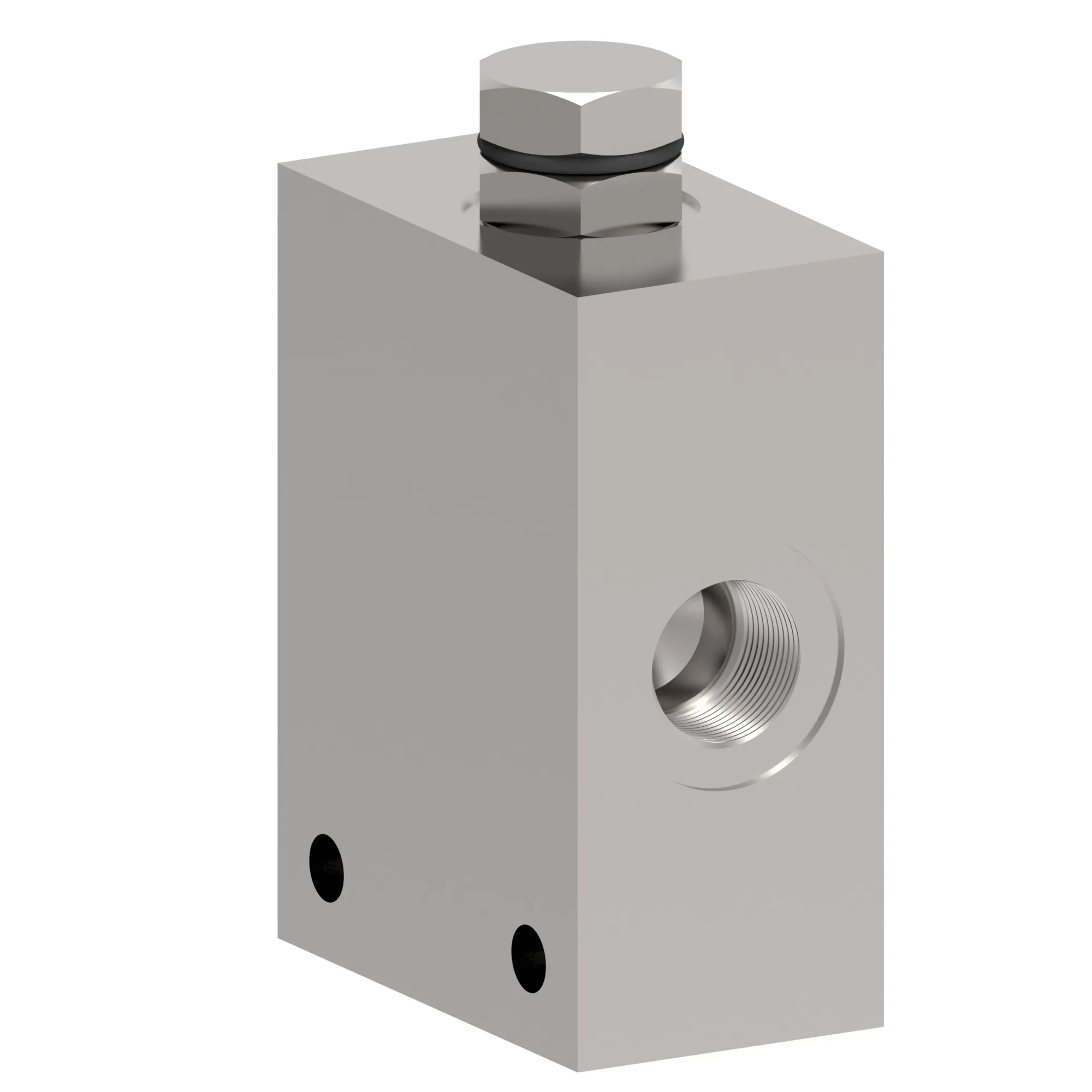

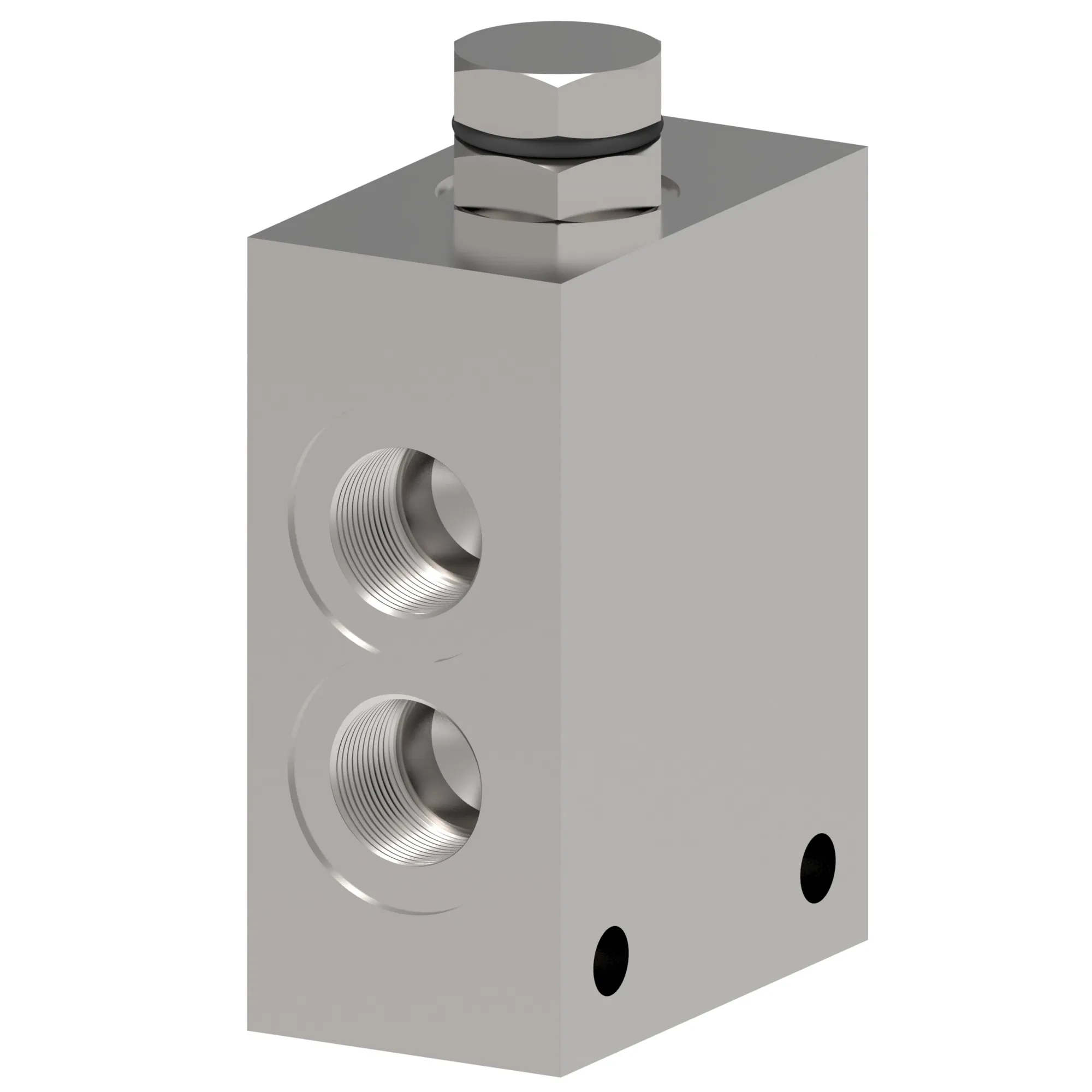

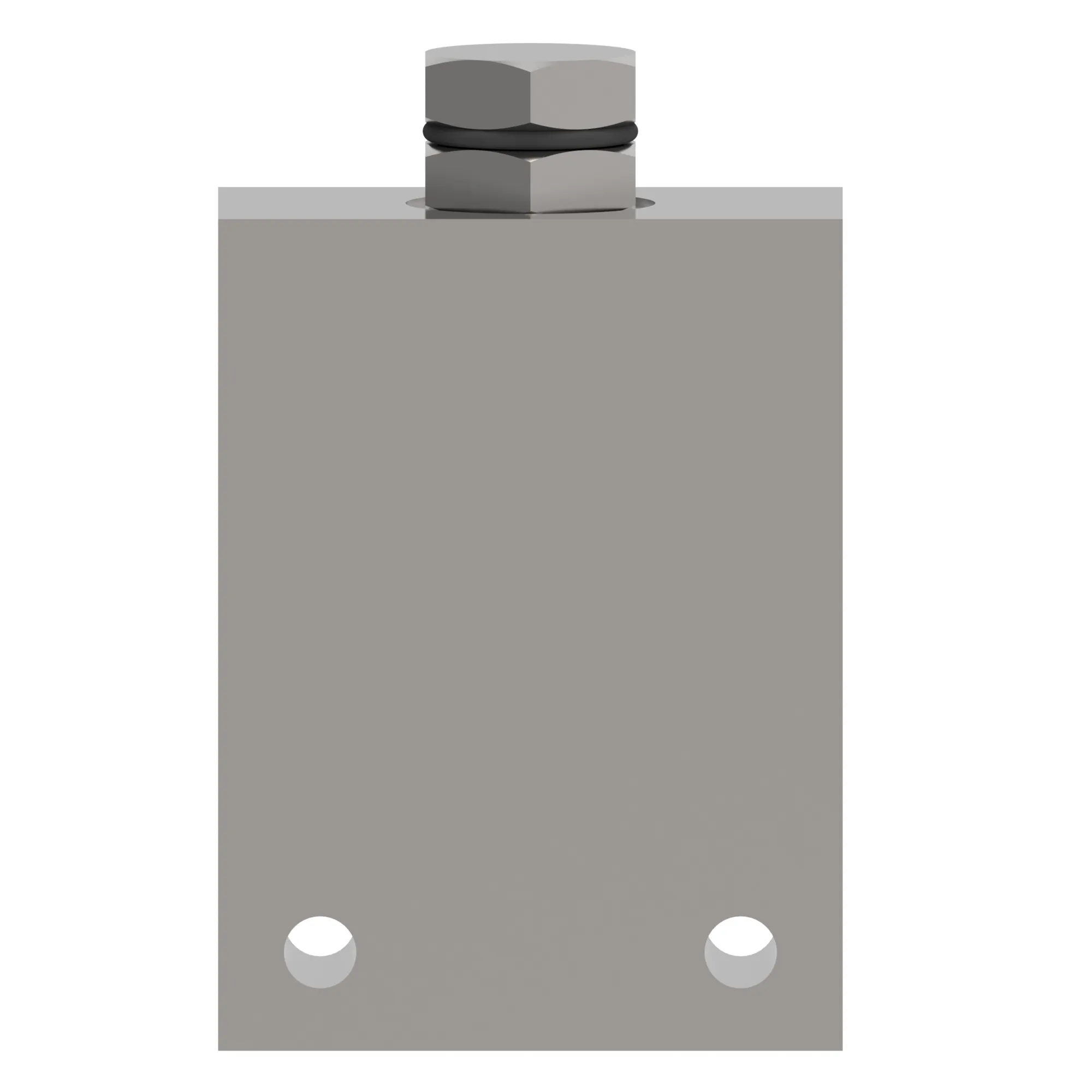

PTS1-10-6T-80, PTS1-10-6T-80 – 02-163653
Specification
| Actuation Option | None |
|---|---|
| Adjustment Type | None |
| Brand | Vickers by Danfoss |
| Cavity | C-10-4 |
| Detent Option | No |
| Flow Rate Gpm | 8.00 |
| Flow Rate Lpm | 30.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Pilot to shift valve |
| Housing | Yes |
| Housing Material | Aluminum |
| Installation Type | Screw-in Cartridge |
| Leakage | 164 cc/min |
| Model Code 1 | PTS1-10-6T-80 |
| Number Of Housing Ports | 4 |
| Number Of Valve Ports | 4 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Pilot operated |
| Pilot Pressure Setting Bar | 80.00 |
| Port Size | 3/8″ |
| Port Type | SAE |
| Pressure Rating Bar | 210.00 |
| Pressure Rating Psi | 3000.00 |
| Product Height In | 4.250 |
| Product Height Mm | 107.950 |
| Product Length In | 3.000 |
| Product Length Mm | 76.200 |
| Product Width In | 2.000 |
| Product Width Mm | 50.800 mm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Buna-N |
| Style | 4-Way 2-Position |
| Torque Into Aluminium Cavity | 47-54 Nm |
| Torque Into Steel Cavity | 68-75 Nm |
