Danfoss (Drives) 02-162457

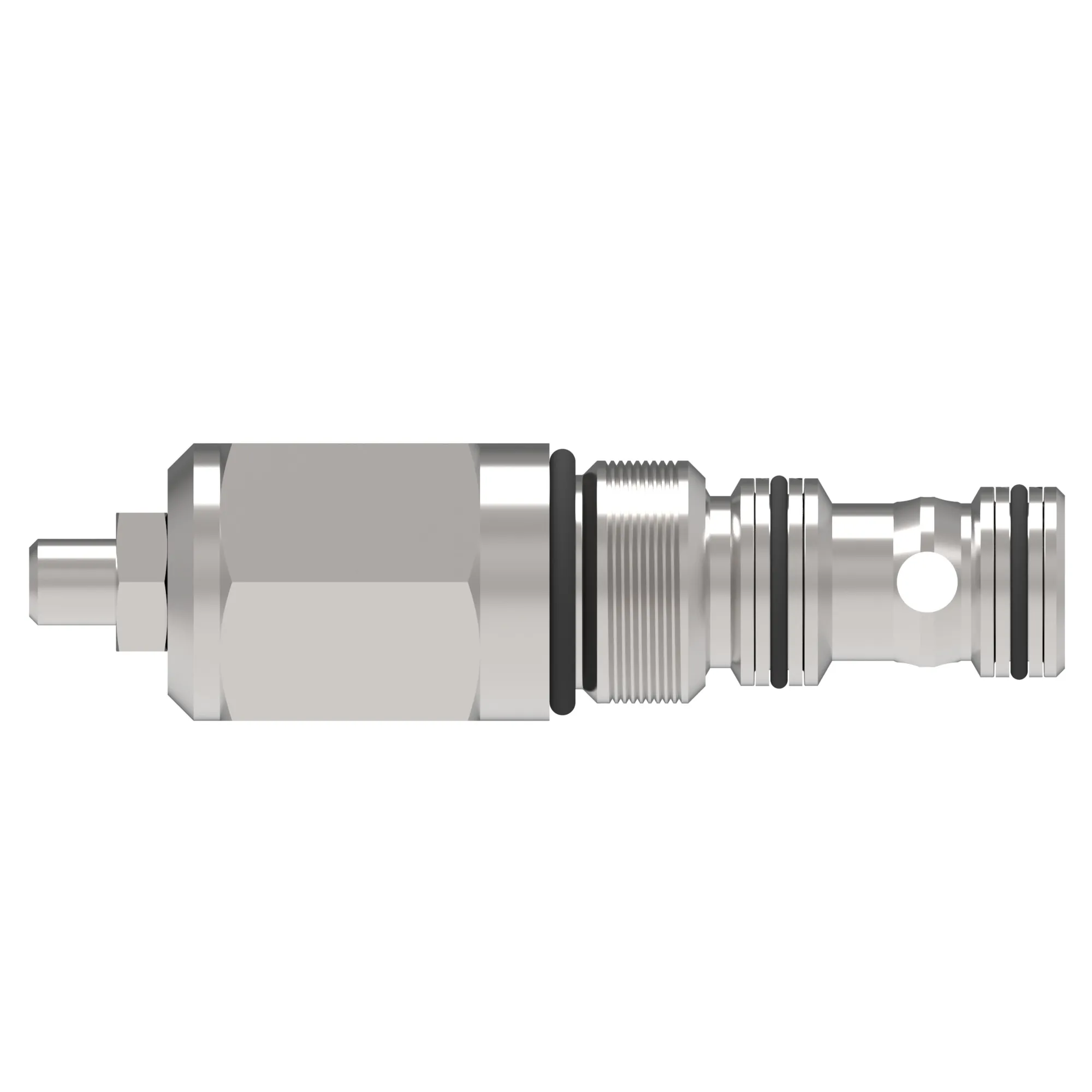

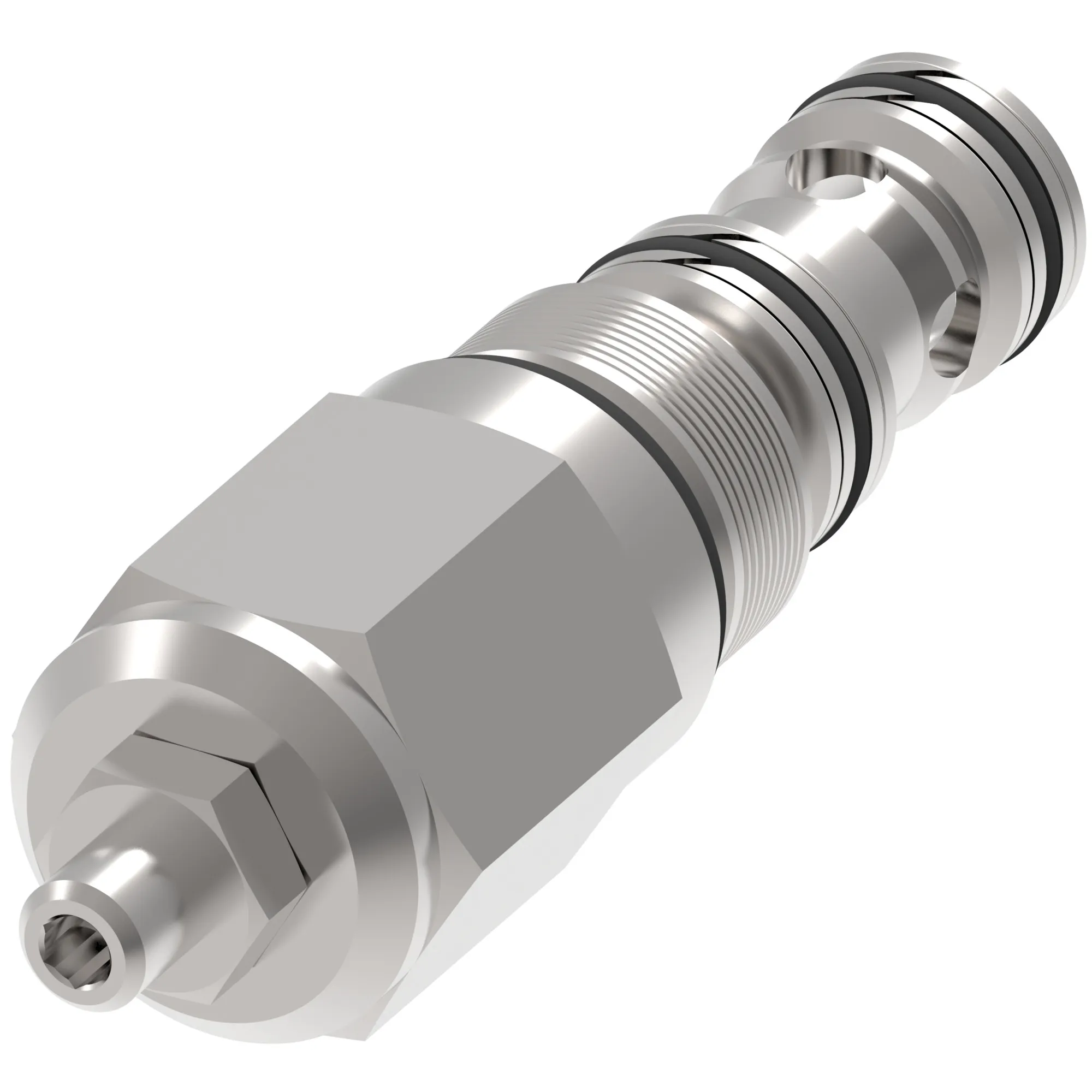

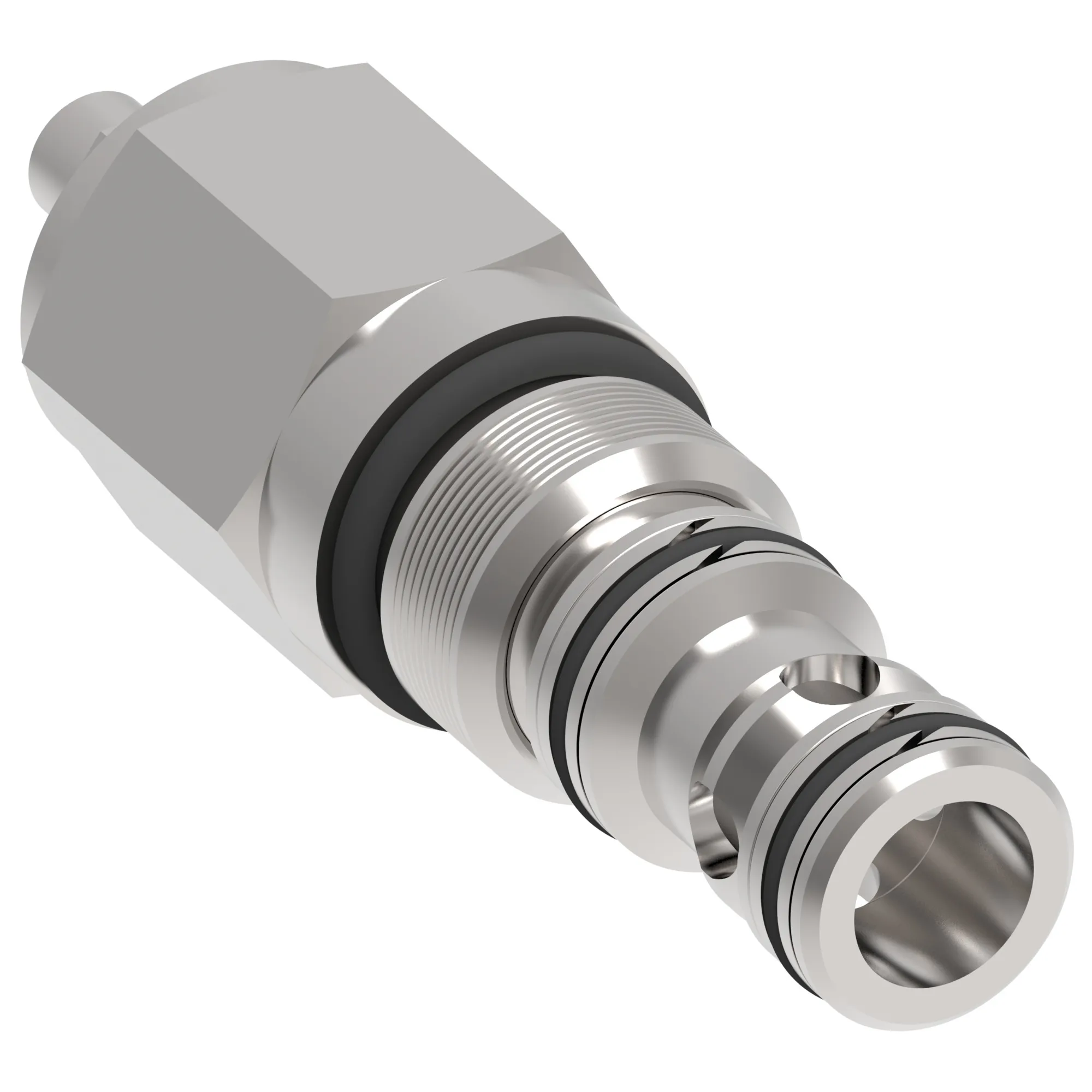

DPS2-10-P-S-0-40 DIFF PRESS SENSING CART, DPS2-10-P-S-0-40 – 02-162457
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DPS2-10-P-S-0-40 DIFF PRESS SENSING CART, DPS2-10-P-S-0-40 – 02-162457
Specification
| Brand | Vickers by Danfoss |
|---|---|
| Cavity | C-10-3S |
| Flow Rate Gpm | 16.000 |
| Flow Rate Lpm | 60.00 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Differential Pressure Sensing |
| Housing | No |
| Installation Type | Screw-in Cartridge |
| Leakage | 82 cc/min |
| Model Code 1 | DPS2-10-P-S-0-40 |
| Normal Function | Spool, Normally Closed, LS |
| Number Housing Ports | 3 |
| Number Of Valve Port | 3 |
| Operating Temp | -40 C to 120 C (-40 to 248 F) |
| Operation | Differential Pressure |
| Port Type | Cartridge Only |
| Pressure Rating Bar | 290.00 |
| Pressure Rating Psi | 4200.00 |
| Product Height In | 1.000 |
| Product Height Mm | 25.400 |
| Product Length In | 3.750 |
| Product Length Mm | 95.250 |
| Product Width In | 1.000 |
| Product Width Mm | 25.400 mm |
| Proposition 65 | Cancer and Reproductive Harm |
| Rec Filtration Level | 18/16/13 |
| Seal Type | Buna-N |
| Special Features | None |
| Spring | 40 psi |
| Stroke Adjustment | Screw |
| Style | Spool |
