Danfoss (Drives) 02-161254

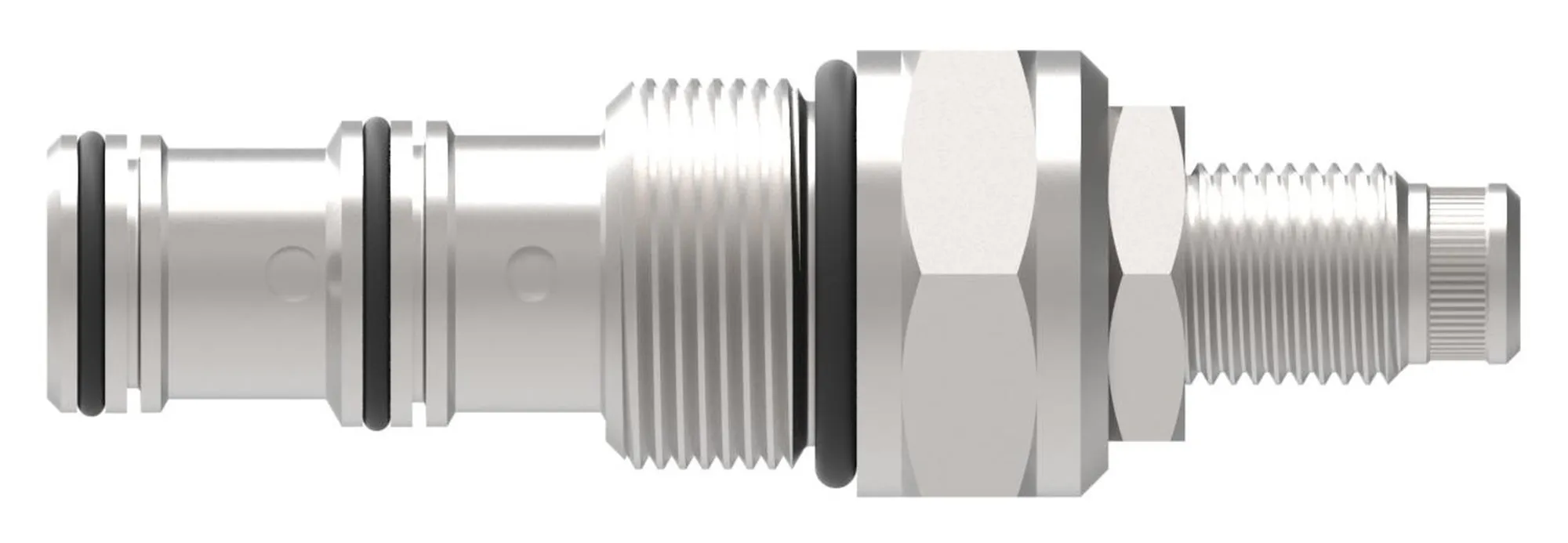

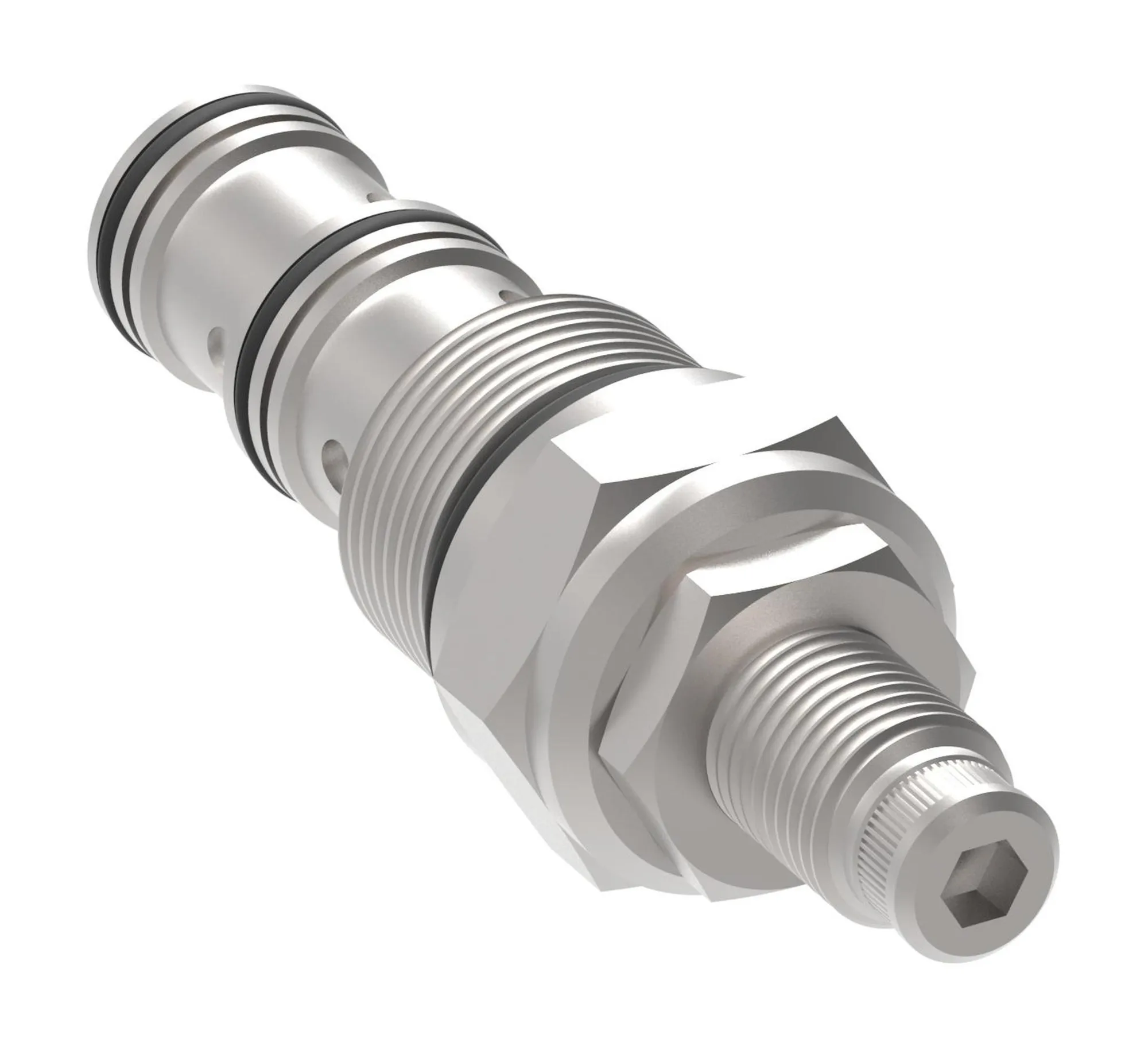

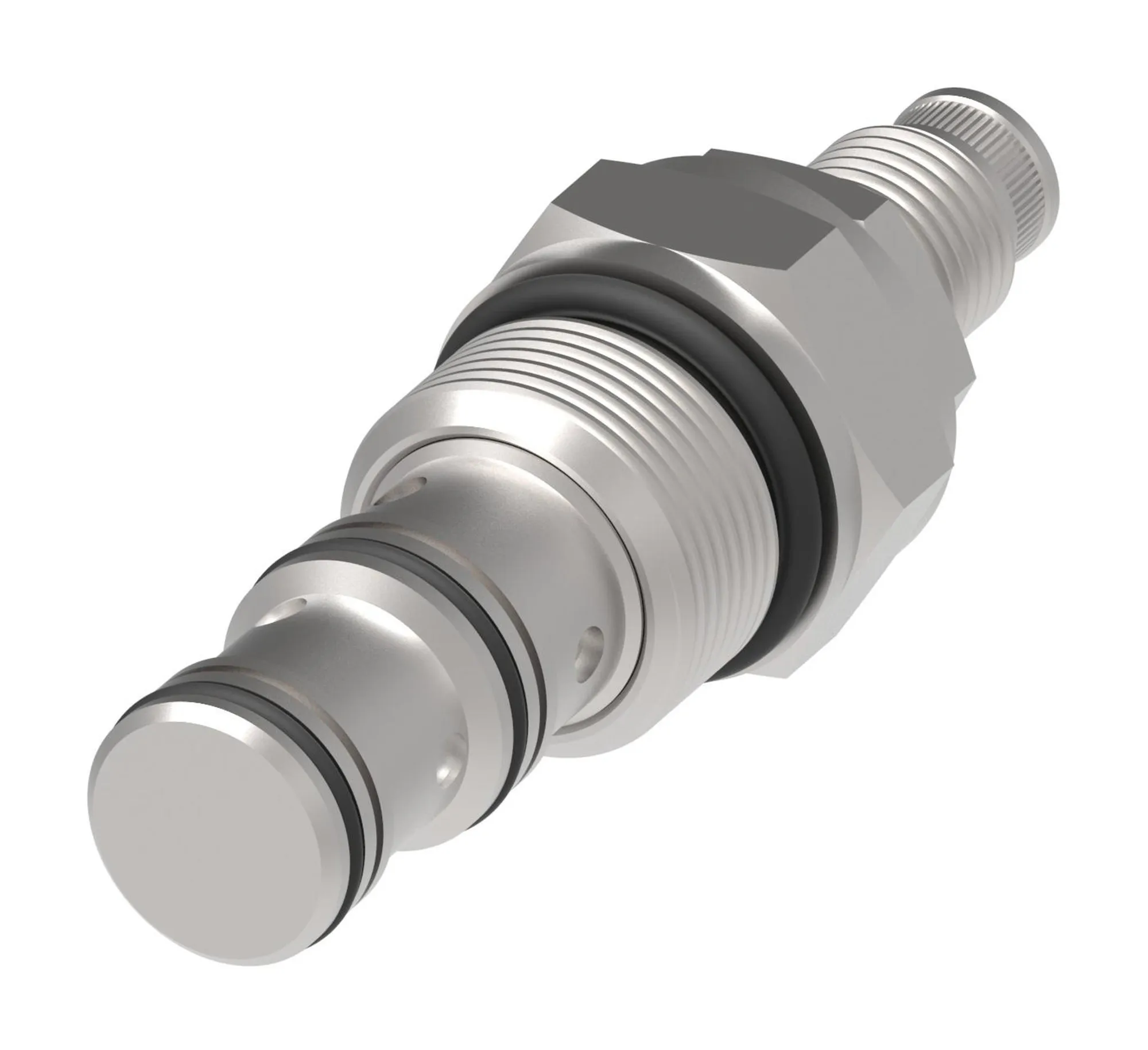

PUV3-10-S-6T-85-30/, PUV3-10-S-6T-85-30-XXX – 02-161254
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PUV3-10-S-6T-85-30/, PUV3-10-S-6T-85-30-XXX – 02-161254
Specification
| Adjustment Type | Screw |
|---|---|
| Brand | Vickers by Danfoss |
| Cavity | C-10-3 |
| Factory Set Pressrue Bar | 103.000 |
| Factory Set Pressrue Psi | 1504.000 |
| Flow Rate Gpm | 1.10 |
| Flow Rate Lpm | 4.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Unloading Valve |
| Housing | Yes |
| Housing Material | Steel |
| Installation Type | Screw-in Cartridge |
| Leakage | 82 cc/min |
| Max Working Pressure Bar | 210.000 |
| Max Working Pressure Psi | 3053.000 |
| Min Working Pressure Bar | 103.000 |
| Min Working Pressure Psi | 1498.000 |
| Model Code 1 | PUV3-10-S-6T-85-30-XXX |
| Number Of Housing Ports | 3 |
| Number Of Valve Ports | 3 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Pilot operated |
| Port Size | 3/8″ |
| Port Type | SAE |
| Product Height In | 4.500 |
| Product Height Mm | 114.300 |
| Product Length In | 2.970 |
| Product Length Mm | 75.438 |
| Product Width In | 1.970 |
| Product Width Mm | 50.038 mm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Buna-N |
| Special Features | None |
| Style | Poppet |
