Danfoss (Drives) 02-161114
SPC2-10-P-8H-25, SPC2-10-P-A-8H-25 – 02-161114
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

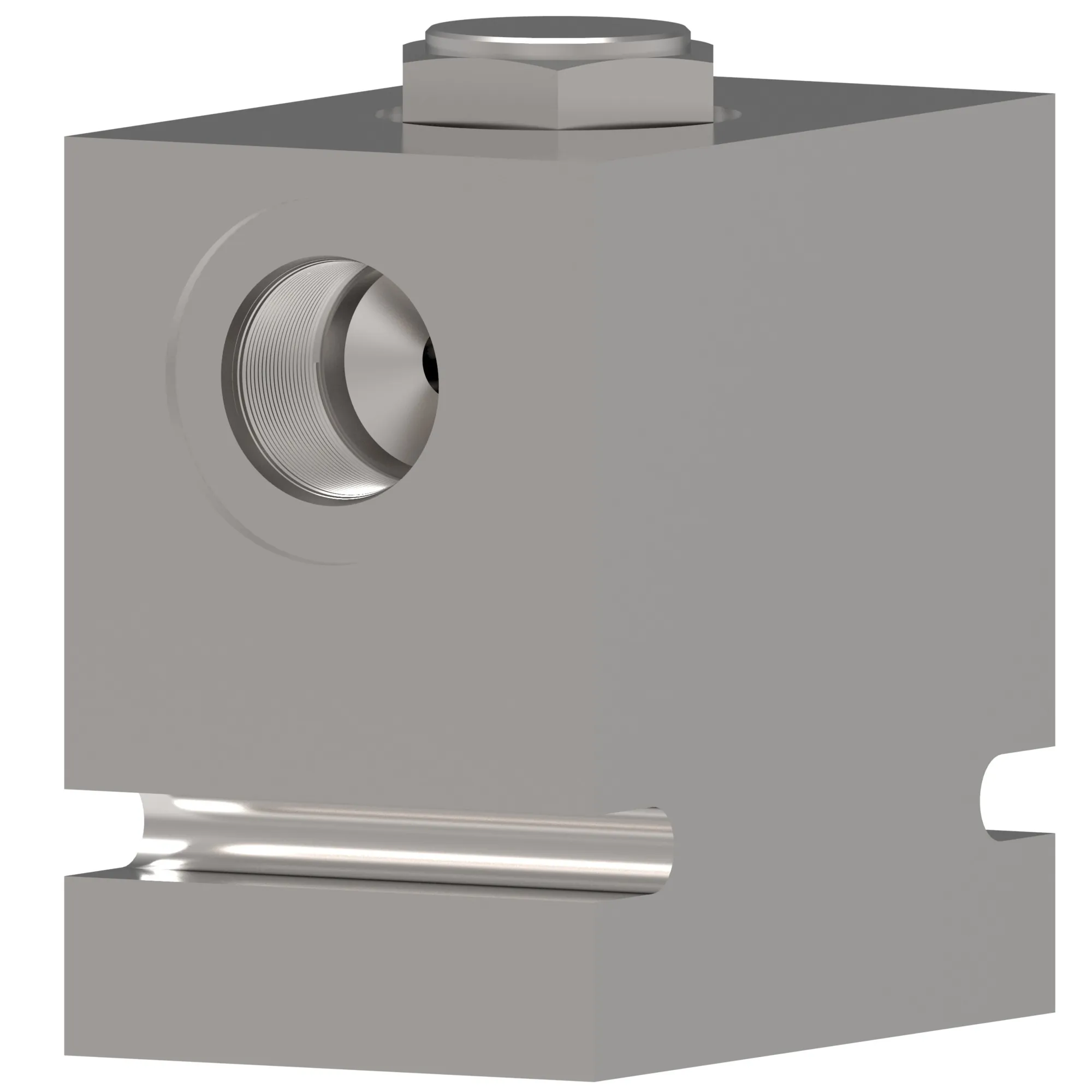

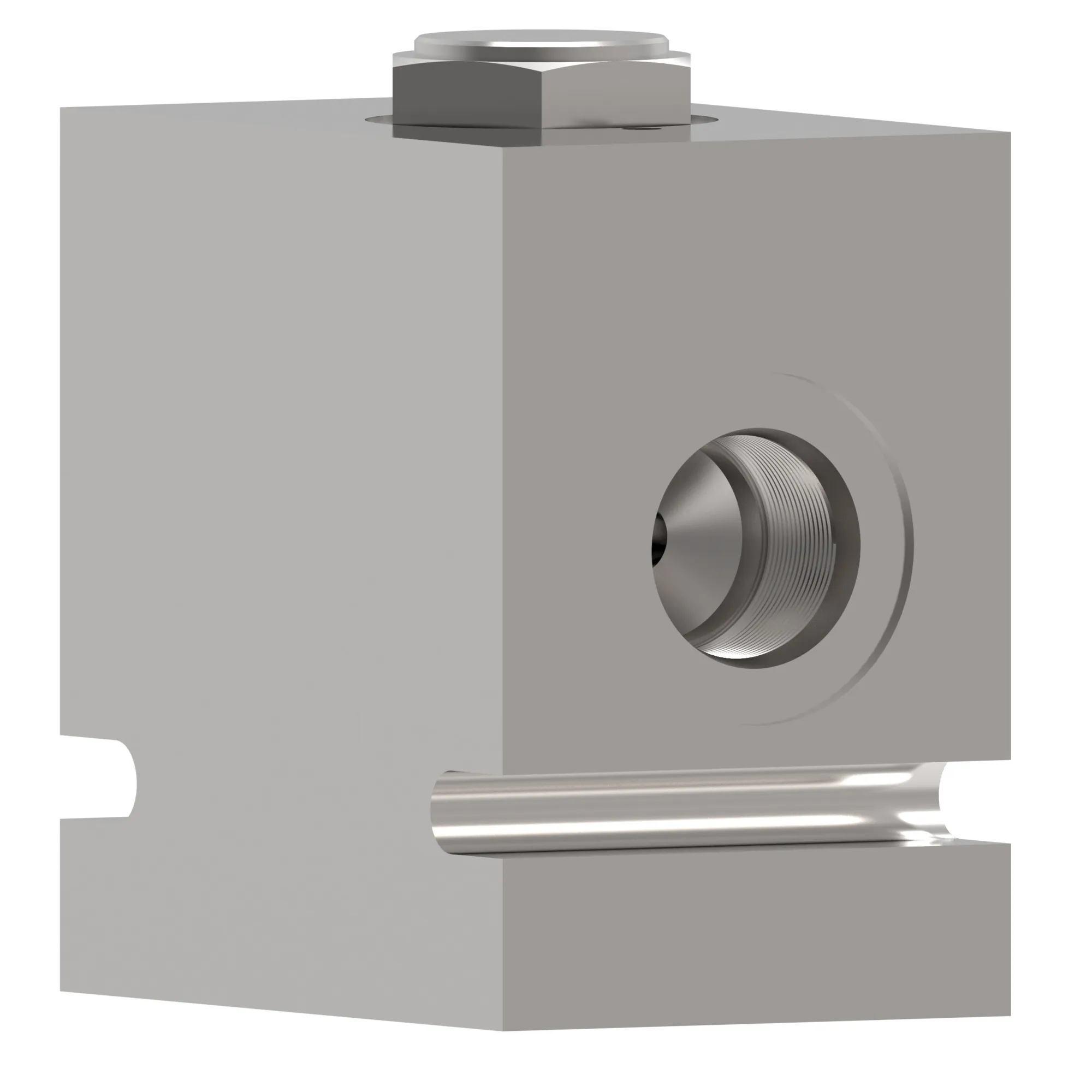

SPC2-10-P-8H-25, SPC2-10-P-A-8H-25 – 02-161114
Specification
| Brand | Vickers by Danfoss |
|---|---|
| Cavity | C-10-3 |
| Cracking Pressure Bar | 0.70000000 |
| Cracking Pressure Psi | 9.00000000 |
| Flow Rate Gpm | 20.00 |
| Flow Rate Lpm | 76.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Pilot Operated Check Valve |
| Housing | Yes |
| Housing Material | Aluminum |
| Installation Type | Screw-in Cartridge |
| Leakage | 0.25 cc/min |
| Model Code 1 | SPC2-10-P-A-8H-25 |
| Number Of Housing Ports | 3 |
| Number Of Valve Ports | 3 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Pilot operated |
| Pilot Piston Seal | No |
| Pilot Ratio | 4:1 |
| Port Size | 1/2″ |
| Port Type | SAE |
| Pressure Rating Bar | 350.00 |
| Pressure Rating Psi | 5000.00 |
| Product Height In | 3.280 |
| Product Height Mm | 83.312 |
| Product Length In | 2.970 |
| Product Length Mm | 75.438 |
| Product Width In | 1.970 |
| Product Width Mm | 50.038 mm |
| Recommended Filtration Level | 18/13 |
| Seal Type | Buna-N |
| Special Features | None |
| Style | Poppet |
| Valve Torque Into Cavity | 47-54 Nm |
