Danfoss (Drives) 02-160627

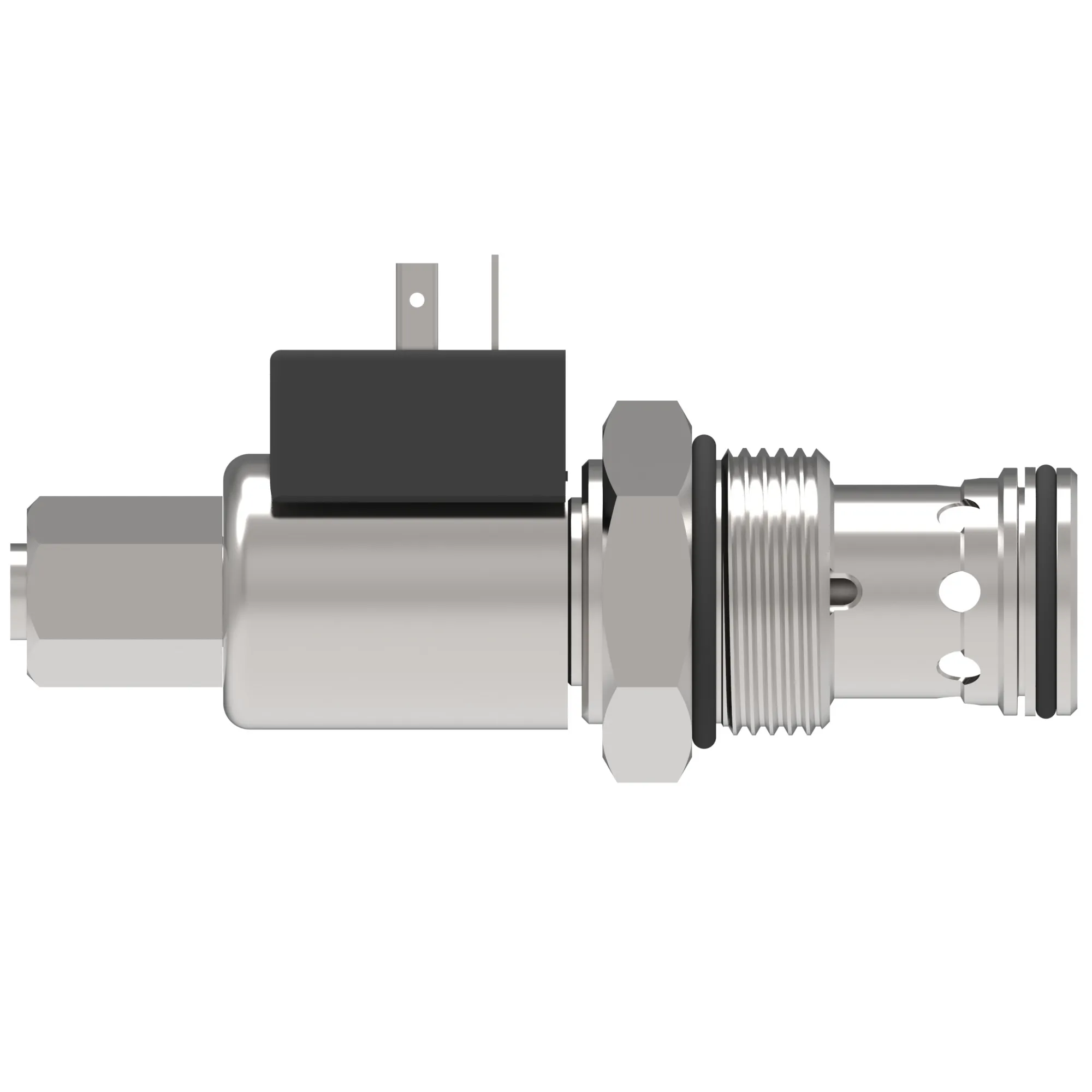

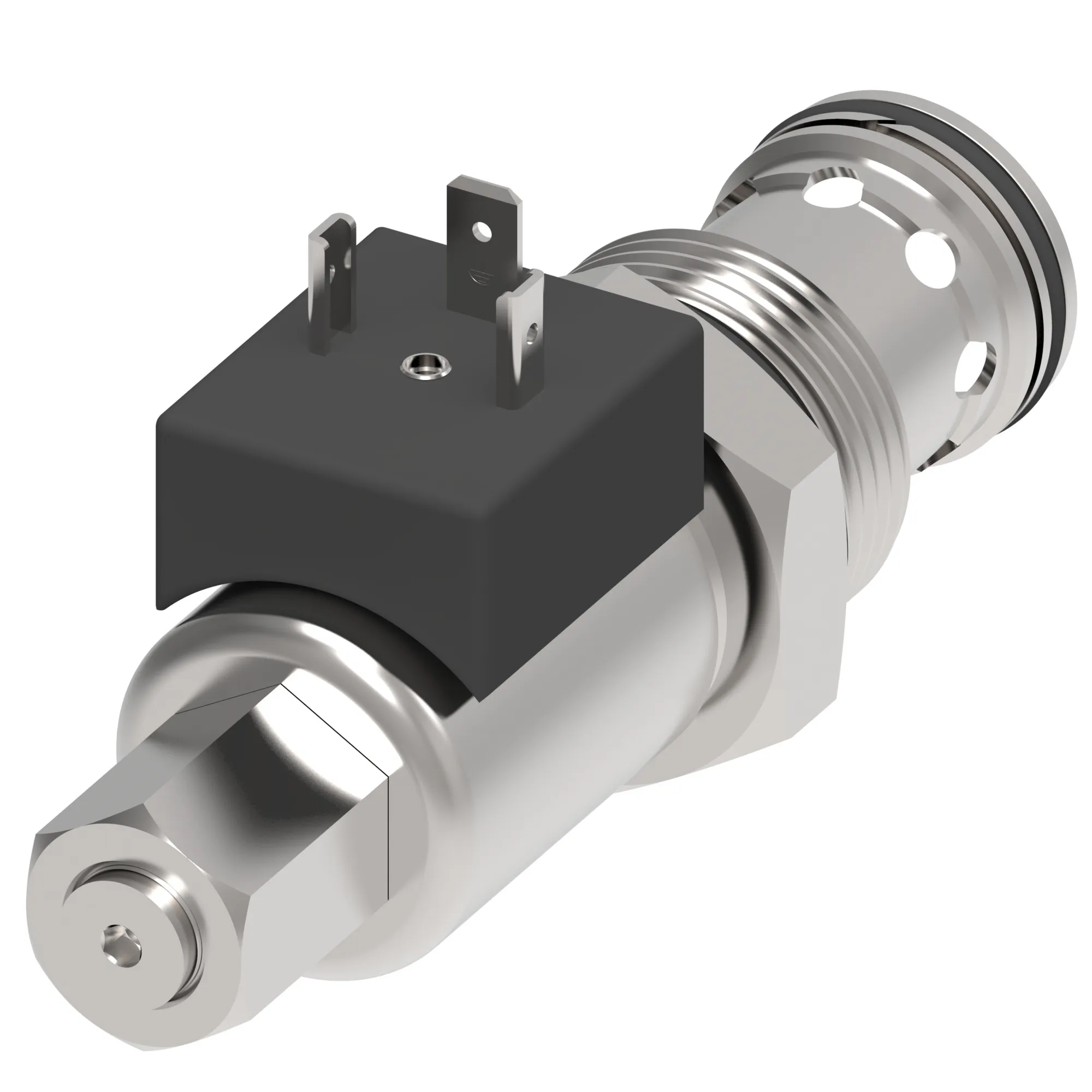

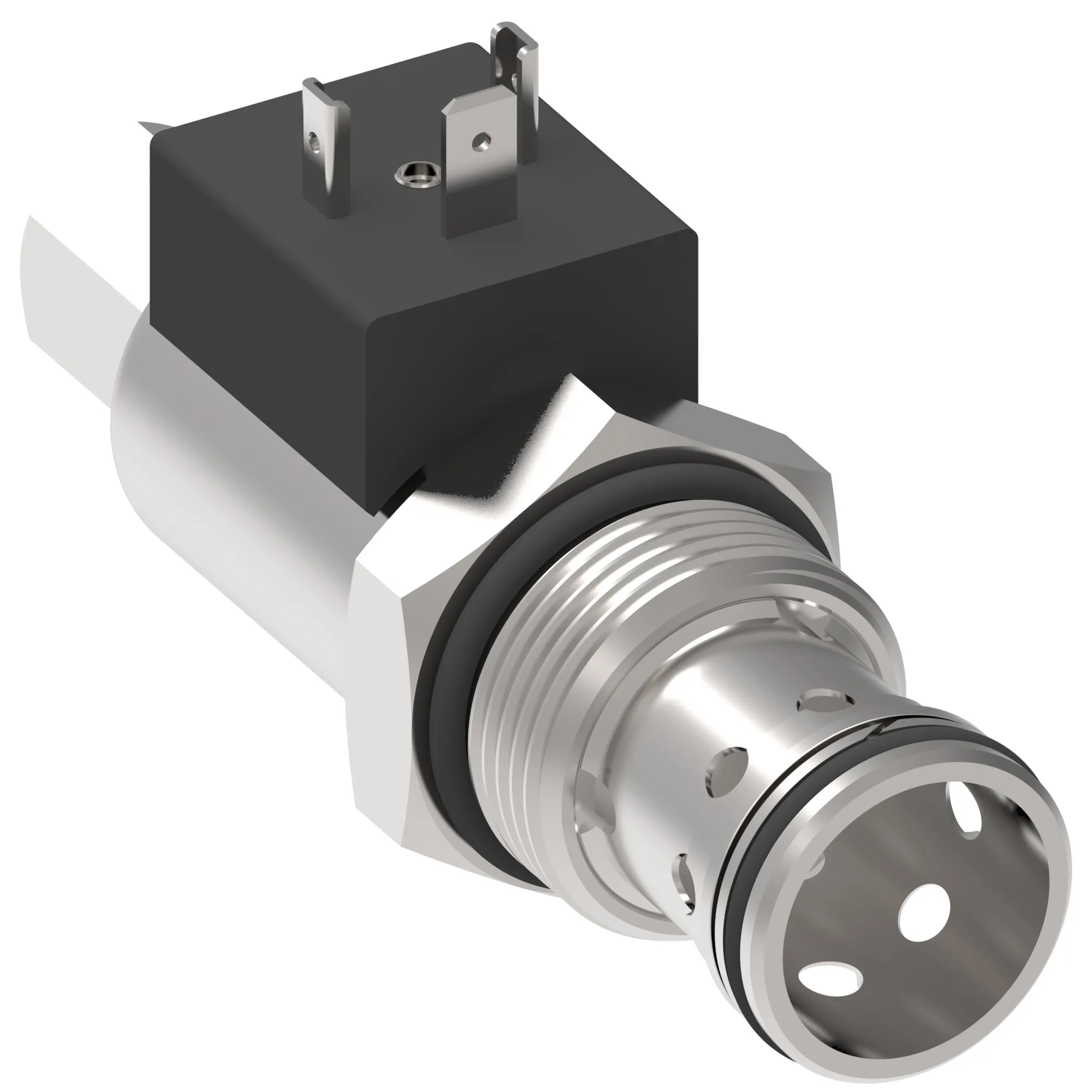

ERV1-16-26.00-0-24DG, ERV1-16-26.00-0-24D-G – 02-160627
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
ERV1-16-26.00-0-24DG, ERV1-16-26.00-0-24D-G – 02-160627
Specification
| Brand | Vickers by Danfoss |
|---|---|
| Cavity | C-16-2 |
| Coil Series | J Series |
| Coil Termination | DIN43650-A |
| Diode | No |
| Factory Set Pressure Bar | 179.140 |
| Factory Set Pressure Psi | 2605.00 |
| Flow Rate Gpm | 35.00 |
| Flow Rate Lpm | 132.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Proportional Pressure Relief |
| Housing | No |
| Installation Type | Screw-in Cartridge |
| Minimum Working Pressure Bar | 4.00 |
| Minimum Working Pressure Psi | 51.00 |
| Model Code 1 | ERV1-16-26.00-0-24D-G |
| Number Of Housing Ports | 2 |
| Number Of Valve Ports | 2 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Elecronically Proportionally Controlled |
| Override Type | None |
| Port Size | None |
| Port Type | Cartridge only |
| Pressure Rating Bar | 210.00 |
| Pressure Rating Psi | 3053.00 |
| Product Height In | 1.530 |
| Product Height Mm | 38.862 |
| Product Length In | 4.850 |
| Product Length Mm | 123.190 |
| Product Width In | 1.530 |
| Product Width Mm | 38.862 mm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Buna-N |
| Special Features | None |
| Style | Spool |
| Torque Into Aluminium Cavity | 108-122 Nm |
| Torque Into Steel Cavity | 136-149 Nm |
| Voltage | 24 V |
| Voltage Type | DC |
| Working Pressure Max Bar | 210.00 |
| Working Pressure Max Psi | 3000.00 |
