Danfoss (Drives) 02-160114
PVH074R01AA10B252000002001AB010A – 02-160114
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PVH074R01AA10B252000002001AB010A – 02-160114
Specification
| Aux Mount Output Shaft | NO AUXILIARY MOUNTING OR OUTPUT SHAFT |
|---|---|

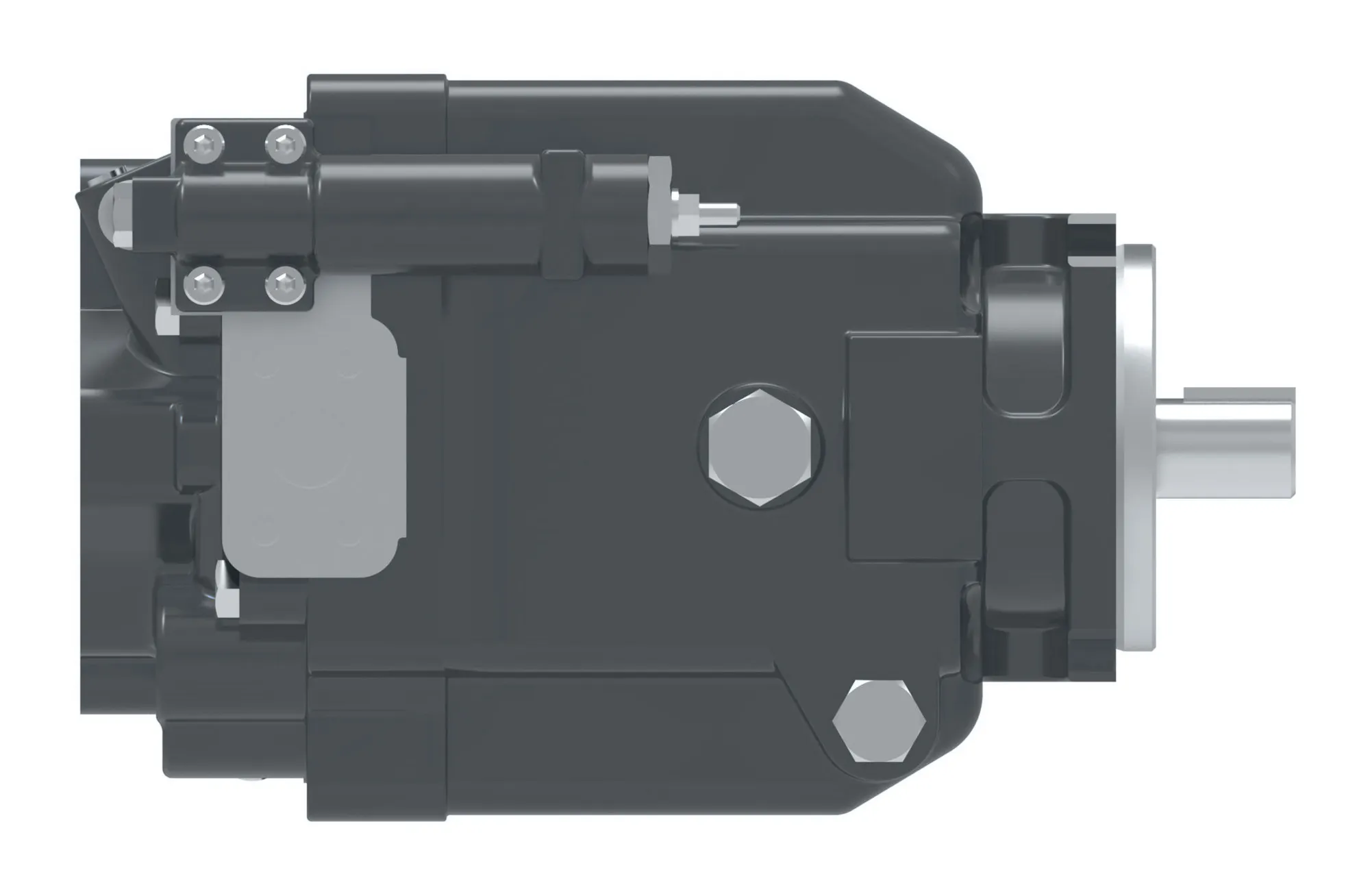

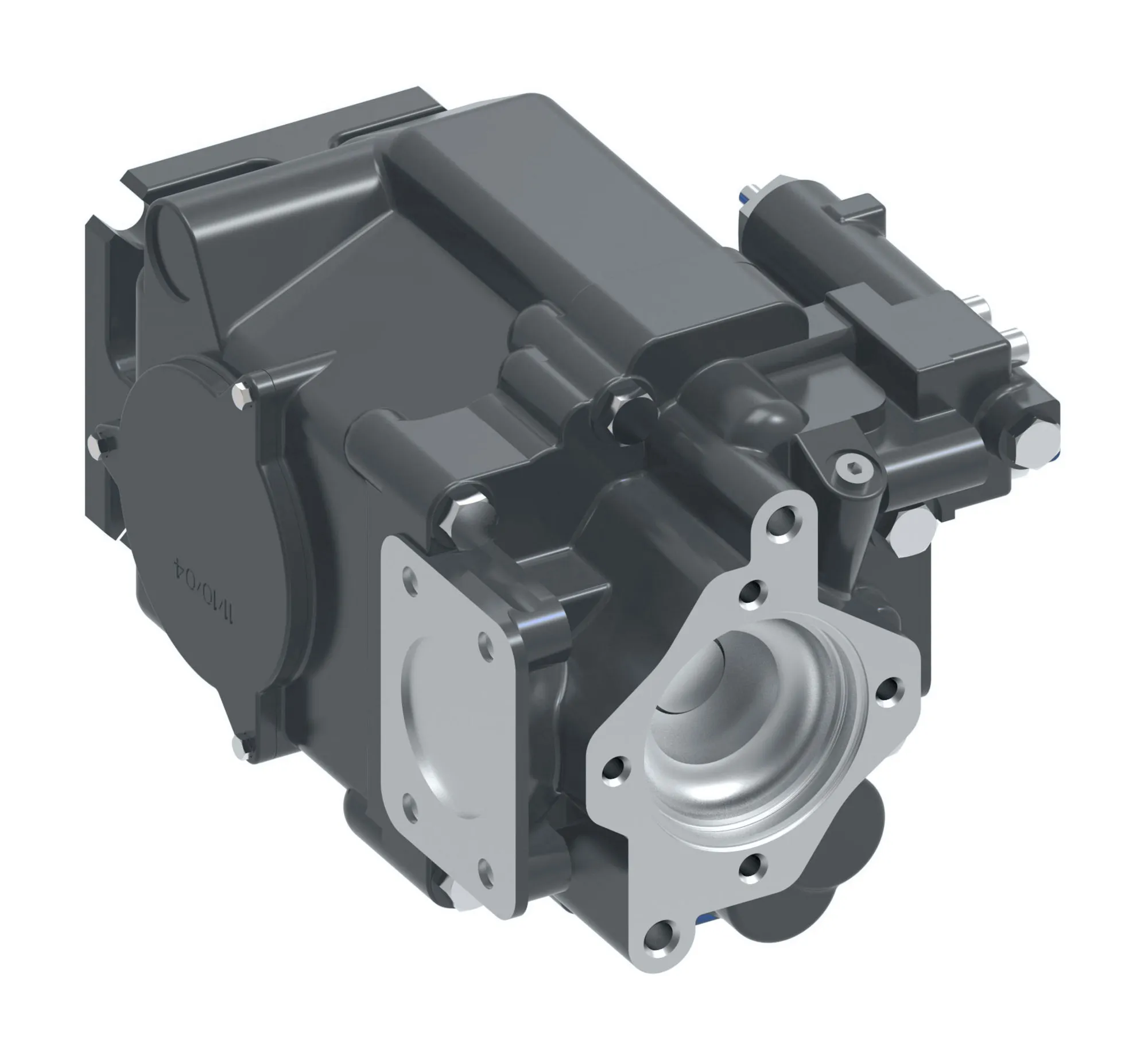

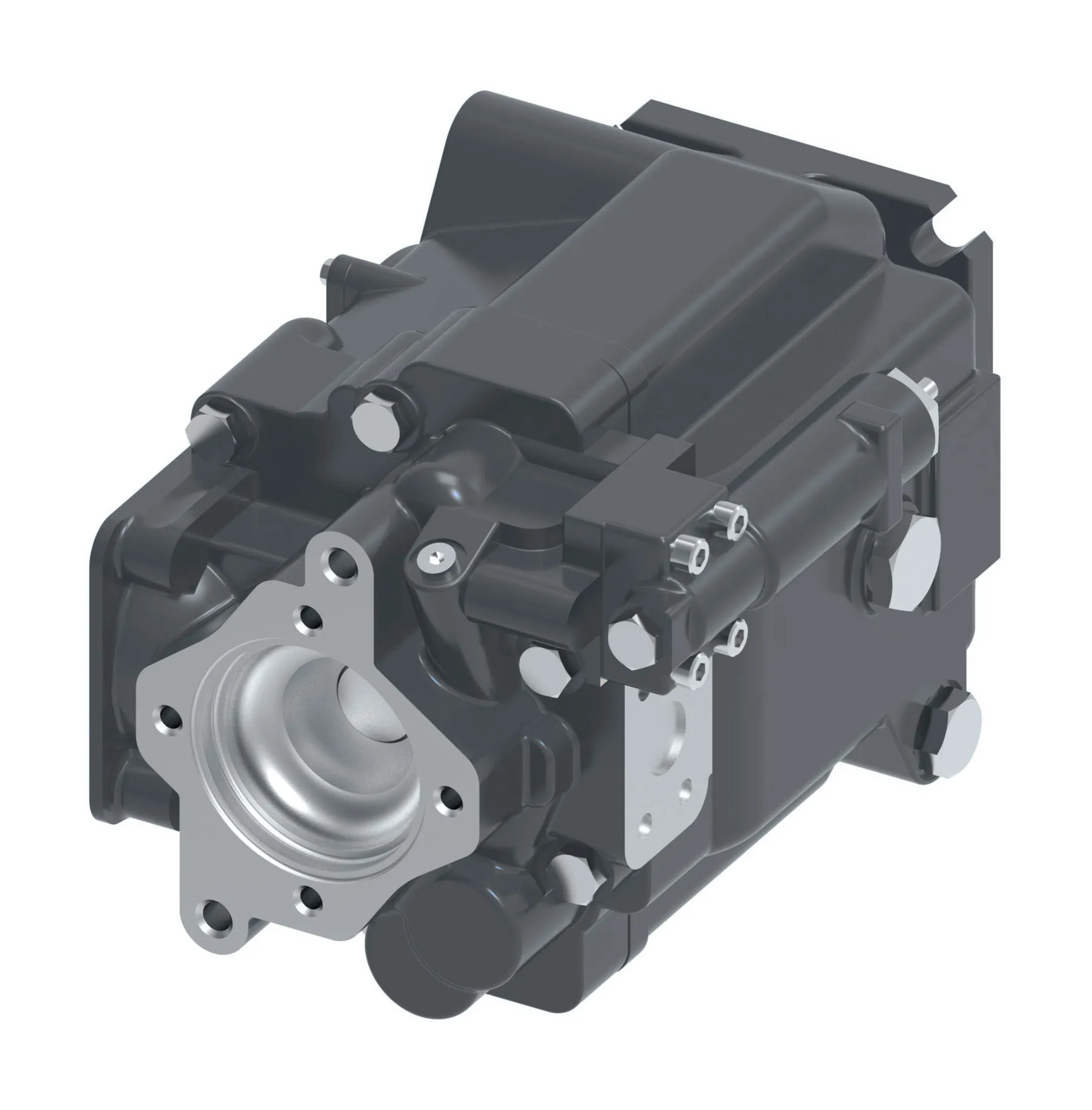

| Code Title | VICKERS PRESSURE COMPENSATED/PRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP |
| Control Special Features | NO CONTROL SPECIAL FEATURES |
| Controller Type | PRESSURE AND FLOW COMPENSATOR |
| Customer Identification | NONE – MARK ASSEMBLY NUMBER, COMPLETE MODEL CODE AND BUILD DATE CODE ON PLATE |
| Design Code | FIRST DESIGN |
| Diagnostic Pressure Ports | NO DIAGNOSTIC PRESSURE PORT |
| Displacement | 73,7 CM3/R [4.50 IN3/R] |
| Drain Port Size Location | .750-16 UNF-2B SAE O-RING PORT – BOTTOM (TOP PLUGGED) |
| Flow Comp Unload Valve | 19-21 BAR [276-305 LBF/IN2] |
| Front Mounting Input Shaft | 4 BOLT C (SAE J744-127-4) WITH 31.8 [1.25] DIA STRAIGHT KEYED SHAFT (KEY INCLUDED), 56.0 [2.20] SHAFT EXTENSION |
| Input Shaft Rotation | RIGHT-HAND ROTATION (CW) RIGHT SIDE SUCTION PORT, LEFT SIDE PRESSURE PORT |
| Main Ports Size Location | SIDE PORTS; SUCTION – 2.000 SAE 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61) WITH 1/2-13 UNC-2B THREADS; PRESSURE- 1.000 SAE 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61) WITH 3/8-16 UNC-2B THREADS |
| Maximum Displacement Option | ADJUSTABLE MAXIMUM DISPLACEMENT (SET AT MAXIMUM) |
| Paint | BLUE PRIMER |
| Pressure Compensator Setting | 246-254 BAR [3568-3684 LBF/IN2] |
| Shaft Seal | SINGLE, ONE-WAY SHAFT SEAL, FLUOROCARBON |
| Special Features | Q250 VALVE PLATE |
| Torque Sensing Other Comp | NO TORQUE SENSING SETTING OR OTHER COMPENSATION |
