Danfoss (Drives) 02-157263
KCG 3 250D Z MU HL1 10 P15 T10, KCG3250DZMUHL110P15T10 – 02-157263
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

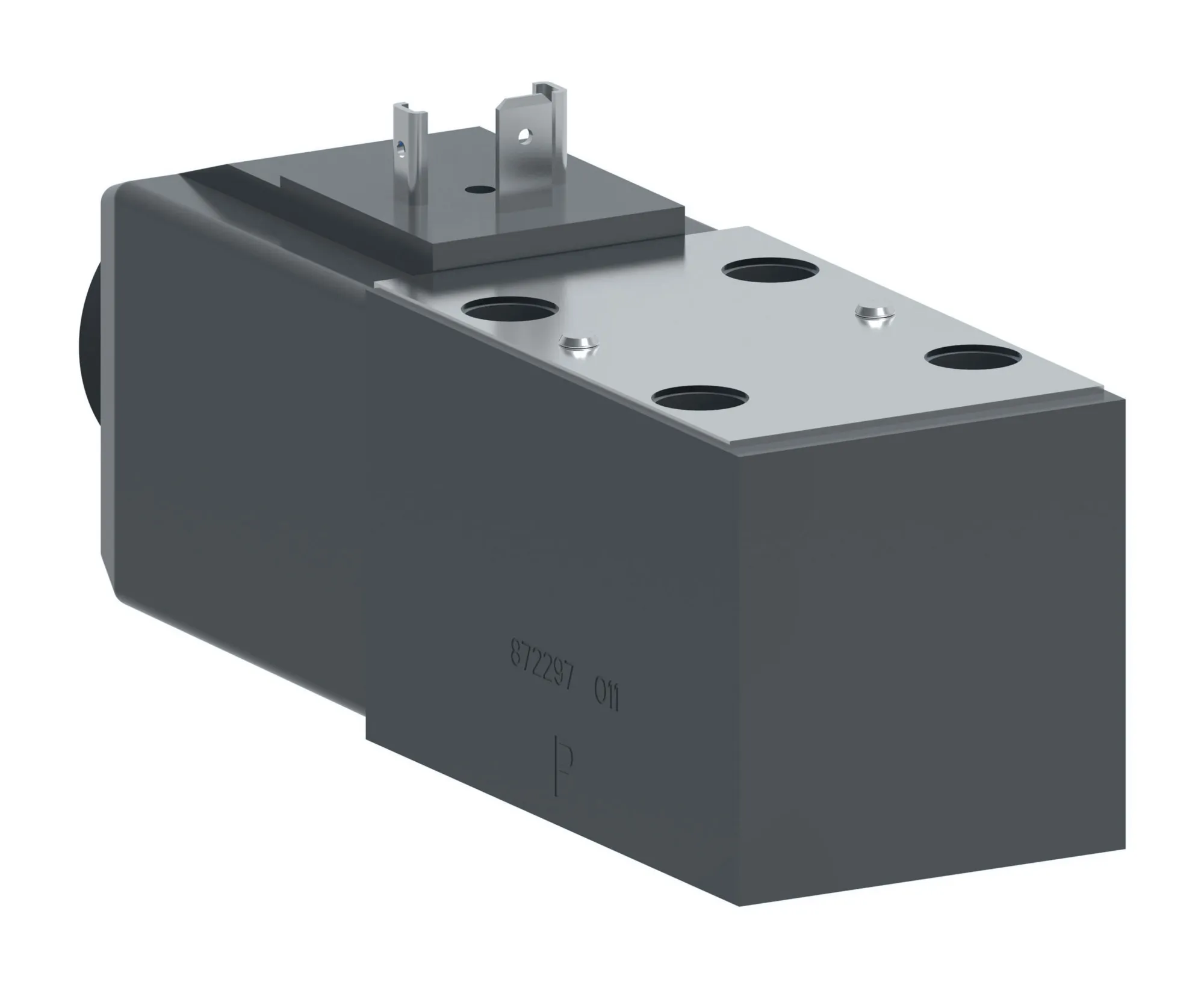

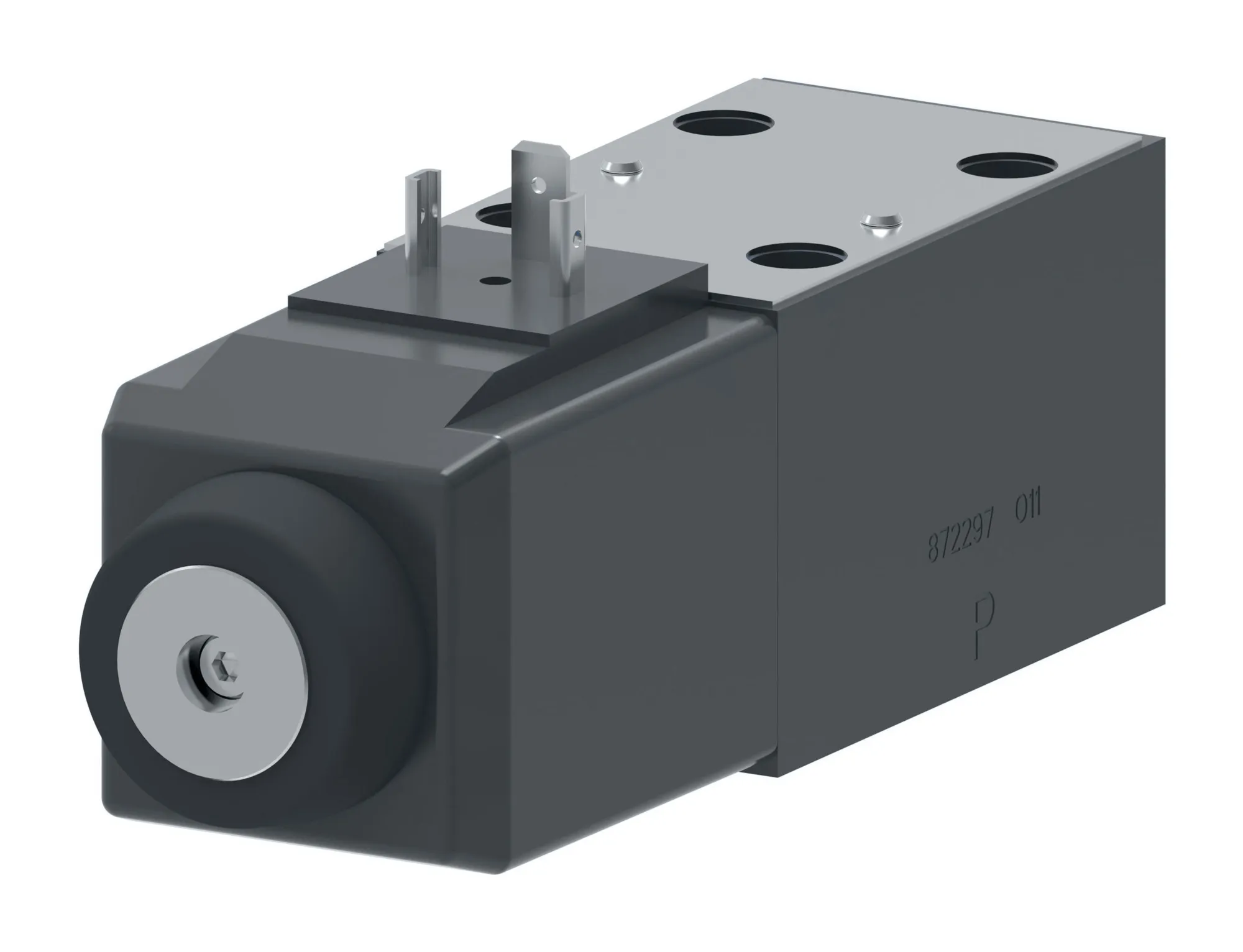

KCG 3 250D Z MU HL1 10 P15 T10, KCG3250DZMUHL110P15T10 – 02-157263
Specification
| Actuation Type | Solenoid controlled |
|---|---|
| Brand | Vickers by Danfoss |
| Build Orientation | Solenoid at B port end |
| Coil Voltage | 24 Volt DC |
| Command Input | None |
| Communication Protocol | None |
| Design Series | 10 Series |
| Electrical Connection | ISO 4400 (DIN 43650) connector |
| Feedback Sensor | No |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid Compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |
| Interface | ISO4401-03/NFPA D03/CETOP 3/NG06 |
| Manual Override | None |
| Maximum Flow Lpm | 5.0 |
| Maximum Flow Usgpm | 1.3 |
| Maximum Pressure Bar | 350 |
| Maximum Pressure Psi | 5000 |
| Model Code 1 | KCG3250DZMUHL110P15T10 |
| On Board Electronics | No |
| Performance | Standard |
| Pressure Range | 5-250 bar (73-3625 psi) |
| Product Height In | 3.420 |
| Product Height Mm | 86.868 |
| Product Length In | 6.280 |
| Product Length Mm | 159.512 |
| Product Width In | 1.880 |
| Product Width Mm | 47.752 |
| Profx Compatible | No |
| Reducer Module | No |
| Reverse Flow Check | No |
| Seal Type | Viton |
| Special Features | None |
| Stage | Single stage |
| Tank Port Rating Bar | 210.0 |
| Tank Port Rating Psi | 3000 |
| Valve Mount Type | Subplate |
| Valve Type | Proportional pressure relief |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
