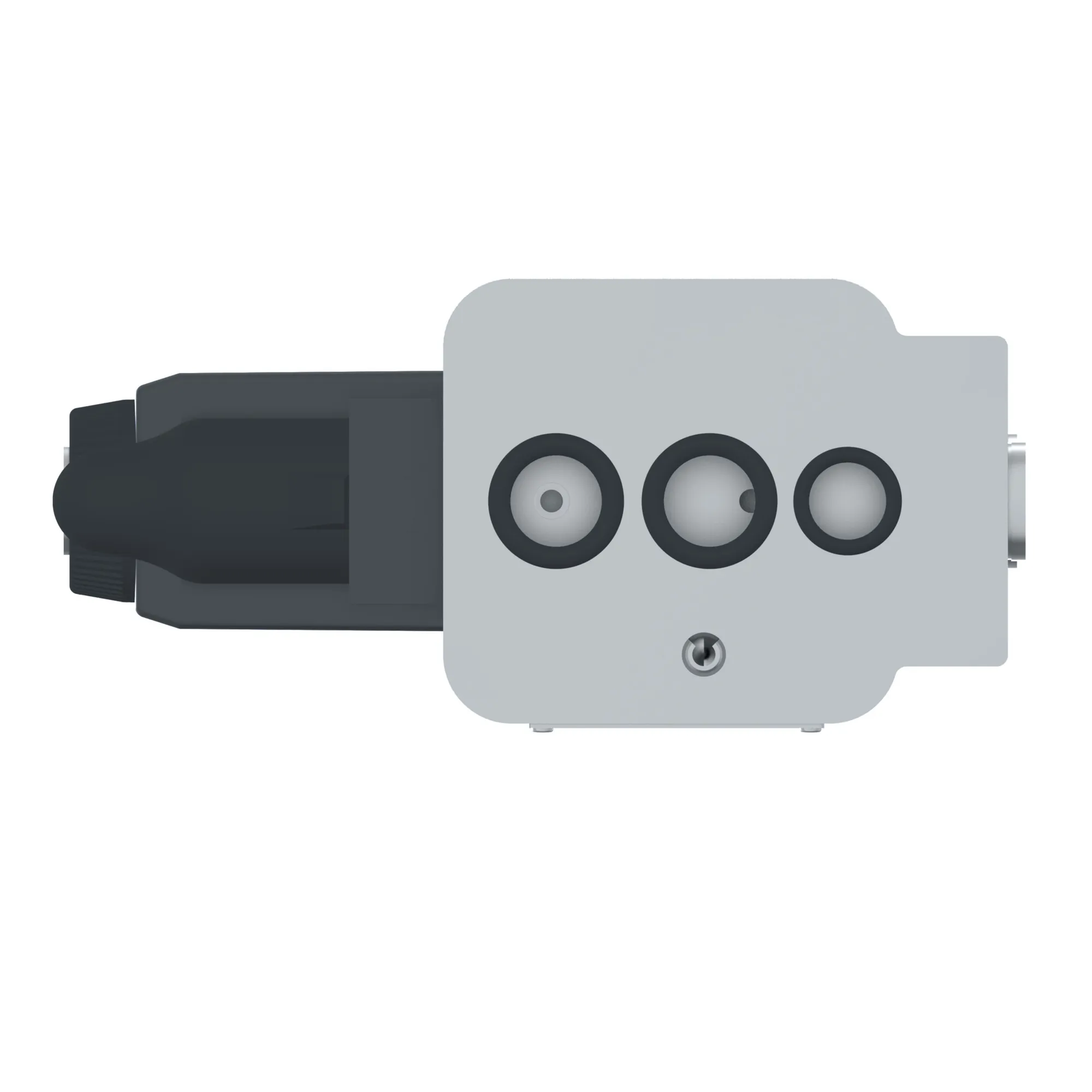

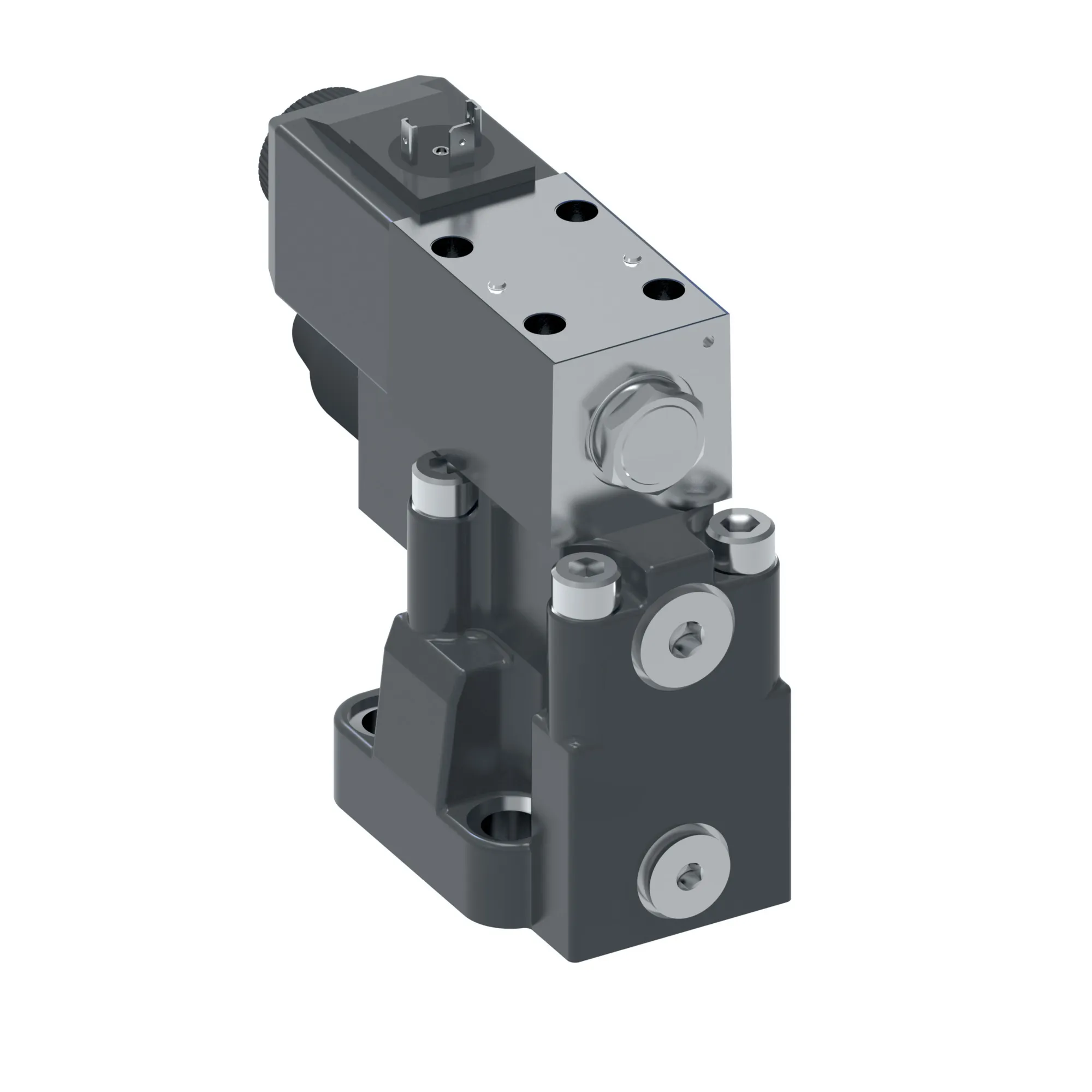

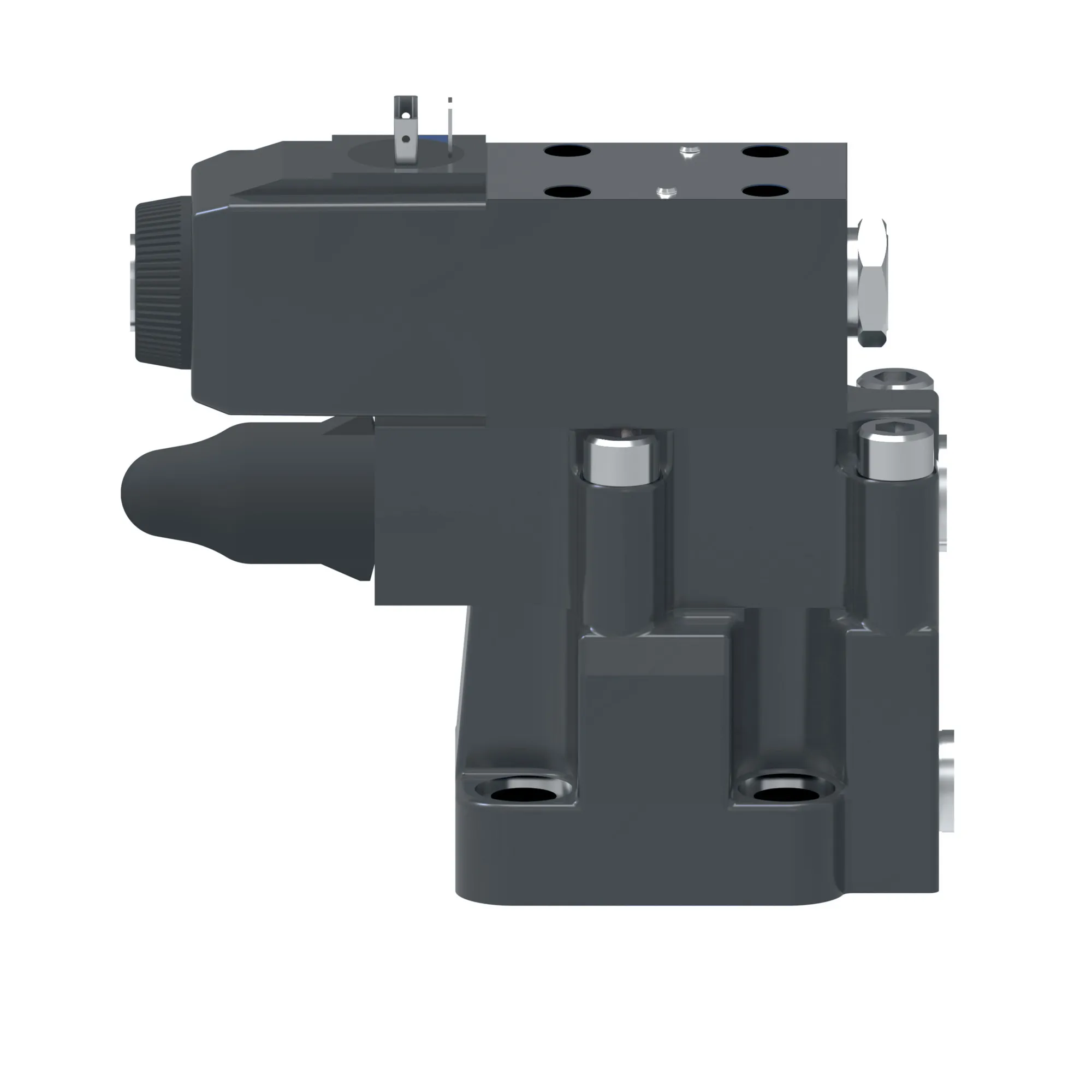

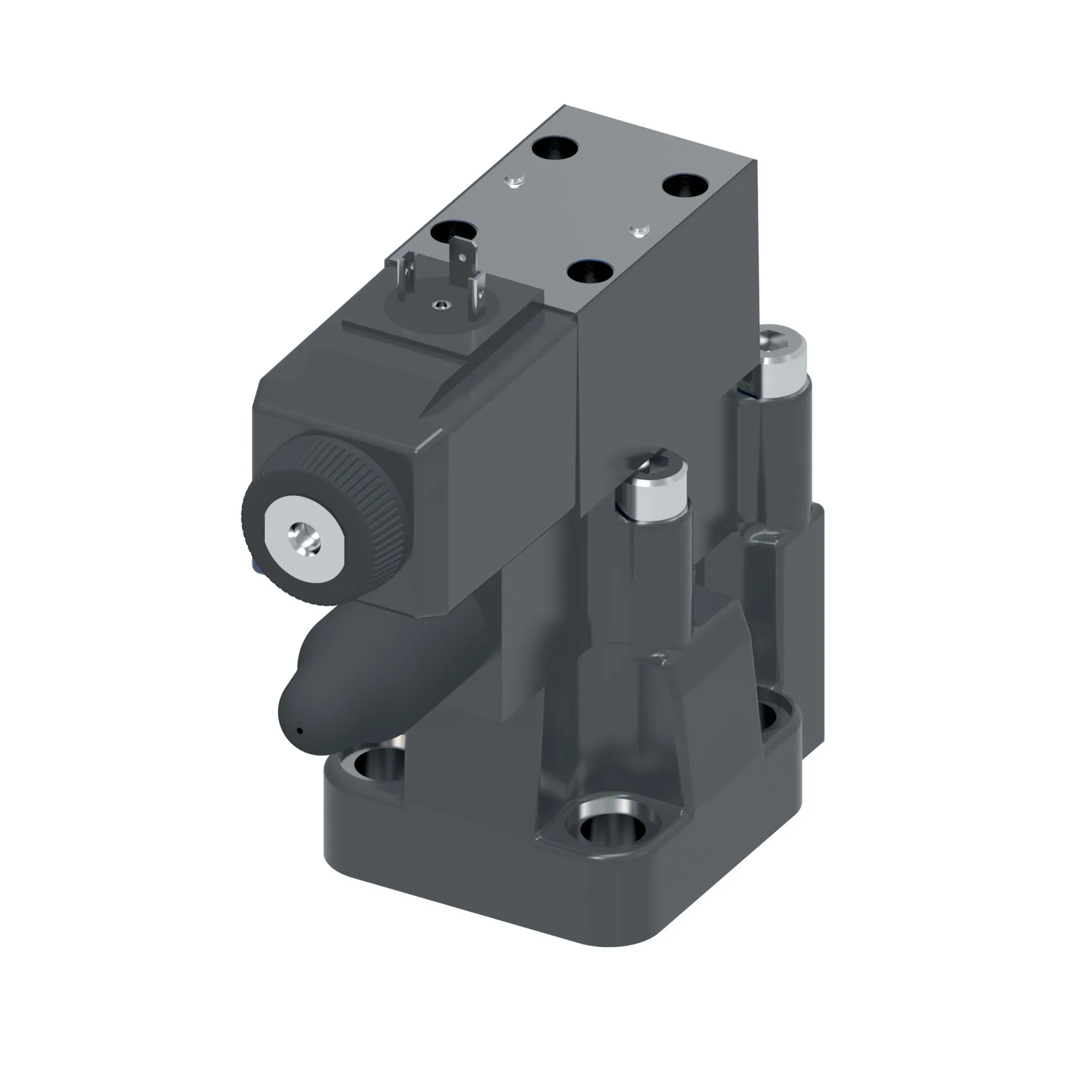

Danfoss (Drives) 02-156003
KXCG 6 W 330 3 Z MU H1 11, KXCG6W3303ZMUH110 – 02-156003
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
KXCG 6 W 330 3 Z MU H1 11, KXCG6W3303ZMUH110 – 02-156003
Specification
| Actuation Type | Solenoid controlled pilot operated |
|---|---|
| Brand | Vickers by Danfoss |
| Build Orientation | Solenoid at B port end |
| Coil Voltage | 24 Volt DC |
| Command Input | None |
| Communication Protocol | None |
| Design Series | 10 Series |
| Electrical Connection | ISO 4400 (DIN 43650) connector |
| Feedback Sensor | No |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid Compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |
| Interface | ISO6264-AR-06-2-A |
| Manual Adjustment | Screw and locknut |
| Manual Override | None |
| Maximum Flow Lpm | 200.0 |
| Maximum Flow Usgpm | 52.8 |
| Maximum Pressure Bar | 350 |
| Maximum Pressure Psi | 5000 |
| Model Code 1 | KXCG6W3303ZMUH110 |
| On Board Electronics | No |
| Performance | Standard |
| Profx Compatible | No |
| Reduced Pressure Adjustment | 15-330 bar (220-4750 psi) |
| Reducer Module | No |
| Reverse Flow Check | Yes |
| Seal Type | Buna-N |
| Special Features | None |
| Stage | Two stage |
| Valve Mount Type | Subplate |
| Valve Type | Proportional pressure reducing |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
