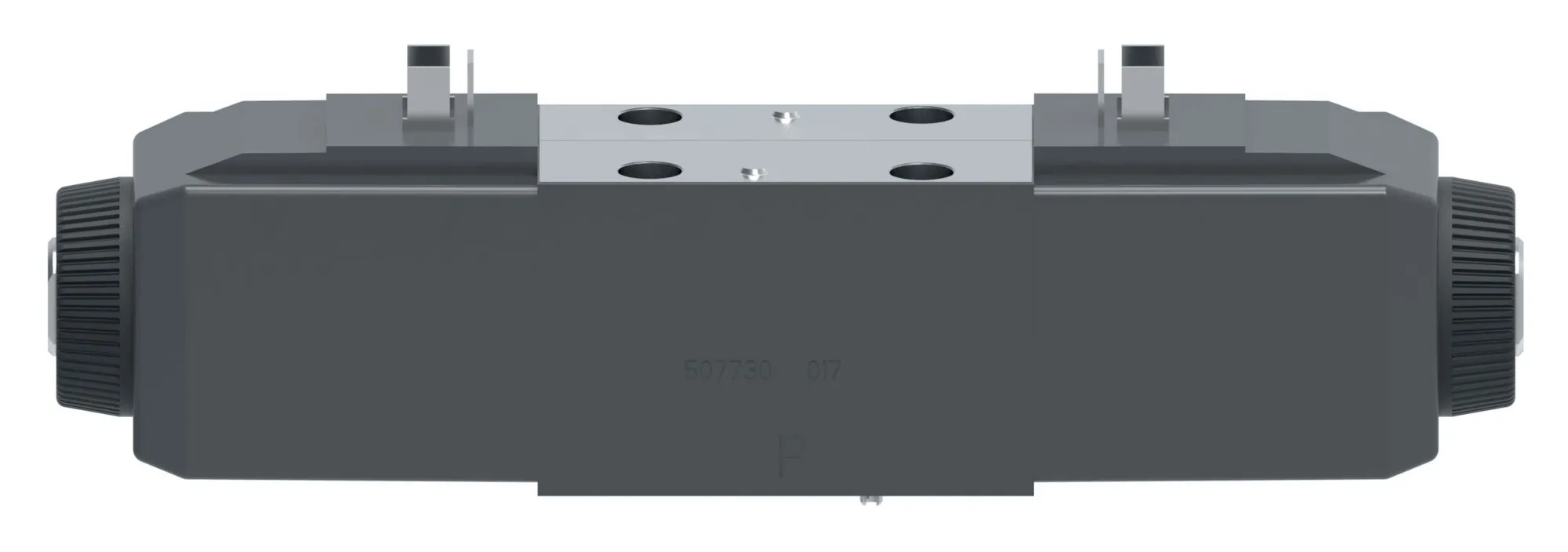

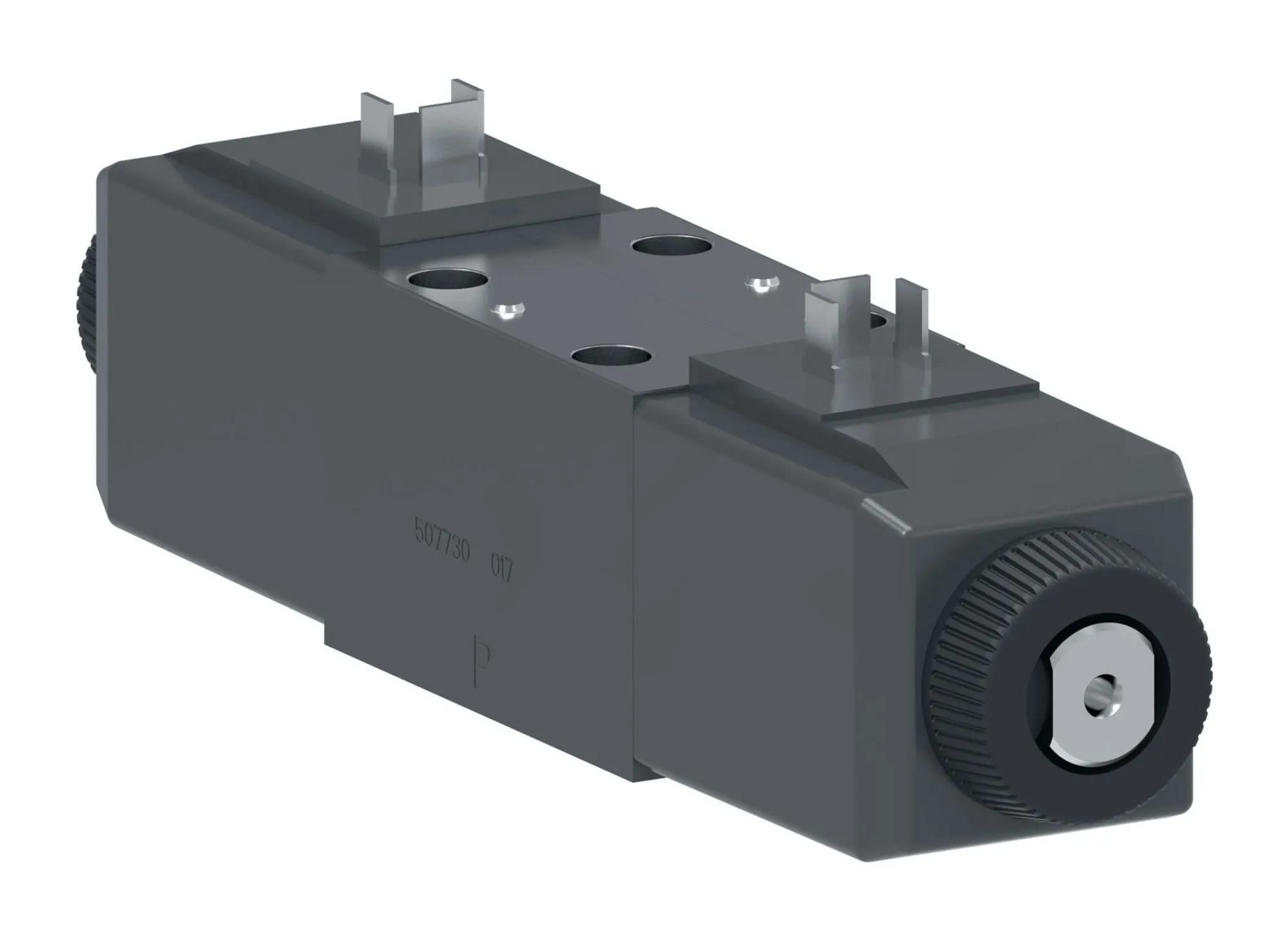

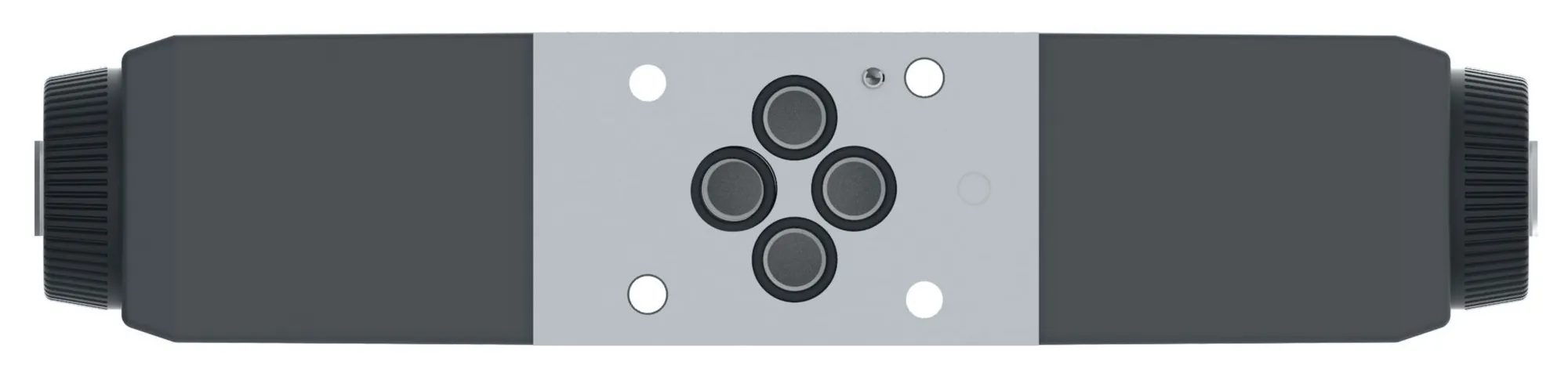

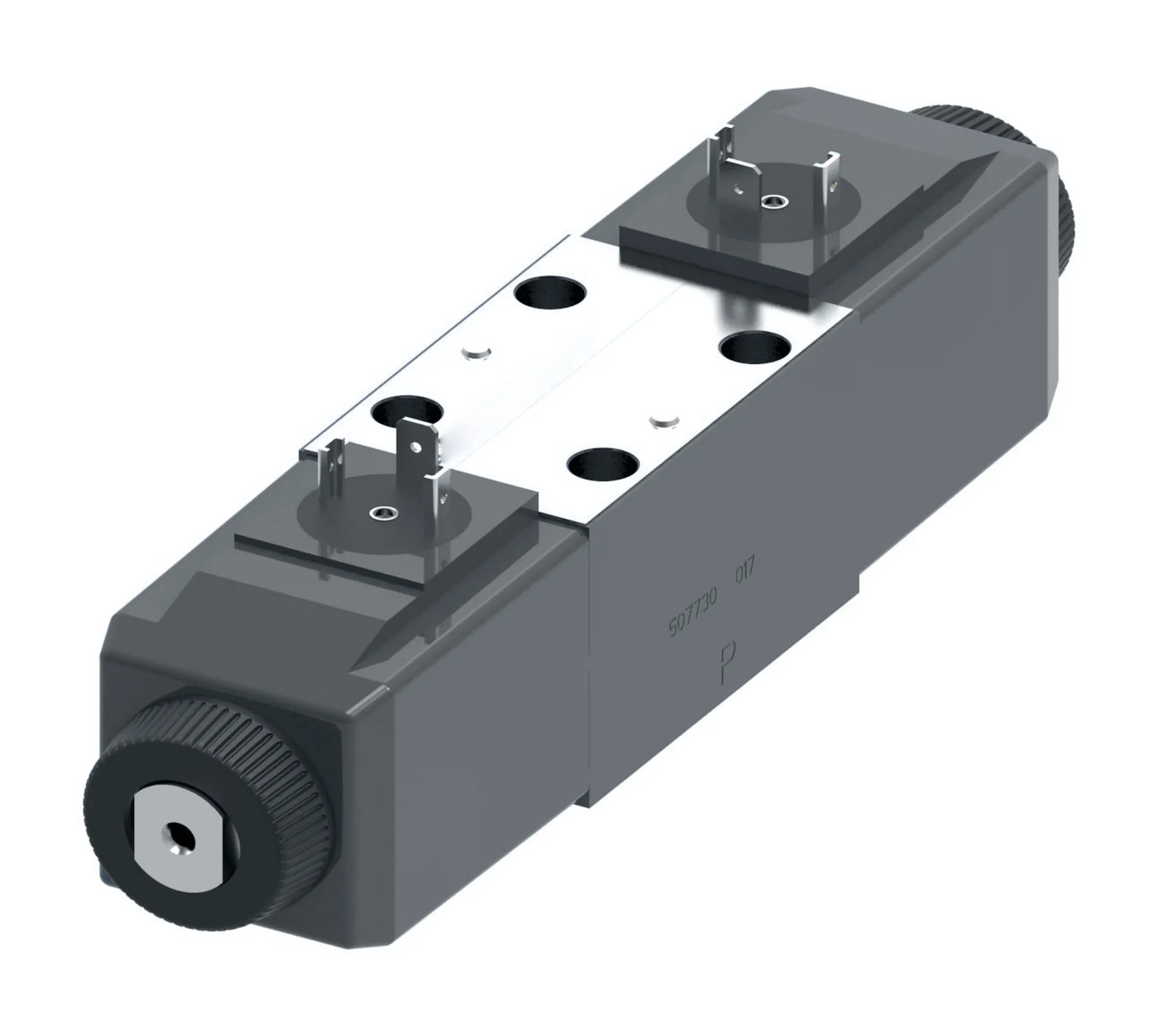

Danfoss (Drives) 02-155923
KDG4V-3S-2C08N-M-U-G5-60, KDG4V3S2C08NMUG560 – 02-155923
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
KDG4V-3S-2C08N-M-U-G5-60, KDG4V3S2C08NMUG560 – 02-155923
Specification
| A Port Flow Lpm | 8.00 |
|---|---|
| A Port Flow Usgpm | 2.10 |
| Actuation Type | Solenoid controlled |
| B Port Flow Lpm | 8.00 |
| B Port Flow Usgpm | 2.10 |
| Brand | Vickers by Danfoss |
| Build Orientation | Standard as per ANSI B93 9 |
| Build Type | Spring centered |
| Coil Voltage | 12 Volt DC |
| Command Input | None |
| Communication Protocol | None |
| Design Series | 60 Series |
| Electrical Connection | ISO 4400 (DIN 43650) connector |
| Feedback Sensor | No |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid Compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |
| Interface | ISO4401-03/NFPA D03/CETOP 3/NG06 |
| Manual Override | Plain |
| Maximum Pressure Bar | 350 |
| Maximum Pressure Psi | 5000 |
| Metering | Meter in / meter out |
| Model Code 1 | KDG4V3S2C08NMUG560 |
| On Board Electronics | No |
| Performance | Standard |
| Product Height In | 3.580 |
| Product Height Mm | 90.932 |
| Product Length In | 8.640 |
| Product Length Mm | 219.456 |
| Product Width In | 1.810 |
| Product Width Mm | 45.974 |
| Profx Compatible | No |
| Reducer Module | No |
| Reverse Flow Check | No |
| Seal Type | Viton |
| Special Features | None |
| Spool Type | ISO4401-10/NFPA D10/CETOP 10/NG32 |
| Stage | Single stage |
| Symmetric Flow | Yes |
| Tank Port Rating Bar | 100.0 |
| Tank Port Rating Psi | 1450 |
| Valve Mount Type | Subplate |
| Valve Type | Proportional directional |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
