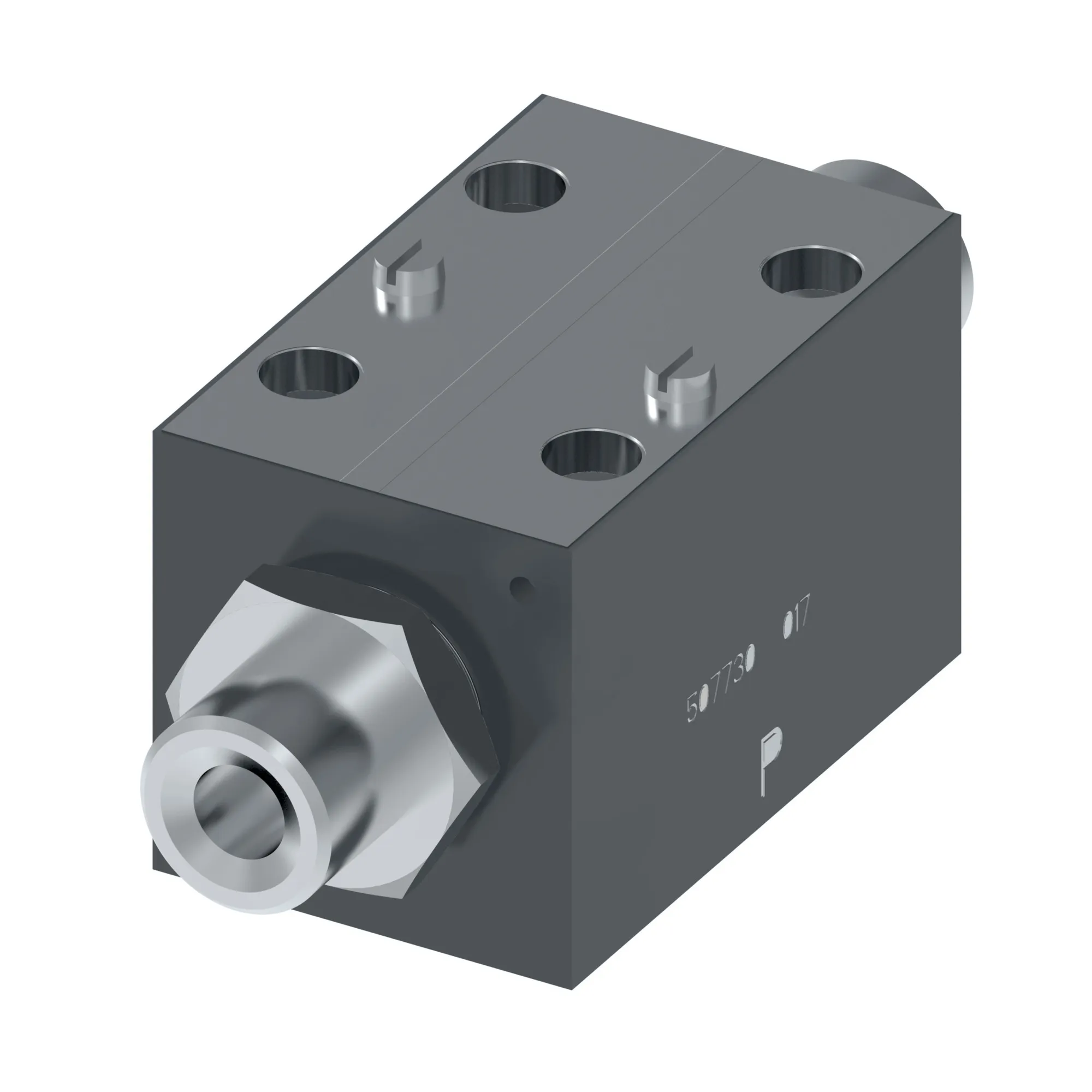

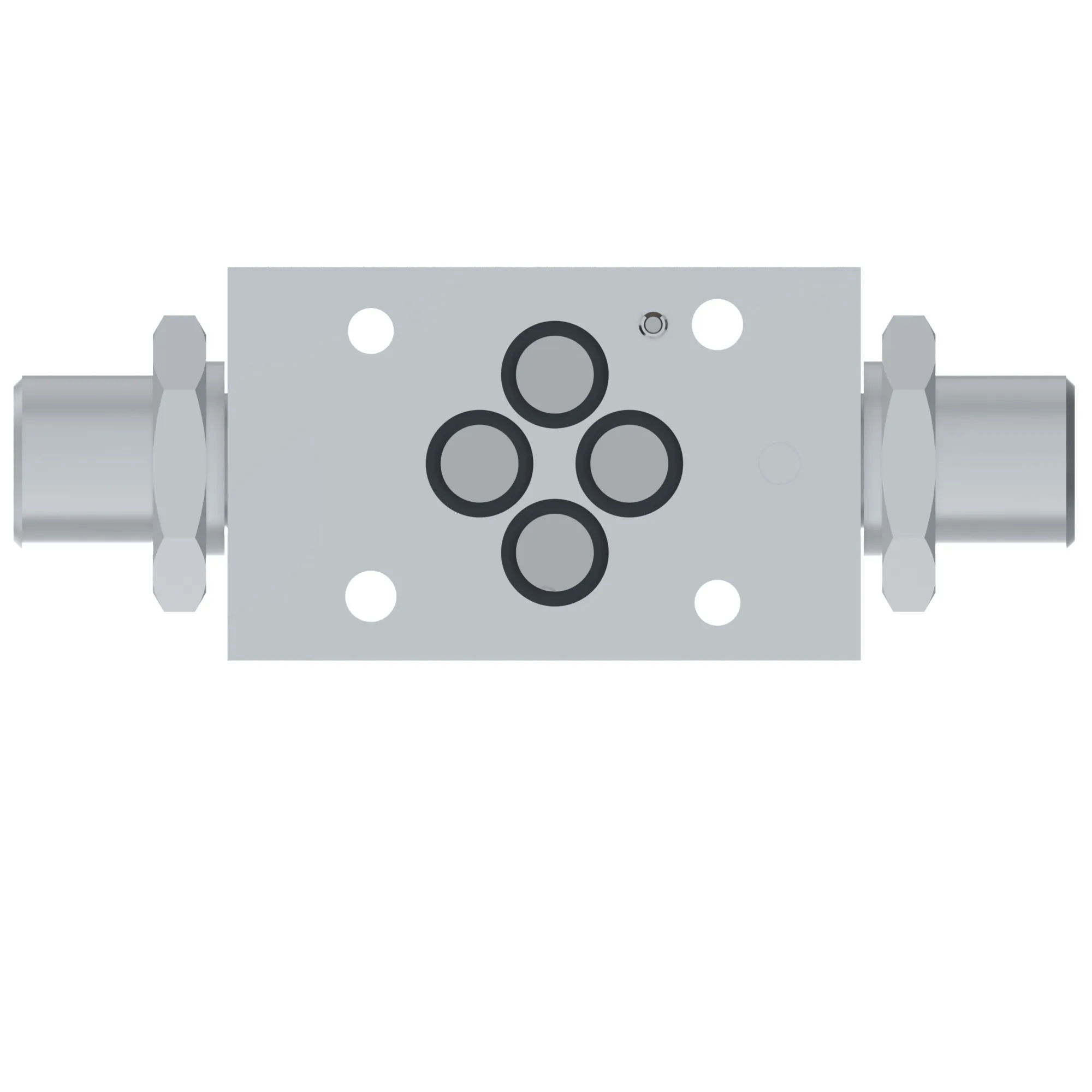

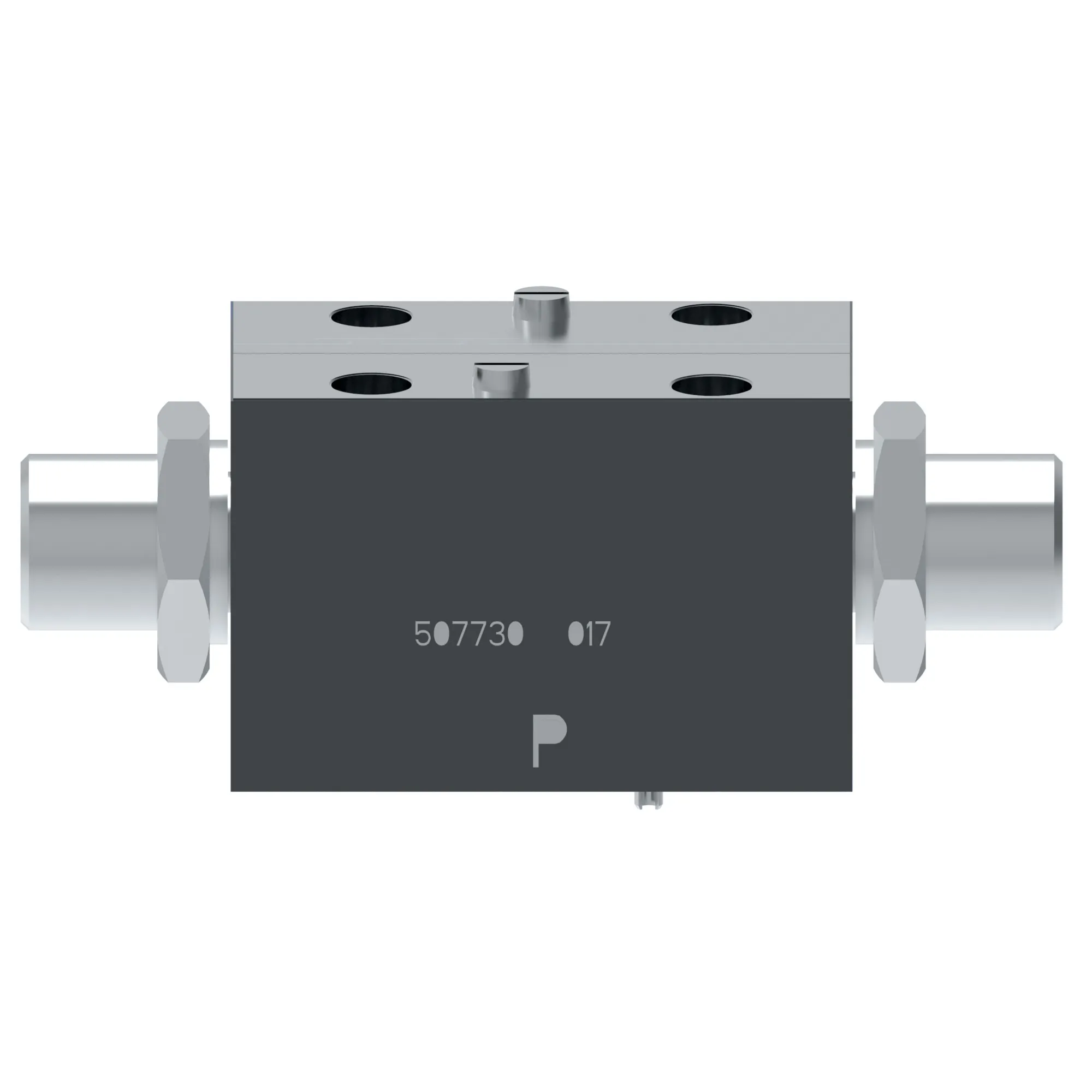

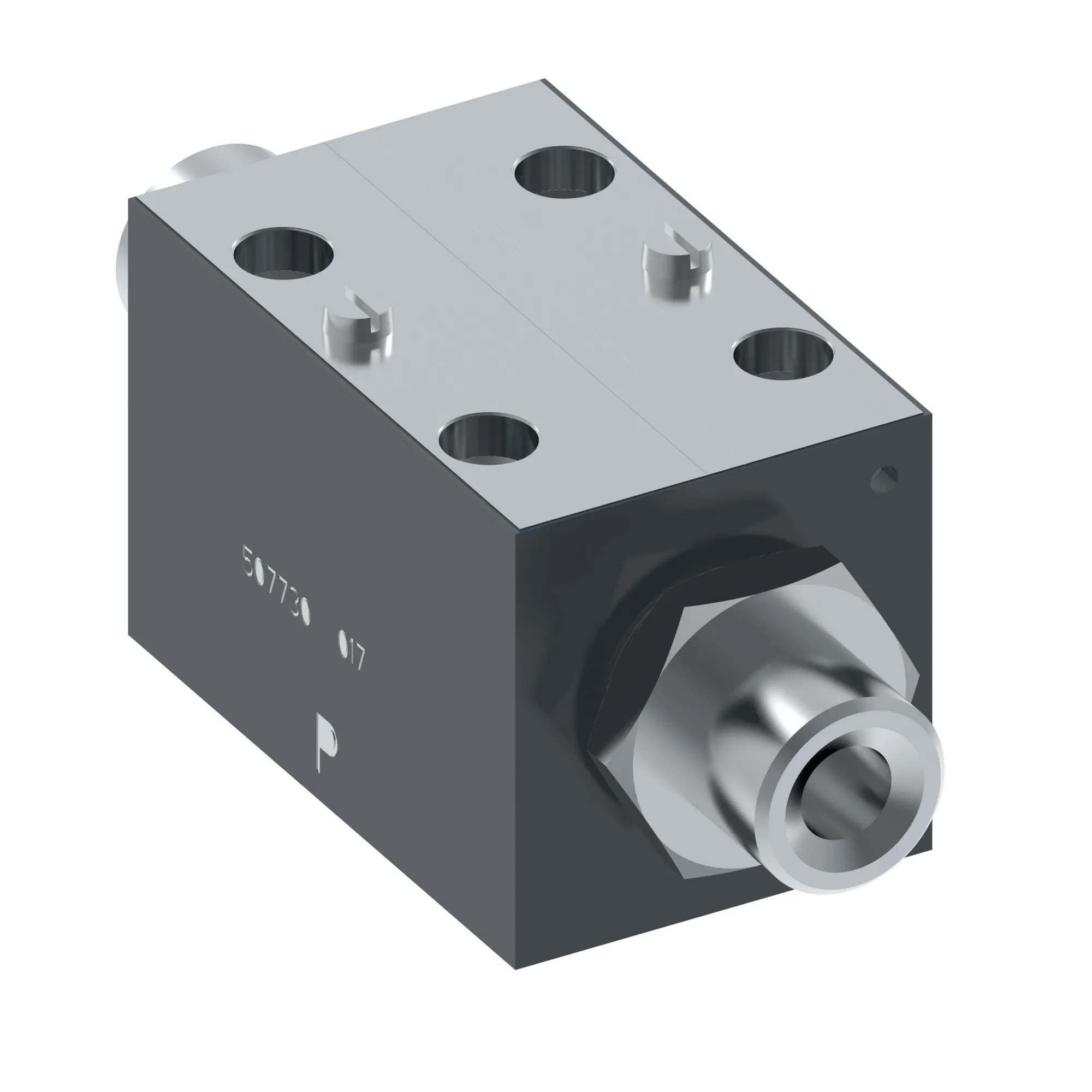

Danfoss (Drives) 02-155234
KDG3V-3-33C34A-S-60, KDG3V333C34AS60 – 02-155234
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
KDG3V-3-33C34A-S-60, KDG3V333C34AS60 – 02-155234
Specification
| A Port Flow Lpm | 34.00 |
|---|---|
| A Port Flow Usgpm | 9.00 |
| Actuation Type | Hydraulic pilot operated |
| B Port Flow Lpm | 34.00 |
| B Port Flow Usgpm | 9.00 |
| Brand | Vickers by Danfoss |
| Build Orientation | None |
| Build Type | Spring centered |
| Coil Voltage | None |
| Command Input | None |
| Communication Protocol | None |
| Design Series | 60 Series |
| Electrical Connection | None |
| Feedback Sensor | No |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid Compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |
| Interface | ISO4401-03/NFPA D03/CETOP 3/NG06 |
| Manual Override | None |
| Maximum Pressure Bar | 350 |
| Maximum Pressure Psi | 5000 |
| Metering | Meter in |
| Model Code 1 | KDG3V333C34AS60 |
| On Board Electronics | No |
| Performance | Standard |
| Product Height In | 1.890 |
| Product Height Mm | 48.006 |
| Product Length In | 2.910 |
| Product Length Mm | 73.914 |
| Product Width In | 1.870 |
| Product Width Mm | 47.498 |
| Profx Compatible | No |
| Reducer Module | No |
| Reverse Flow Check | No |
| Seal Type | Viton |
| Special Features | None |
| Spool Type | A connected to T, B connected to P |
| Stage | Single stage |
| Symmetric Flow | Yes |
| Tank Port Rating Bar | 210.0 |
| Tank Port Rating Psi | 3000 |
| Valve Mount Type | Subplate |
| Valve Type | Proportional directional |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
