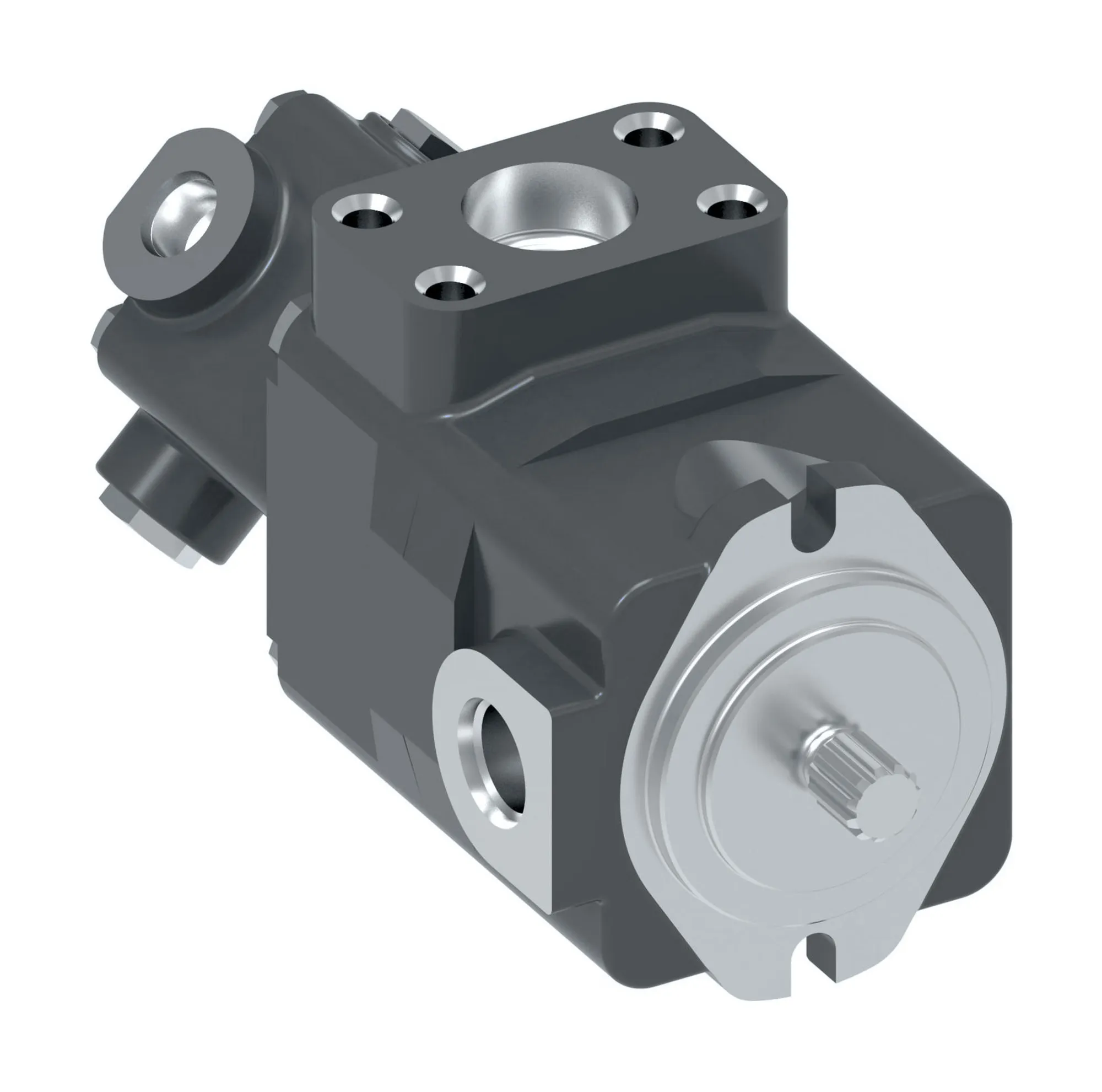

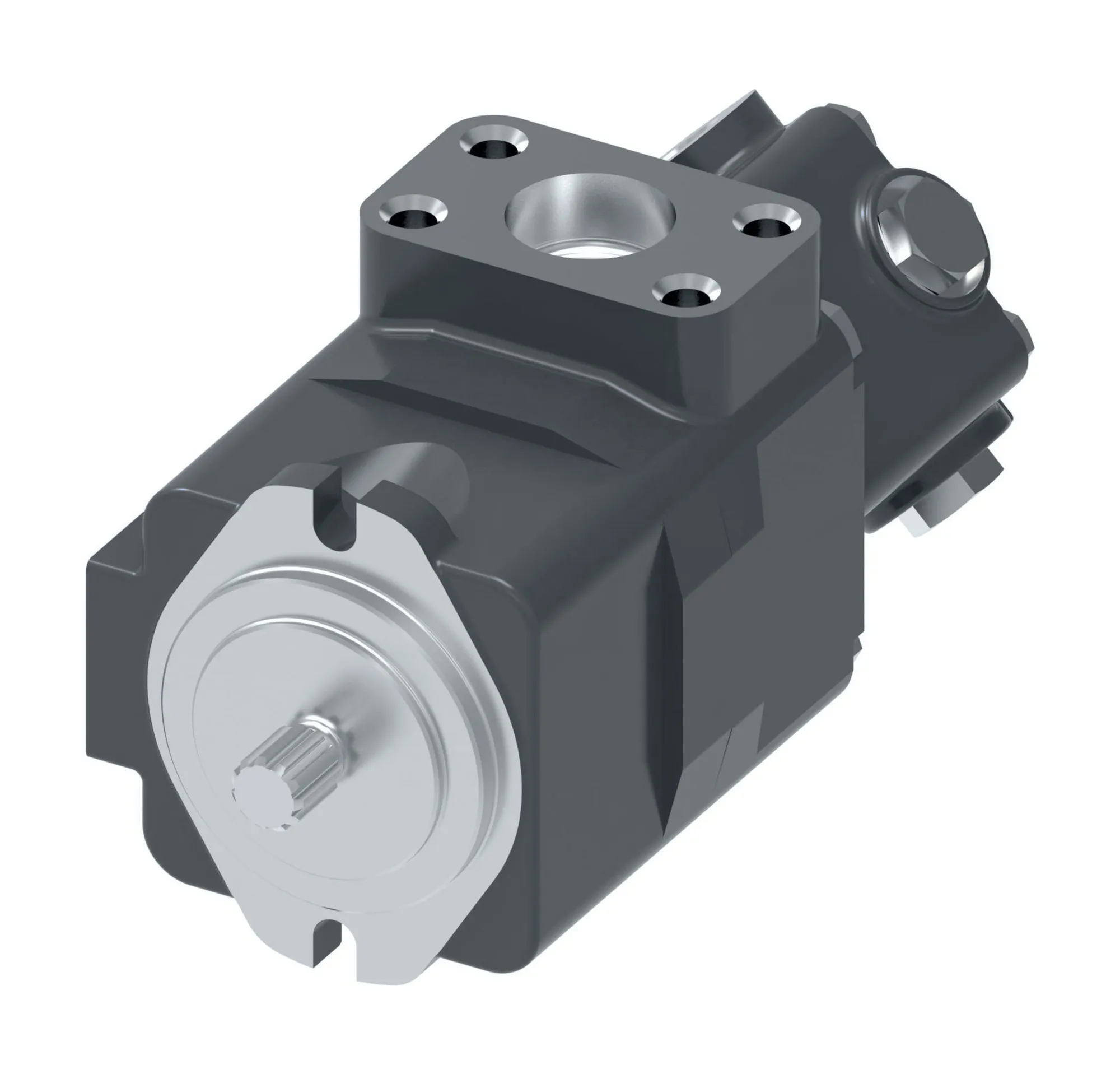

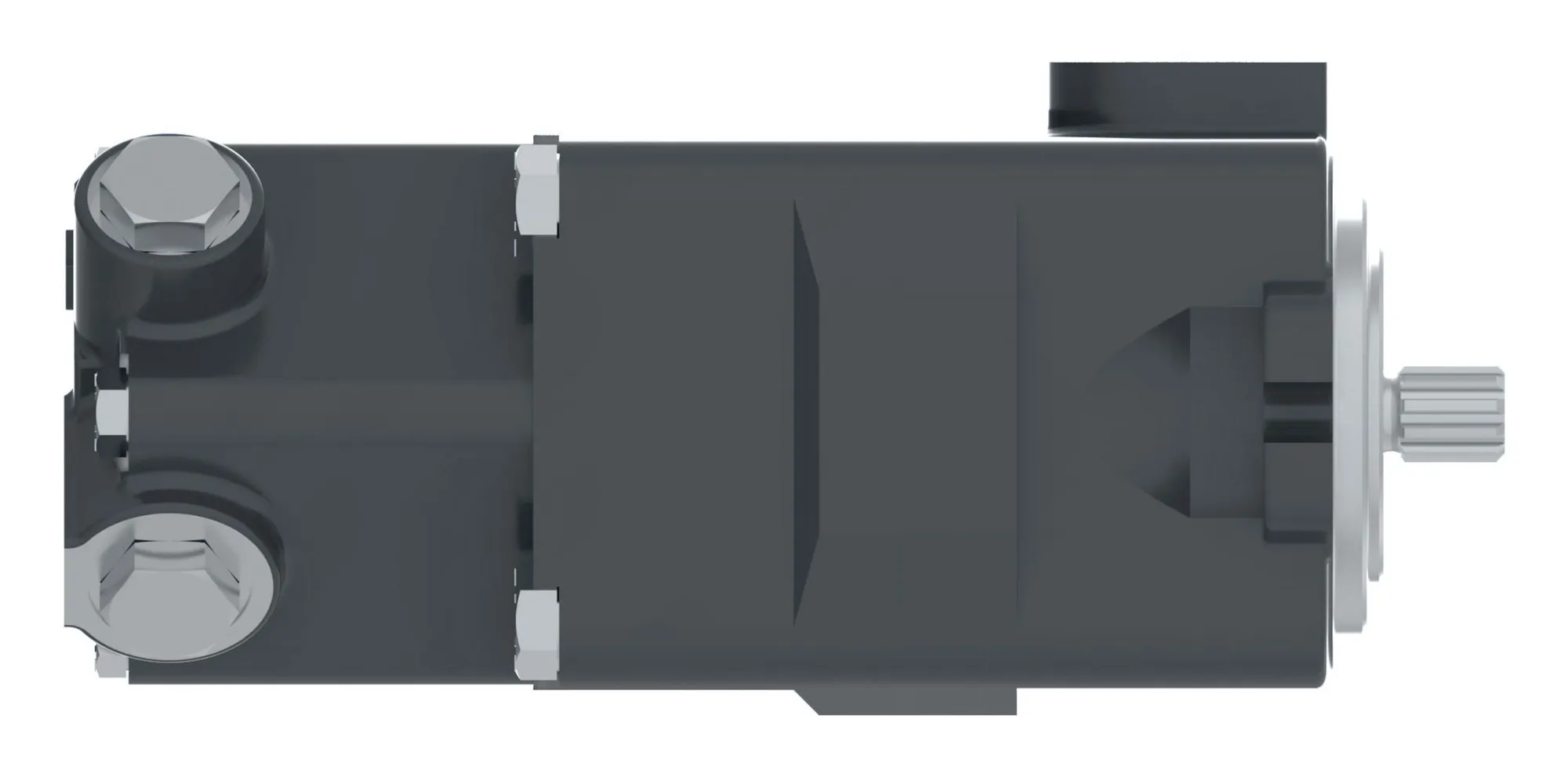

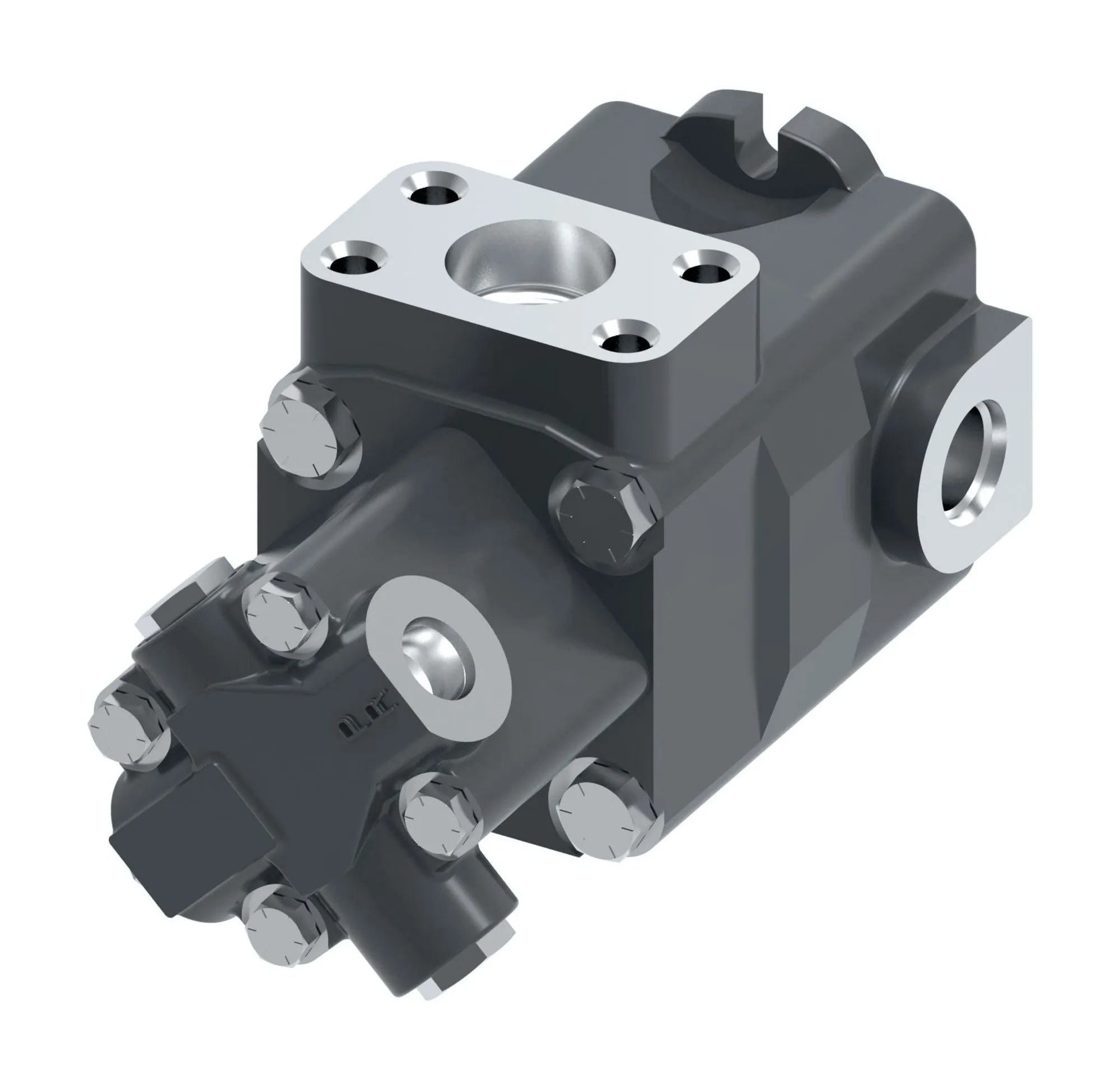

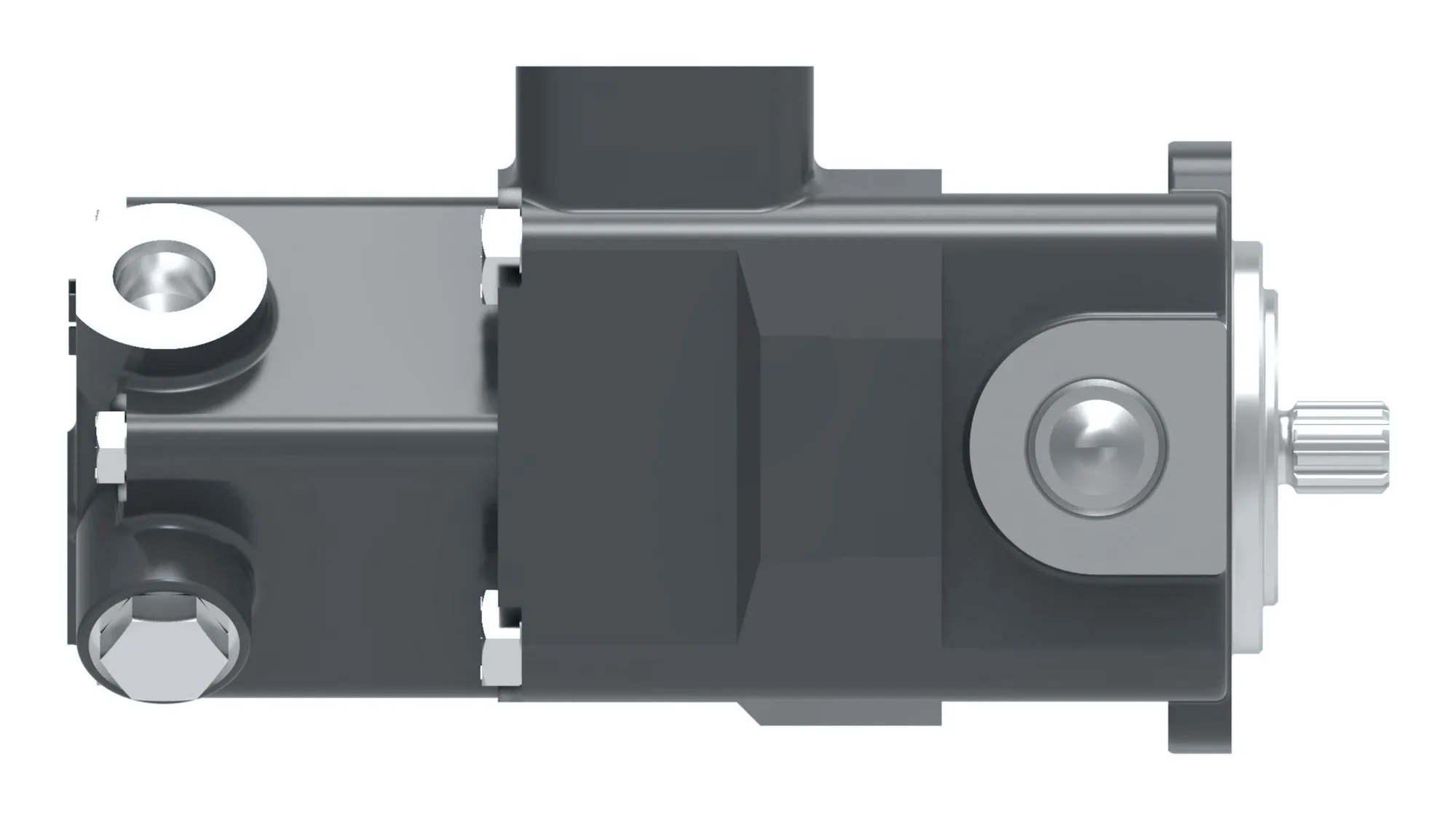

Danfoss (Drives) 02-151930-AA
V20101F12B2B1AA12, V20101F12B2B1AA12 – 02-151930-AA
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
V20101F12B2B1AA12, V20101F12B2B1AA12 – 02-151930-AA
Specification
| Pump Type | VANE PUMP |
|---|---|
| Series | DOUBLE SQUARE PUMP |
| Mounting Type | 2 BOLT FLANGE SAE-B SIZE |
| Inlet Port Type | 4 BOLT FLANGE |
| Ring Capacity Cover Side | 2 GPM |
| Ring Capacity Shaft End | 12 GPM |
| Outlet Port Type Shaft End | G .750 BSPF THREAD |
| Shaft Type | 3/16 SQUARE KEY,MAJOR DIA-.875, EXTENSION-2.31 |
| Outletcover Port Orientation | OUTLET#2: 135 ° CCW FROM INLET PORT , OUTLET#1:OPPOSITE FROM INLET PORT |
| Outlet Port Type Cover Side | G1/2 BSP THREAD |
| Design Code | 12-DESIGN CODE |
| Shaft Rotation | RH CW ROTATION VIEWED FROM SHAFT END |
| Brand | Vickers by Danfoss |
| Ipm Frame Size | V2010 Double Pump |
| Model Code 1 | V20101F12B2B1AA12 |
