Danfoss (Drives) 02-151512-1

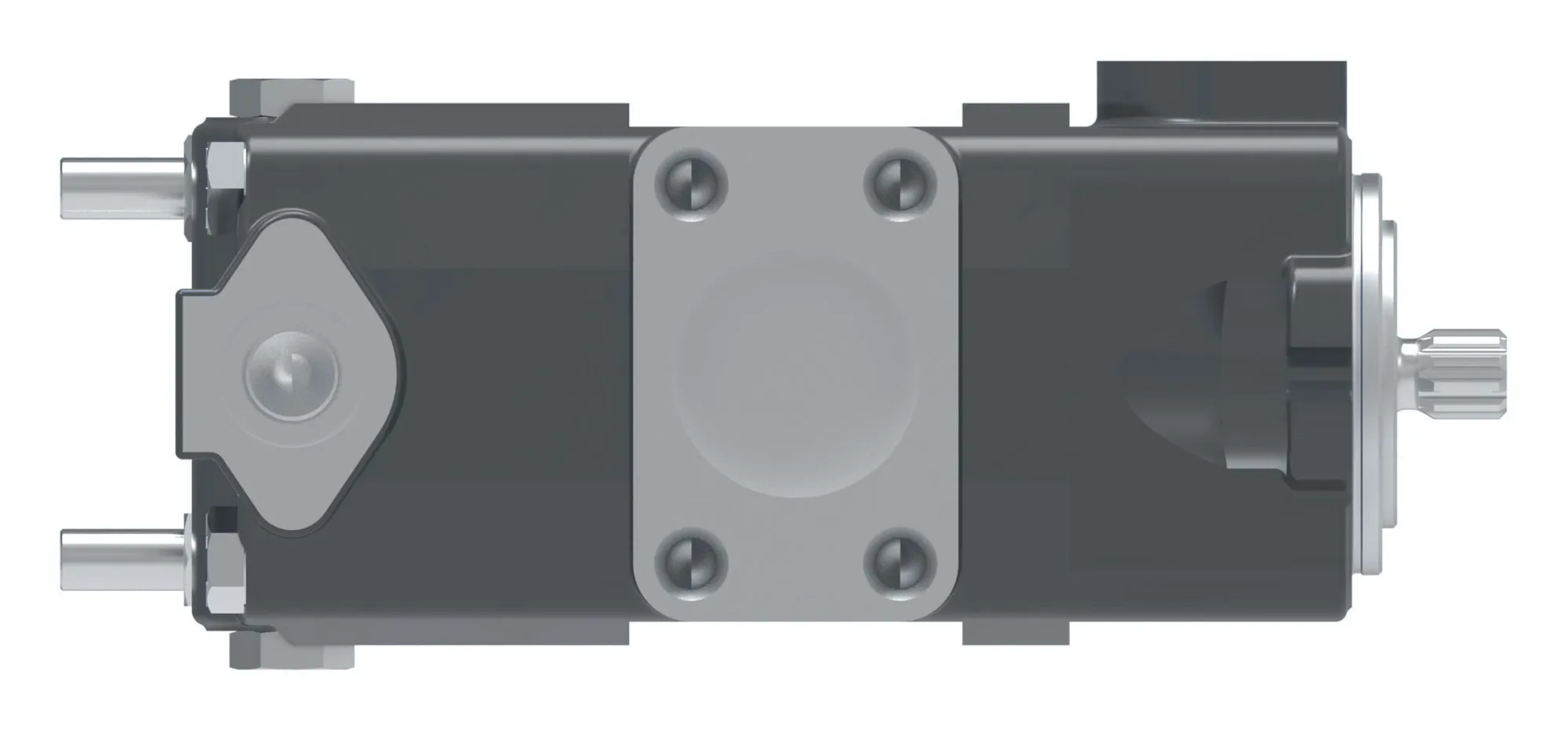

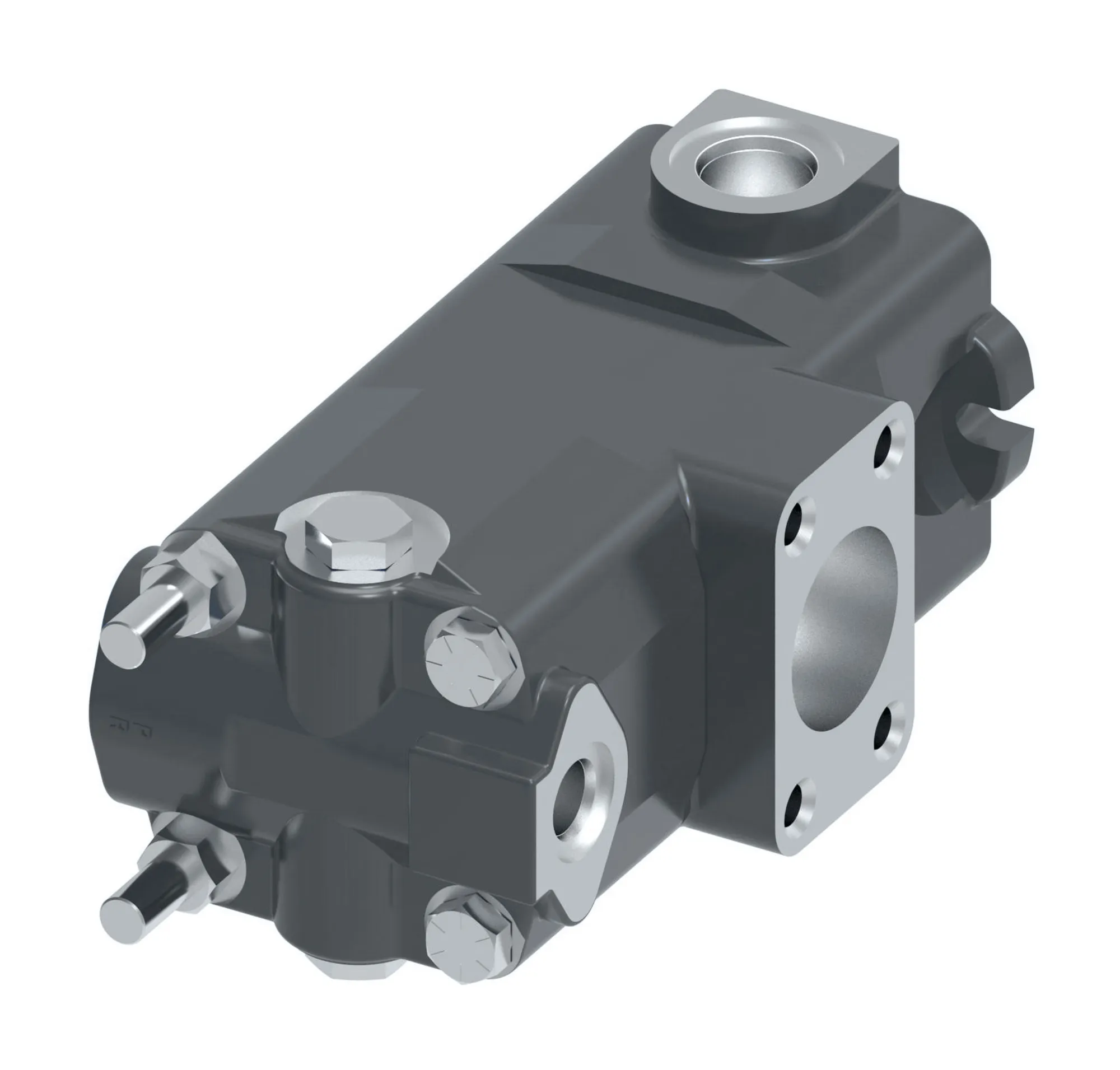

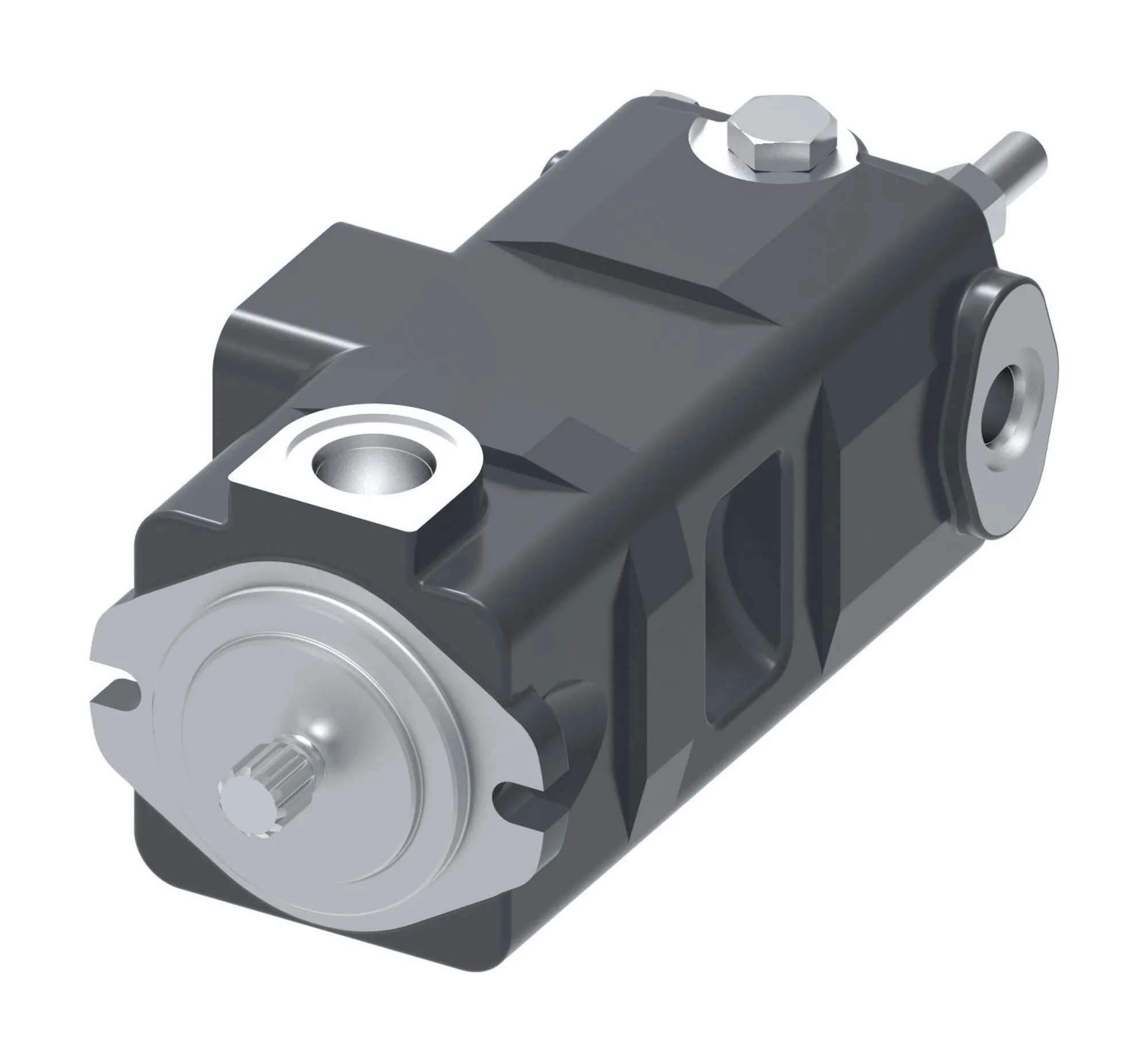

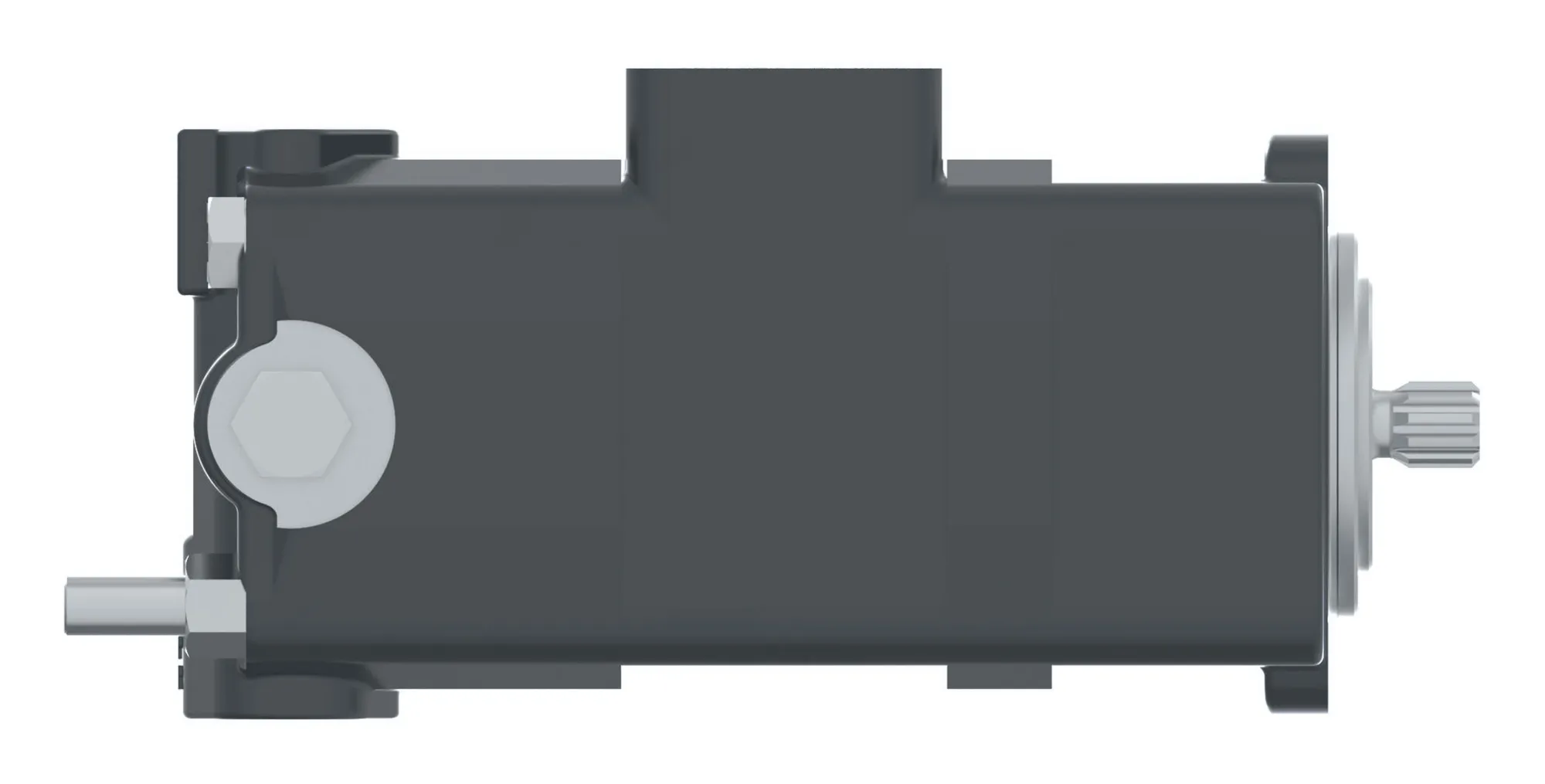

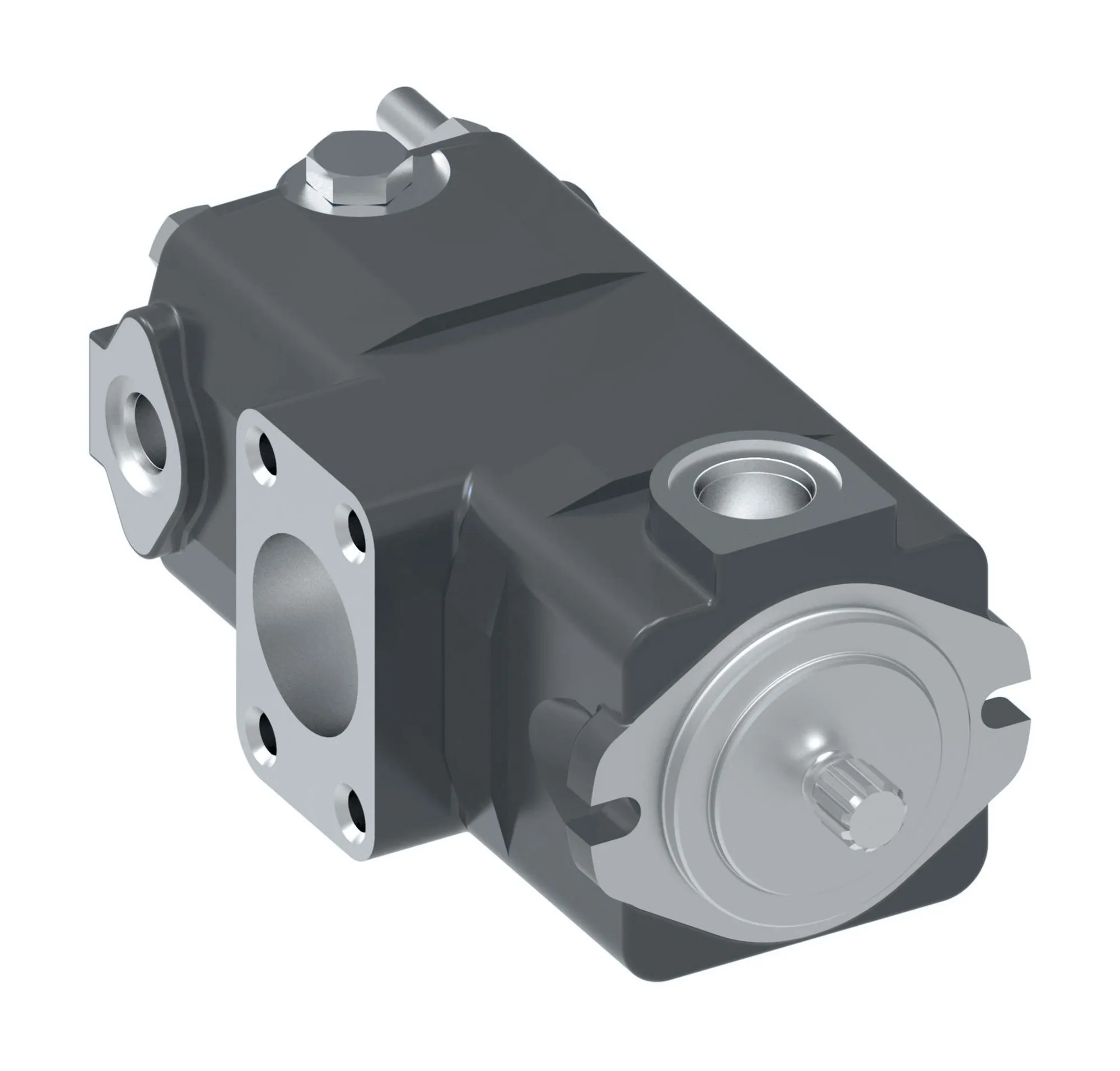

V2020 1F13B11B 100AA30R, V2020 1F13B11B 100AA30R – 02-151512-1
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
V2020 1F13B11B 100AA30R, V2020 1F13B11B 100AA30R – 02-151512-1
Specification
| Seals Type | STANDARD SEAL |
|---|---|
| Pump Type | VANE PUMP |
| Series | DOUBLE SQUARE VANE PUMP |
| Cover Type | STANDARD COVER |
| Mounting Type | 2 BOLT FLANGE SAE-B SIZE |
| Inlet Port Type | 4 BOLT FLANGE |
| Ring Capacity Cover Side | 11 GPM |
| Ring Capacity Shaft End | 13 GPM |
| Outlet Port Type Shaft End | G .750 BSPF THREAD |
| Shaft Seal And Bearing | SINGLE LIP SEAL & SEALED BEARING |
| Shaft Type | KEY SHAFT |
| Outletcover Port Orientation | OUTLET#2: OPPOSITE TO INLET PORT, OUTLET#1:OPPOSITE TO INLET PORT |
| Outlet Port Type Cover Side | COVER STANDARD-G3/4 BSP |
| Flow Rate Thru Orifice Cover | NO FLOW CONTROL |
| Pressure Setting | NO PRESSURE SETTING |
| Design Code | 30-DESIGN CODE |
| Shaft Rotation | RH CW ROTATION VIEWED FROM SHAFT END |
| Special Feature Suffix | NO SPEACIAL FEATURE |
| Ipm Frame Size | V2020 Double Pump |
| Model Code 1 | V2020 1F13B11B 100AA30R |
