Danfoss (Drives) 02-148614
DGMX2 5 PP FK S 30, DGMX25PPFKS30 – 02-148614
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

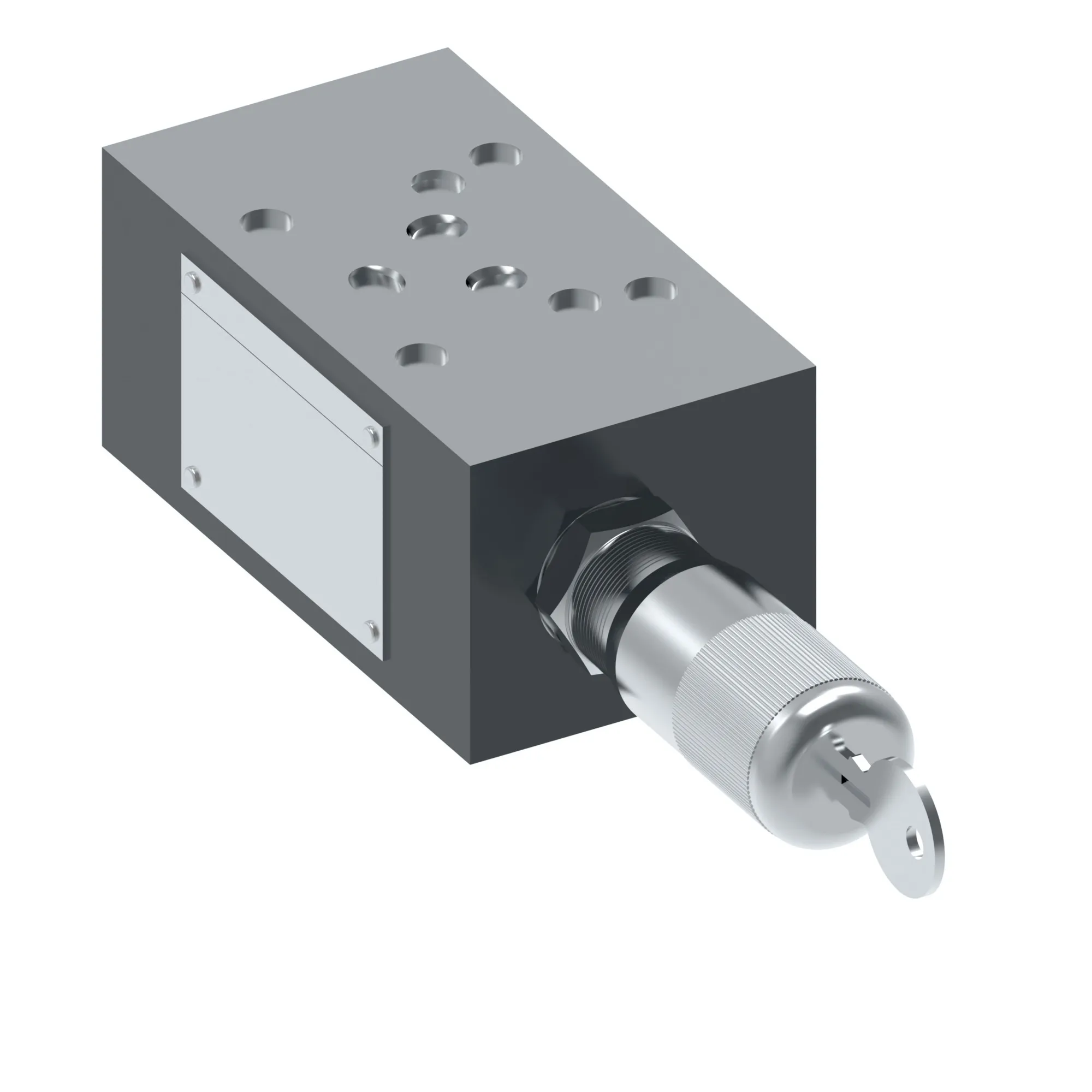

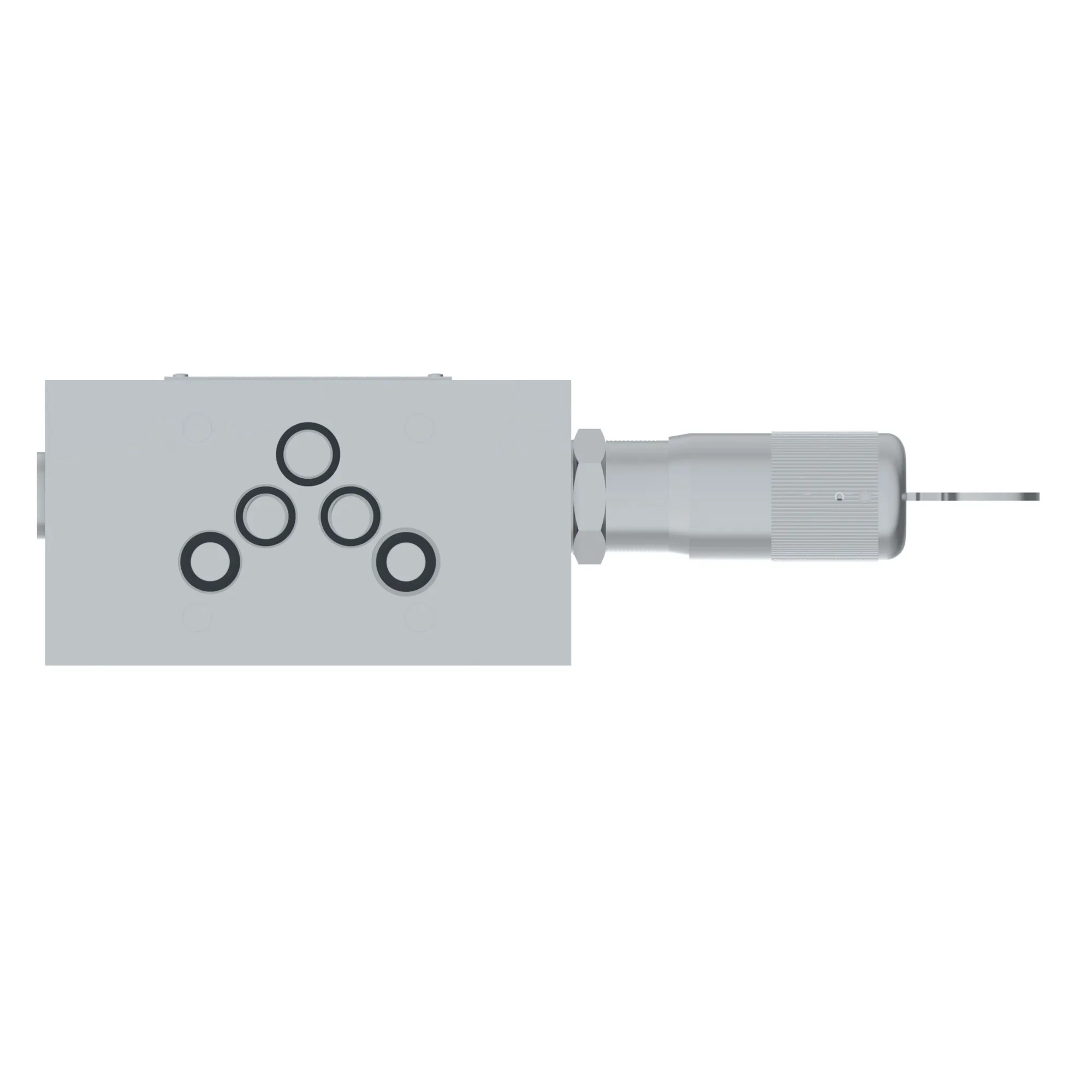

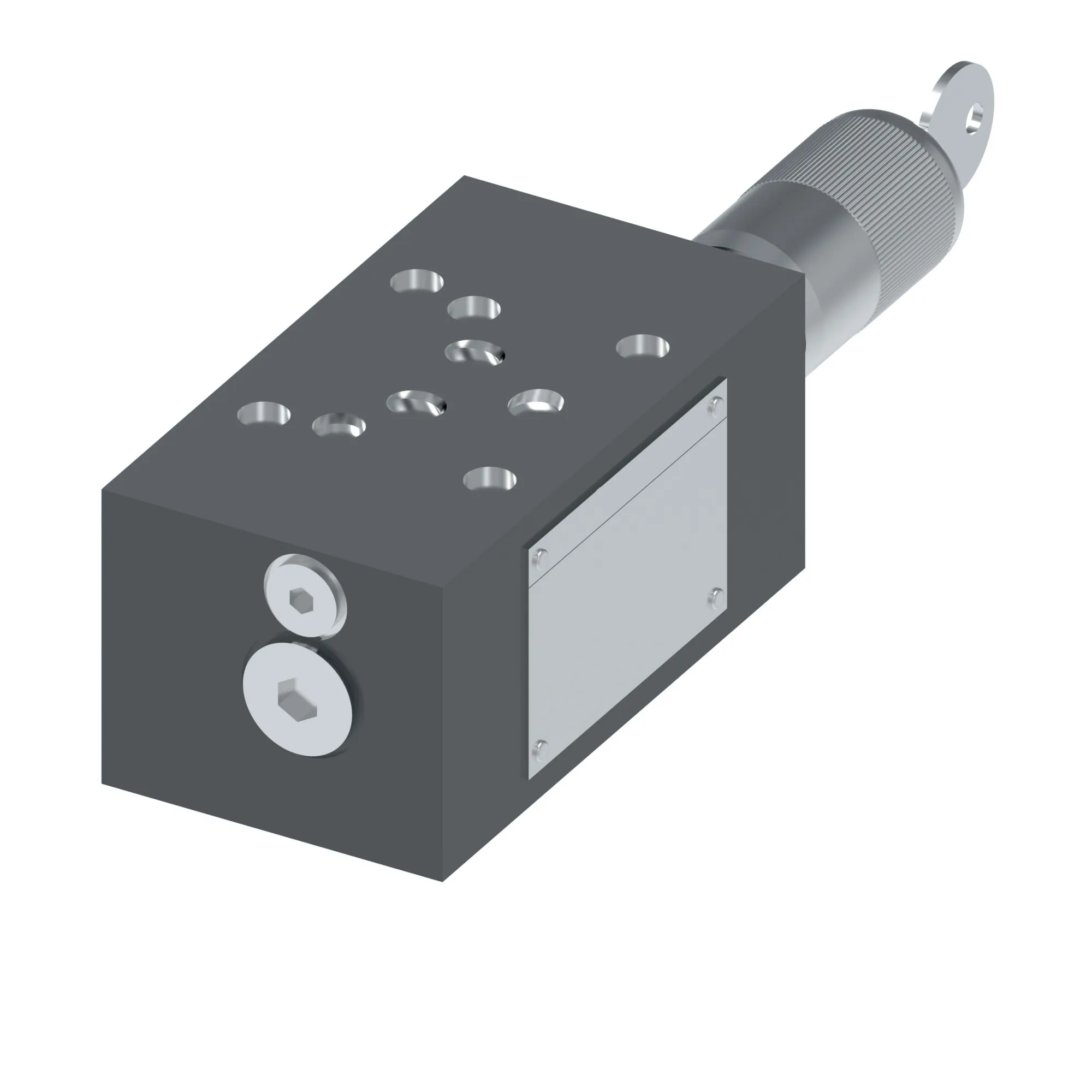

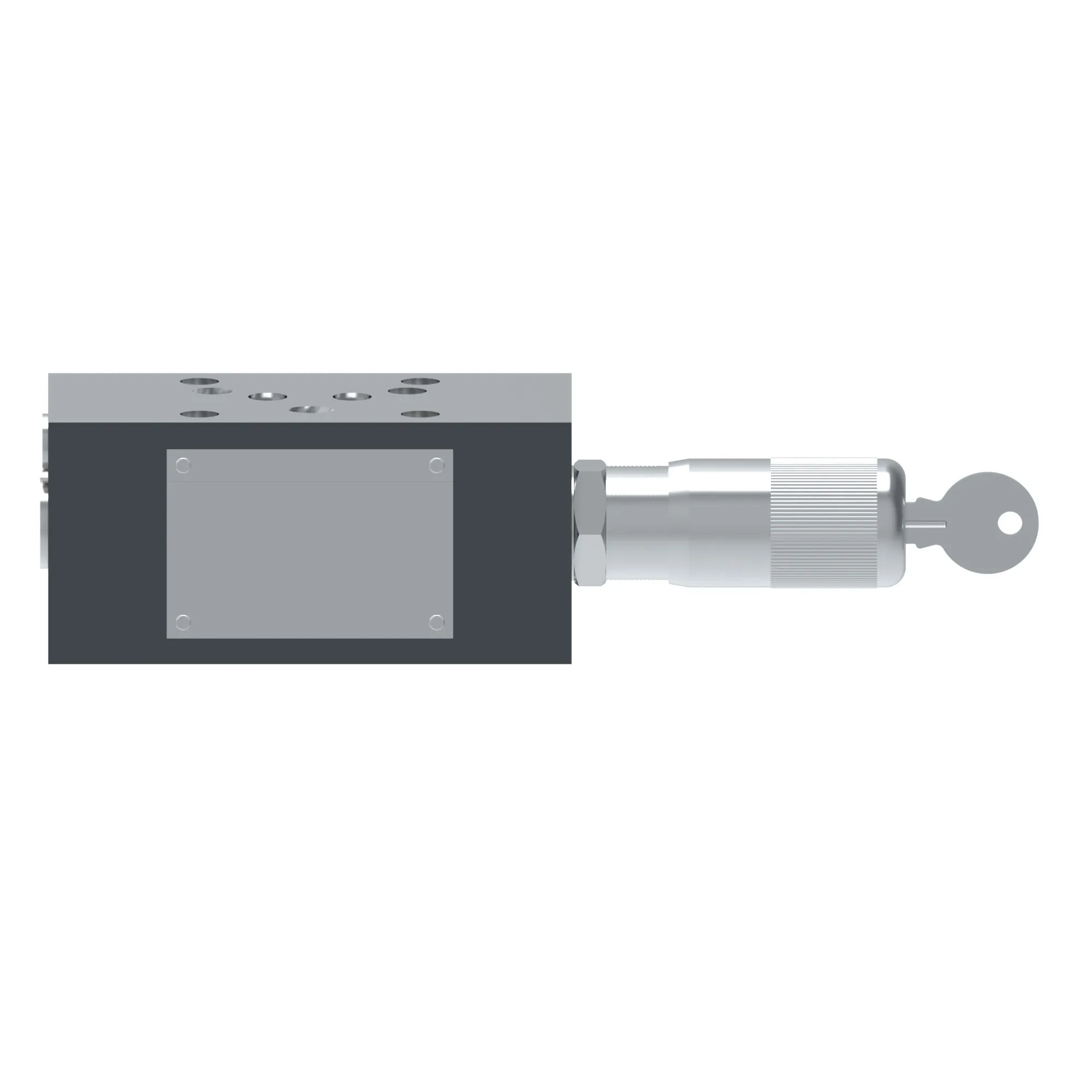

DGMX2 5 PP FK S 30, DGMX25PPFKS30 – 02-148614
Specification
| Actuation Type | Pressure operated |
|---|---|
| Adjustment Type | Micrometer with keylock |
| Brand | Vickers by Danfoss |
| Design Series | 30 Series |
| External Drain | No |
| Flow Rate Upto Lpm | 120 |
| Flow Rate Upto Usgpm | 32.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Gauge Port Thread Type | SAE-4 o-ring boss port |
| Interface | ISO4401-05 |
| Maximum Pressure Upto Bar | 315 |
| Maximum Pressure Upto Psi | 4500 |
| Model Code 1 | DGMX25PPFKS30 |
| Performance | Standard |
| Pilot Control | Pressure port |
| Port Operated Upon | P pressure port |
| Pressure Adjustment Range | 8.5-200 bar (125-2900 psi) |
| Product Height In | 2.360 |
| Product Height Mm | 59.944 |
| Product Length In | 9.160 |
| Product Length Mm | 232.664 |
| Product Width In | 2.820 |
| Product Width Mm | 71.628 |
| Remote Control Port | No |
| Seal Type | Viton |
| Special Features | None |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Reducing/relieving valve |
| Working Temp Max C | 80 |
| Working Temp Max F | 176 |
| Working Temp Min C | |
| Working Temp Min F | 32 |
