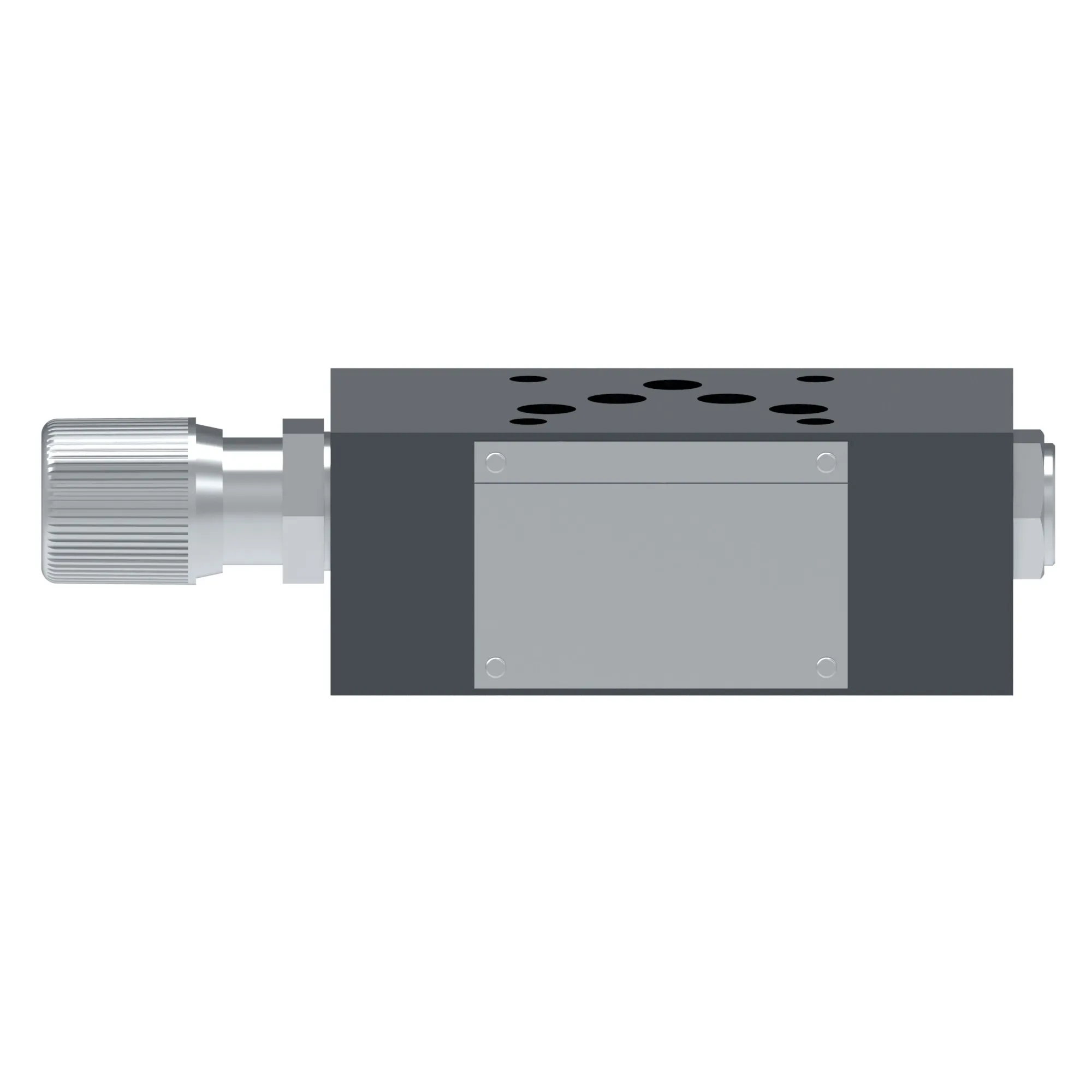

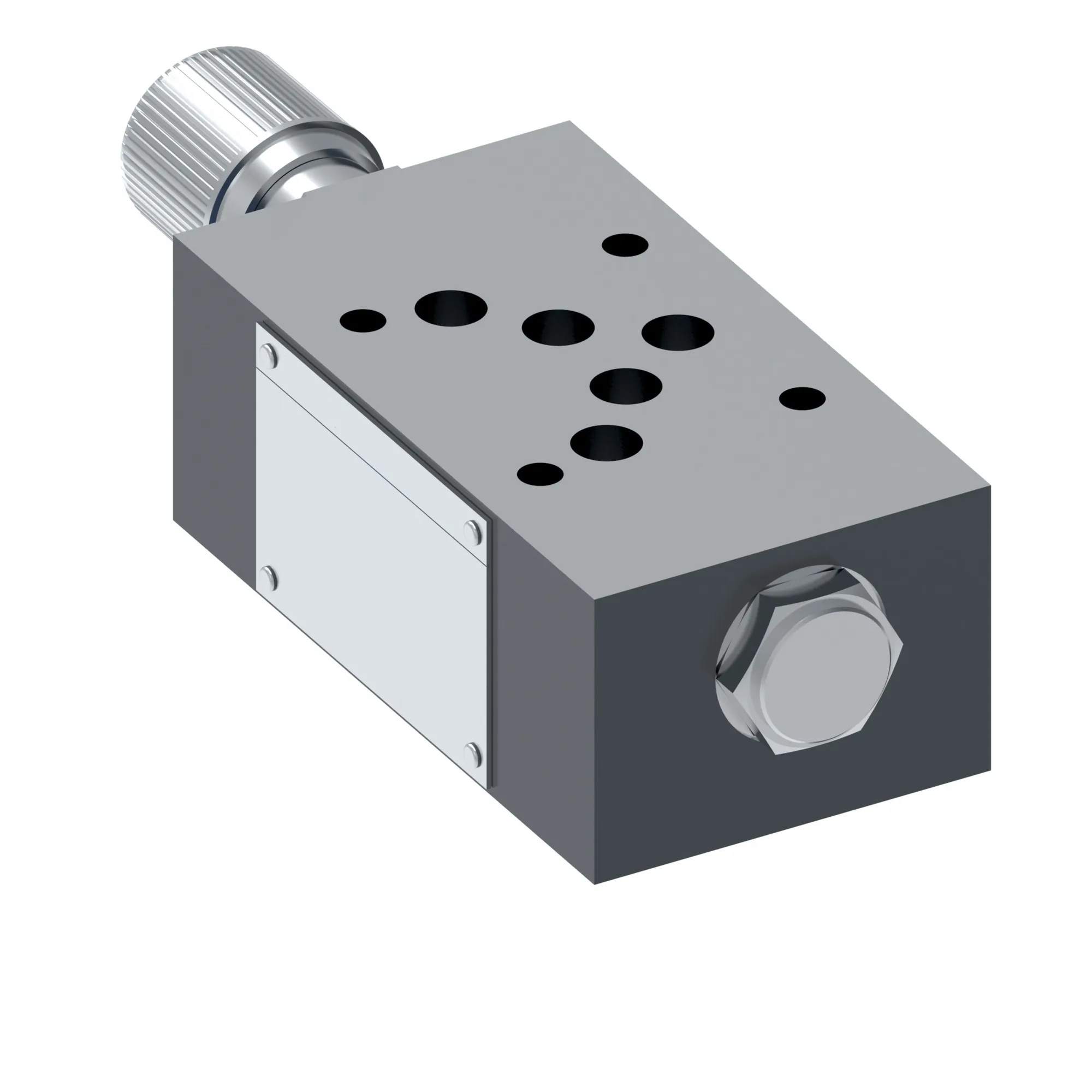

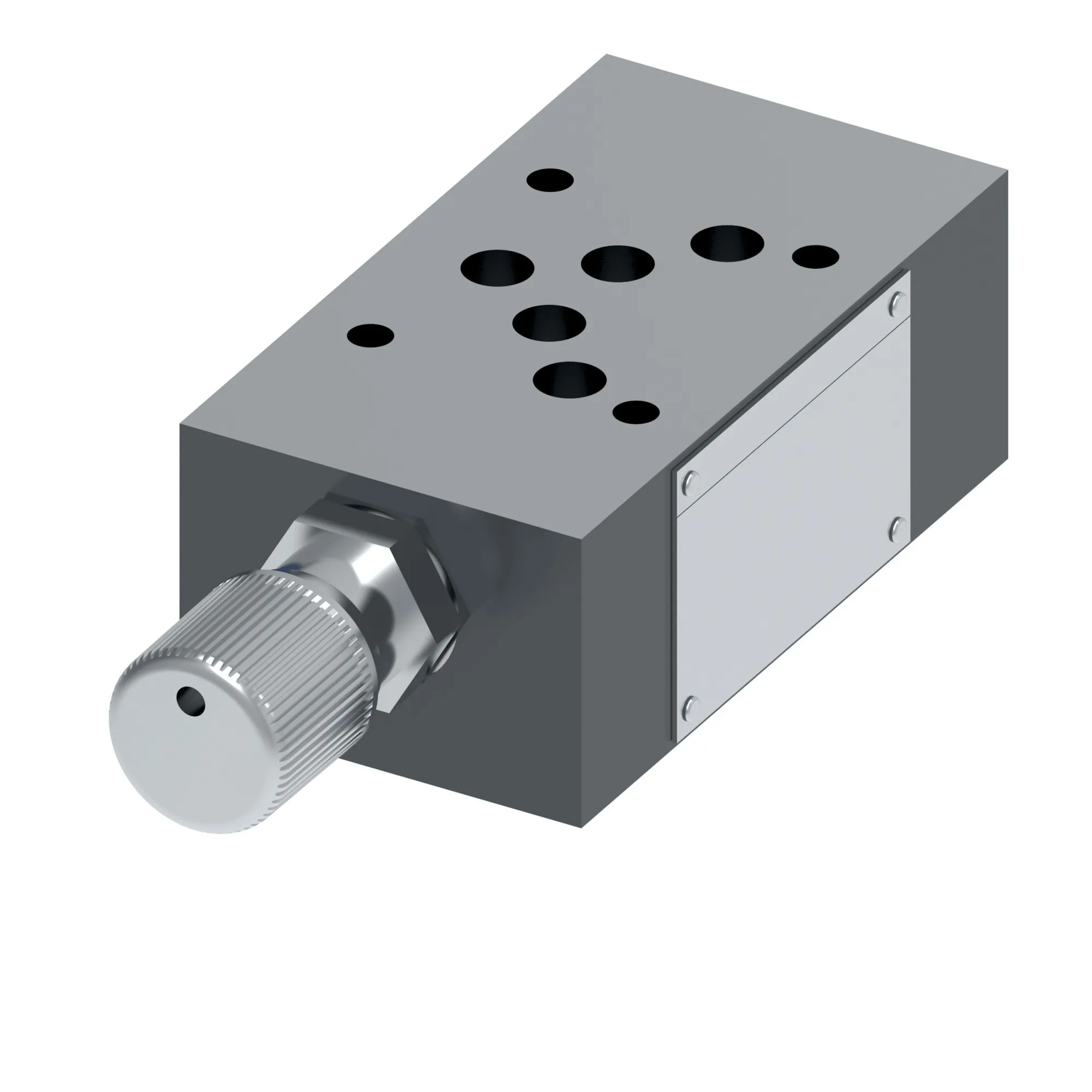

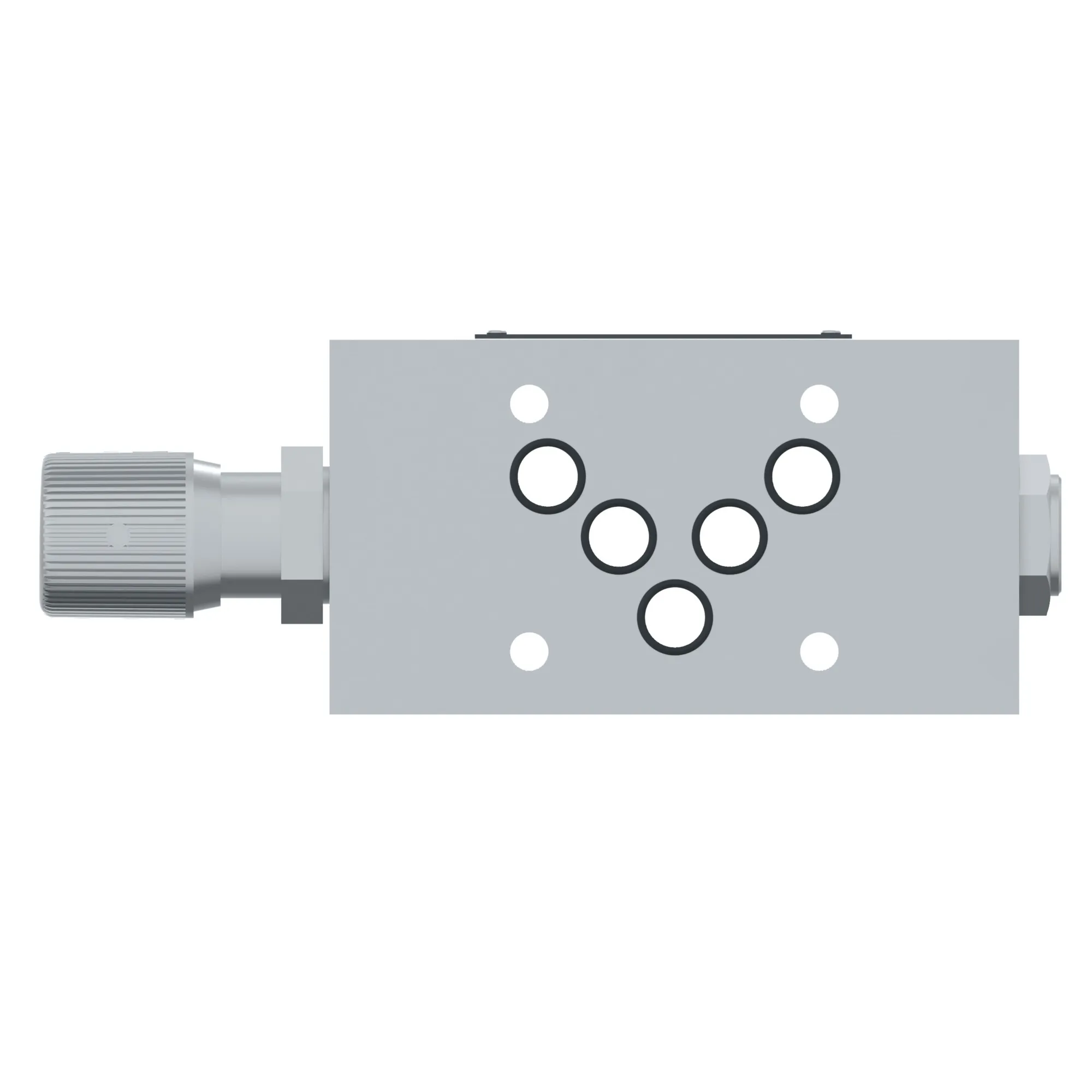

Danfoss (Drives) 02-147860
DGMFN 5 Y A2H 30, DGMFN5YA2H30 – 02-147860
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DGMFN 5 Y A2H 30, DGMFN5YA2H30 – 02-147860
Specification
| Actuation Type | Pressure operated |
|---|---|
| Adjustment Type | Knob adjuster |
| Brand | Vickers by Danfoss |
| Design Series | 30 Series |
| Direction Of Flow | Meter-out control |
| Flow Rate Upto Lpm | 120 |
| Flow Rate Upto Usgpm | 32.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Interface | ISO4401-05 |
| Maximum Pressure Upto Bar | 315 |
| Maximum Pressure Upto Psi | 4500 |
| Model Code 1 | DGMFN5YA2H30 |
| Port Operated Upon | A cylinder port |
| Product Height In | 1.970 |
| Product Height Mm | 50.038 |
| Product Length In | 7.840 |
| Product Length Mm | 199.136 |
| Product Width In | 2.820 |
| Product Width Mm | 71.628 |
| Seal Type | Viton |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Flow control valve |
| Working Temp Max C | 50 |
| Working Temp Max F | 120 |
| Working Temp Min C | 20 |
| Working Temp Min F | 70 |
