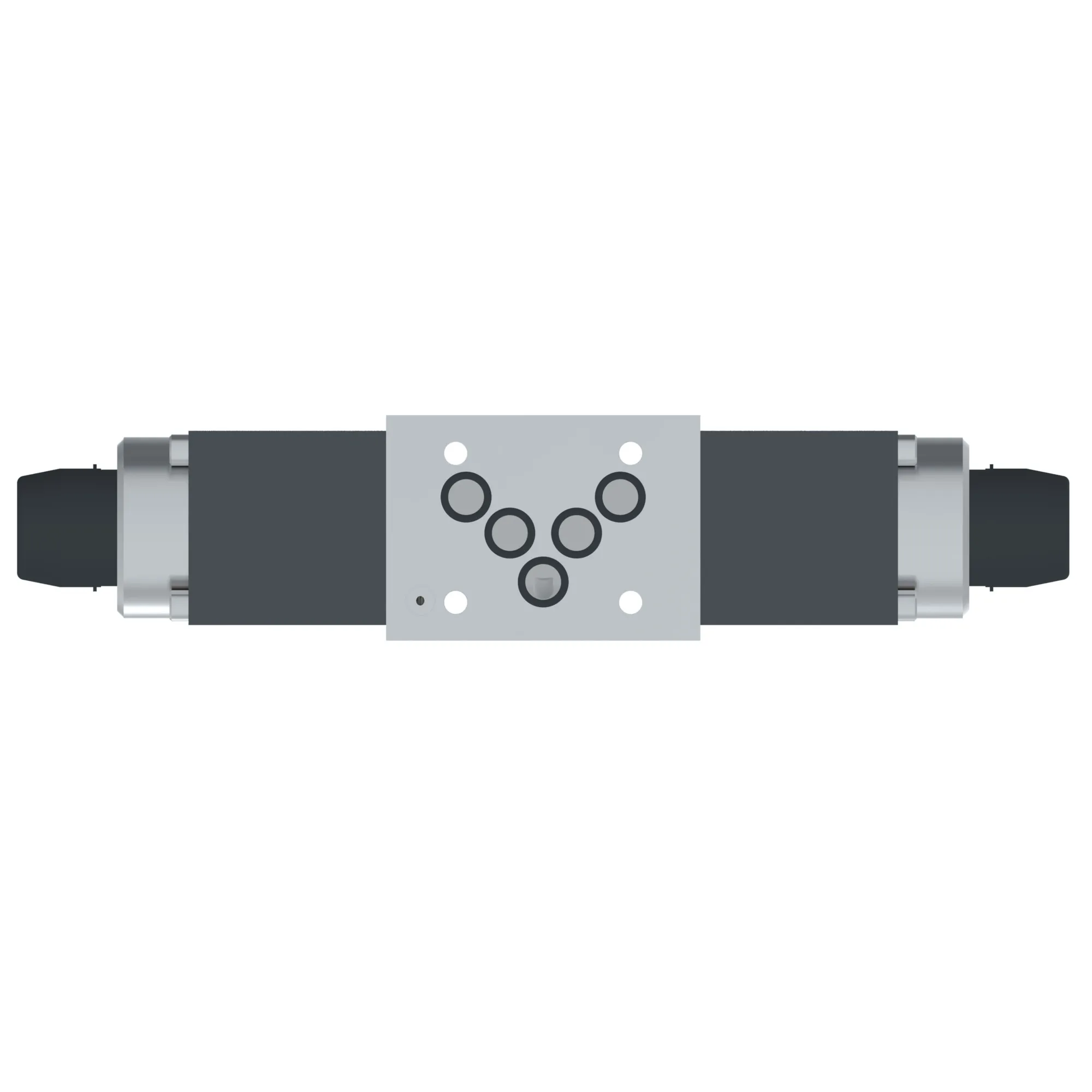

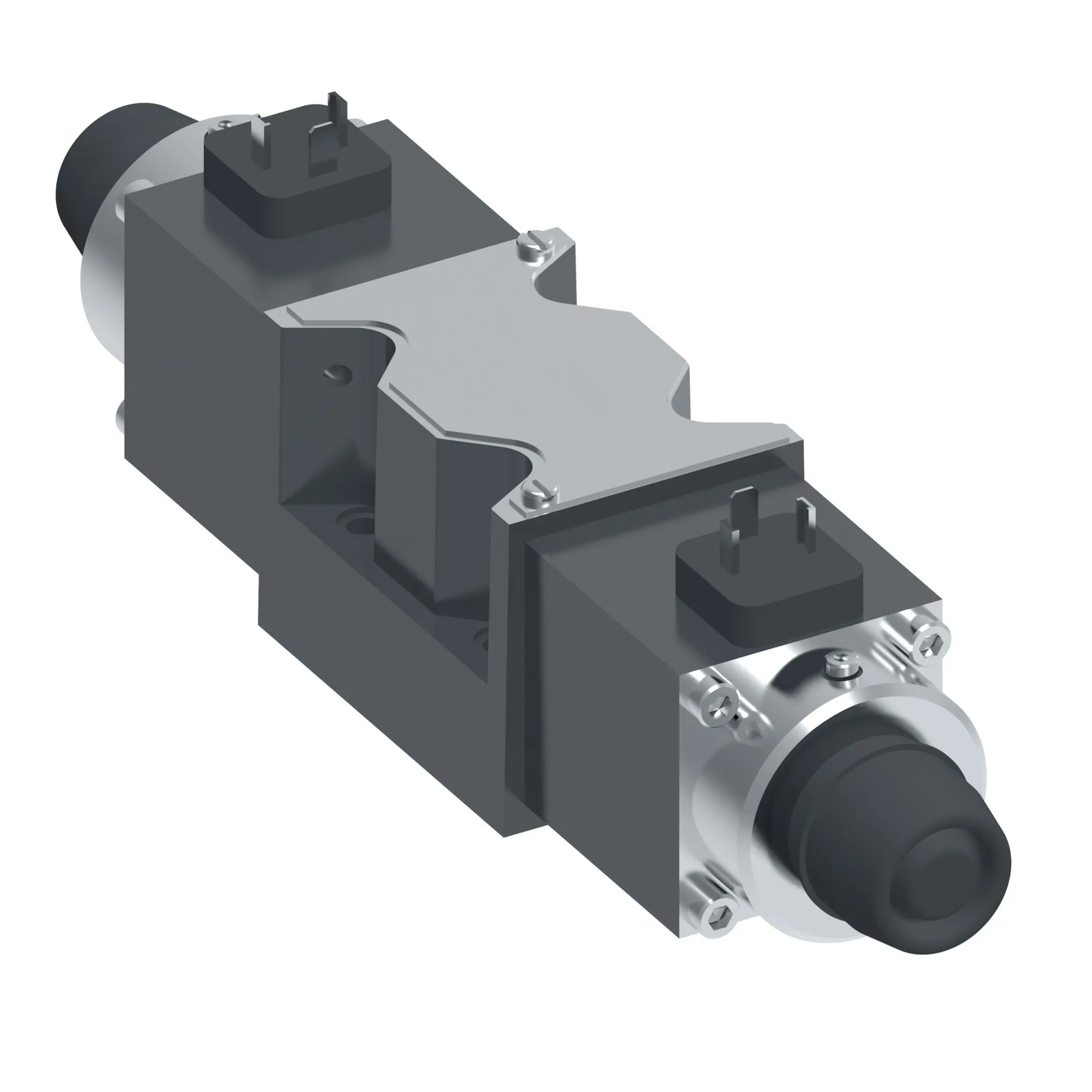

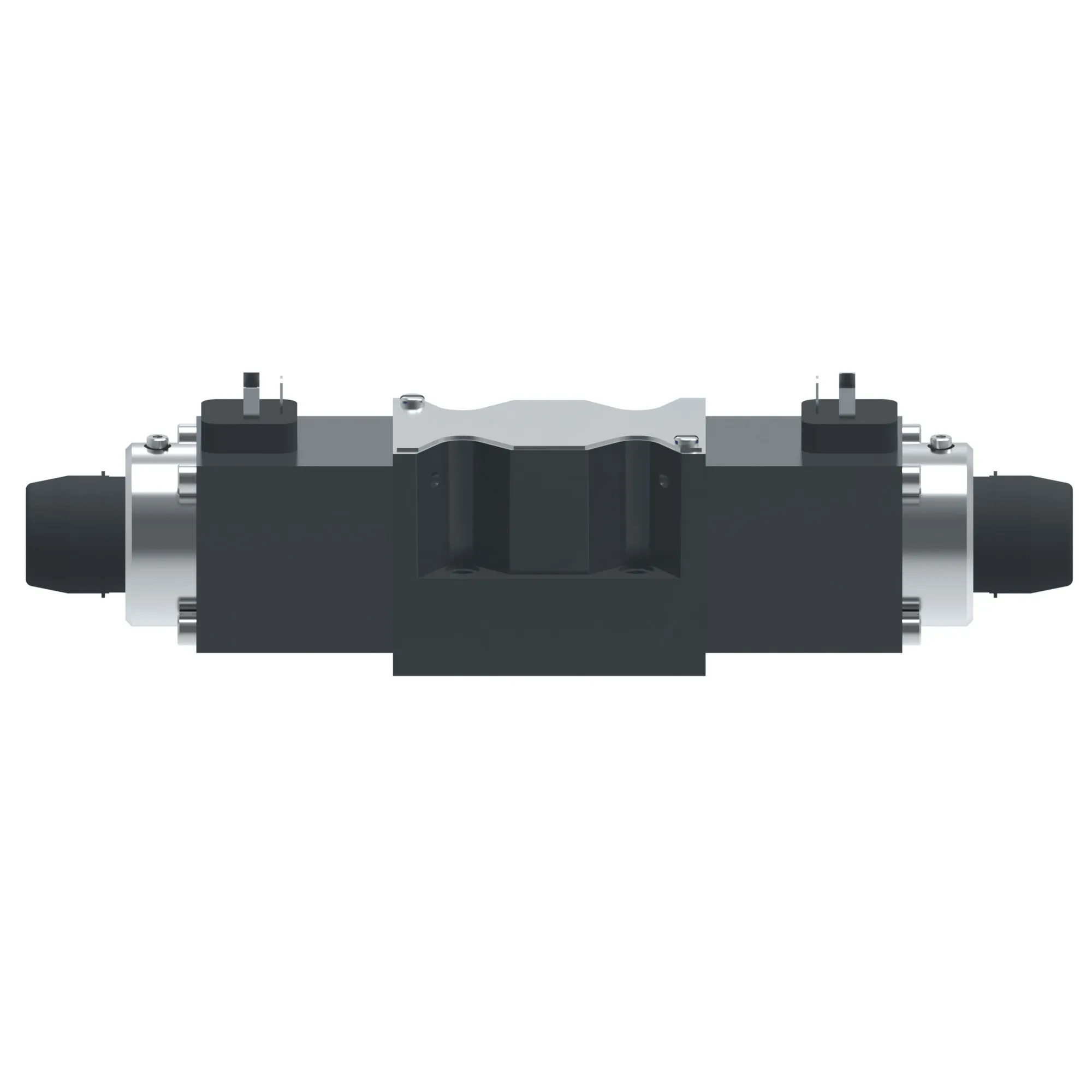

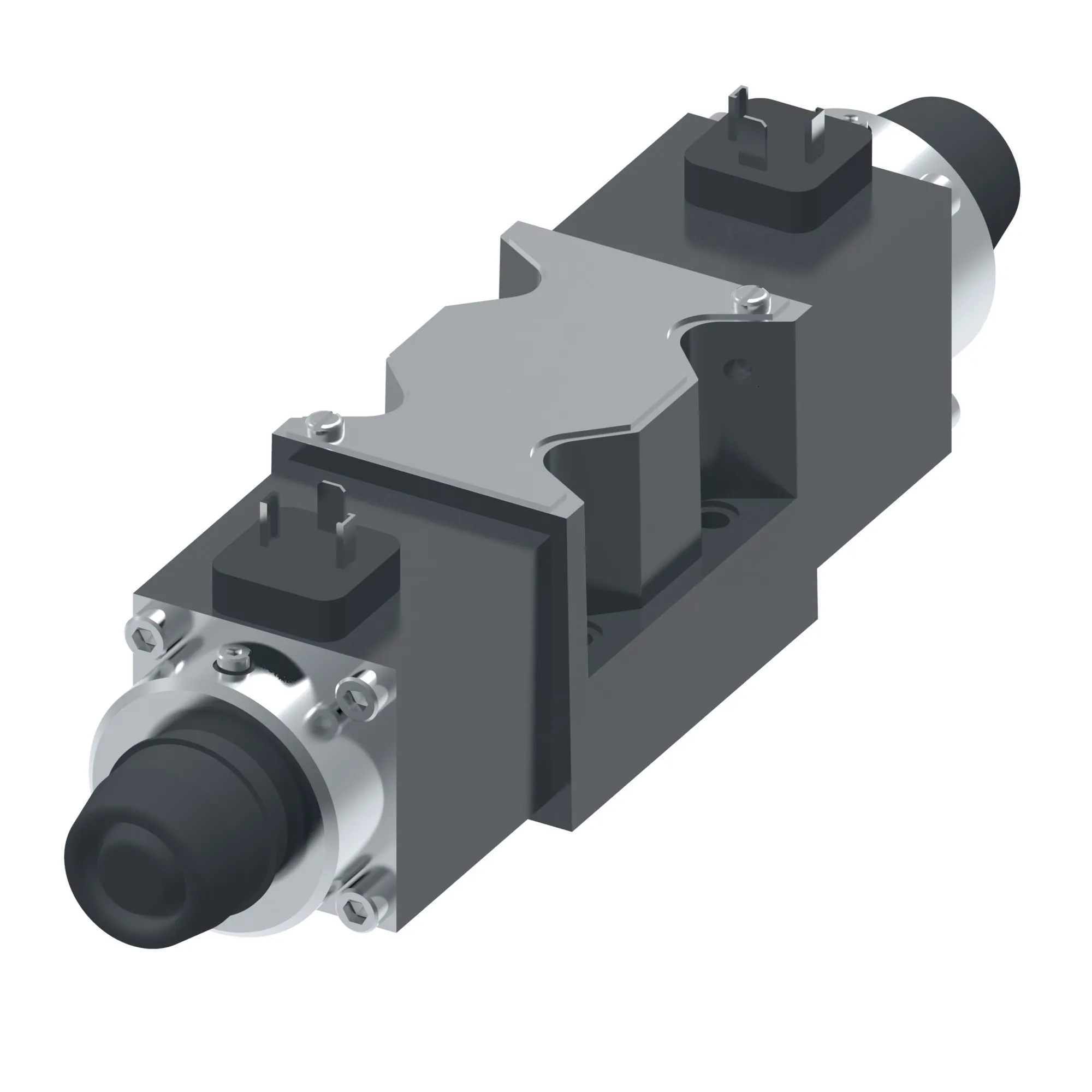

Danfoss (Drives) 02-147247
KDG4V 5 2C65S Z MU1 H6 30, KDG4V52C65SZMU1H630 – 02-147247
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
KDG4V 5 2C65S Z MU1 H6 30, KDG4V52C65SZMU1H630 – 02-147247
Specification
| A Port Flow Lpm | 65.00 |
|---|---|
| A Port Flow Usgpm | 17.20 |
| Actuation Type | Solenoid controlled |
| B Port Flow Lpm | 65.00 |
| B Port Flow Usgpm | 17.20 |
| Brand | Vickers by Danfoss |
| Build Orientation | Standard as per ANSI B93 9 |
| Build Type | Spring centered |
| Coil Voltage | 24 Volt DC |
| Command Input | None |
| Communication Protocol | None |
| Design Series | 30 Series |
| Electrical Connection | ISO4400 with fitted plugs |
| Feedback Sensor | No |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid Compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |
| Interface | ISO4401-05/NFPA D05/CETOP 5/NG10 |
| Manual Override | None |
| Maximum Pressure Bar | 315 |
| Maximum Pressure Psi | 4500 |
| Metering | Meter out |
| Model Code 1 | KDG4V52C65SZMU1H630 |
| On Board Electronics | No |
| Performance | Standard |
| Product Height In | 4.180 |
| Product Height Mm | 106.172 |
| Product Length In | 10.040 |
| Product Length Mm | 255.016 |
| Product Width In | 2.760 |
| Product Width Mm | 70.104 |
| Profx Compatible | No |
| Reducer Module | No |
| Reverse Flow Check | No |
| Seal Type | Viton |
| Special Features | None |
| Spool Type | ISO4401-10/NFPA D10/CETOP 10/NG32 |
| Stage | Single stage |
| Symmetric Flow | Yes |
| Tank Port Rating Bar | 160 |
| Tank Port Rating Psi | 2300 |
| Valve Mount Type | Subplate |
| Valve Type | Proportional directional |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
