Danfoss (Drives) 02-145384

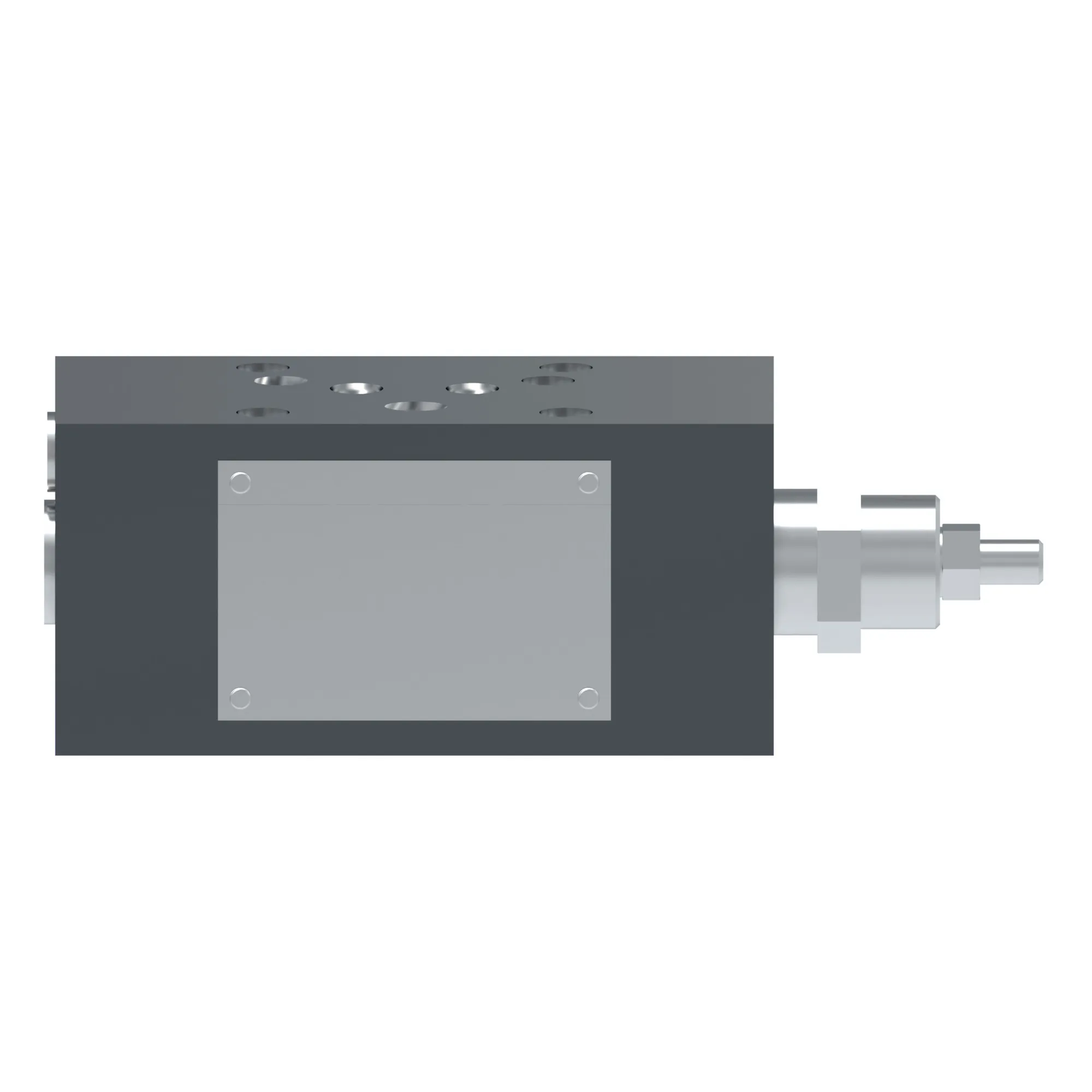

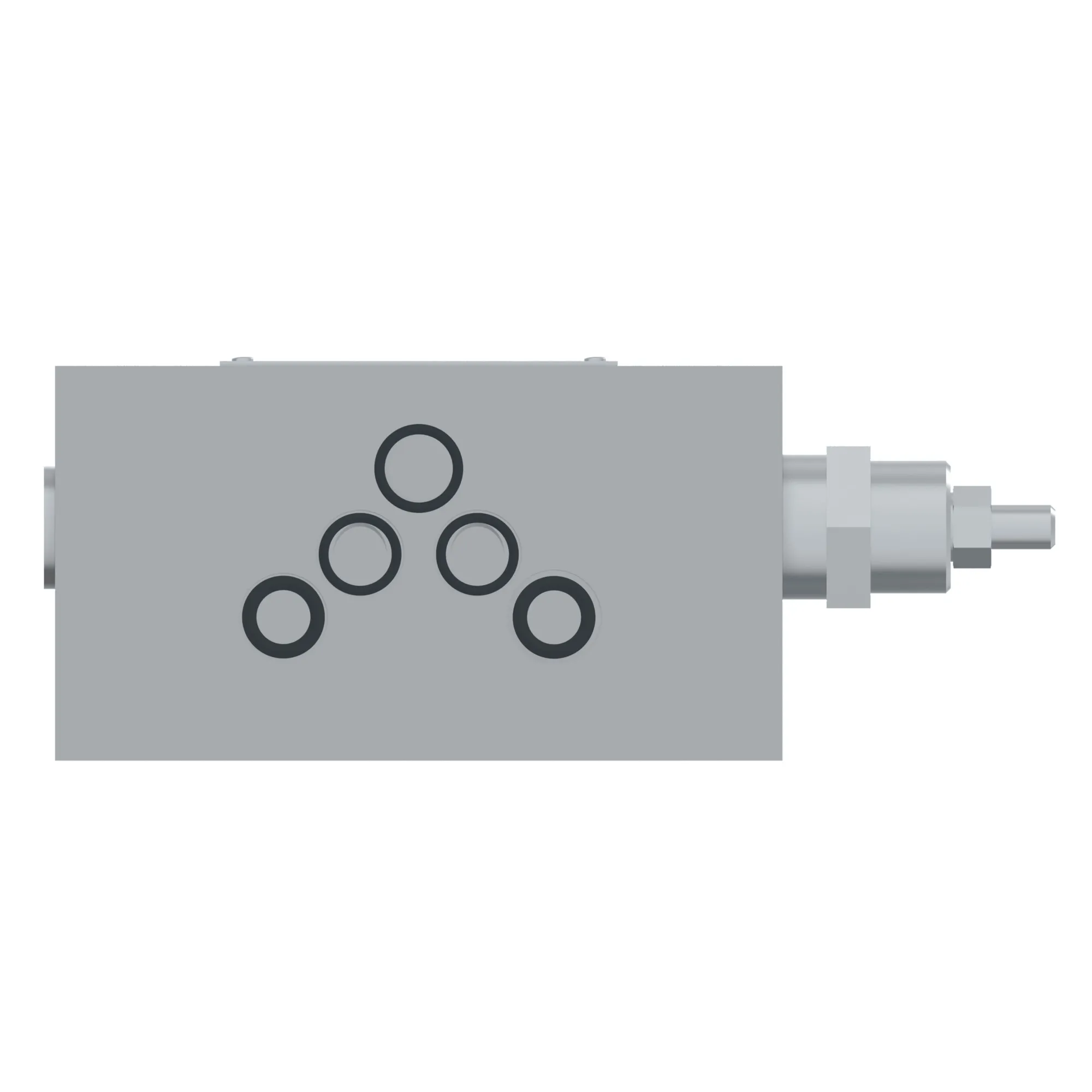

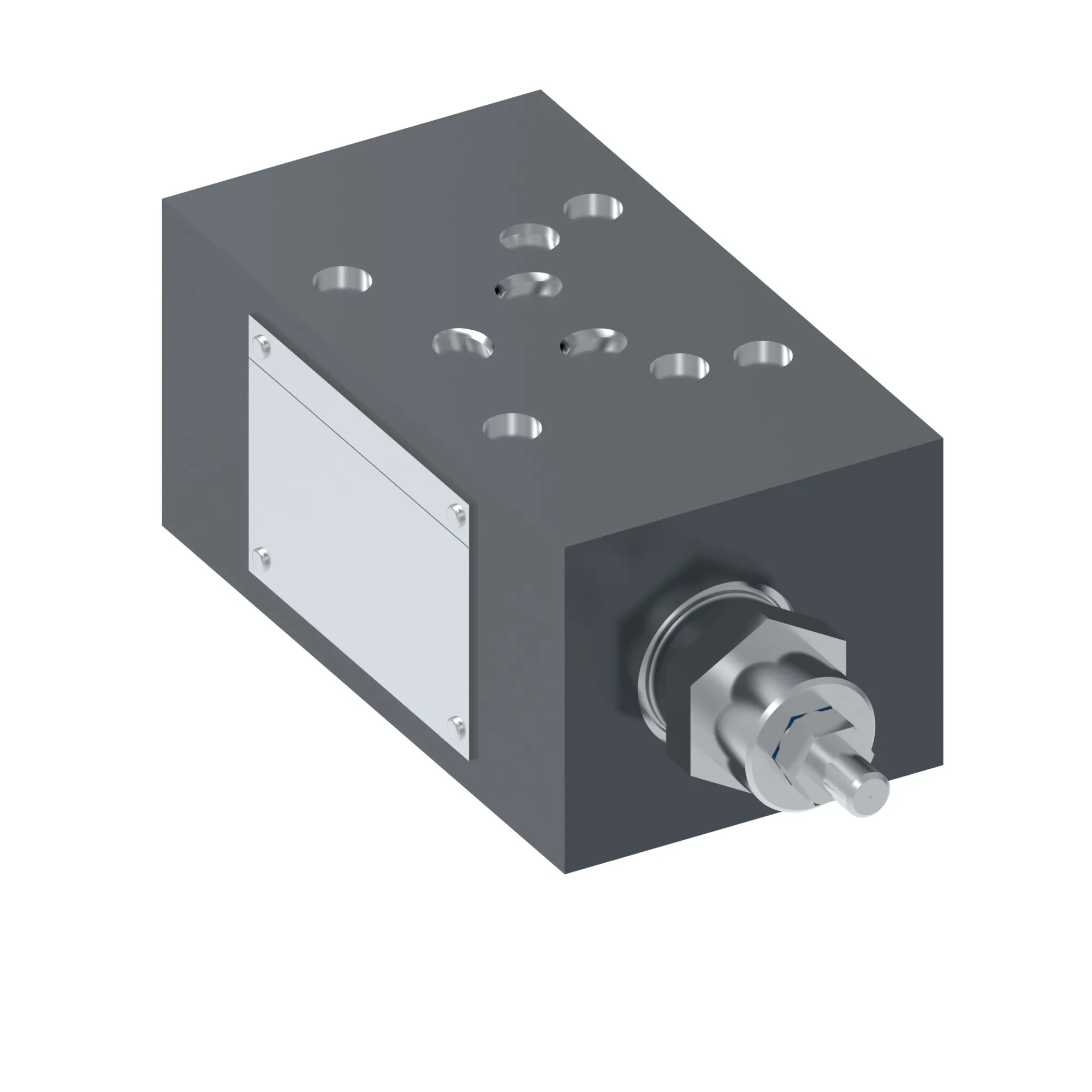

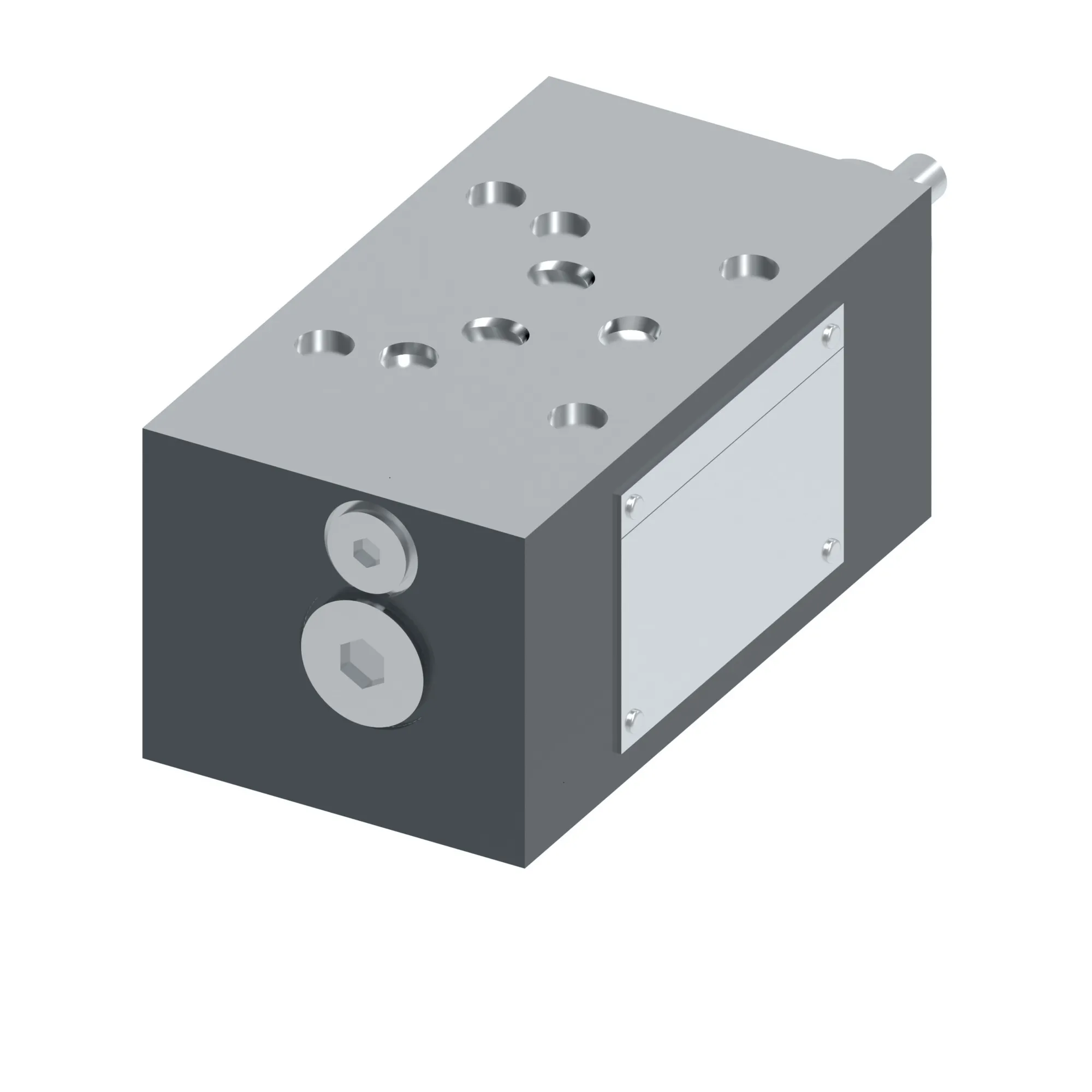

DGMR-5-A2-FW-30, DGMR5A2FW30 – 02-145384
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DGMR-5-A2-FW-30, DGMR5A2FW30 – 02-145384
Specification
| Actuation Type | Pressure operated |
|---|---|
| Adjustment Type | Screw and locknut |
| Brand | Vickers by Danfoss |
| Design Series | 30 Series |
| External Drain | No |
| Flow Rate Upto Lpm | 120 |
| Flow Rate Upto Usgpm | 32.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Interface | ISO4401-05 |
| Maximum Pressure Upto Bar | 315 |
| Maximum Pressure Upto Psi | 4500 |
| Model Code 1 | DGMR5A2FW30 |
| Performance | Standard |
| Pilot Ratio 1 | 10:1 |
| Port Operated Upon | Counterbalance in A, piloted from B |
| Pressure Adjustment Range | 60-210 bar (900-3000 psi) |
| Product Height In | 2.360 |
| Product Height Mm | 59.944 |
| Product Length In | 5.830 |
| Product Length Mm | 148.082 |
| Product Width In | 2.820 |
| Product Width Mm | 71.628 mm |
| Seal Type | Viton |
| Special Features | None |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Counterbalance valve |
| Working Temp Max C | 80 |
| Working Temp Max F | 176 |
| Working Temp Min C | -40 |
| Working Temp Min F | -40 |
