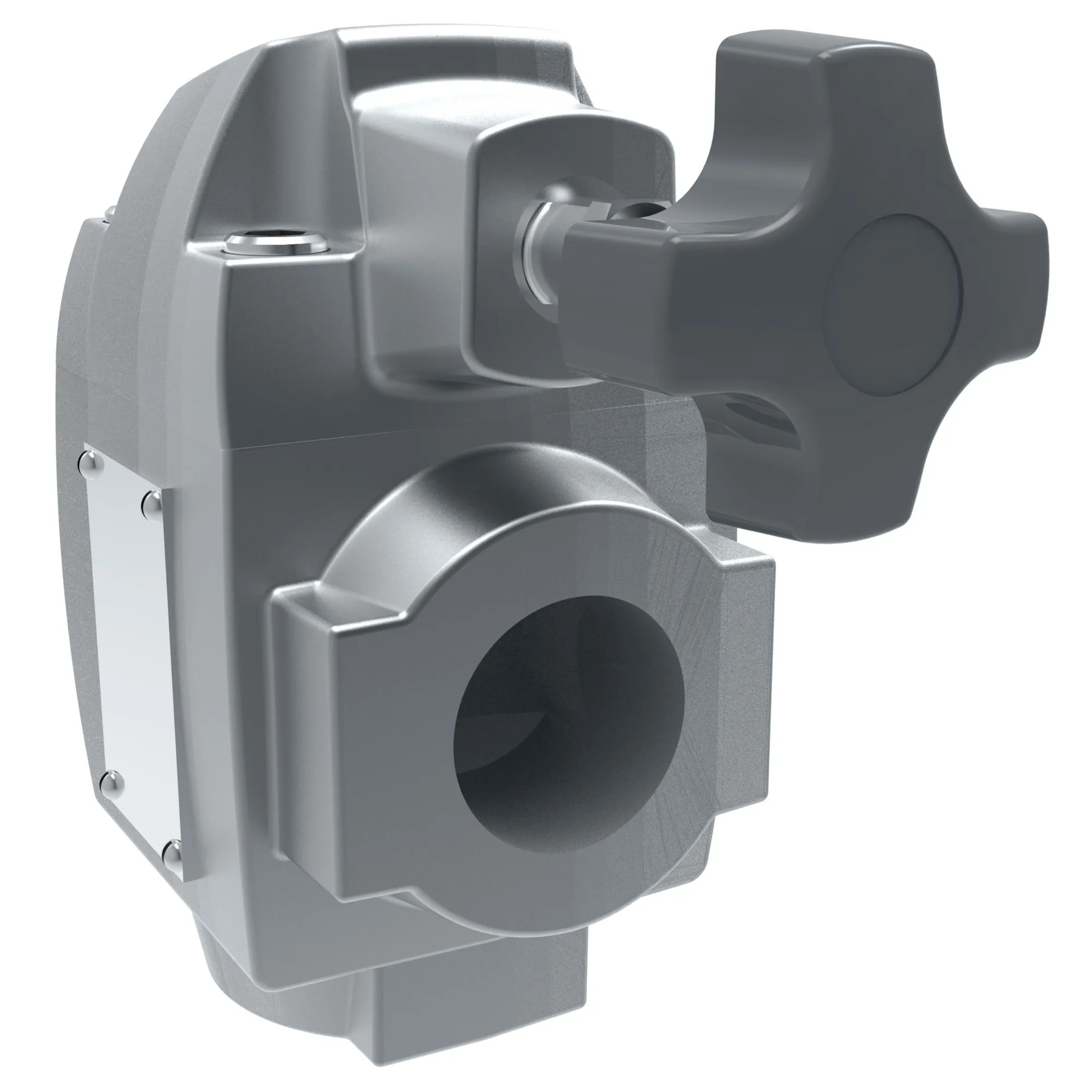

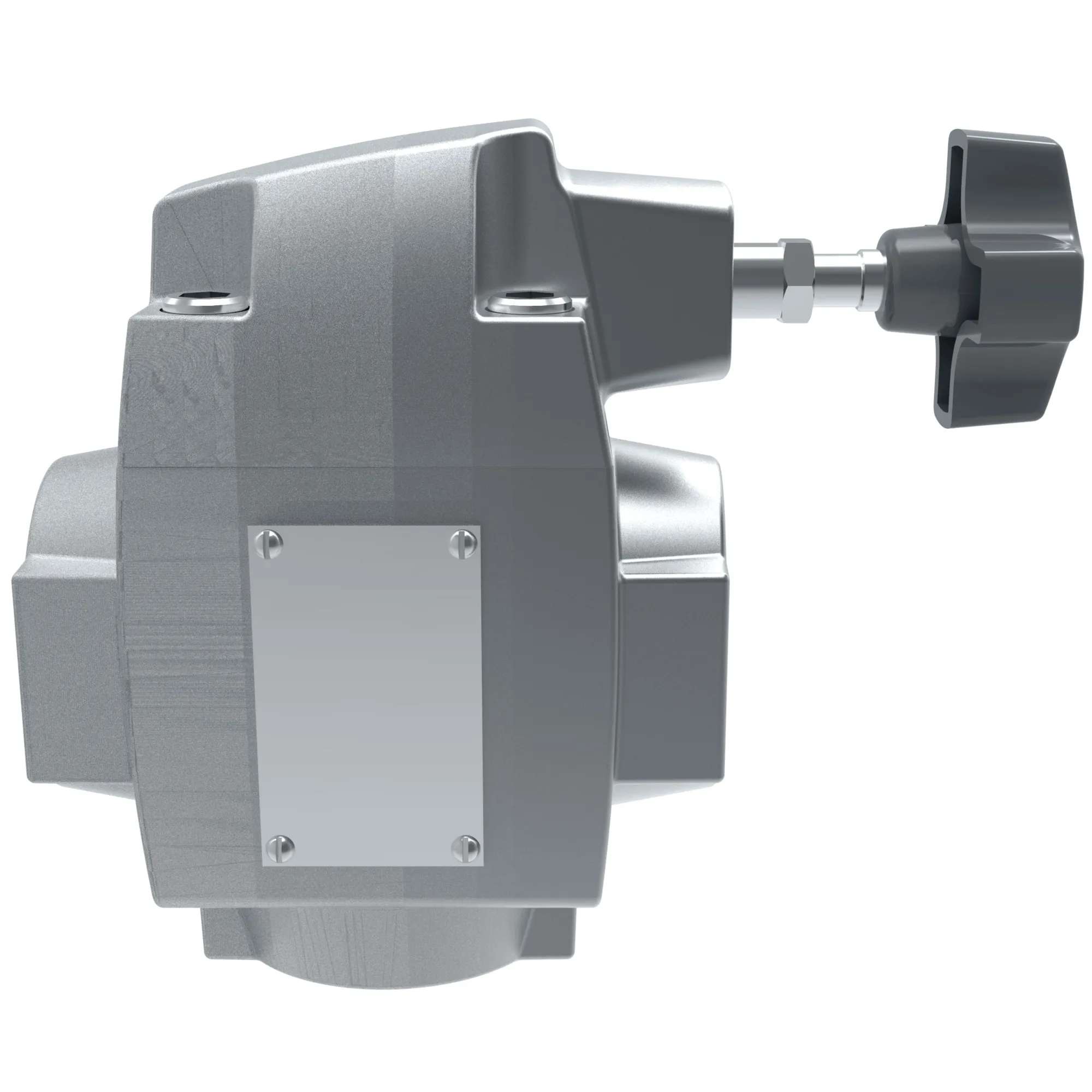

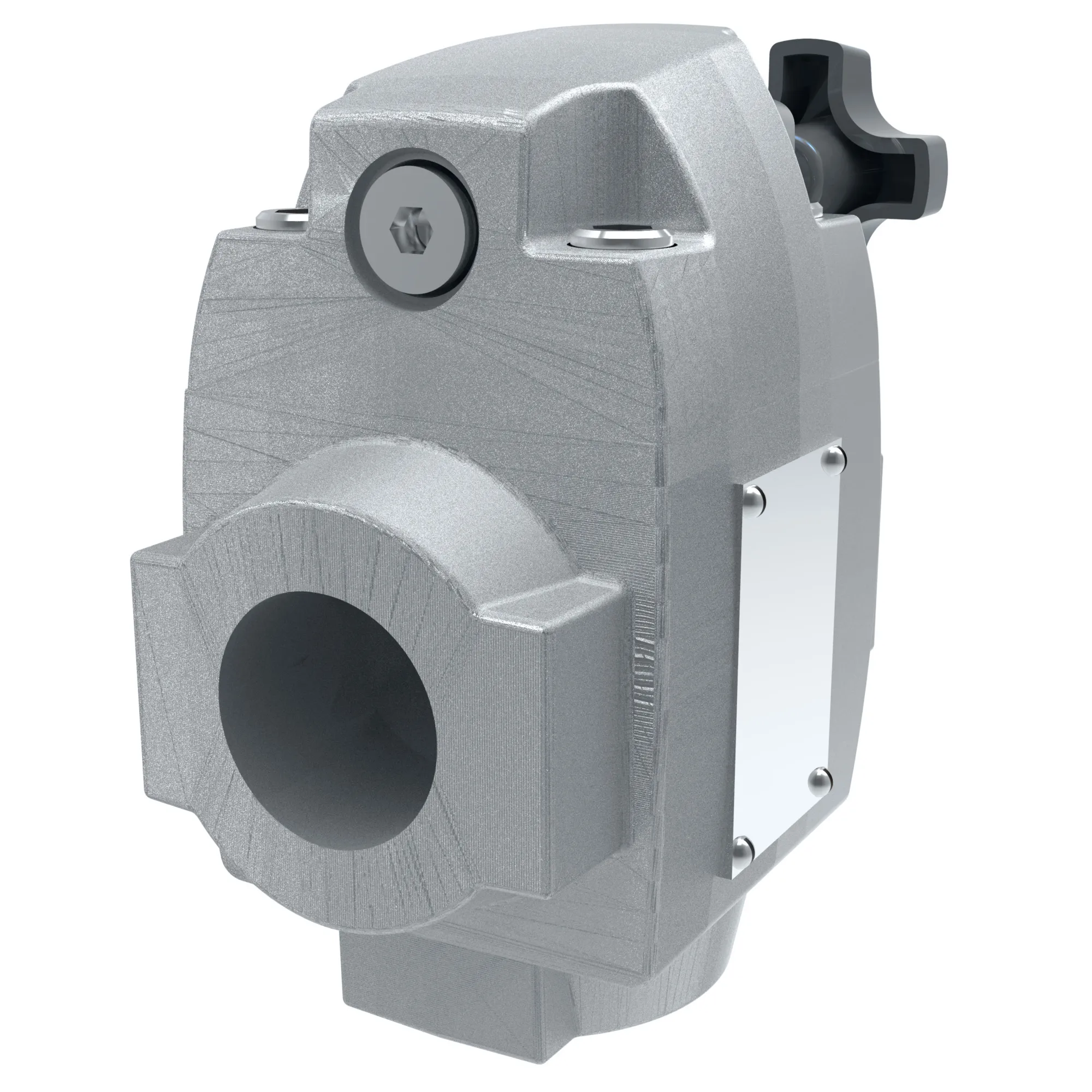

Danfoss (Drives) 02-145221
CG-10-CBC-DG-8C-VM-FW-B5 -41, CG10CBCDG8CVMFWB541 – 02-145221
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CG-10-CBC-DG-8C-VM-FW-B5 -41, CG10CBCDG8CVMFWB541 – 02-145221
Specification
| Actuation Type | Solenoid operated |
|---|---|
| Adjustment Range | 35-140 bar (500-2000 psi) |
| Adjustment Range Head 1 | 35-140 bar (500-2000 psi) |
| Adjustment Range Head 2 | 8.5-70 bar (125-1000 psi) |
| Adjustment Range Head 3 | 35-140 bar (500-2000 psi) |
| Adjustment Type | Screw with locknut |
| Brand | Vickers by Danfoss |
| Coil Voltage | 110 VAC 50Hz/120 VAC 60Hz |
| Design Series | 41 Series |
| Electrical Connection | Flying lead 1/2″ NPT housing |
| Flow Rate Lpm | 454.0 |
| Flow Rate Usgpm | 120.0 |
| Fluid Cleanliness | 19/17/14 Micron |
| Fluid Compatibility | Petroleum oils |
| Hi Vent Spring | No |
| Indicator Light | No |
| Manual Override | None |
| Maximum Pressure Bar | 210 |
| Maximum Pressure Psi | 3000 |
| Model Code 1 | CG10CBCDG8CVMFWB541 |
| Performance | Standard |
| Product Height In | 11.160 |
| Product Height Mm | 283.464 |
| Product Length In | 7.870 |
| Product Length Mm | 199.898 |
| Product Width In | 5.270 |
| Product Width Mm | 133.858 mm |
| Seal Material | Nitrile |
| Size | Size 10 |
| Special Feature | None |
| Stage | Two stage |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Relief valve |
| Working Temperature Max C | 80 |
| Working Temperature Max F | 176 |
| Working Temperature Min C | -20 |
| Working Temperature Min F | -4 |
