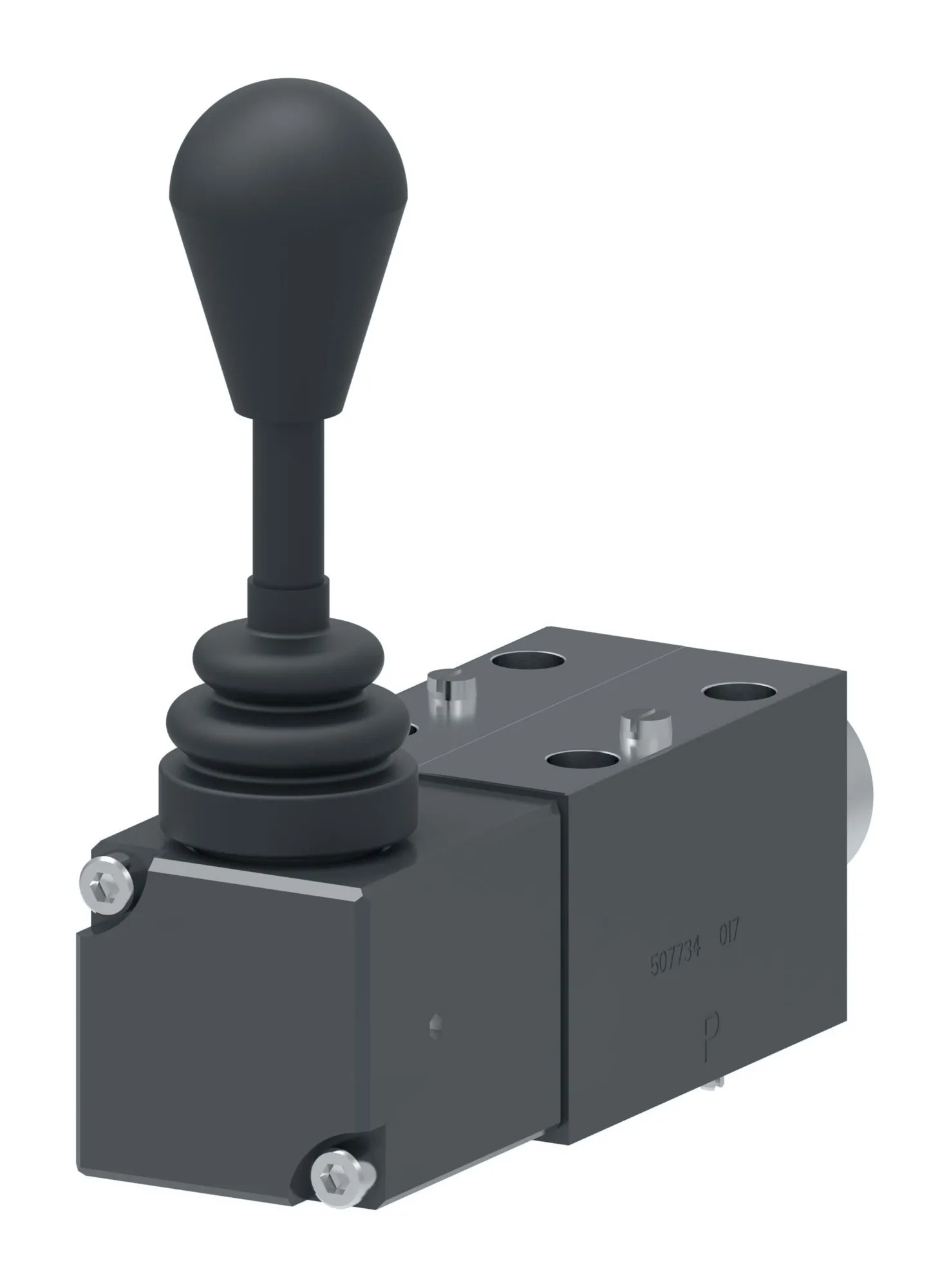

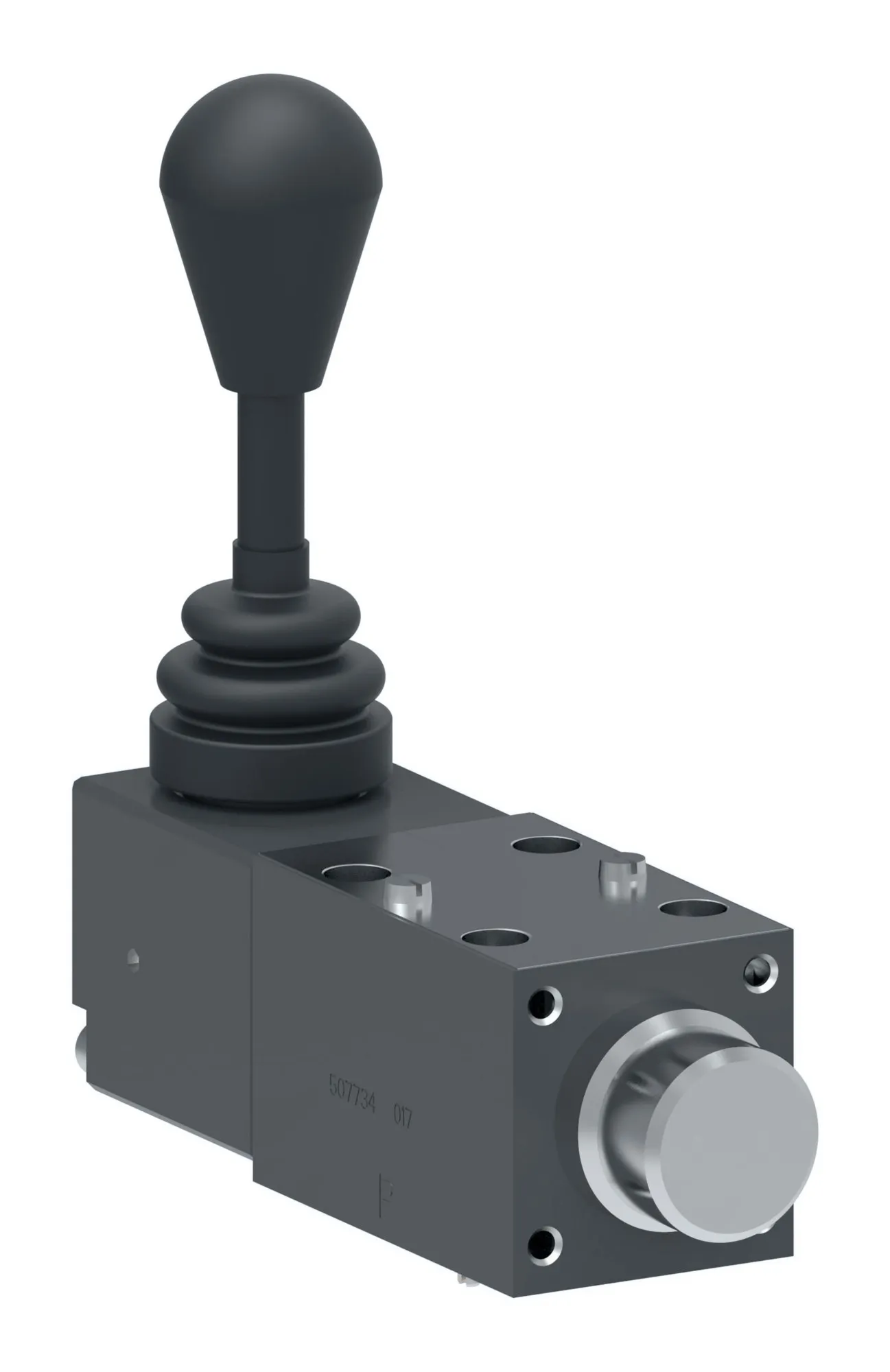

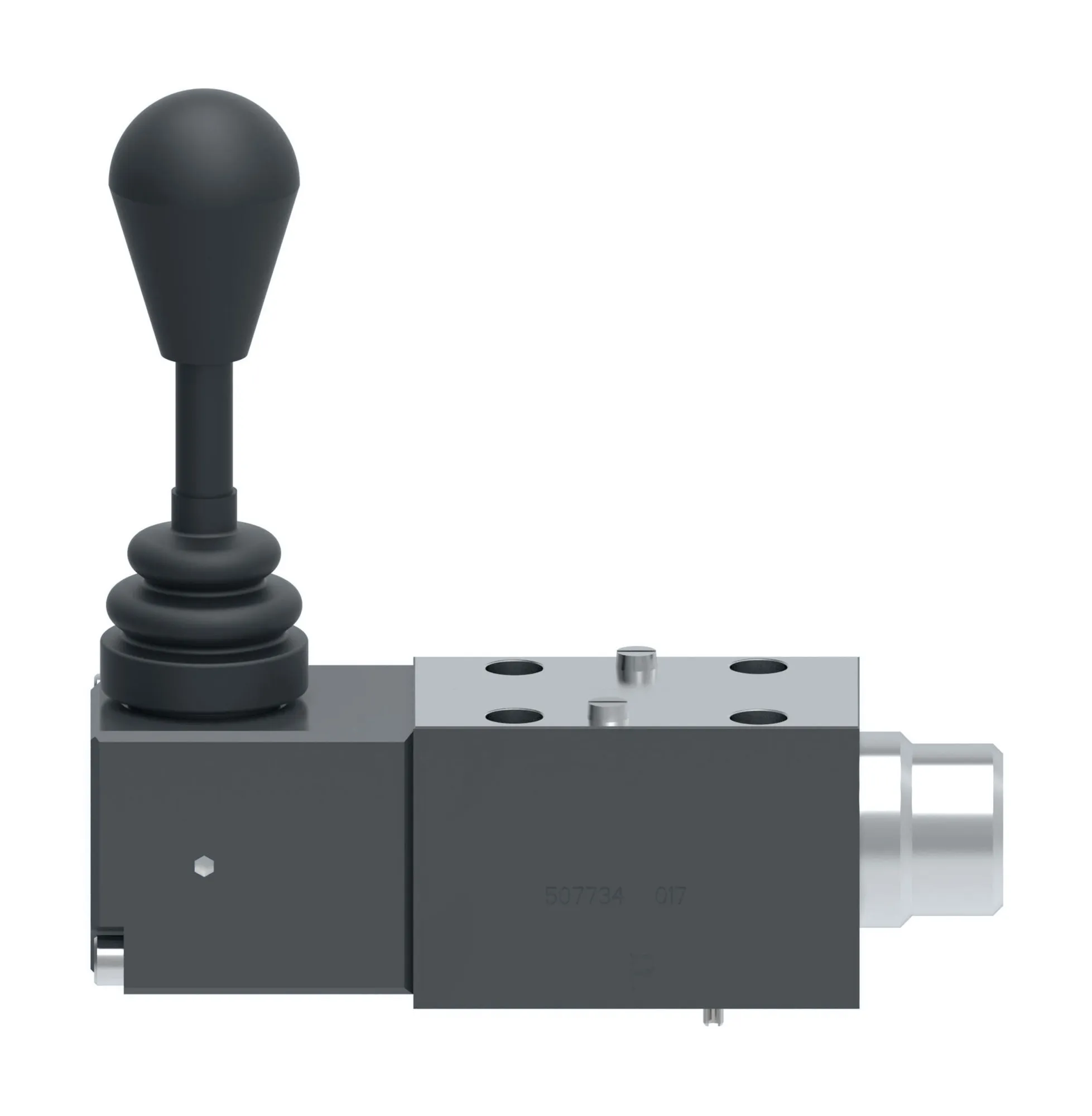

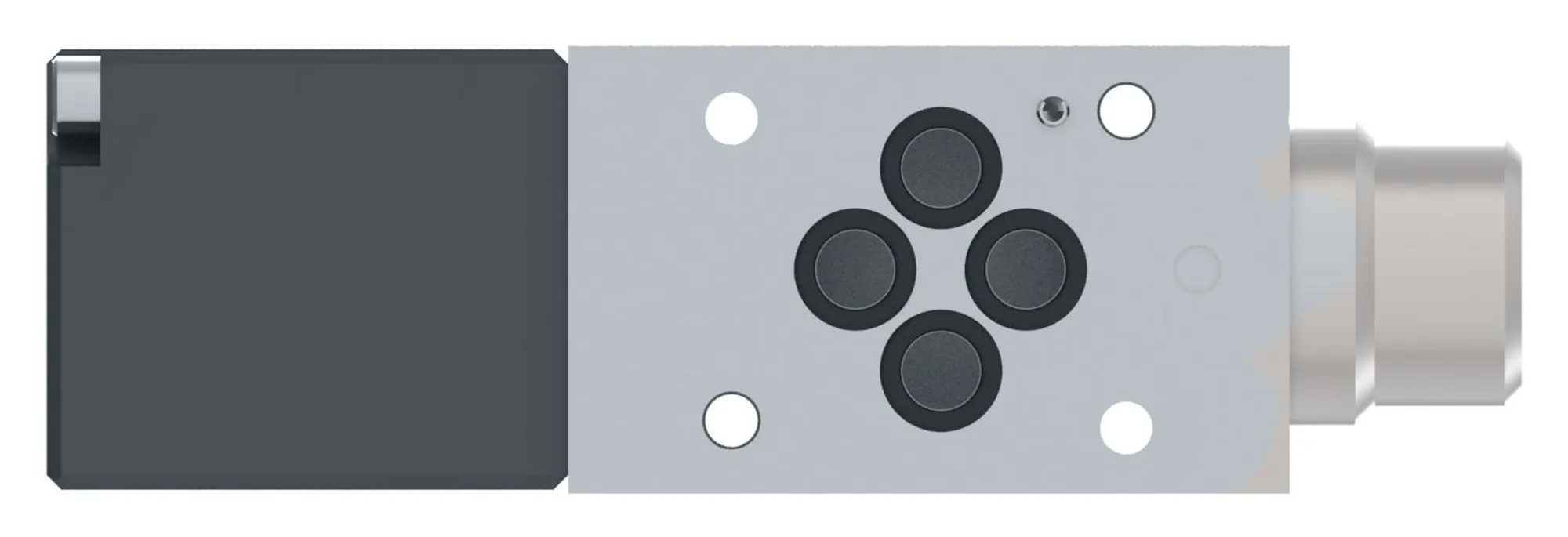

Danfoss (Drives) 02-144070
DG17V 3 8N 60, DG17V38N60 – 02-144070
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DG17V 3 8N 60, DG17V38N60 – 02-144070
Specification
| Actuation Type | Lever/knob operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | None |
| Design Series | 60 Series |
| Electrical Connection | None |
| Flow Rate Upto Gpm | 20.0 |
| Flow Rate Upto Lpm | 75.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Interface | ISO4401-03 |
| Manual Override | None |
| Model Code 1 | DG17V38N60 |
| Performance | Standard performance |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 5.960 |
| Product Length In | 5.960 |
| Product Length Mm | 151.384 |
| Product Width In | 1.810 |
| Product Width Mm | 45.974 mm |
| Seal Type | WATER GLYCOL |
| Solenoid Energising Id | None |
| Special Features | None |
| Spool Position Monitor | No |
| Spool Type | Spool 8 |
| Spring Arrangement | No spring detented |
| Stage | Single stage |
| Surge Suppr Damper | No |
| Tank Port Rating Bar | 7 |
| Tank Port Rating Psi | 100 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 65 |
| Working Temp Max F | 150 |
| Working Temp Min C | -18 |
| Working Temp Min F |
