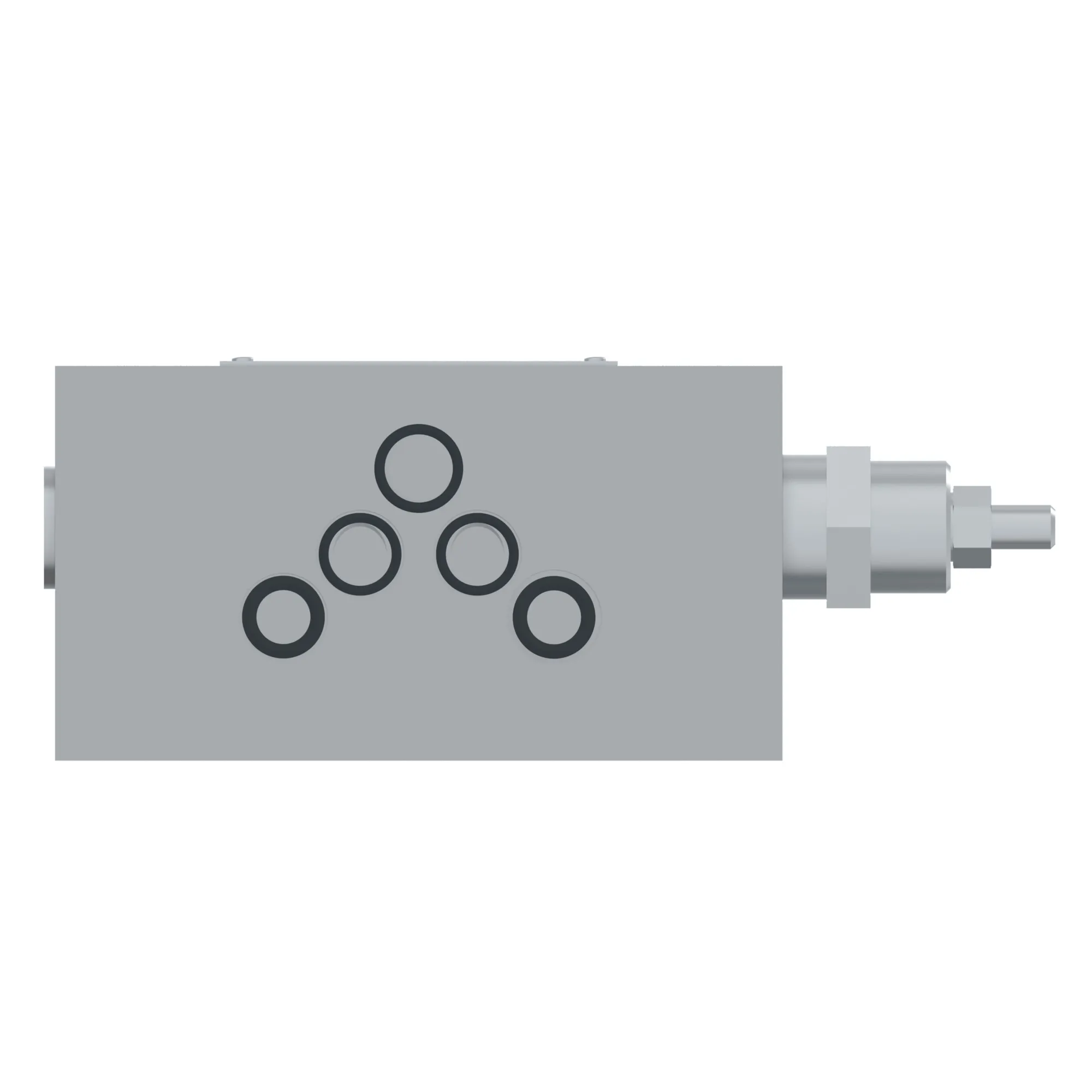

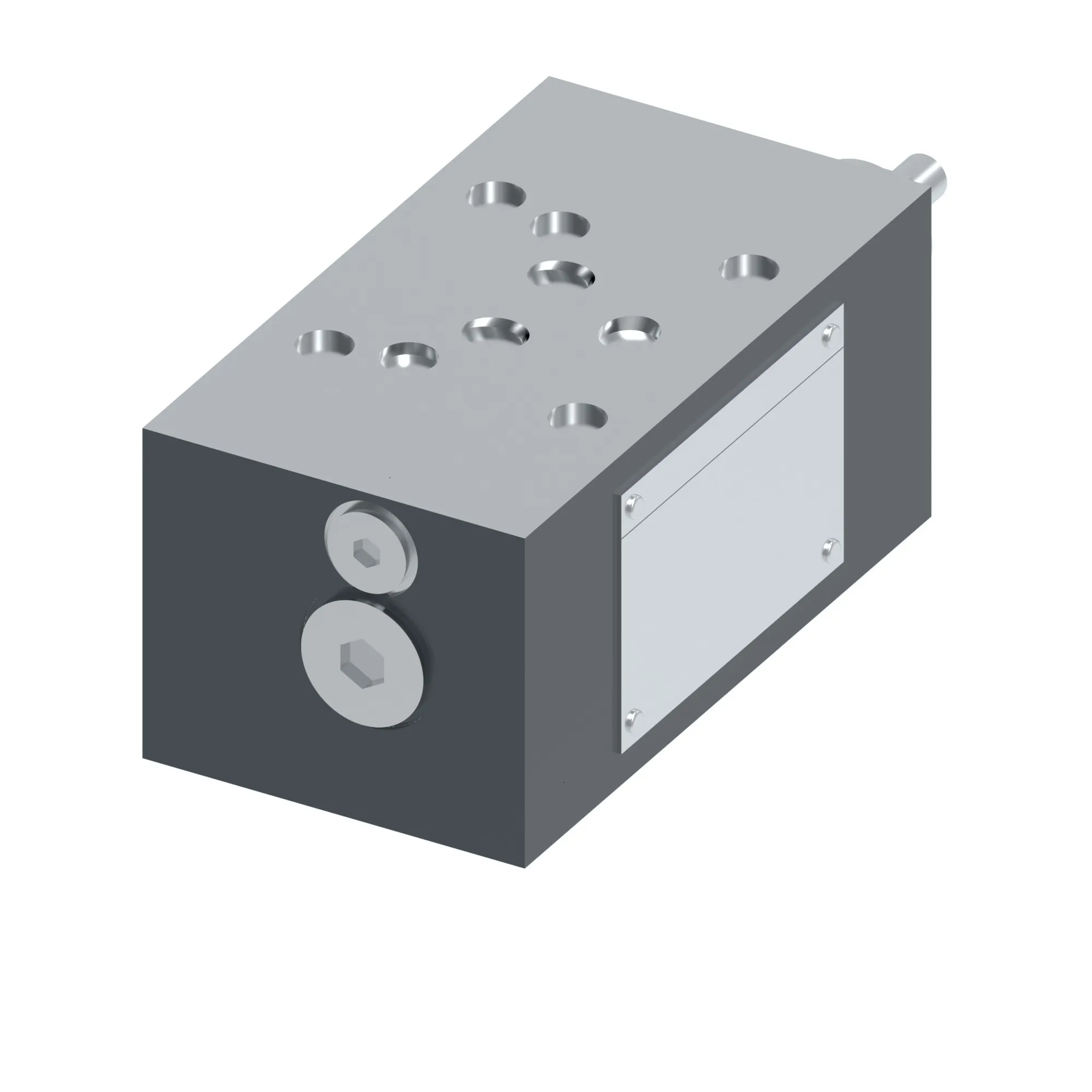

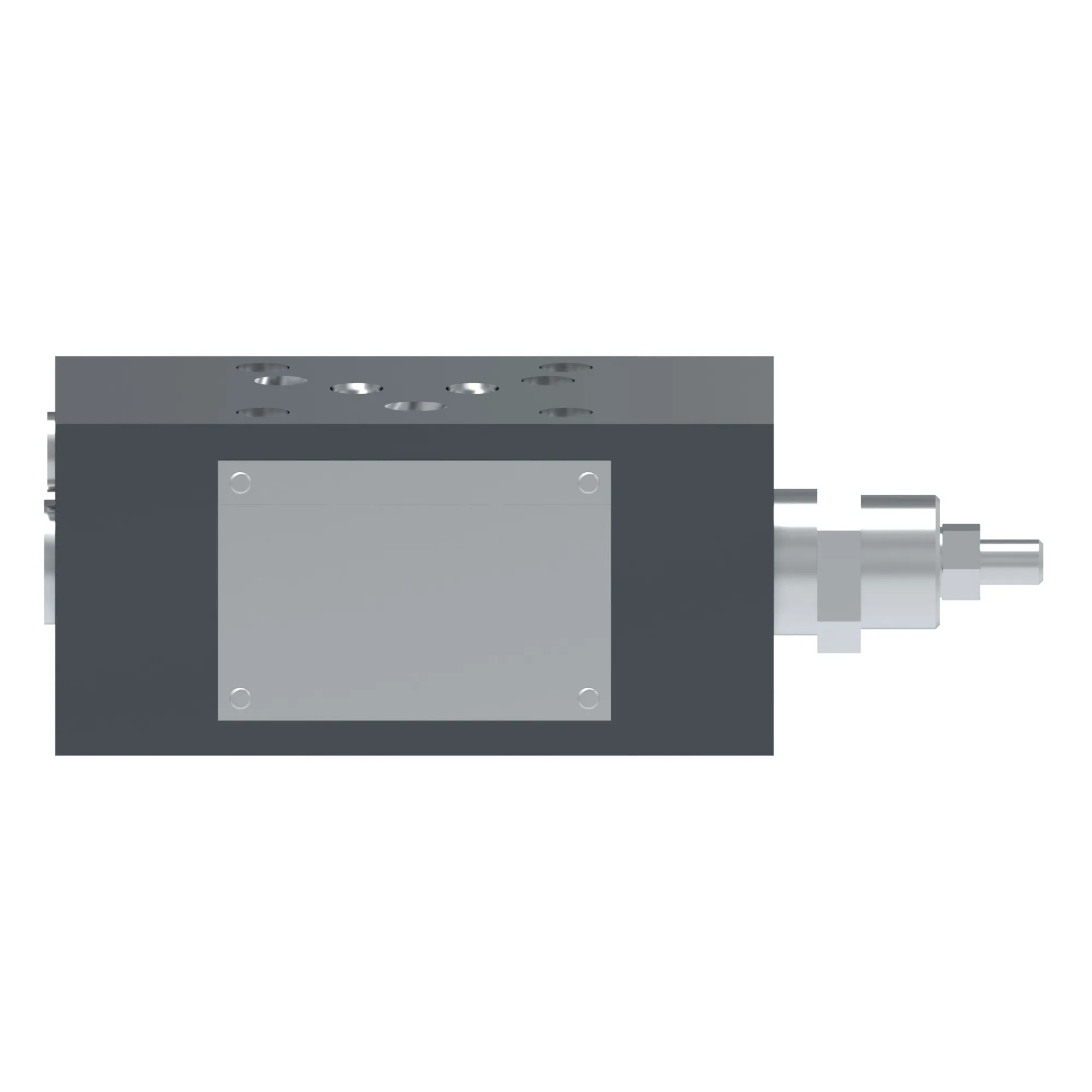

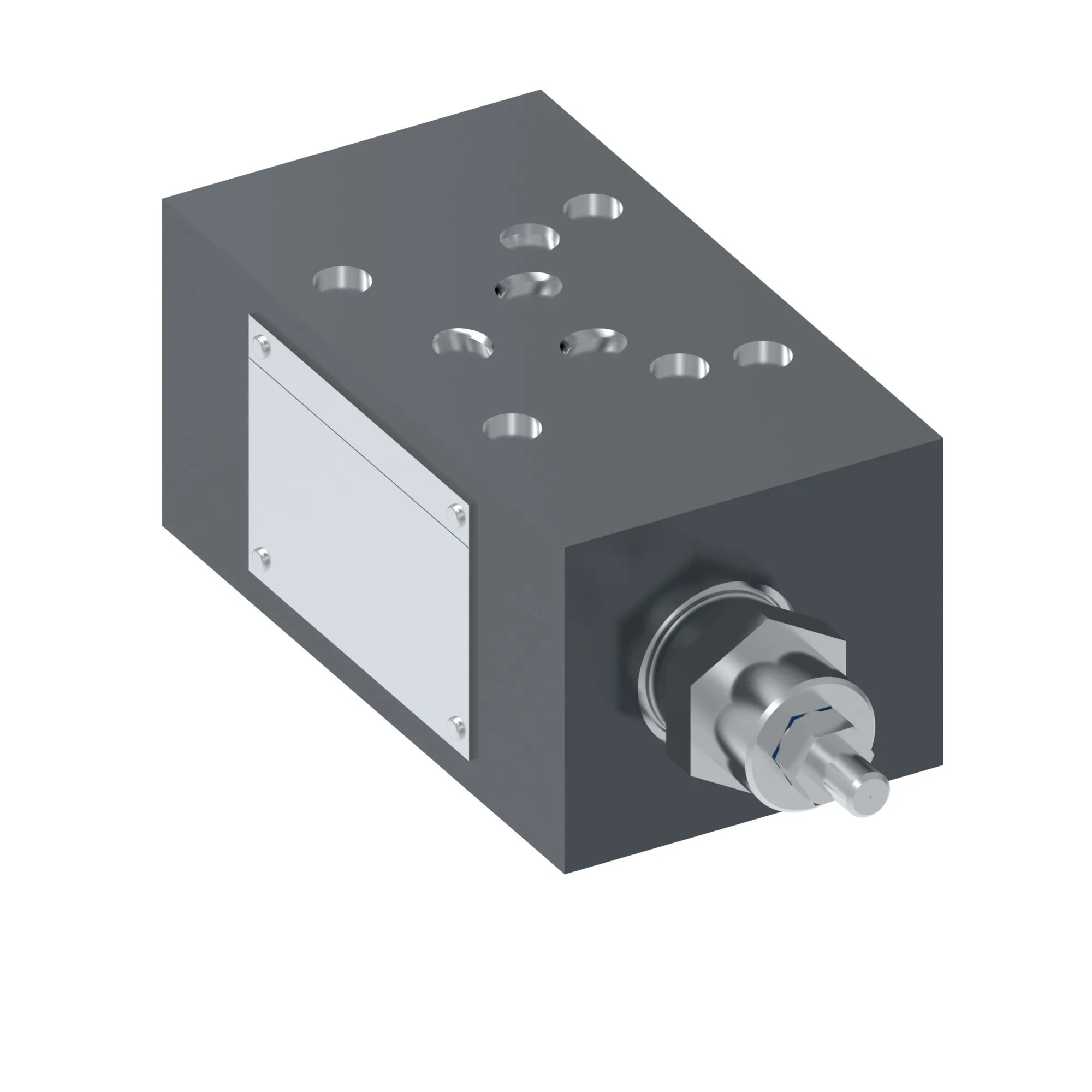

Danfoss (Drives) 02-143814
DGMX2-5-PP-BW-RC-B-30, DGMX25PPBWRCB30 – 02-143814
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DGMX2-5-PP-BW-RC-B-30, DGMX25PPBWRCB30 – 02-143814
Specification
| Actuation Type | Pressure operated |
|---|---|
| Adjustment Type | Screw and locknut |
| Brand | Vickers by Danfoss |
| Design Series | 30 Series |
| External Drain | No |
| Flow Rate Upto Lpm | 120 |
| Flow Rate Upto Usgpm | 32.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Gauge Port Thread Type | G1/8″ (1/8″ BSPF) |
| Interface | ISO4401-05 |
| Maximum Pressure Upto Bar | 315 |
| Maximum Pressure Upto Psi | 4500 |
| Model Code 1 | DGMX25PPBWRCB30 |
| Pilot Control | Pressure port |
| Port Operated Upon | P pressure port |
| Pressure Adjustment Range | 8.5-100 bar (125-1450 psi) |
| Product Height In | 3.150 |
| Product Height Mm | 80.010 |
| Product Length In | 9.130 |
| Product Length Mm | 231.902 |
| Product Width In | 3.660 |
| Product Width Mm | 92.964 mm |
| Remote Control Port | Yes |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | PRESSURE REDUCING VALVE |
| Working Temp Max C | 80 |
| Working Temp Max F | 176 |
| Working Temp Min C | |
| Working Temp Min F | 32 |
