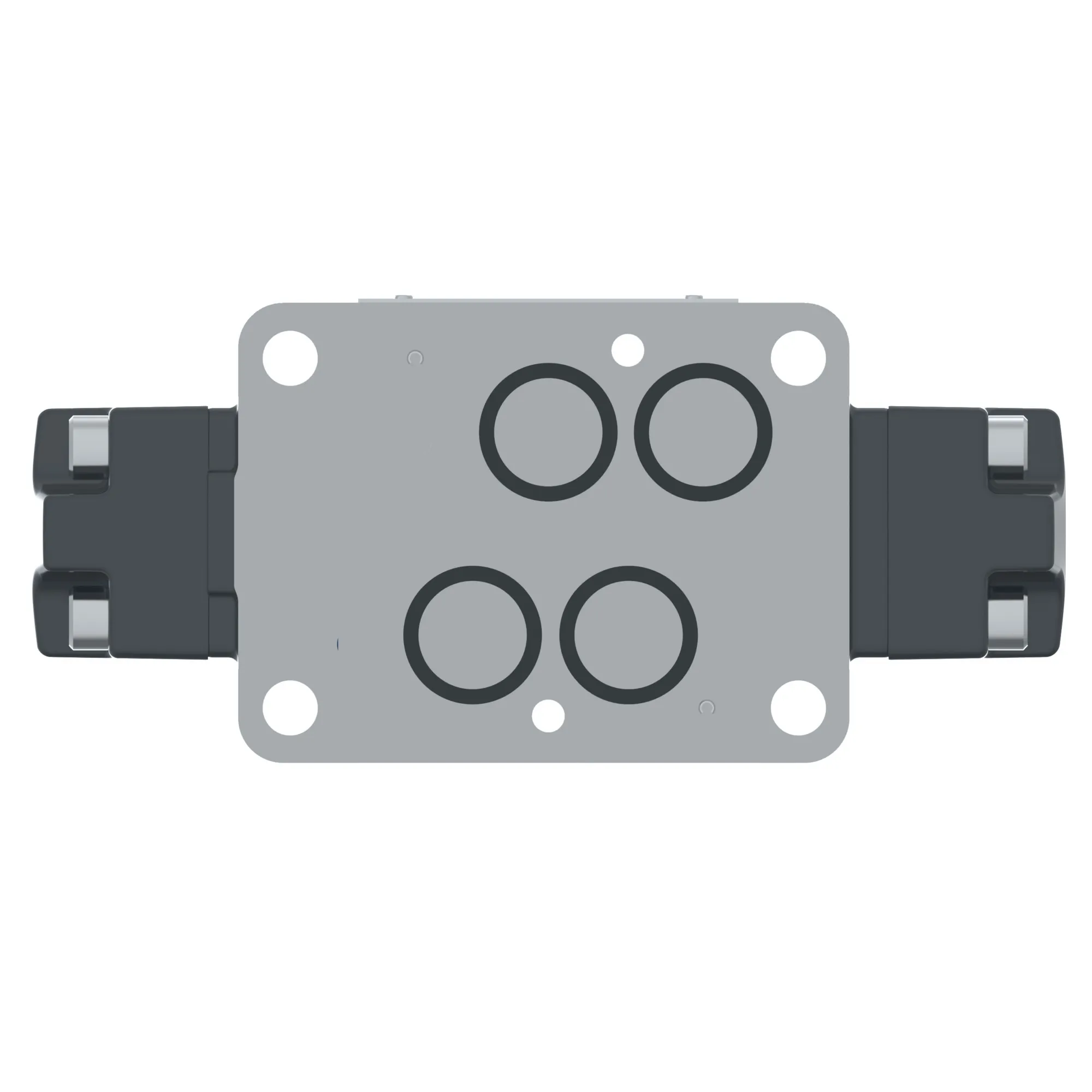

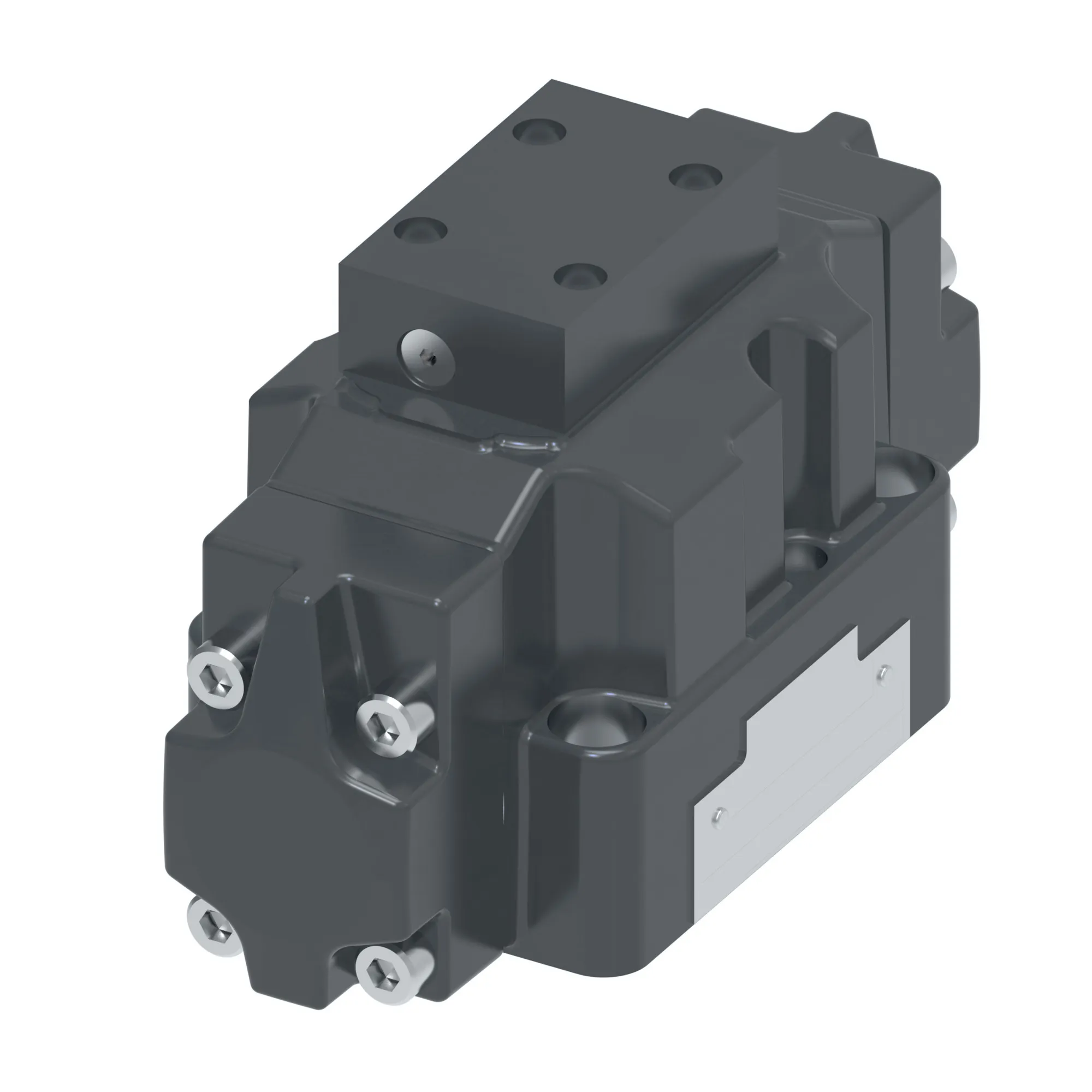

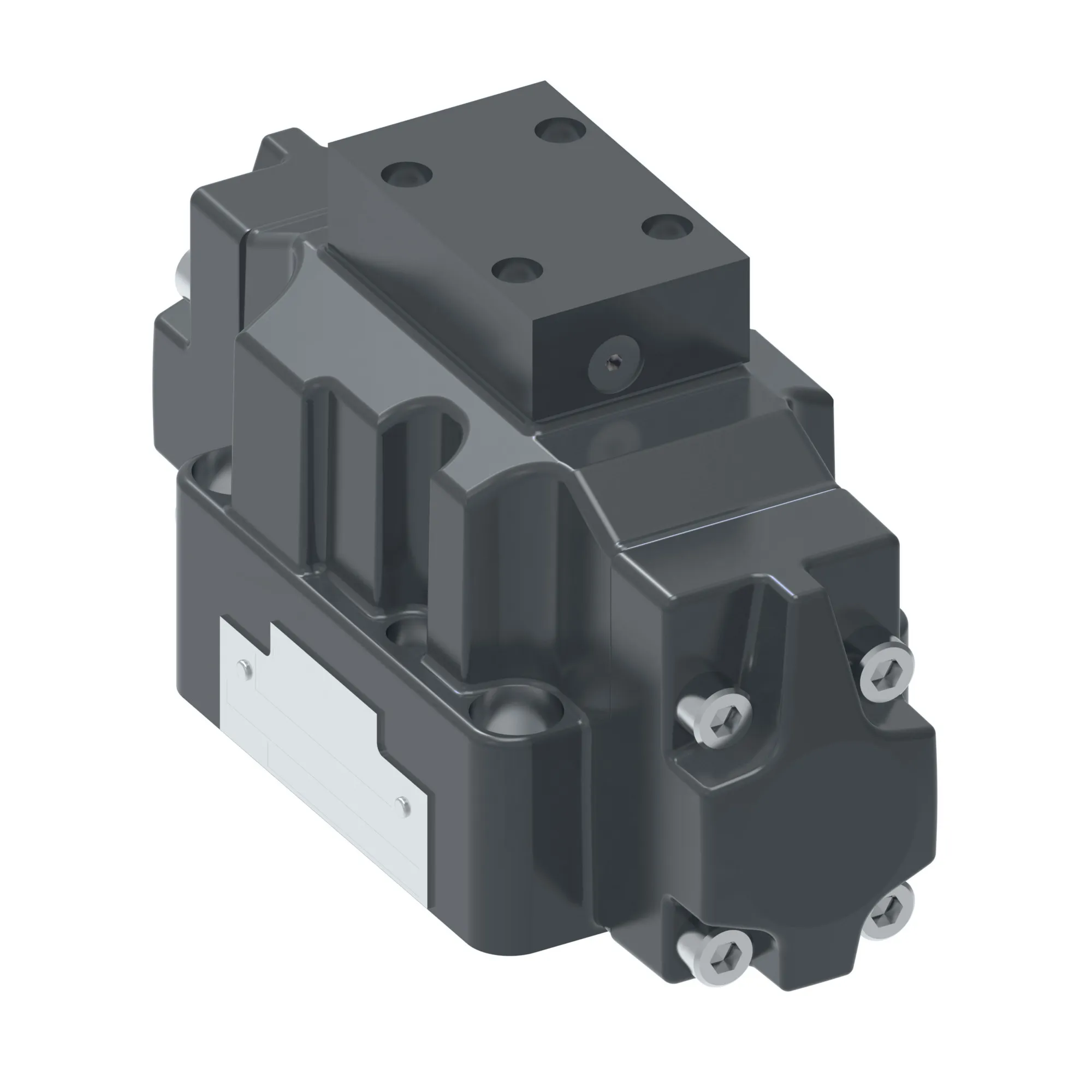

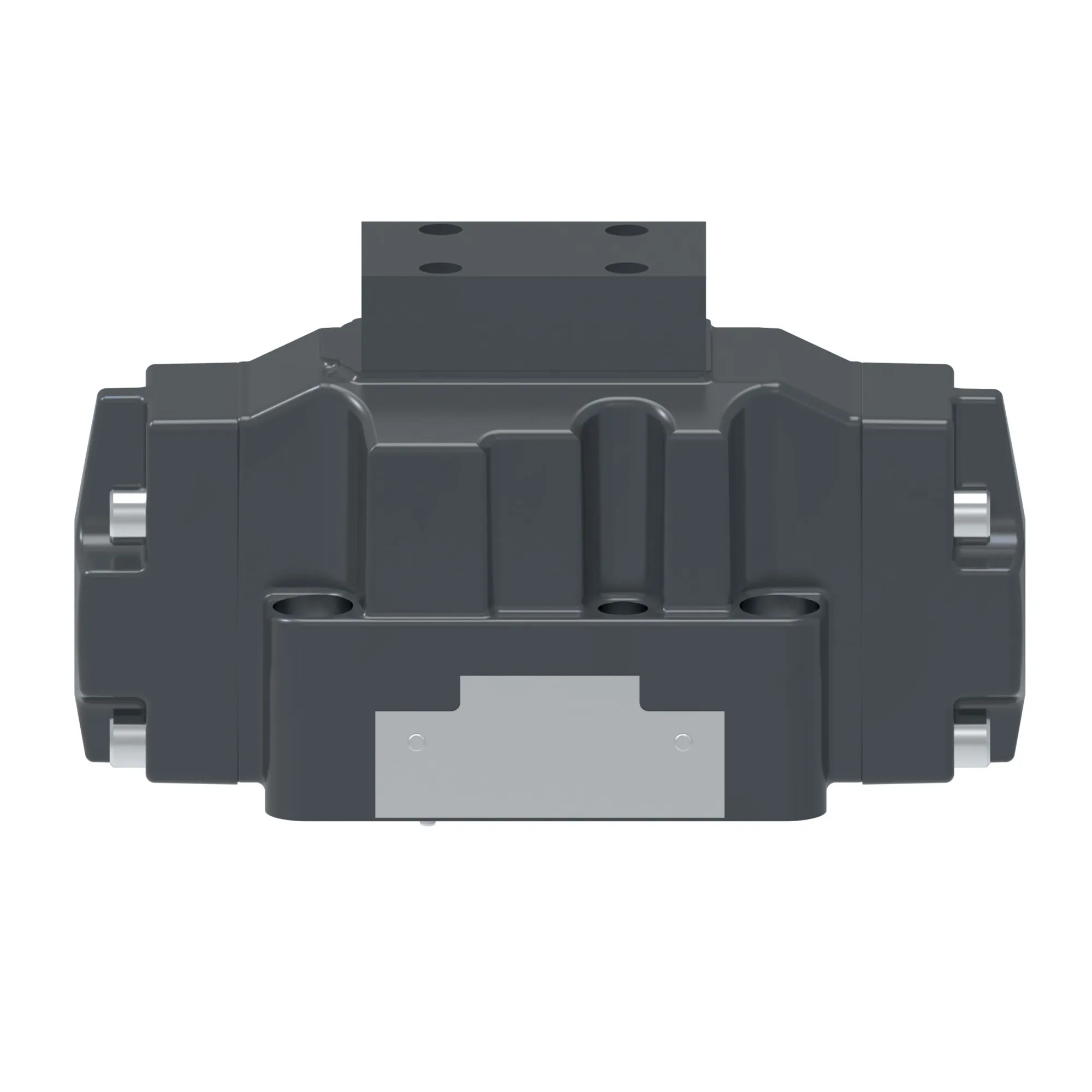

Danfoss (Drives) 02-139432
DG3V 7 6C 20, DG3V76C20 – 02-139432
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DG3V 7 6C 20, DG3V76C20 – 02-139432
Specification
| Actuation Type | Hydraulic operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | None |
| Design Series | 20 Series |
| Electrical Connection | None |
| Ext Pilot Pressure | External |
| Flow Rate Upto Gpm | 79.0 |
| Flow Rate Upto Lpm | 300.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Int Pilot Drain | Internal |
| Interface | ISO4401-07 |
| Manual Override | None |
| Model Code 1 | DG3V76C20 |
| Performance | High performance |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 4.730 |
| Product Length In | 7.640 |
| Product Length Mm | 194.056 |
| Product Width In | 3.650 |
| Product Width Mm | 92.710 mm |
| Seal Type | Buna-N |
| Solenoid Energising Id | None |
| Special Features | None |
| Spool Position Monitor | No |
| Spool Type | Spool 6 |
| Spring Arrangement | Spring centred |
| Stage | Two stage |
| Surge Suppr Damper | No |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
