Danfoss (Drives) 02-138771

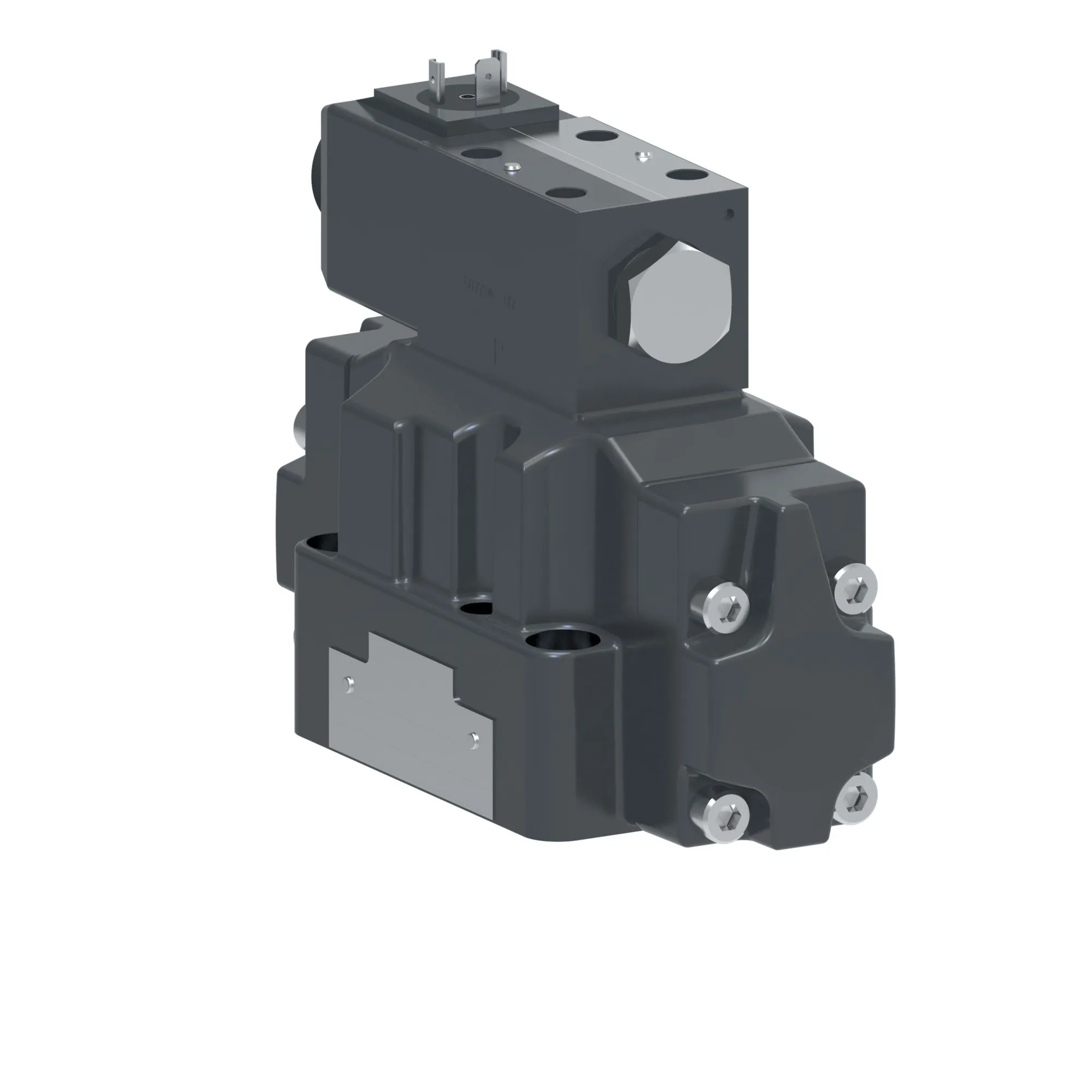

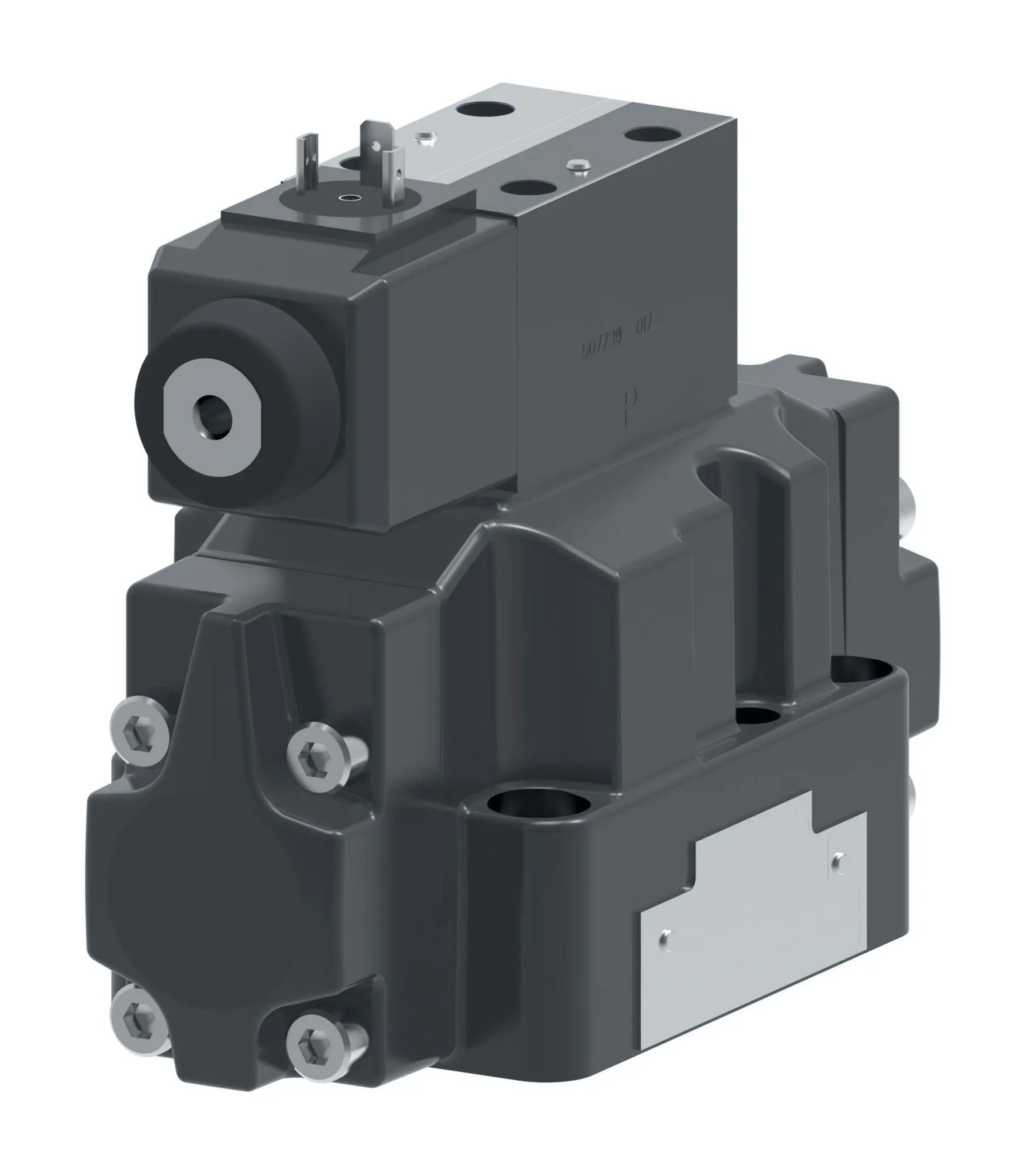

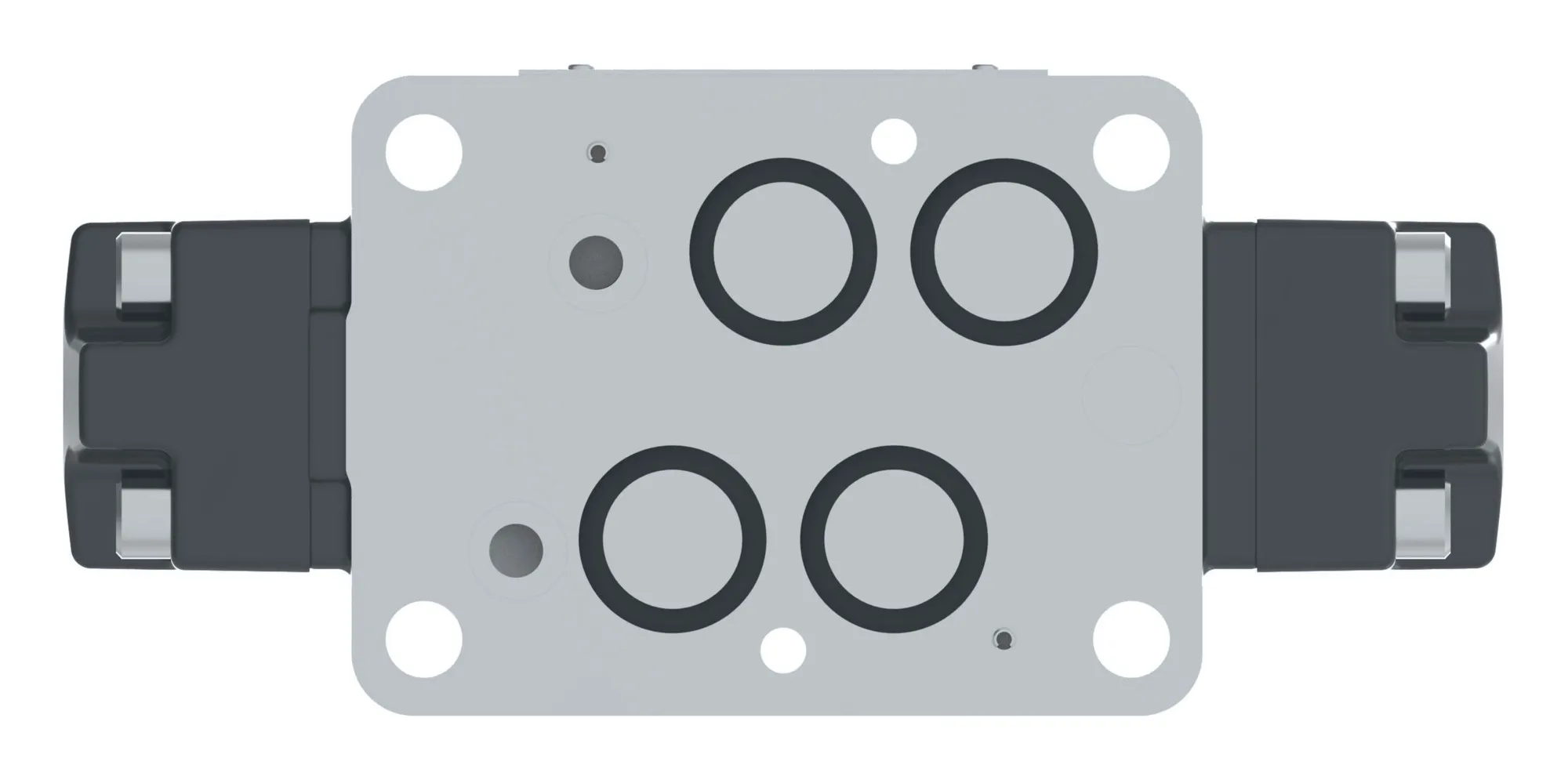

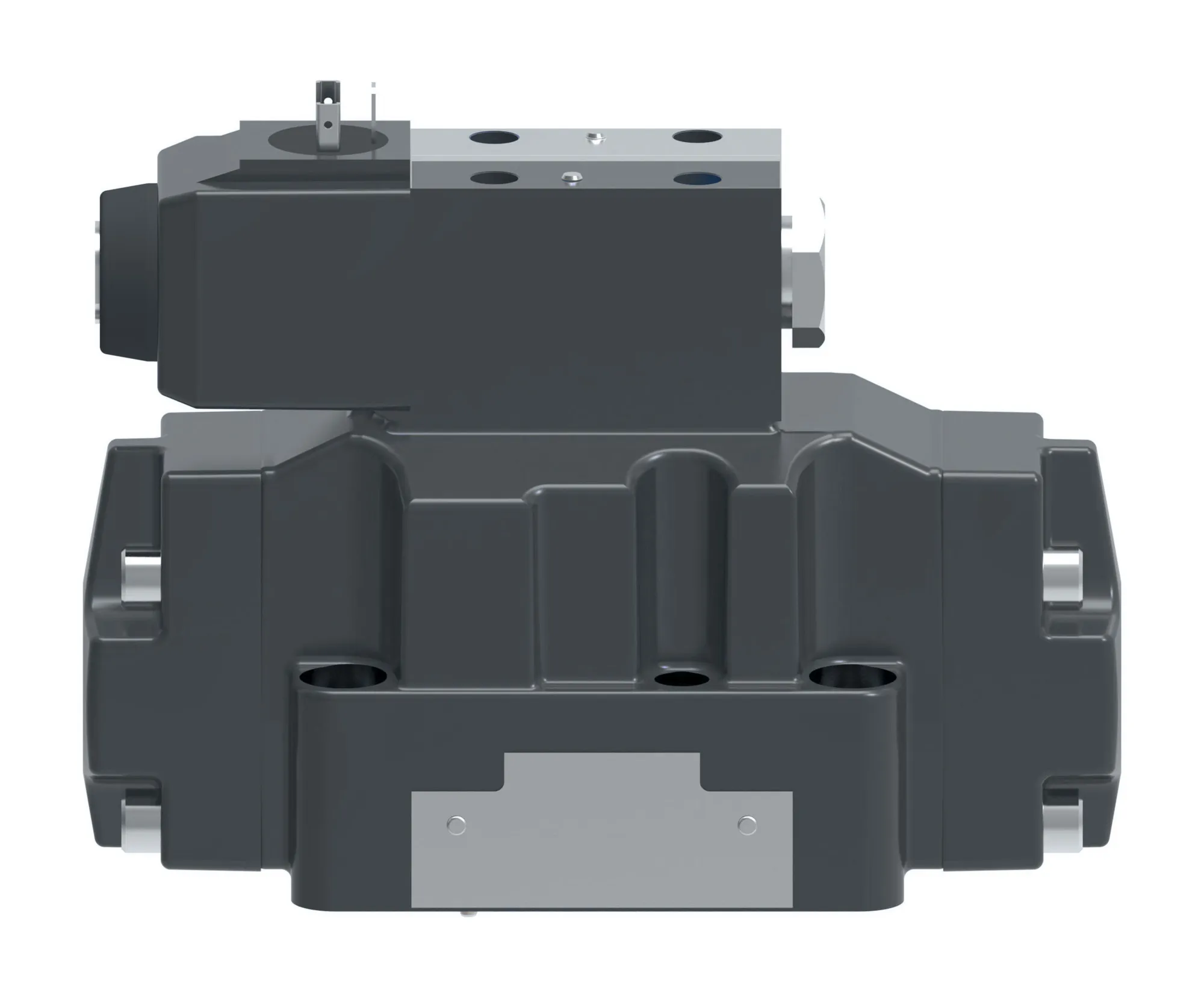

DG5V-7-2A-T-M-U-H7-30, DG5V72ATMUH730 – 02-138771
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DG5V-7-2A-T-M-U-H7-30, DG5V72ATMUH730 – 02-138771
Specification
| Actuation Type | Pilot operated |
|---|---|
| Brand | Vickers by Danfoss |
| Design Series | 30 Series |
| Electrical Connection | ISO 4400 (Din 43650) connector |
| Ext Pilot Pressure | Internal |
| Indicator Light | No |
| Int Pilot Drain | Internal |
| Interface | ISO4401-07 |
| Manual Override | Plain |
| Model Code 1 | DG5V72ATMUH730 |
| Performance | Standard performance |
| Product Height In | 8.740 |
| Product Height Mm | 221.996 |
| Product Length In | 8.700 |
| Product Length Mm | 220.980 |
| Product Width In | 3.650 |
| Product Width Mm | 92.710 mm |
| Seal Type | Buna-N |
| Spool Type | Spool 2 |
| Spring Arrangement | Spring offset end to end |
| Stage | Two stage |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
