Danfoss (Drives) 02-137443-7
4525V60A17-1CC22L, 4525V60A17-1CC22L – 02-137443-7
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

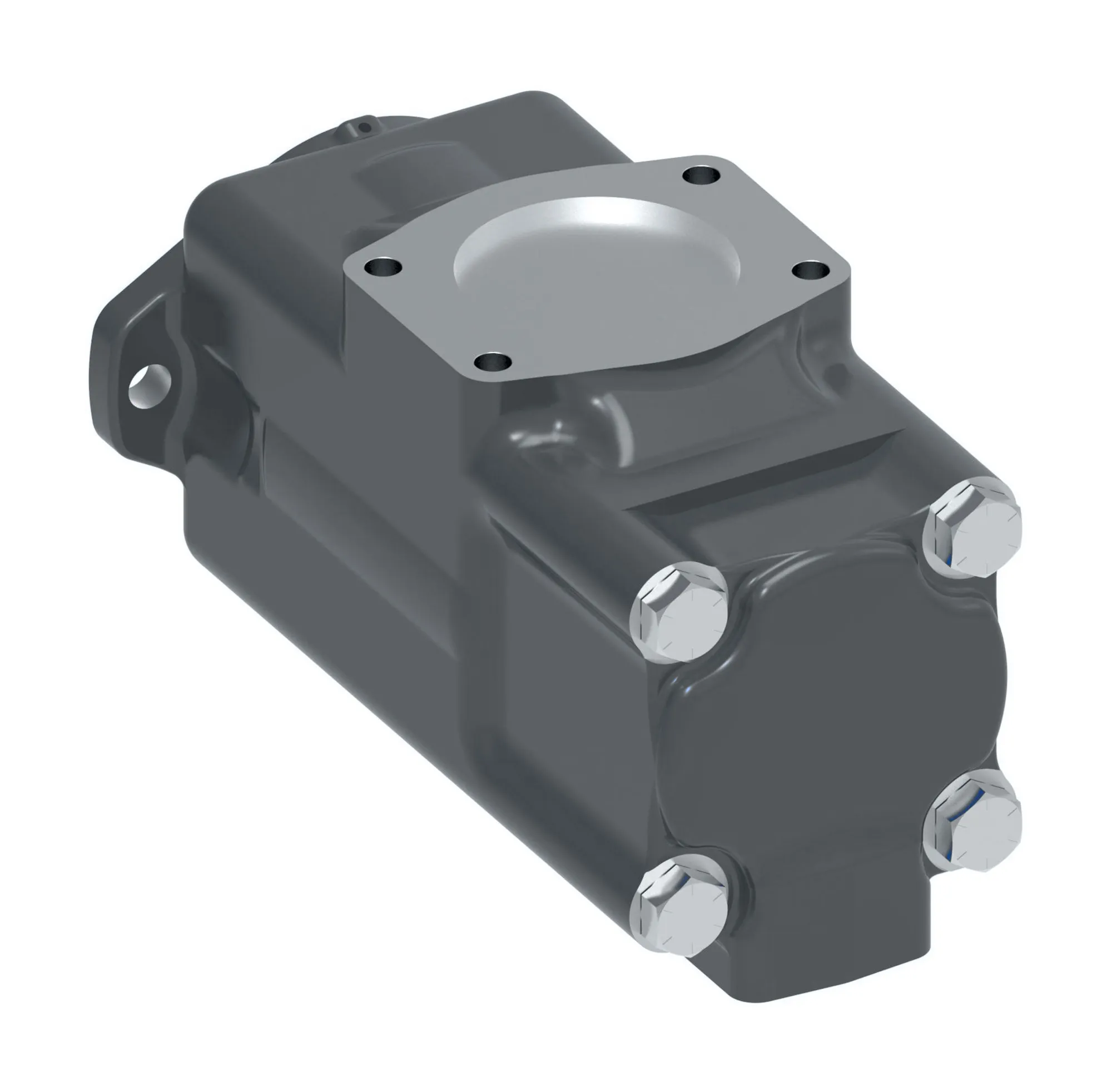

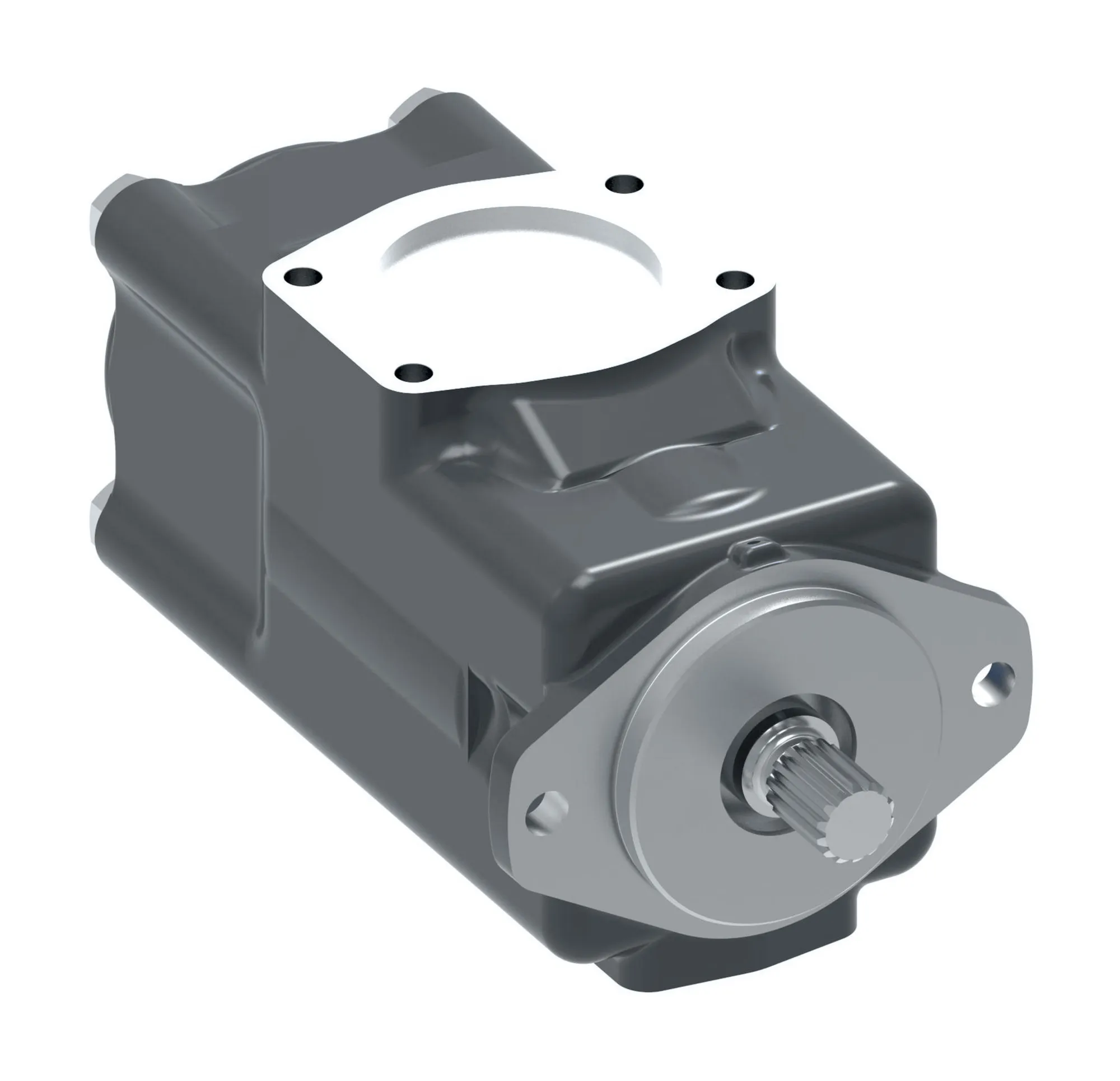

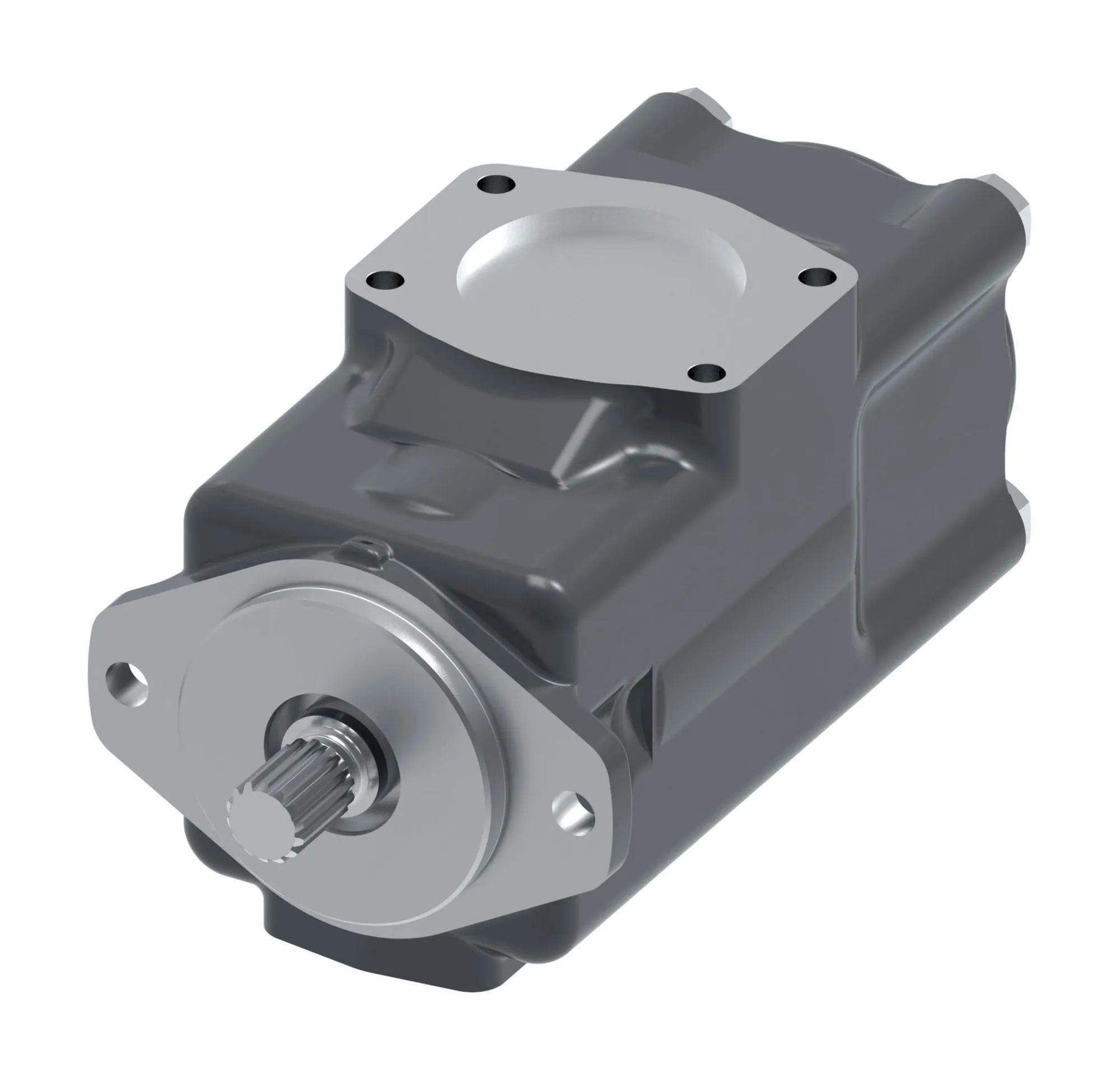

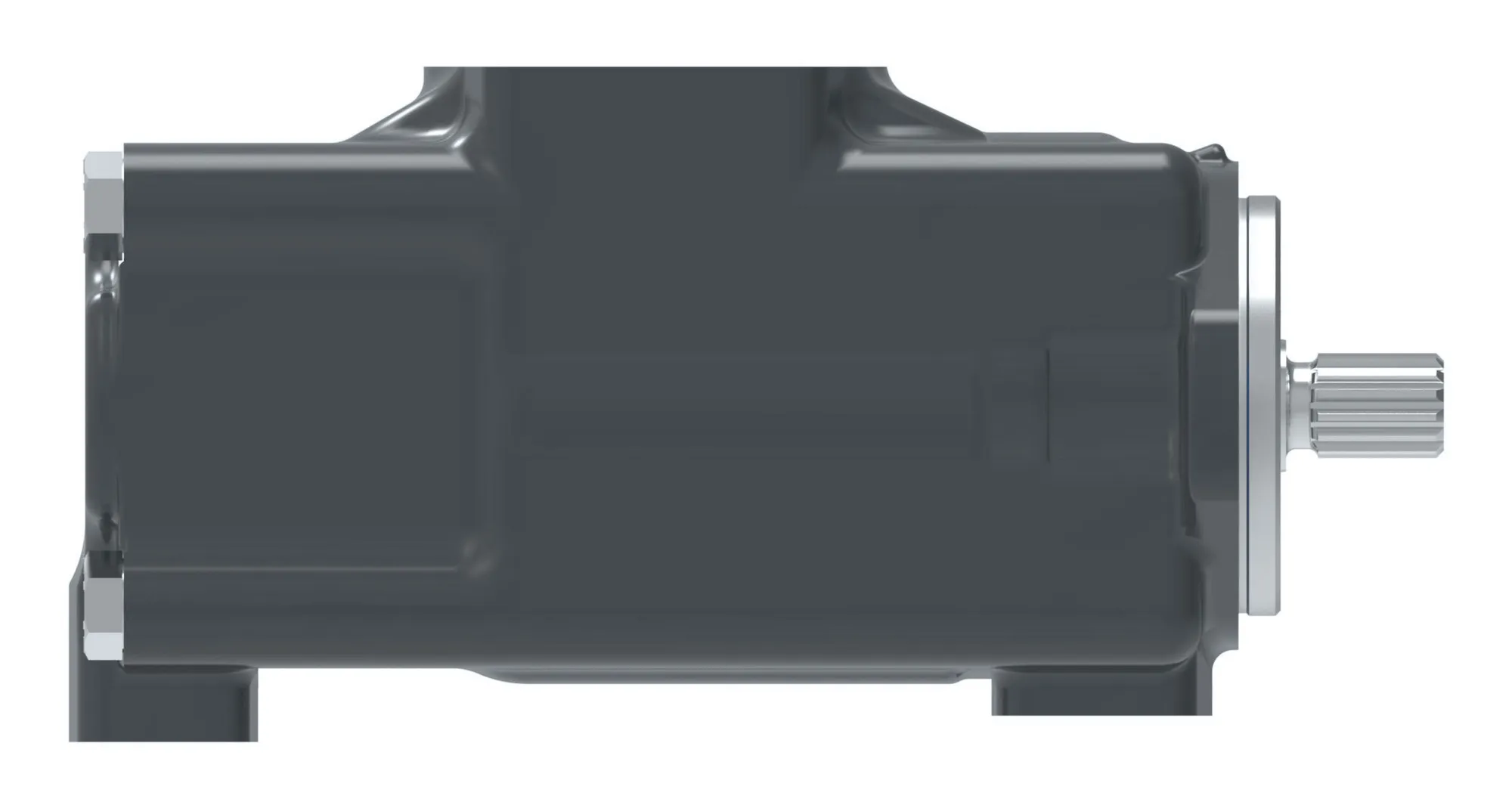

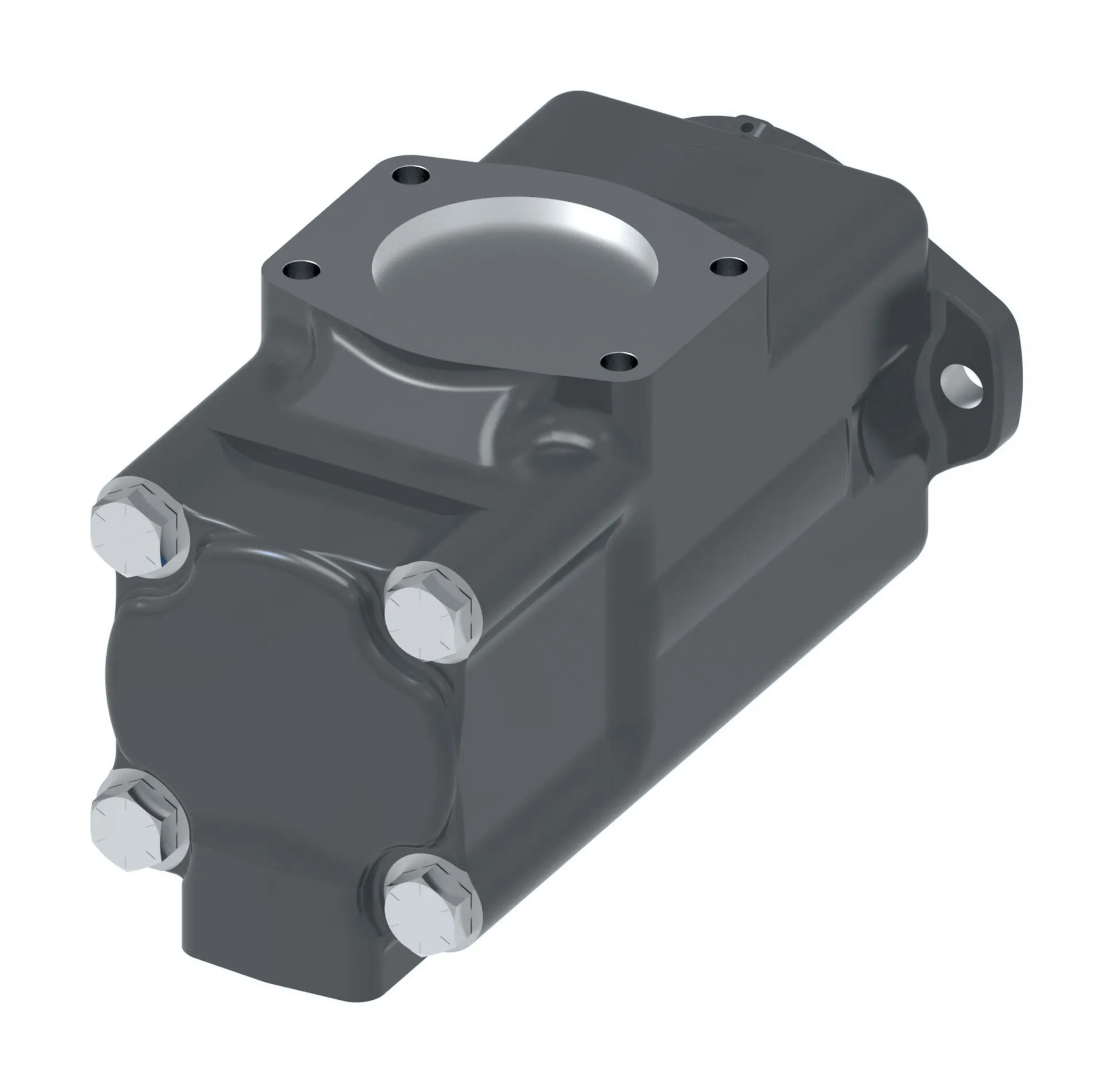

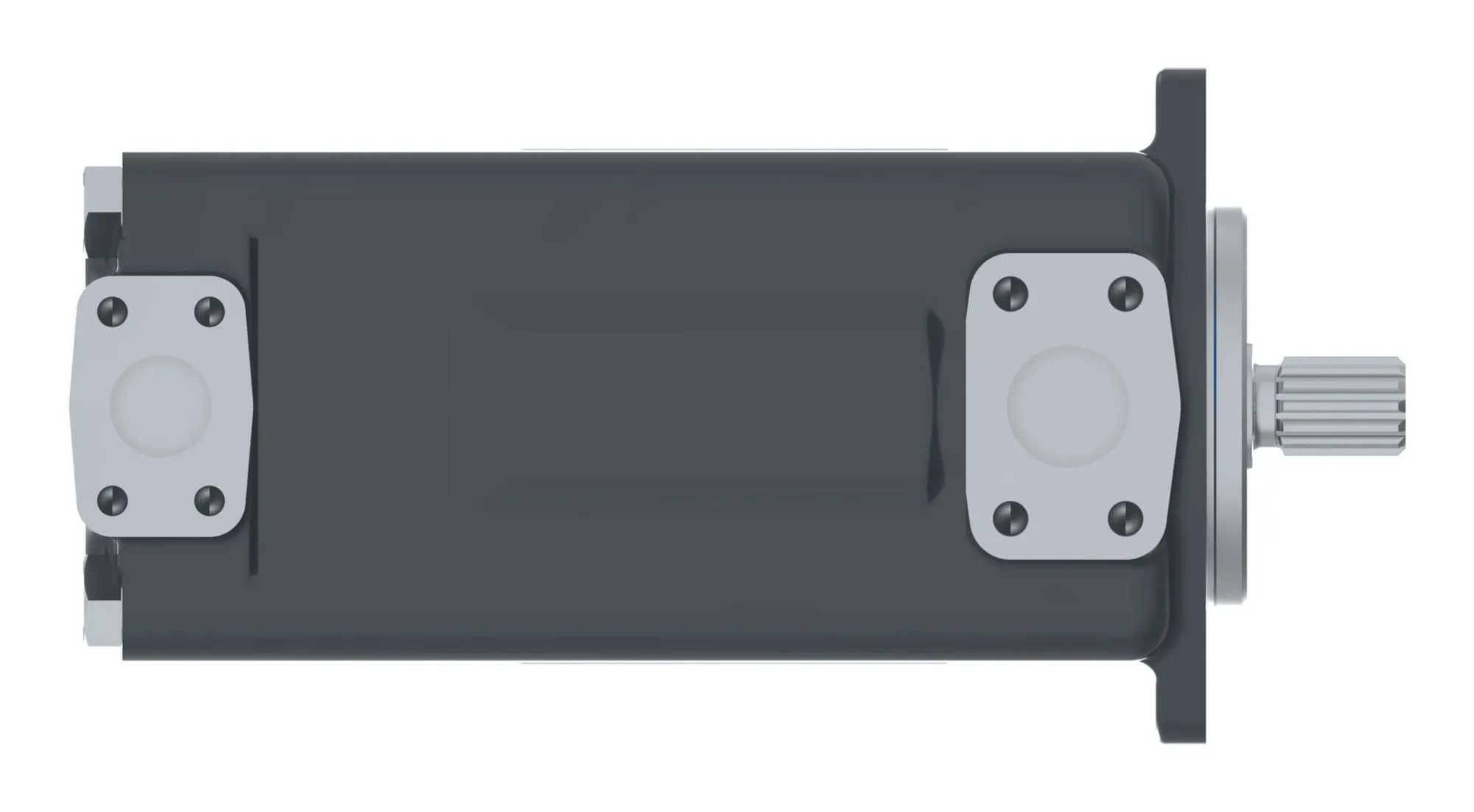

4525V60A17-1CC22L, 4525V60A17-1CC22L – 02-137443-7
Specification
| Design No | DESIGN NO |
|---|---|
| Ipm Frame Size | 4525V Double Pump |
| Outlet Post Frm Cvr End | OUTLET 1: INLINE WITH INLET, OUTLET 2: 45° CW FROM INLET |
| Port Connection | INLET: 4 BOLT FLANGE, OUTLET 1: 4 BOLT FLANGE, OUTLET 2: 4 BOLT FLANGE |
| Pump Type | VANE PUMP |
| Rotation From Shaft End | COUNTER CLOCKWISE |
| Seals Type | STANDARD SEAL |
| Series | SERIES DESIGNATION |
| S H A F T | 1- 5/16 SQUARE KEY |
| Port Thread Type | INCH THREAD PORT CONNECTION |
| Ring Capacity Outlet 1 | 60 GPM |
| Ring Capacity Outlet 2 | 17 GPM |
| M O U N T I N G | FLANGE MOUNT |
| Brand | Vickers by Danfoss |
| Model Code 1 | 4525V60A17-1CC22L |
