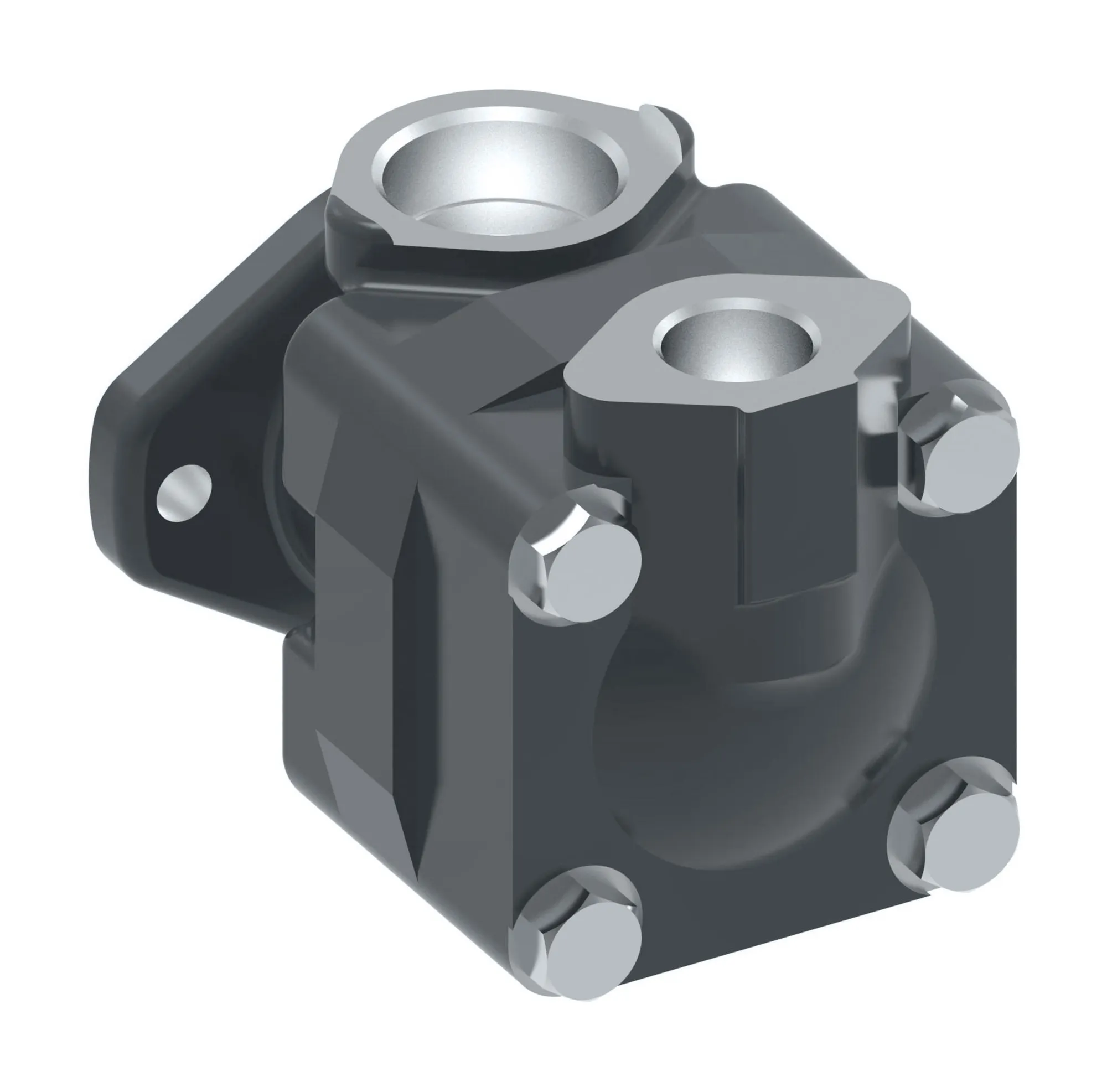

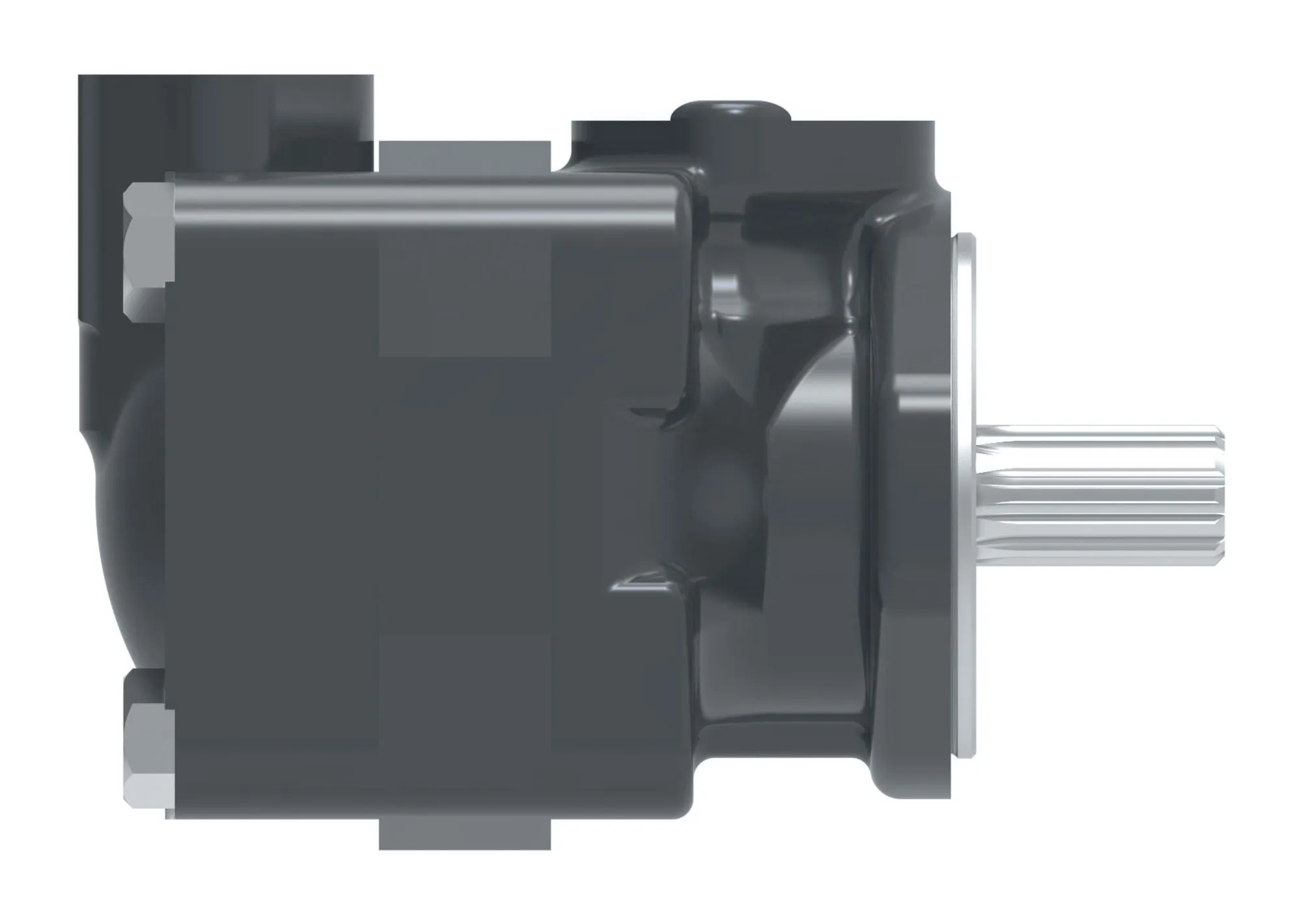

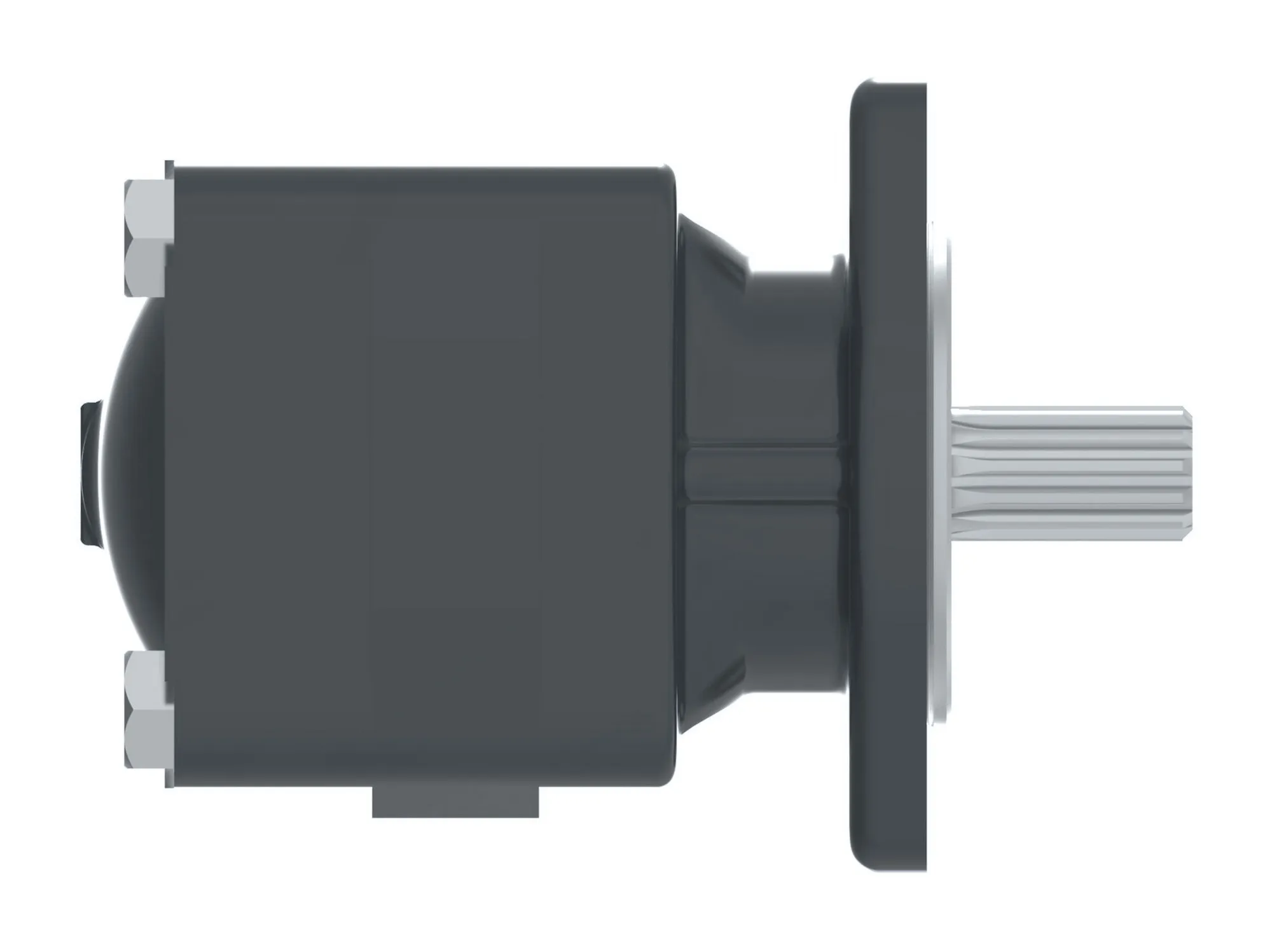

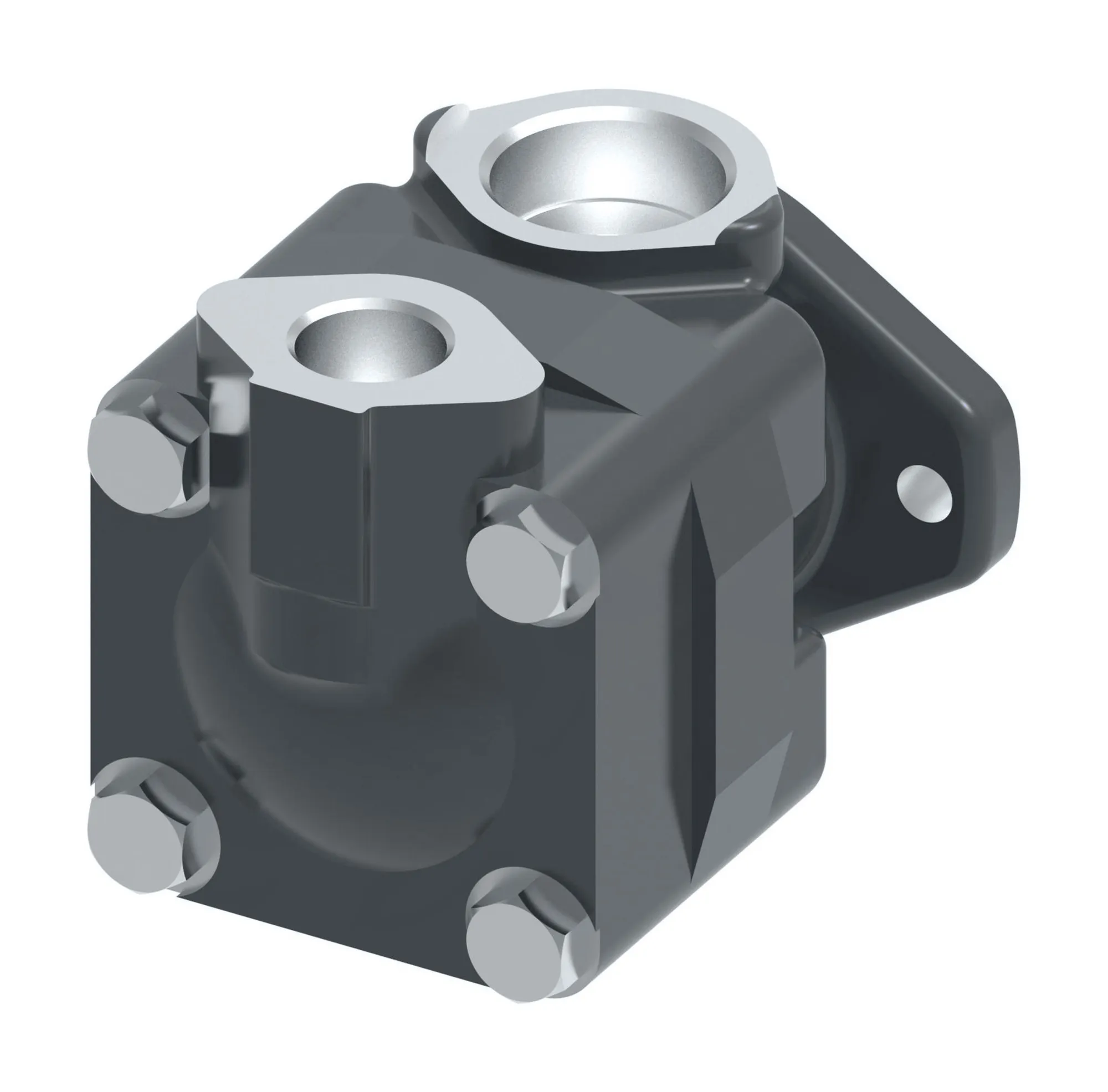

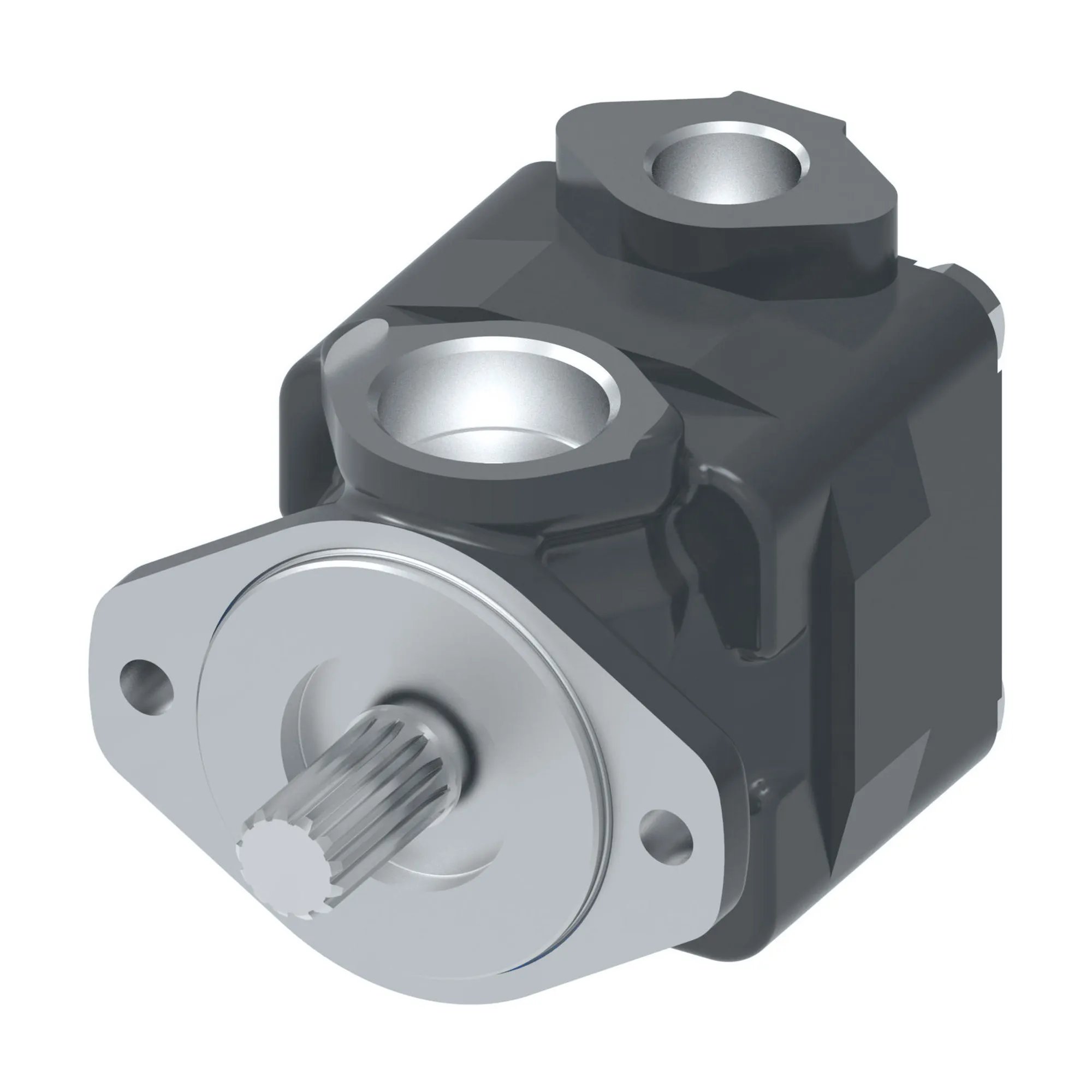

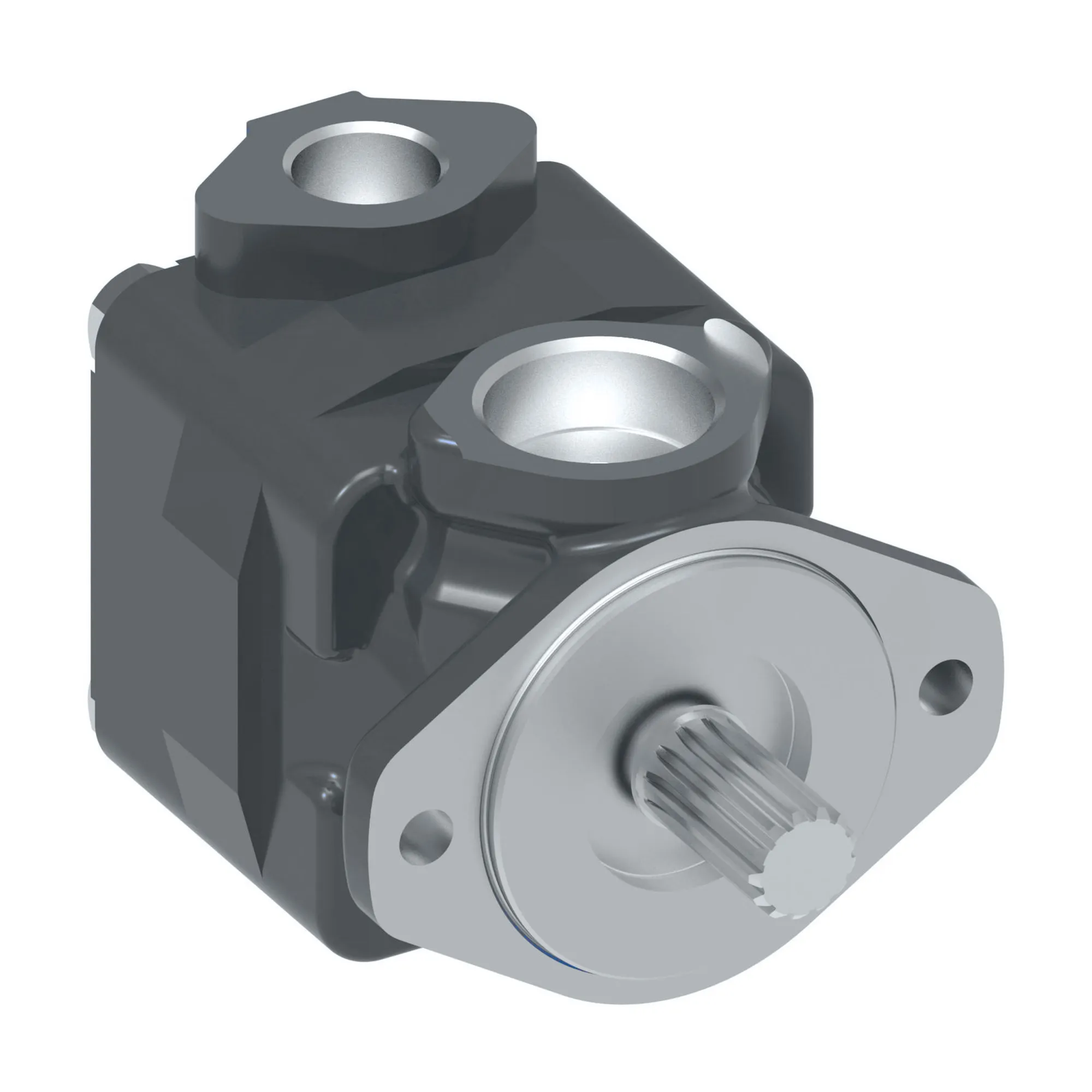

Danfoss (Drives) 02-136987-2
F3-V20F-1S11S-38B7H-22, F3-V20F-1S11S-38B7H-22 – 02-136987-2
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
F3-V20F-1S11S-38B7H-22, F3-V20F-1S11S-38B7H-22 – 02-136987-2
Specification
| Seals Type | ALL SEALS VITON |
|---|---|
| Pump Type | VANE PUMP |
| Series | SERIES DESIGNATION |
| Cover Type | FLOW CONTROL VALVE COVER |
| Mounting Type | 2 BOLT FLANGE SAE-A SIZE |
| Inlet Port Type | 1.625-12UN-2B THREAD |
| Ring Capacity | 11 GPM |
| Outlet Port Type | COVER D,COVER STANDARD – 1.062-12 UN-2B THREAD. F COVER – PRESSURE PORT -.750-16 UN-2B THREAD , TANK PORT-1.0625-12 UN-2B THREAD |
| Shaft Seal And Bearing | SINGLE LIP SEAL&SEALED BEARING |
| Shaft Type | 11TEETH 16/32 FLAT ROOT SIDE FIT |
| Brand | Vickers by Danfoss |
| Ipm Frame Size | V20 Single Pump |
| Model Code 1 | F3-V20F-1S11S-38B7H-22 |
