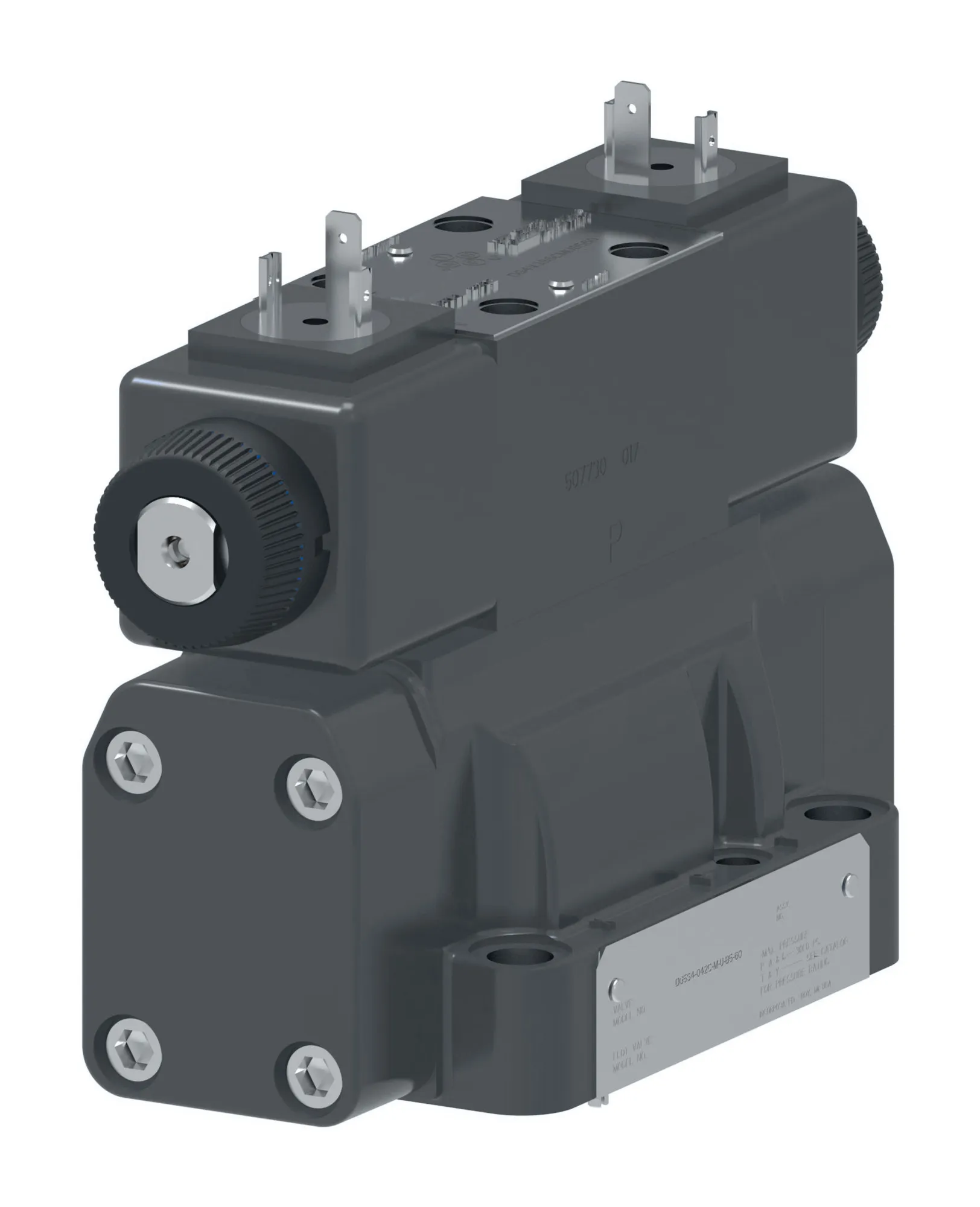

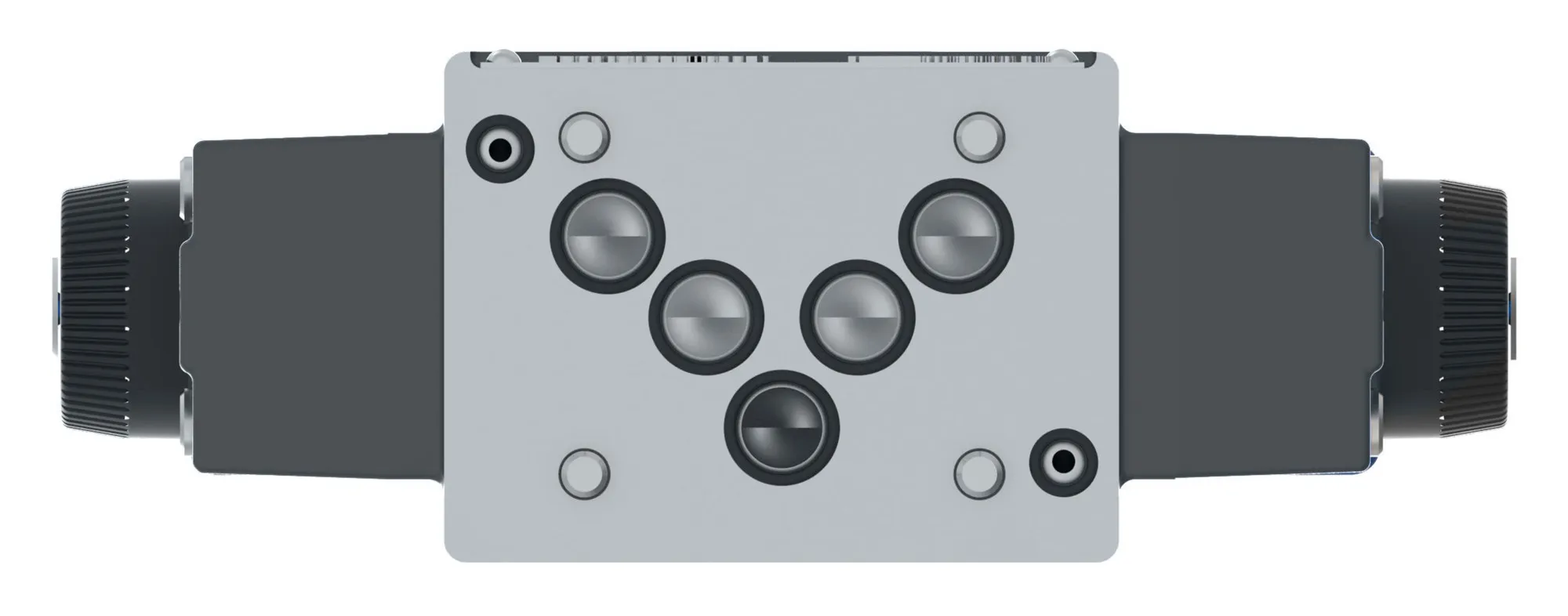

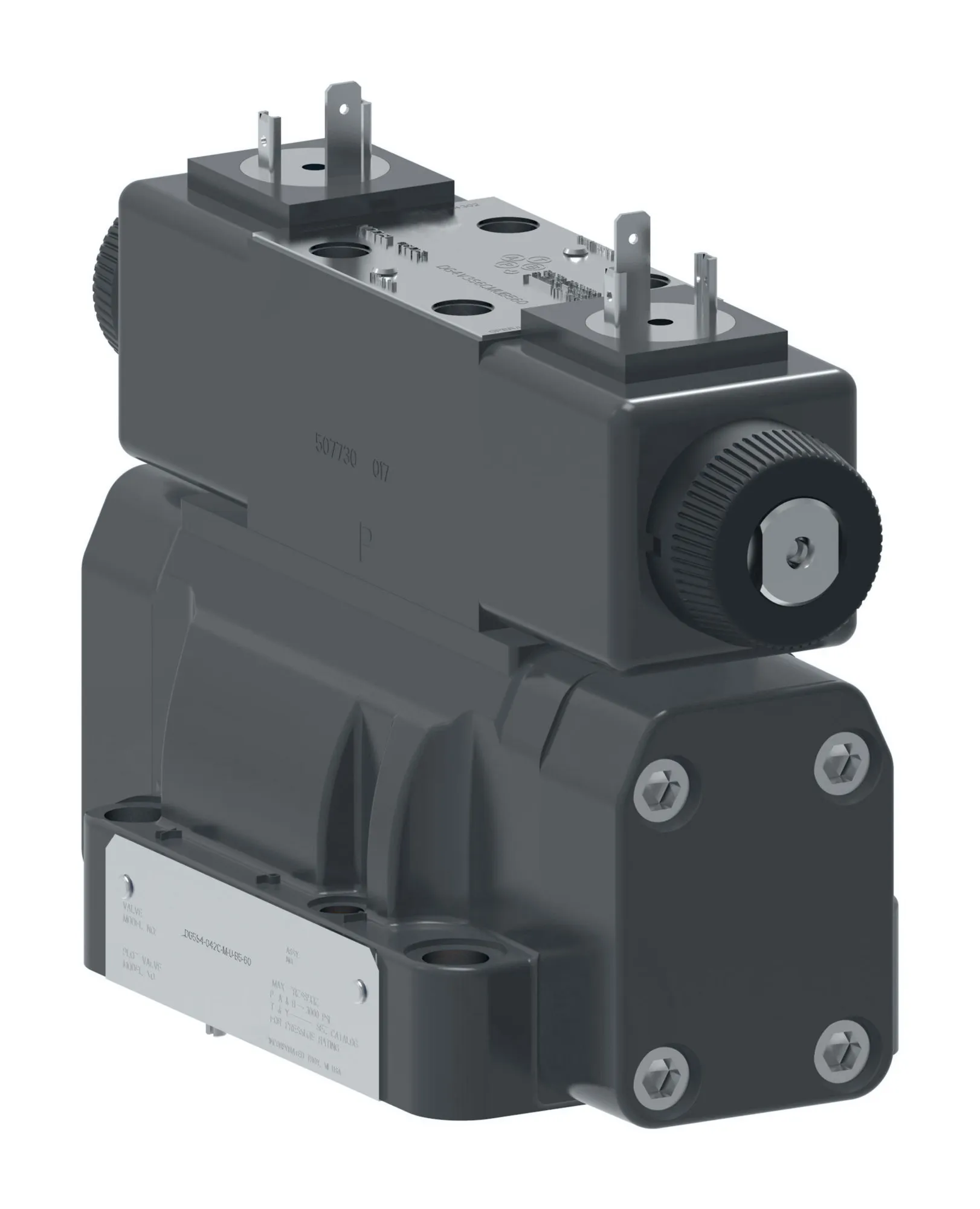

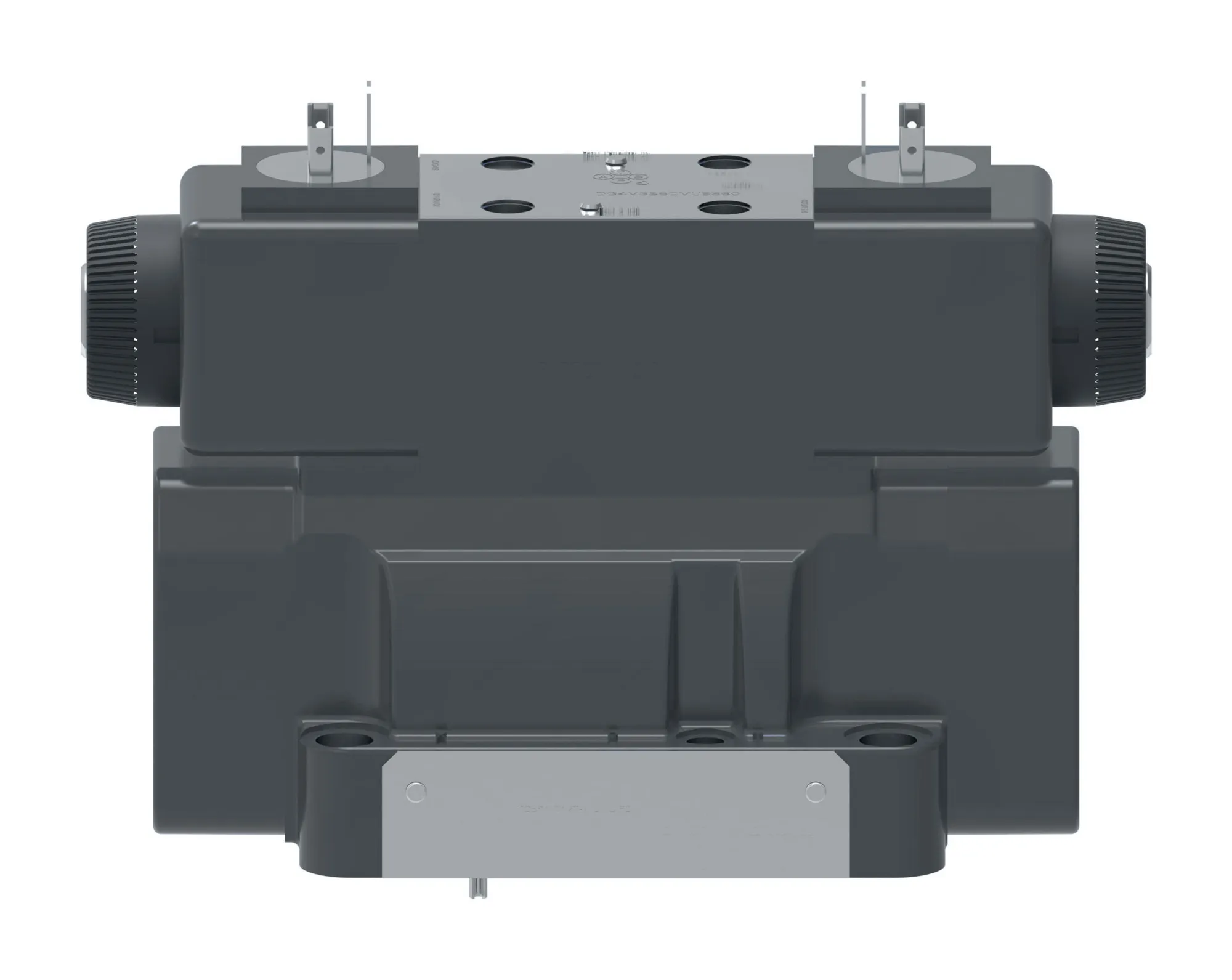

Danfoss (Drives) 02-134277
DG5S4 042C M U H5 60, DG5S4042CMUH560 – 02-134277
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DG5S4 042C M U H5 60, DG5S4042CMUH560 – 02-134277
Specification
| Actuation Type | Pilot operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 24 VDC |
| Design Series | 60 Series |
| Electrical Connection | ISO 4400 (Din 43650) connector |
| Ext Pilot Pressure | Internal |
| Flow Rate Upto Gpm | 227.0 |
| Flow Rate Upto Lpm | 60.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Int Pilot Drain | External |
| Interface | ISO4401-07 |
| Manual Override | Plain |
| Model Code 1 | DG5S4042CMUH560 |
| Pressure Rating Bar | 210 |
| Pressure Rating Psi | 3000 |
| Product Height In | 6.360 |
| Product Height Mm | 161.544 |
| Product Length In | 9.580 |
| Product Length Mm | 243.332 |
| Product Width In | 3.500 |
| Product Width Mm | 88.900 mm |
| Seal Type | Buna-N |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Spool Type | Spool 2 |
| Spring Arrangement | Spring centred |
| Stage | Two stage |
| Tank Port Rating Bar | 100 |
| Tank Port Rating Psi | 1450 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
