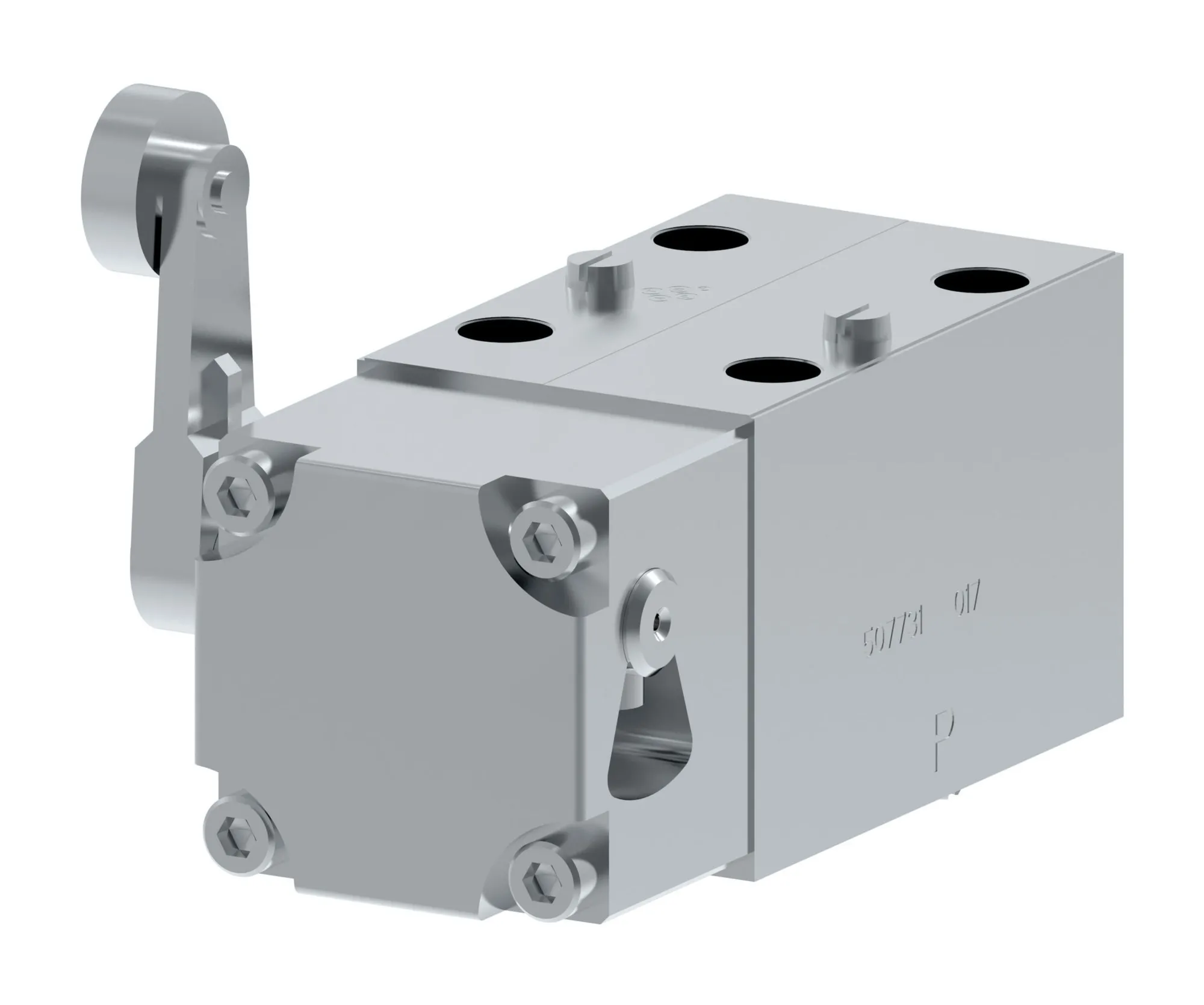

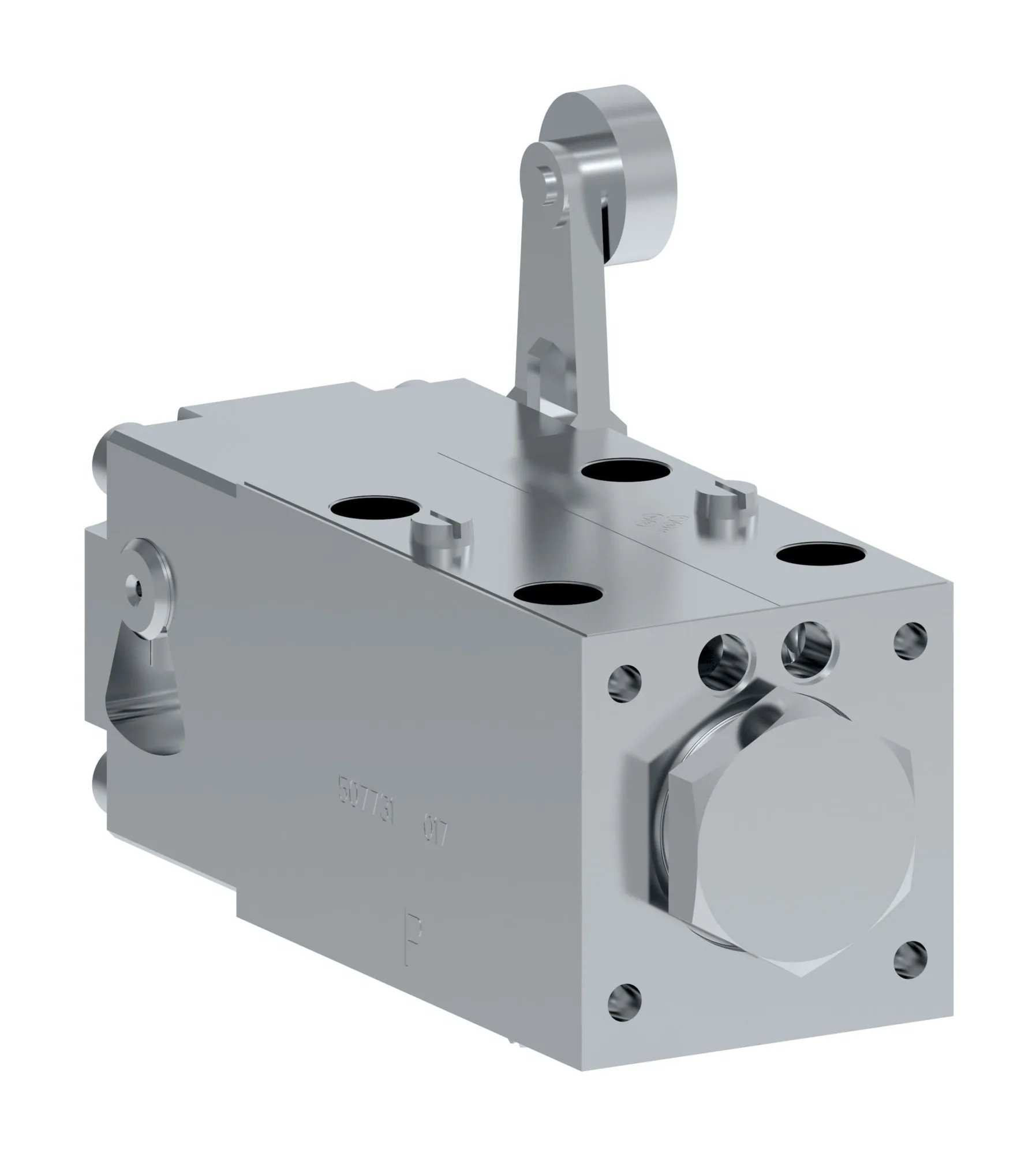

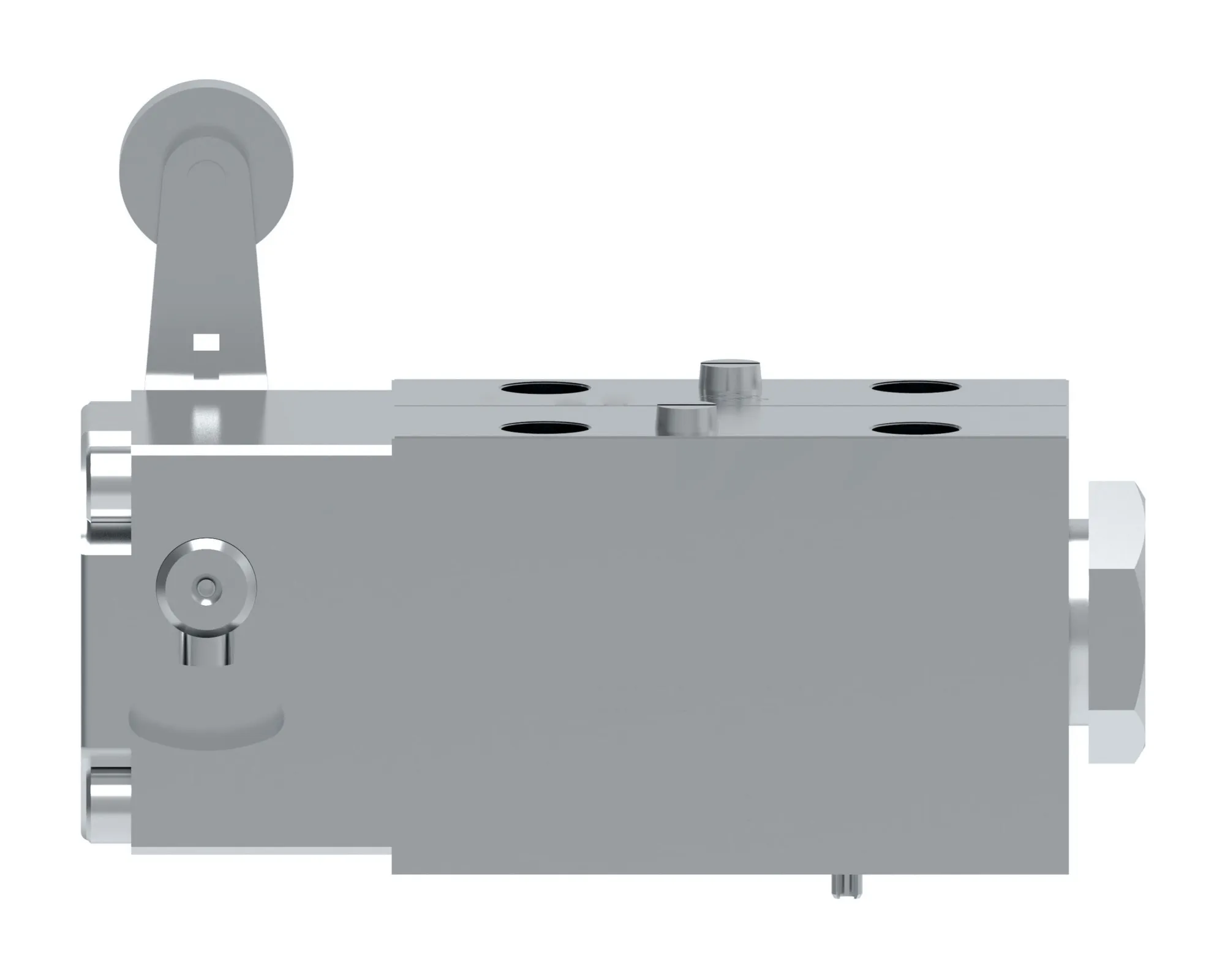

Danfoss (Drives) 02-127357
DG20V 3 2A 60, DG20V32A60 – 02-127357
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DG20V 3 2A 60, DG20V32A60 – 02-127357
Specification
| Actuation Type | Roller cam operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | None |
| Design Series | 60 Series |
| Electrical Connection | None |
| Flow Rate Upto Gpm | 20.0 |
| Flow Rate Upto Lpm | 75.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Interface | ISO4401-03 |
| Manual Override | None |
| Model Code 1 | DG20V32A60 |
| Performance | Standard performance |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 3.110 |
| Product Length In | 4.600 |
| Product Length Mm | 116.840 |
| Product Width In | 2.560 |
| Product Width Mm | 65.024 mm |
| Seal Type | WATER GLYCOL |
| Solenoid Energising Id | None |
| Special Features | None |
| Spool Position Monitor | No |
| Spool Type | Spool 2 |
| Spring Arrangement | Spring offset end to end |
| Stage | Single stage |
| Surge Suppr Damper | No |
| Tank Port Rating Bar | 7 |
| Tank Port Rating Psi | 100 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 65 |
| Working Temp Max F | 150 |
| Working Temp Min C | -18 |
| Working Temp Min F |
