Danfoss (Drives) 02-126488

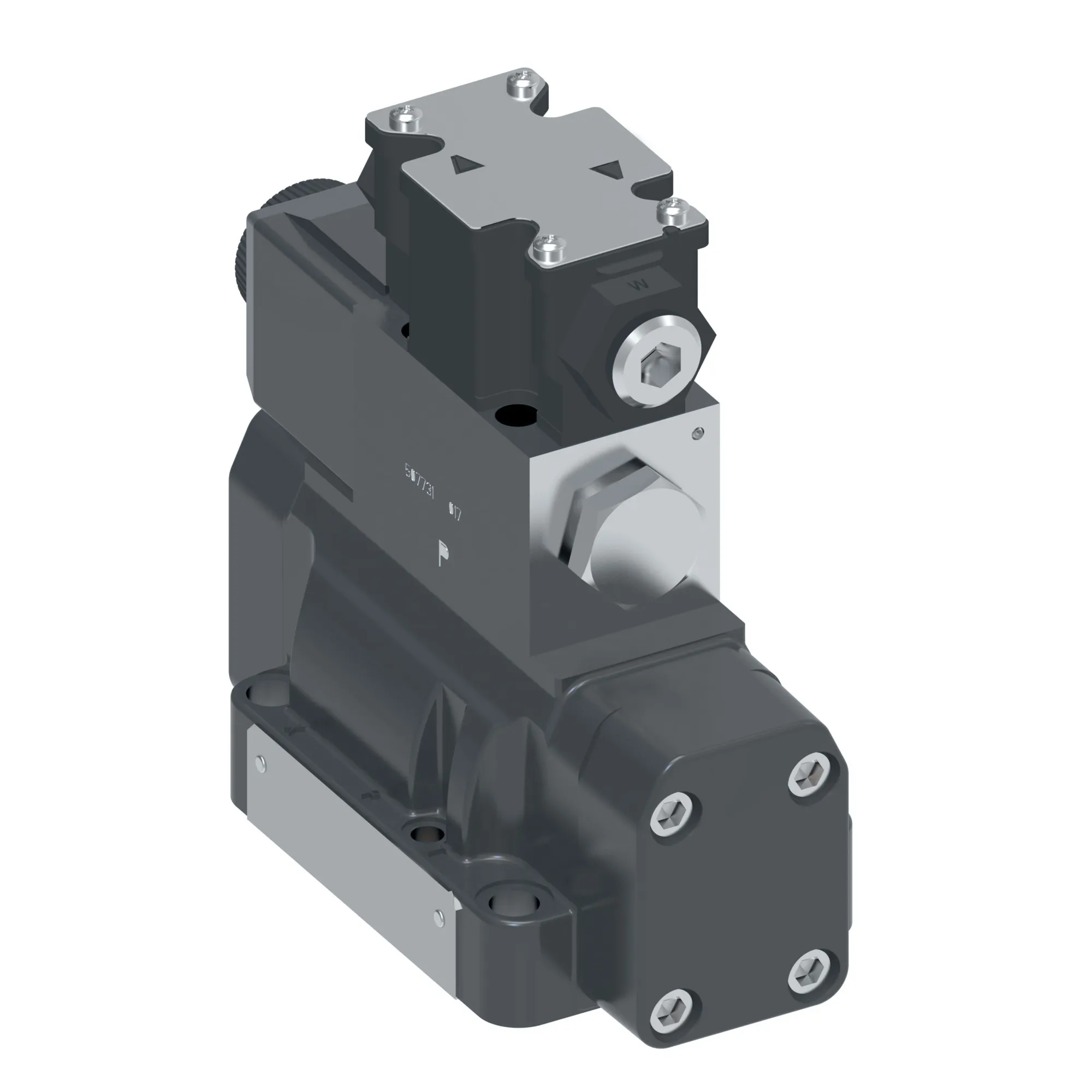

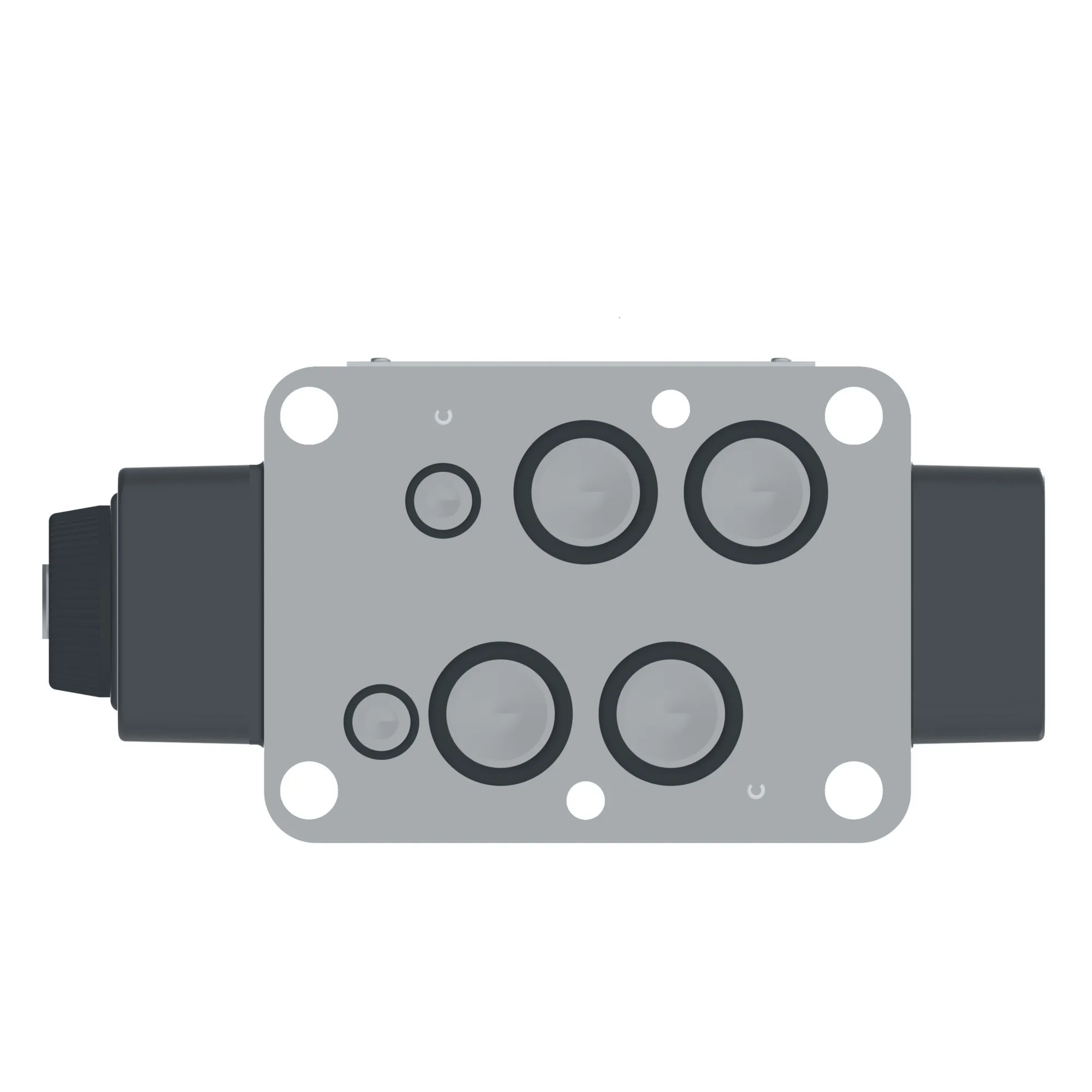

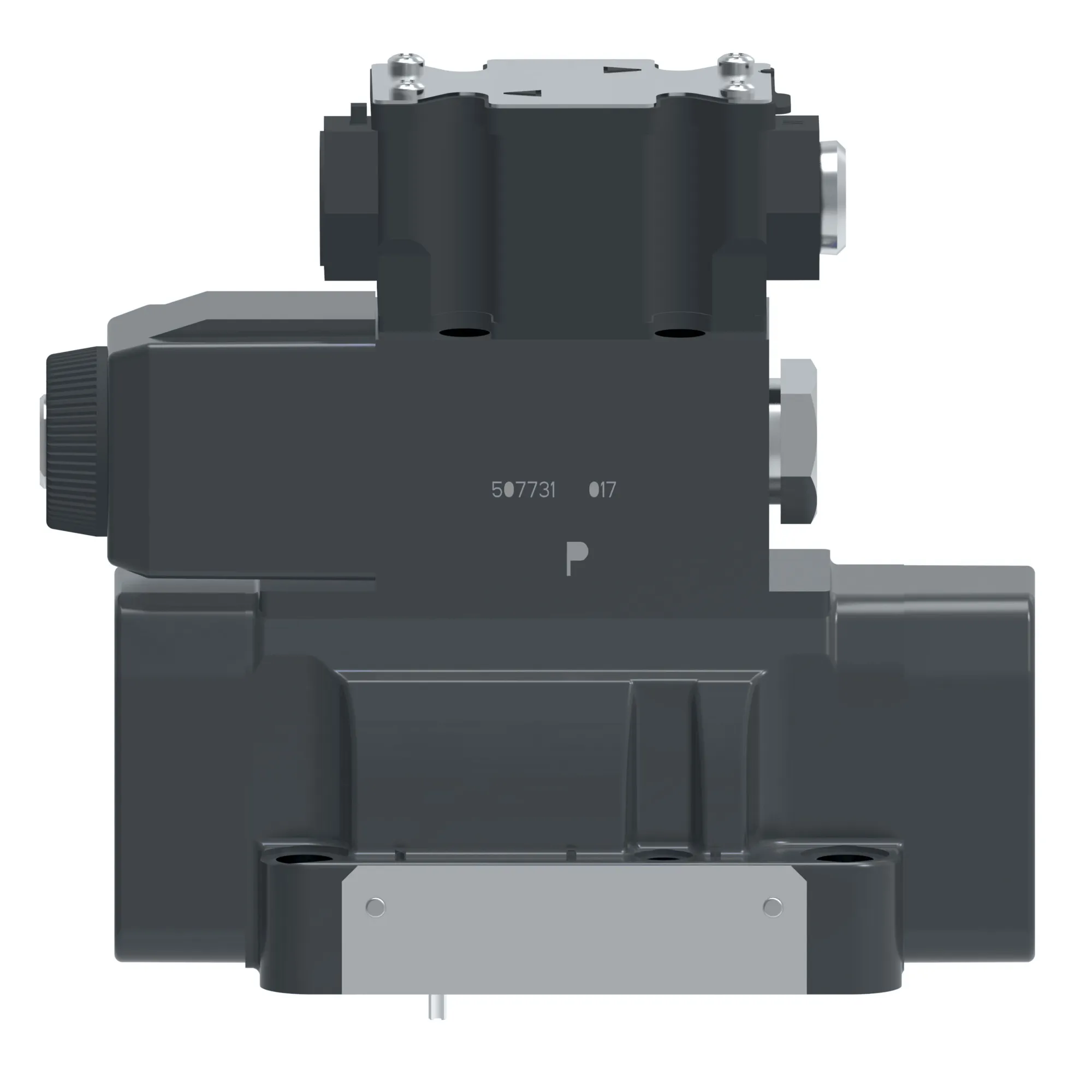

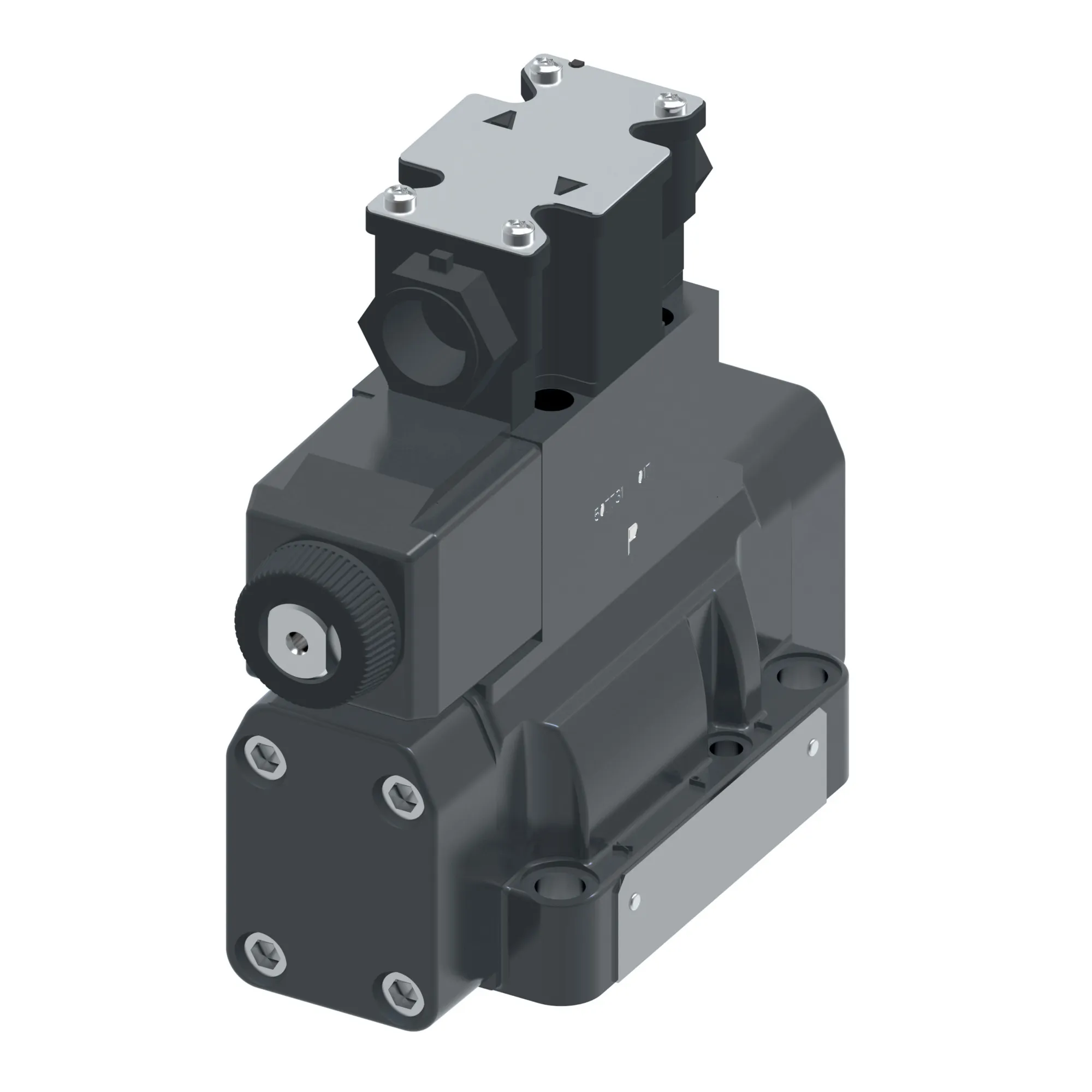

DG5S4 02 2A M FW B5 20, DG5S4022AMFWB520 – 02-126488
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DG5S4 02 2A M FW B5 20, DG5S4022AMFWB520 – 02-126488
Specification
| Actuation Type | Pilot operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 110 VAC 50Hz/120 VAC 60Hz |
| Design Series | 20 Series |
| Electrical Connection | Flying lead 1/2″ NPT housing |
| Ext Pilot Pressure | Internal |
| Flow Rate Upto Gpm | 30.0 |
| Flow Rate Upto Lpm | 115.0 |
| Fluid Cleanliness | 20/18/15 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Int Pilot Drain | External |
| Interface | ISO4401-05 |
| Manual Override | Plain |
| Model Code 1 | DG5S4022AMFWB520 |
| Performance | Standard performance |
| Pressure Rating Bar | 210 |
| Pressure Rating Psi | 3000 |
| Product Height In | 6.320 |
| Product Height Mm | 160.528 |
| Product Length In | 5.750 |
| Product Length Mm | 146.050 |
| Product Width In | 2.630 |
| Product Width Mm | 66.802 mm |
| Seal Type | Buna-N |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Special Features | None |
| Spool Position Monitor | No |
| Spool Type | Spool 2 |
| Spring Arrangement | Spring offset to A |
| Stage | Two stage |
| Surge Suppr Damper | No |
| Tank Port Rating Bar | 100 |
| Tank Port Rating Psi | 1450 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 65 |
| Working Temp Max F | 150 |
| Working Temp Min C | -18 |
| Working Temp Min F |
