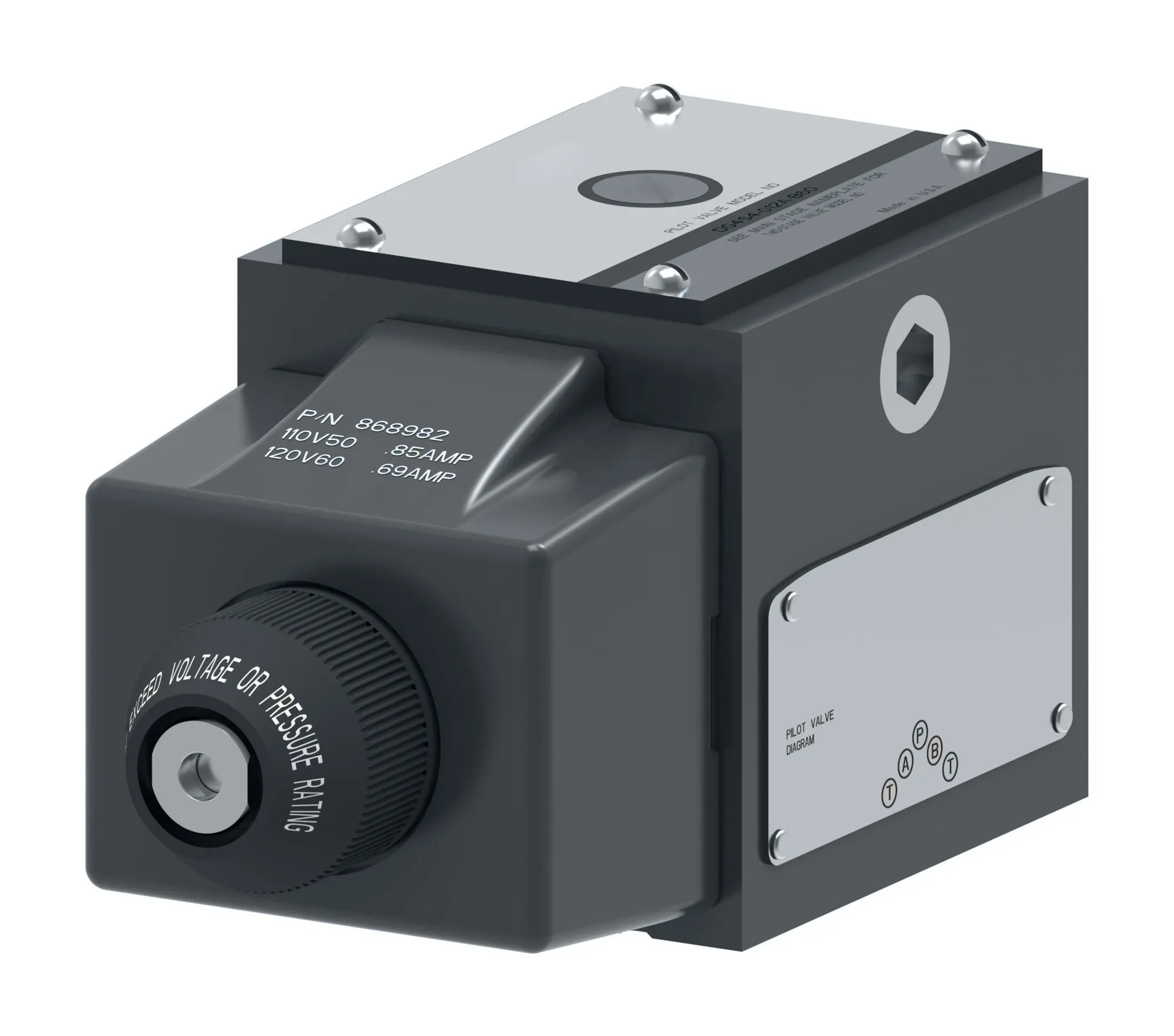

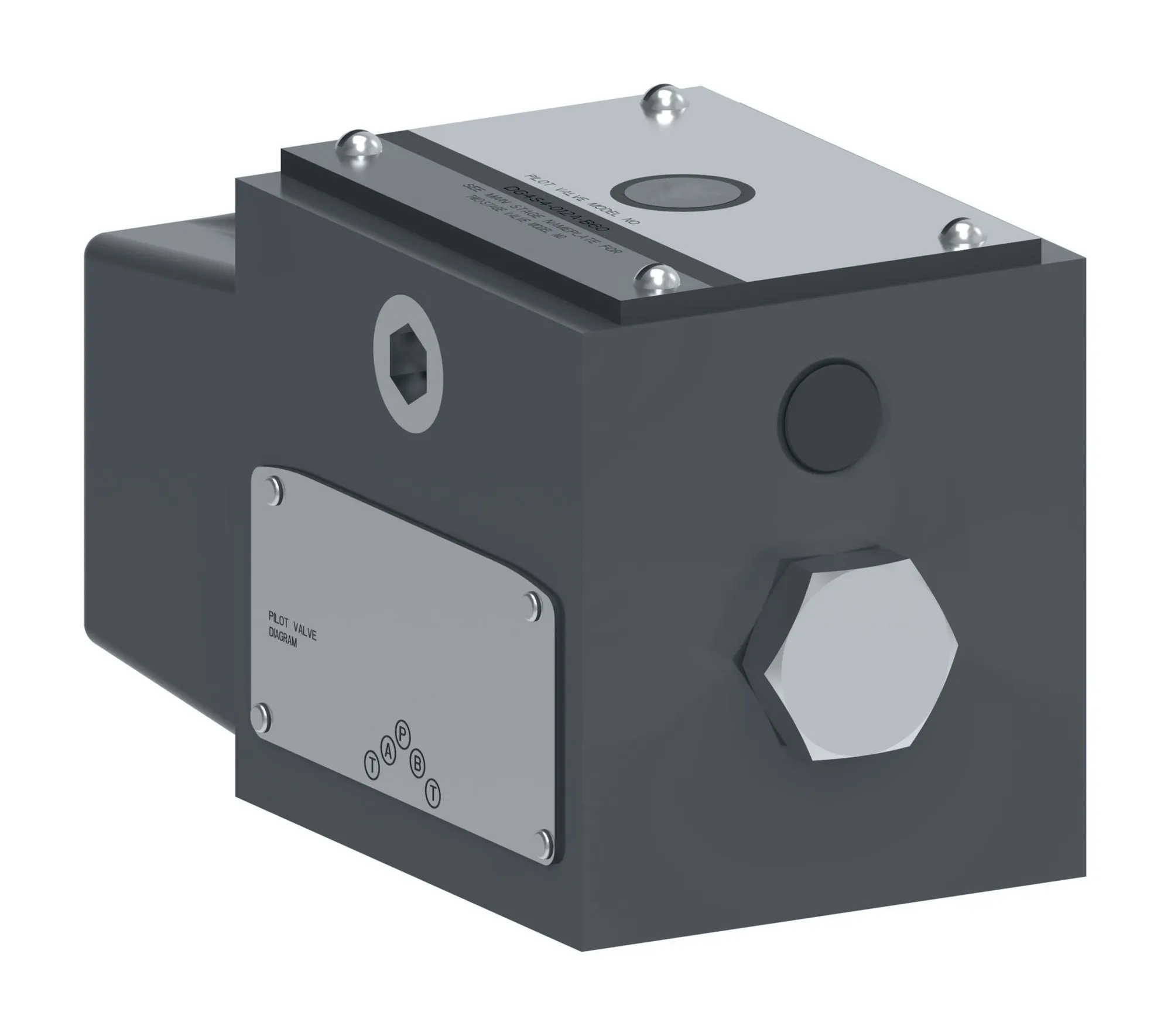

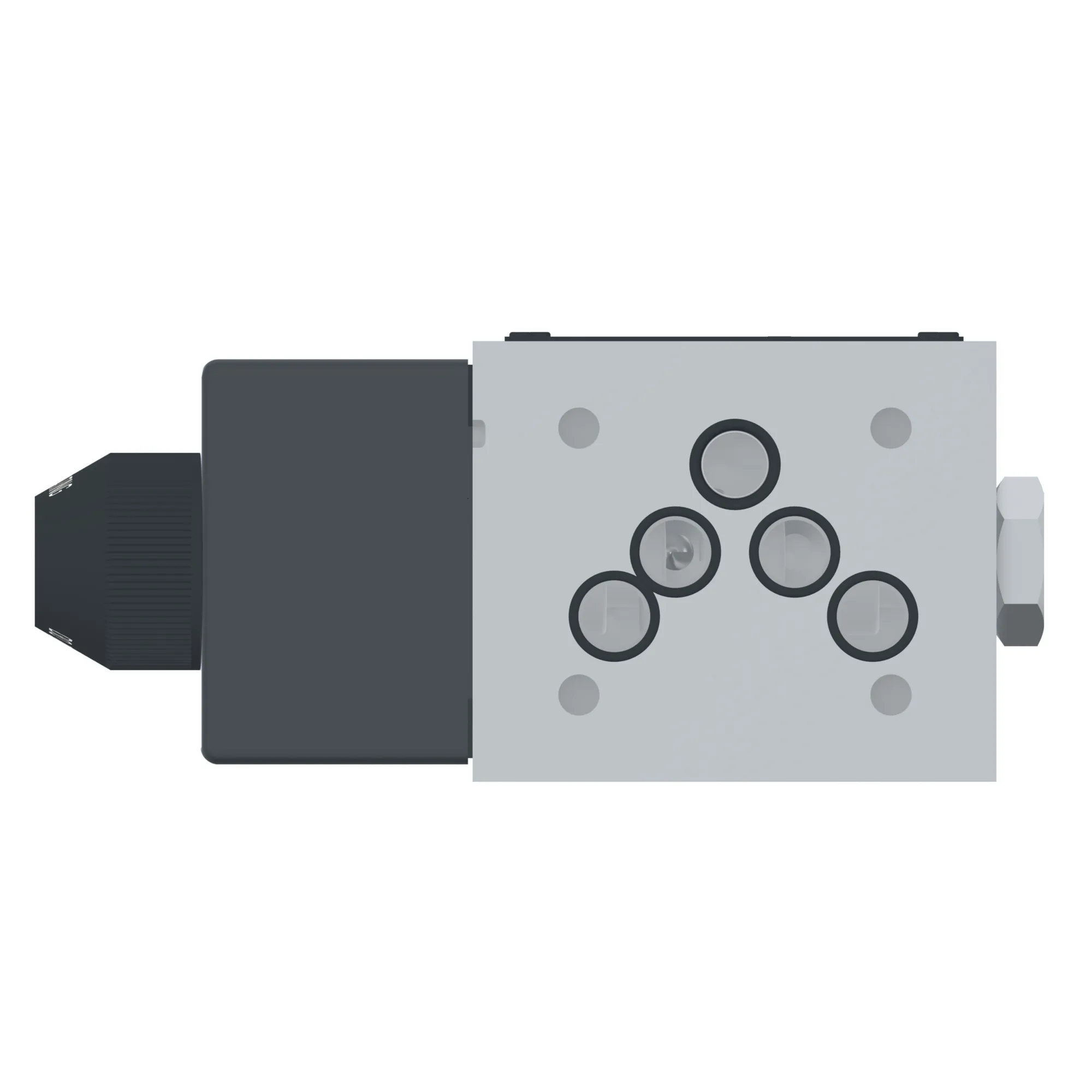

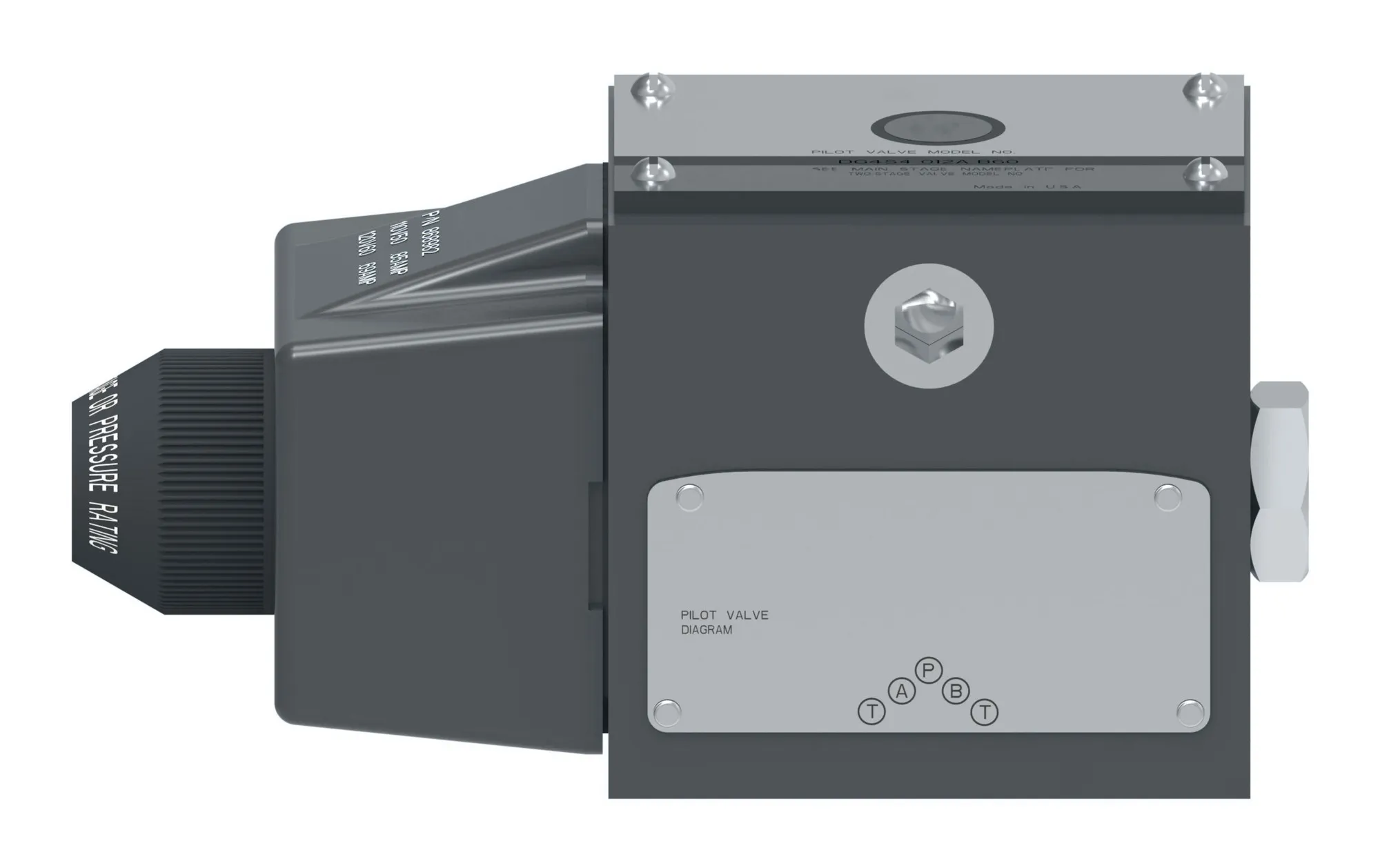

Danfoss (Drives) 02-119856
F3 DG4S4 016A B 60, F3DG4S4016AB60 – 02-119856
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
F3 DG4S4 016A B 60, F3DG4S4016AB60 – 02-119856
Specification
| Actuation Type | Solenoid operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 110 VAC 50Hz/120 VAC 60Hz |
| Design Series | 60 Series |
| Electrical Connection | Flying lead 1/2″ NPT housing |
| Energ Time | 18-25 ms |
| Flow Rate Upto Gpm | 25.0 |
| Flow Rate Upto Lpm | 95.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Phosphate ester |
| Indicator Light | No |
| Interface | ISO4401-05 |
| Manual Override | Plain |
| Model Code 1 | F3DG4S4016AB60 |
| Performance | Standard performance |
| Power Consumption | 61VA 50HZ – 58VA 60HZ |
| Pressure Rating Bar | 250 |
| Pressure Rating Psi | 3600.00 |
| Seal Type | WATER GLYCOL |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Special Features | None |
| Spool Position Monitor | No |
| Spool Type | Spool 6 |
| Spring Arrangement | Spring offset end to end |
| Stage | Single stage |
| Surge Suppr Damper | No |
| Tank Port Rating Bar | 70 |
| Tank Port Rating Psi | 1000 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 82 |
| Working Temp Max F | 180 |
| Working Temp Min C | 20 |
| Working Temp Min F | 70 |
