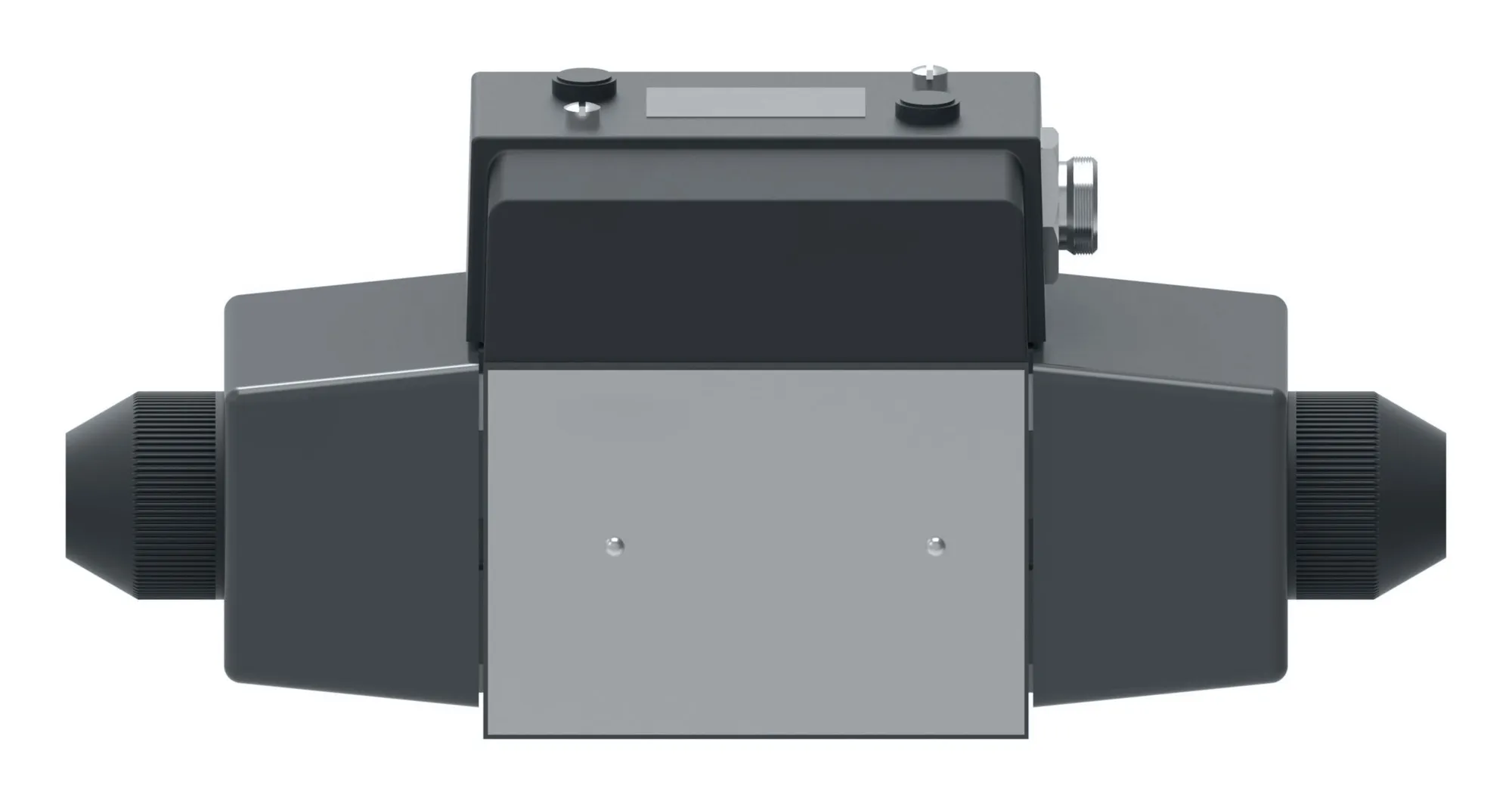

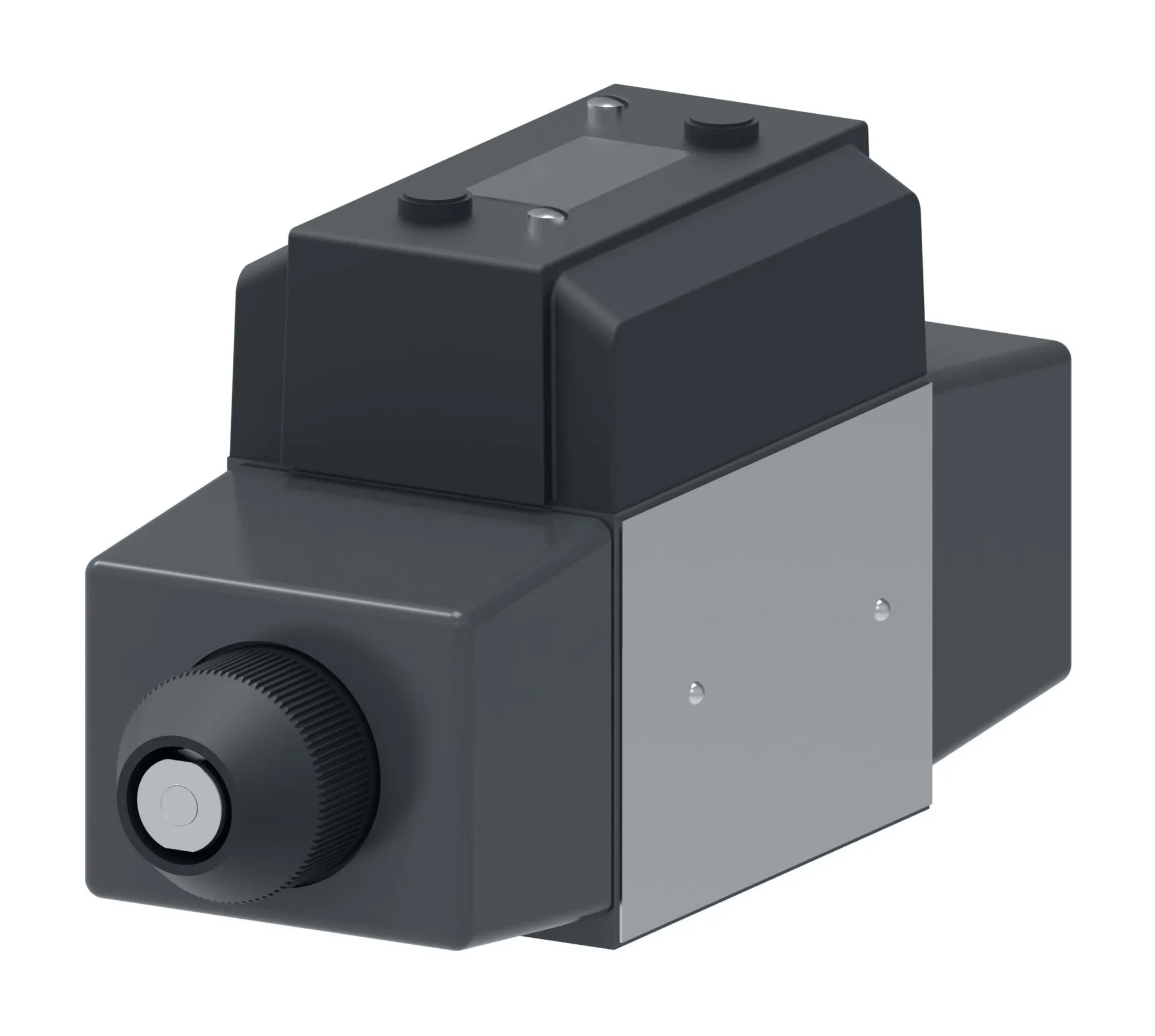

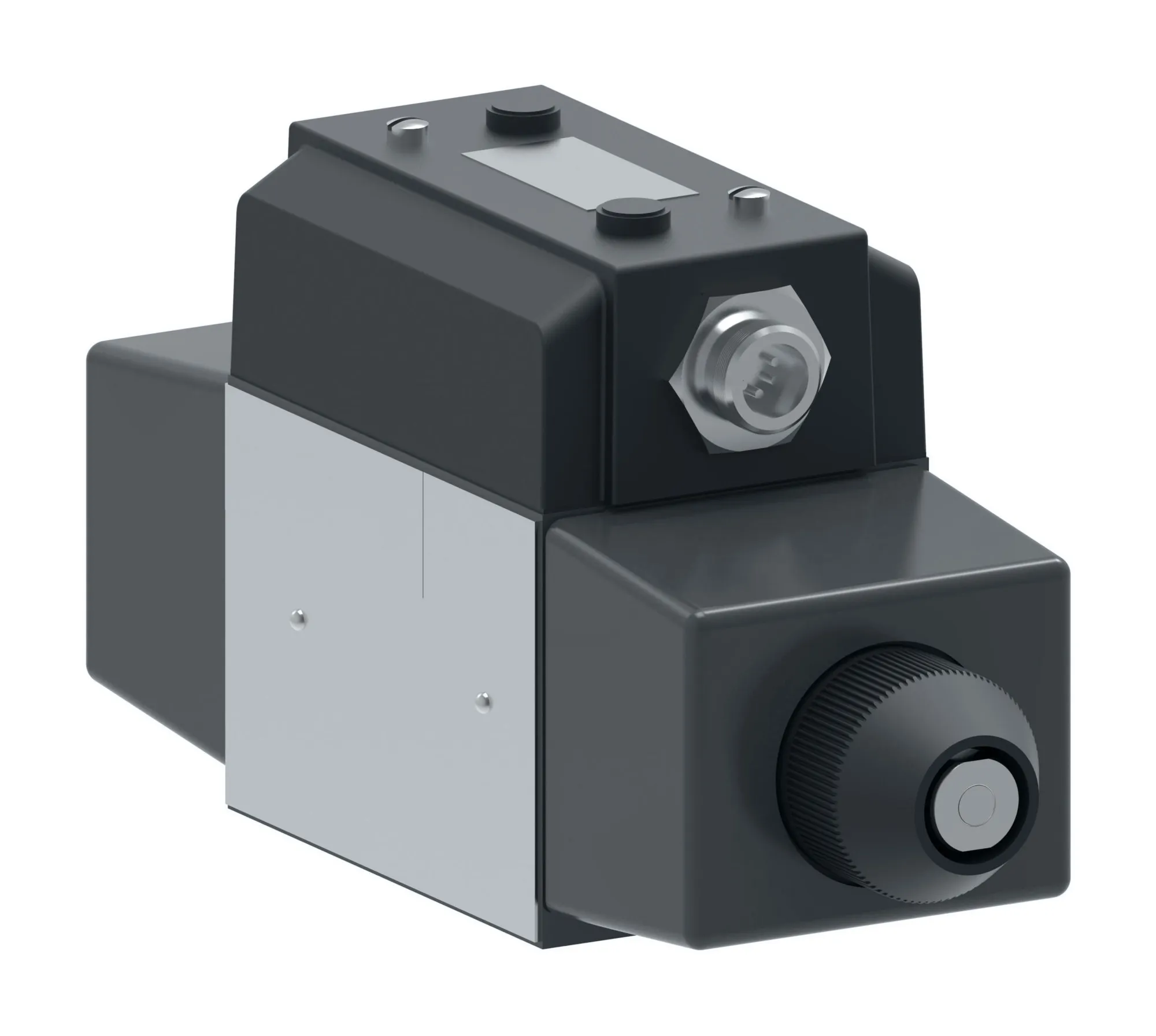

Danfoss (Drives) 02-119618
F3 PA5DG4S4LW 016C B 60, F3PA5DG4S4LW016CB60 – 02-119618
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
F3 PA5DG4S4LW 016C B 60, F3PA5DG4S4LW016CB60 – 02-119618
Specification
| Actuation Type | Solenoid operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 110 VAC 50Hz/120 VAC 60Hz |
| Design Series | 60 Series |
| Electrical Connection | 5-Pin connector |
| Energ Time | 20-40 ms |
| Flow Rate Upto Gpm | 25.0 |
| Flow Rate Upto Lpm | 95.0 |
| Fluid Cleanliness | 20/18/15 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | Yes |

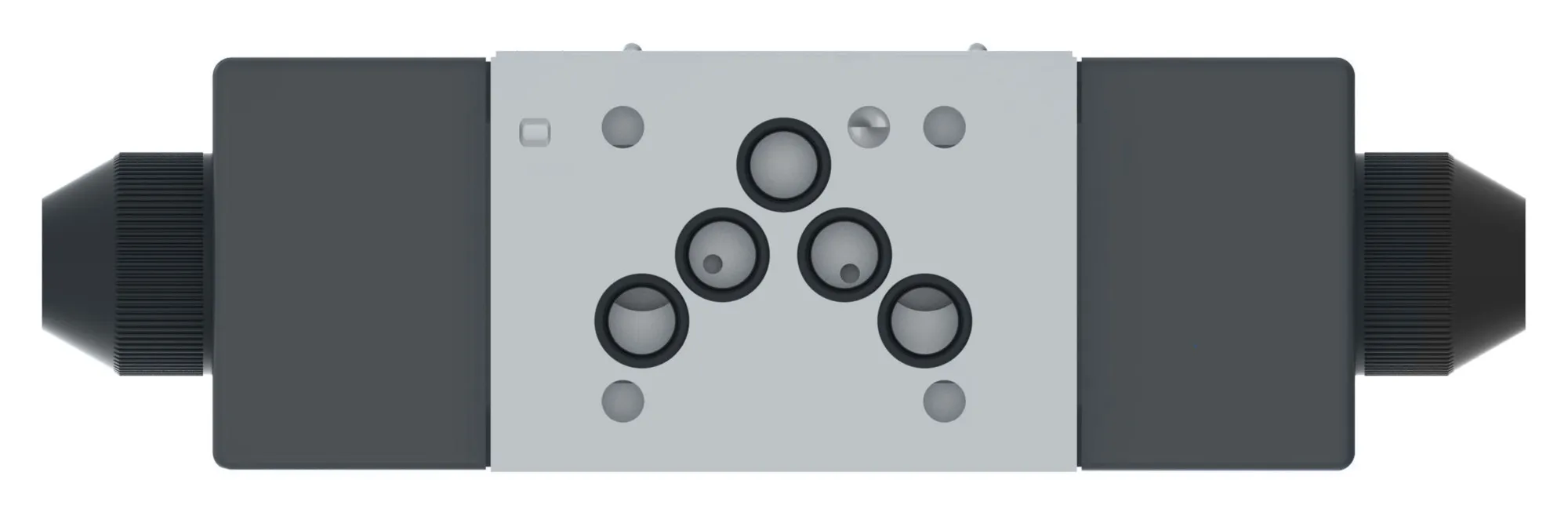

| Interface | ISO4401-05 |
| Manual Override | None |
| Model Code 1 | F3PA5DG4S4LW016CB60 |
| Performance | Standard performance |
| Pressure Rating Bar | 250 |
| Pressure Rating Psi | 3600 |
| Product Height In | 5.410 |
| Product Length In | 8.360 |
| Product Length Mm | 212.344 |
| Product Width In | 2.580 |
| Product Width Mm | 65.532 mm |
| Seal Type | WATER GLYCOL |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Special Features | None |
| Spool Position Monitor | No |
| Spool Type | Spool 6 |
| Spring Arrangement | Spring centred, three position |
| Stage | Single stage |
| Surge Suppr Damper | No |
| Tank Port Rating Bar | 70 |
| Tank Port Rating Psi | 1000 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 50 |
| Working Temp Max F | 122 |
| Working Temp Min C | 20 |
| Working Temp Min F | 70 |
