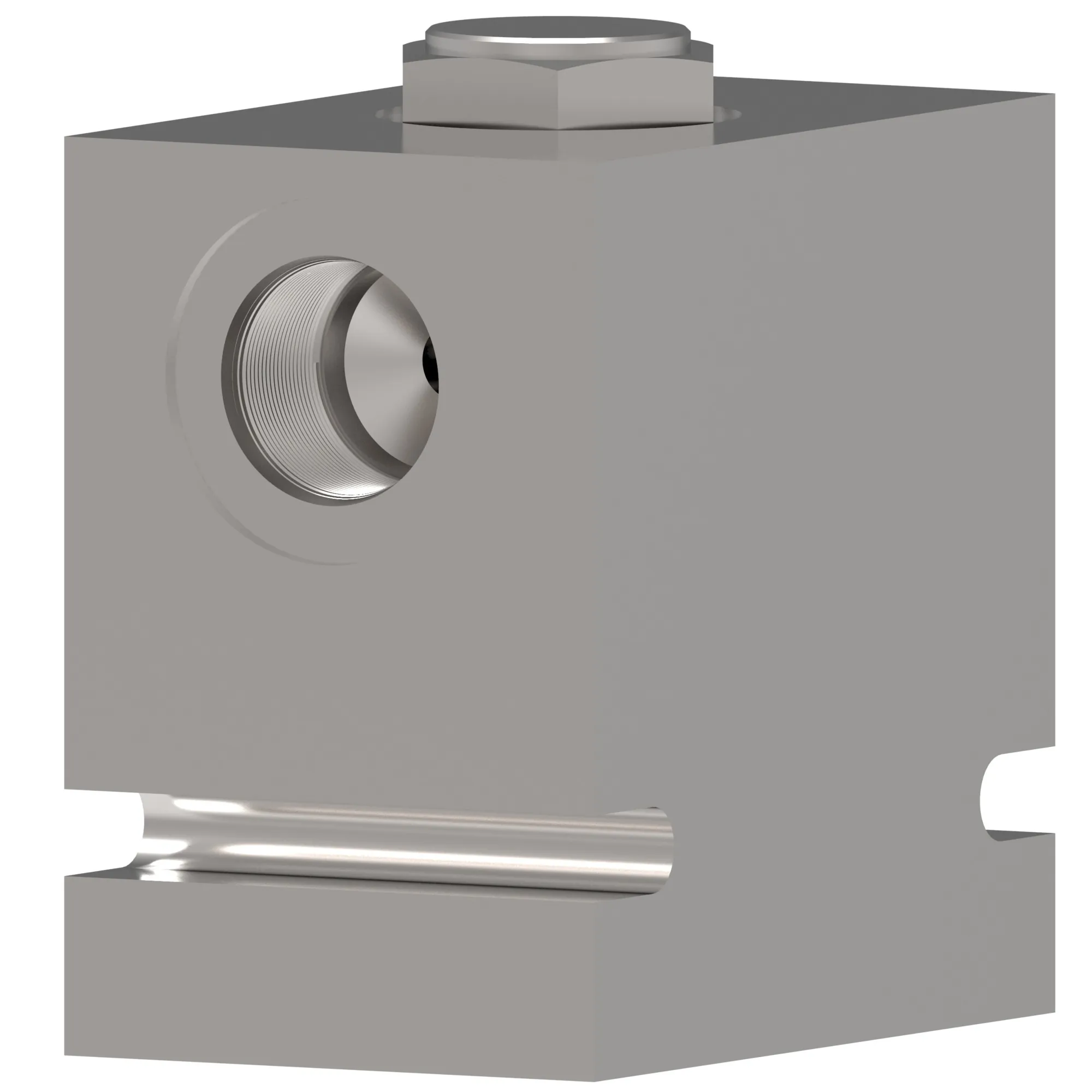

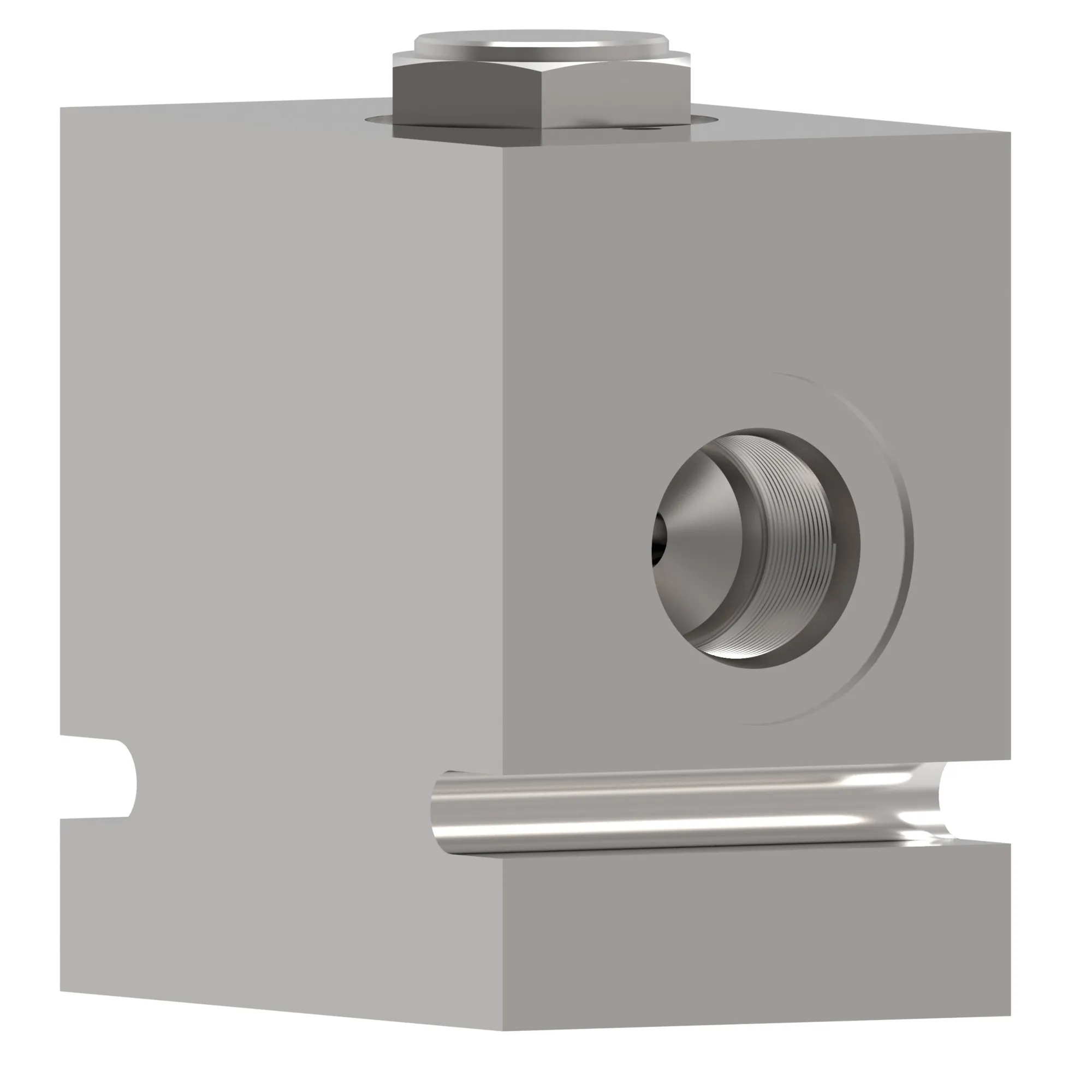

Danfoss (Drives) 02-112788
CV2-20-P-16T-5 CHECK VALVE POPPET TYPE, CV2-20-P-A-16T-5 – 02-112788
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CV2-20-P-16T-5 CHECK VALVE POPPET TYPE, CV2-20-P-A-16T-5 – 02-112788
Specification
| Brand | Vickers by Danfoss |
|---|---|
| Cavity | C-20-2 |
| Cracking Pressure Bar | 0.30000000 |
| Cracking Pressure Psi | 5.00000000 |
| Flow Rate Gpm | 11.80 |
| Flow Rate Lpm | 45.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Check Valve |
| Housing | Yes |
| Housing Material | Aluminum |
| Installation Type | Screw-in Cartridge |
| Leakage | 0.3 cc/min |
| Model Code 1 | CV2-20-P-A-16T-5 |
| Number Of Housing Ports | 2 |
| Number Of Valve Ports | 2 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Direct acting |
| Pilot Piston Seal | No |
| Port Size | 3/8″ |
| Port Type | SAE |
| Pressure Rating Bar | 210.00 |
| Pressure Rating Psi | 3000.00 |
| Product Height In | 4.550 |
| Product Height Mm | 115.570 |
| Product Length In | 4.000 |
| Product Length Mm | 101.600 |
| Product Width In | 1.870 |
| Product Width Mm | 47.498 mm |
| Recommended Filtration Level | 18/13 |
| Seal Type | Buna-N |
| Special Features | None |
| Style | Poppet |
