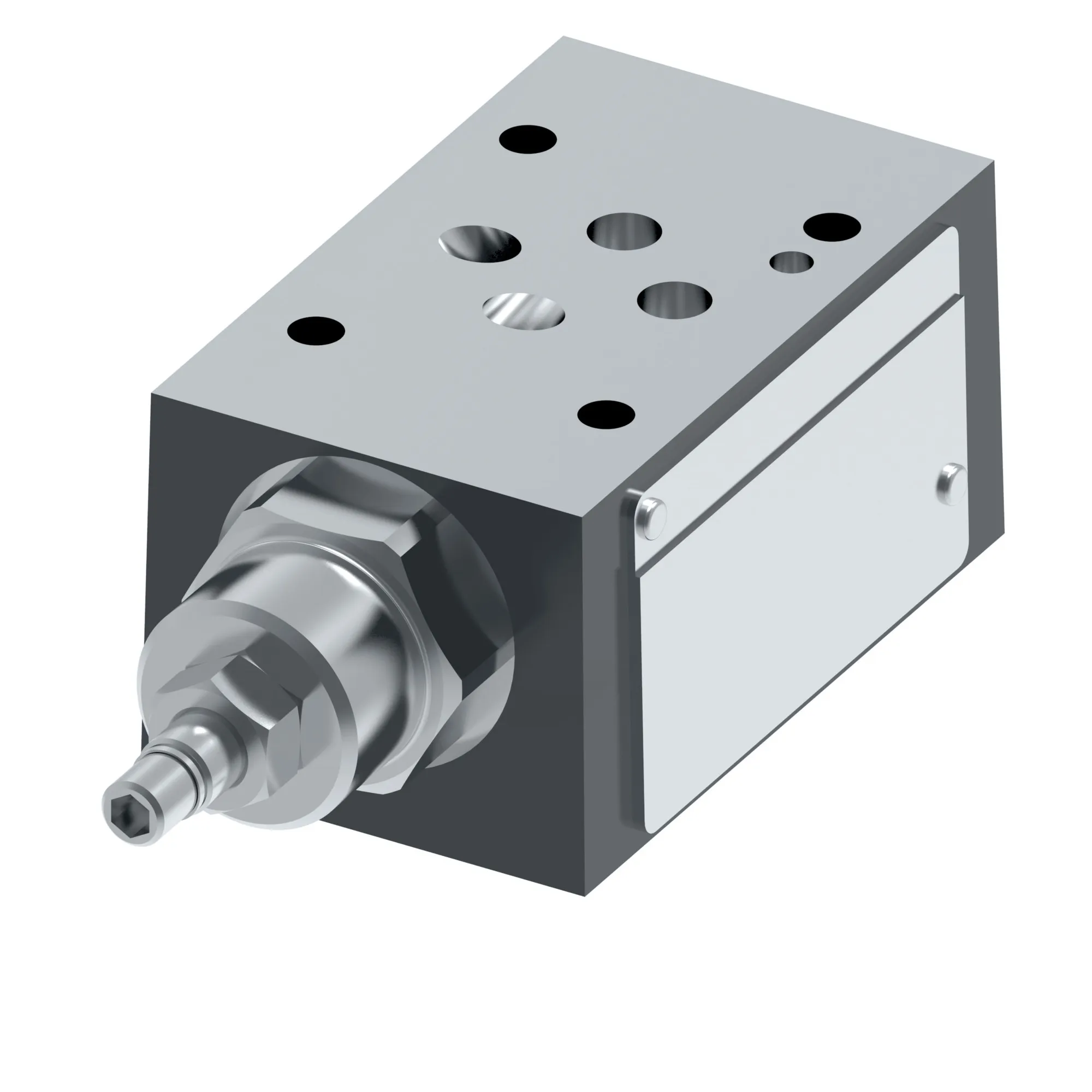

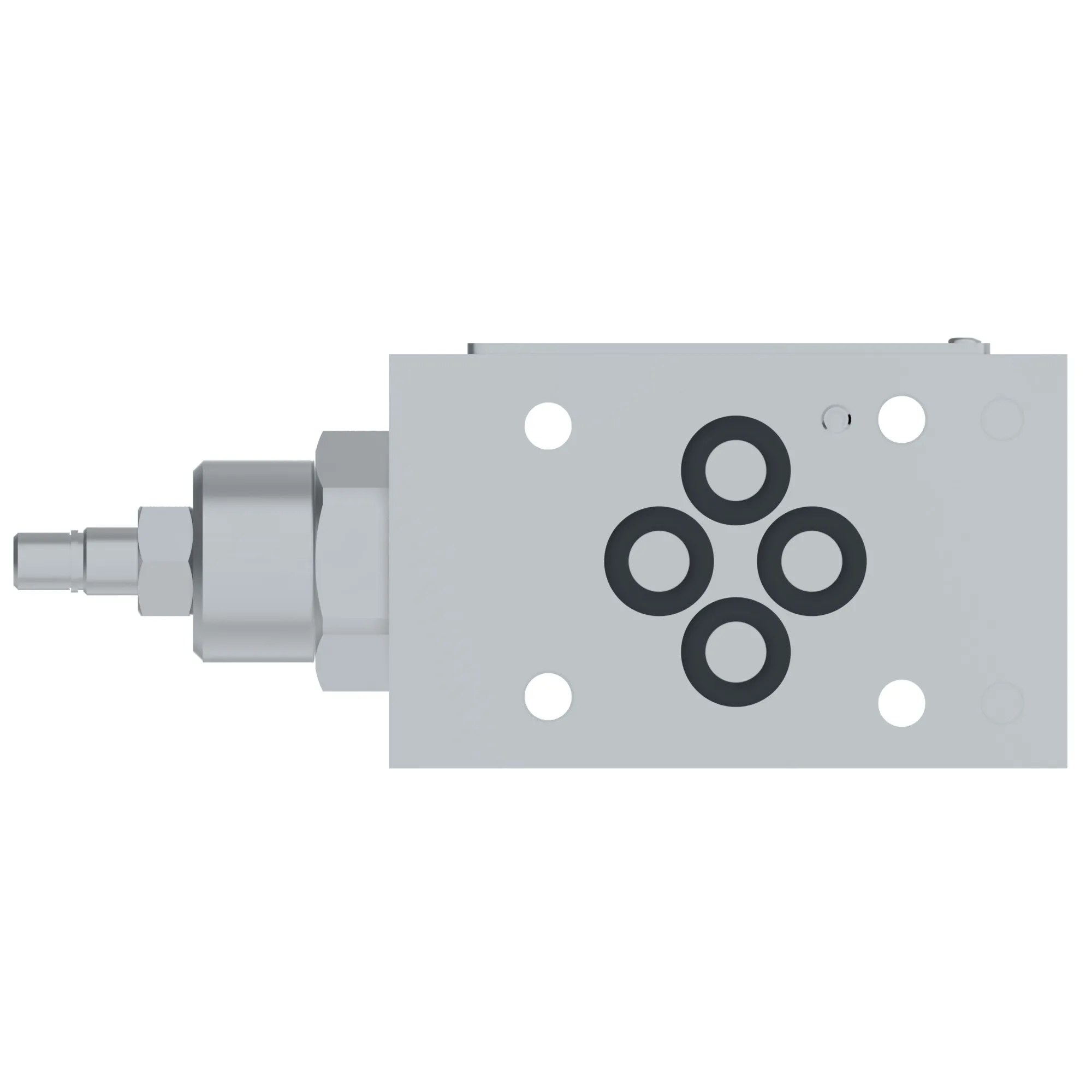

Danfoss (Drives) 02-108917
DGMFN 3 X A2W 41, DGMFN3XA2W41 – 02-108917
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DGMFN 3 X A2W 41, DGMFN3XA2W41 – 02-108917
Specification
| Actuation Type | Pressure operated |
|---|---|
| Adjustment Type | Screw and locknut |
| Brand | Vickers by Danfoss |
| Control Type 1 | Standard control |
| Design Series | 41 Series |
| Direction Of Flow | Meter-in control |
| Flow Rate Upto Lpm | 60 |
| Flow Rate Upto Usgpm | 16.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Interface | ISO4401-03 |
| Location Control Function 1 | Line A |
| Maximum Pressure Upto Bar | 315 |
| Maximum Pressure Upto Psi | 4500 |
| Model Code 1 | DGMFN3XA2W41 |
| Performance | Standard |
| Product Height In | 1.570 |
| Product Height Mm | 39.878 |
| Product Length In | 4.760 |
| Product Length Mm | 120.904 |
| Product Width In | 1.870 |
| Product Width Mm | 47.498 mm |
| Seal Type | Viton |
| Special Features | None |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Flow control valve |
| Working Temp Max C | 80 |
| Working Temp Max F | 176 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
