Danfoss (Drives) 02-108881
CG5V 8FW D VM U H7 11, CG5V8FWDVMUH711 – 02-108881
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

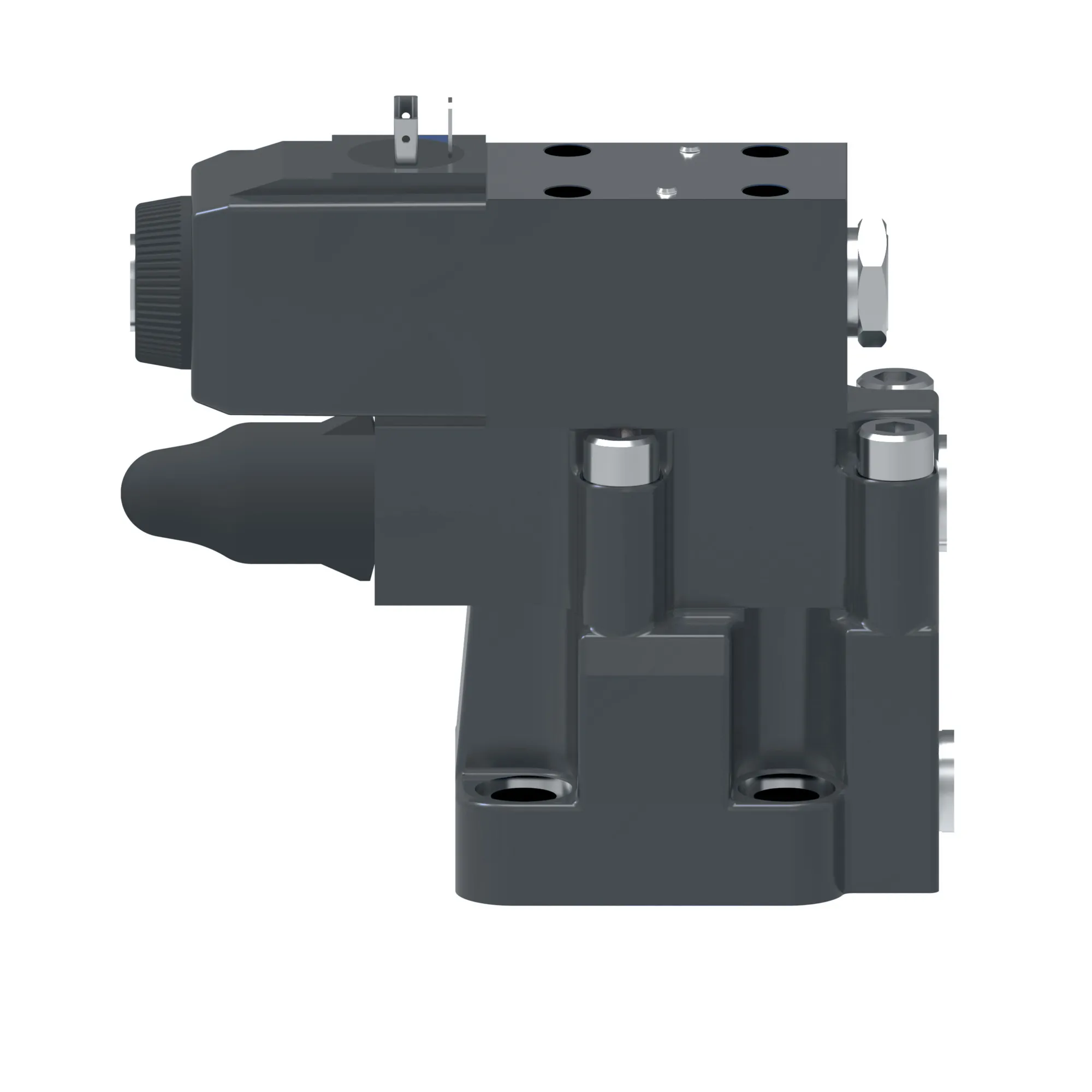

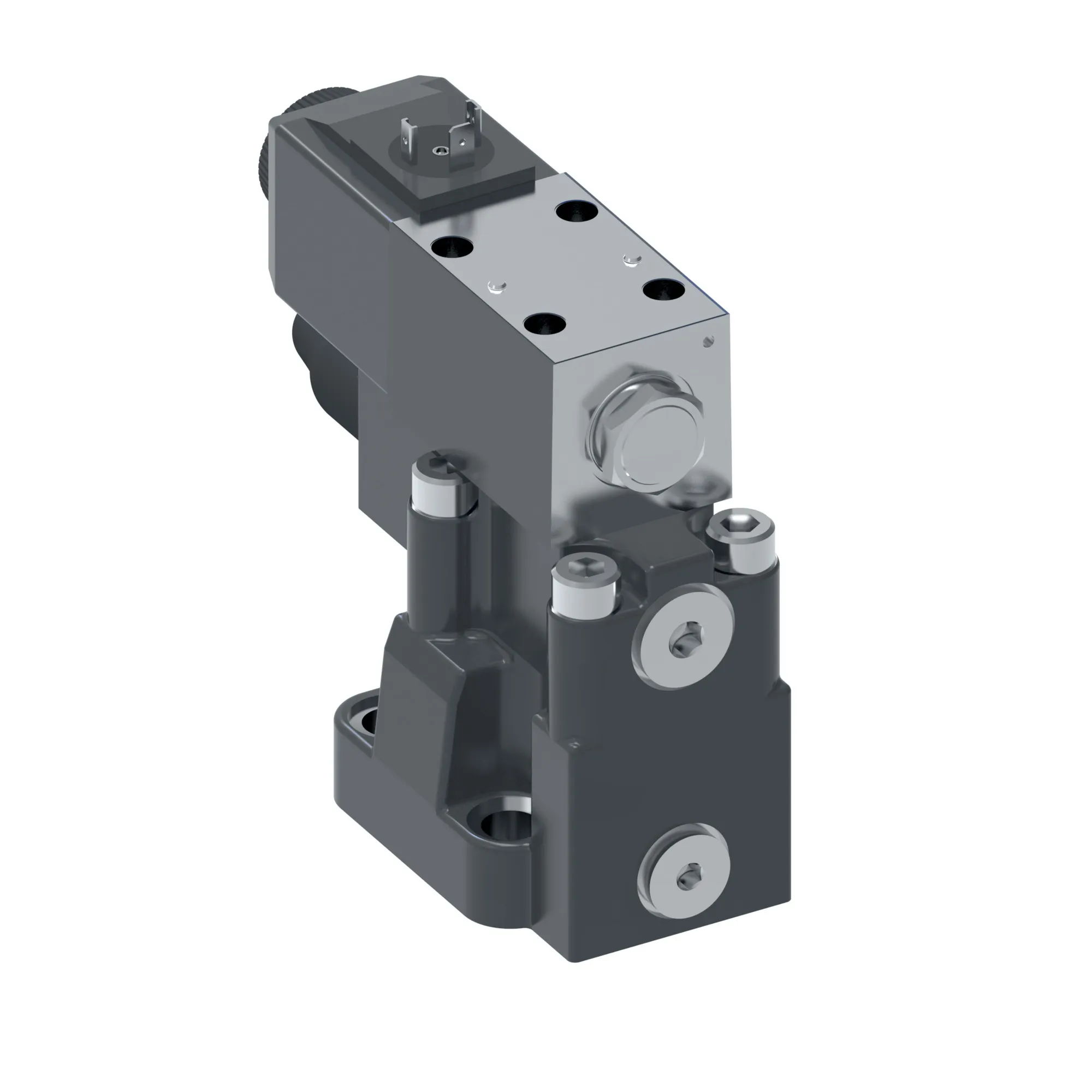

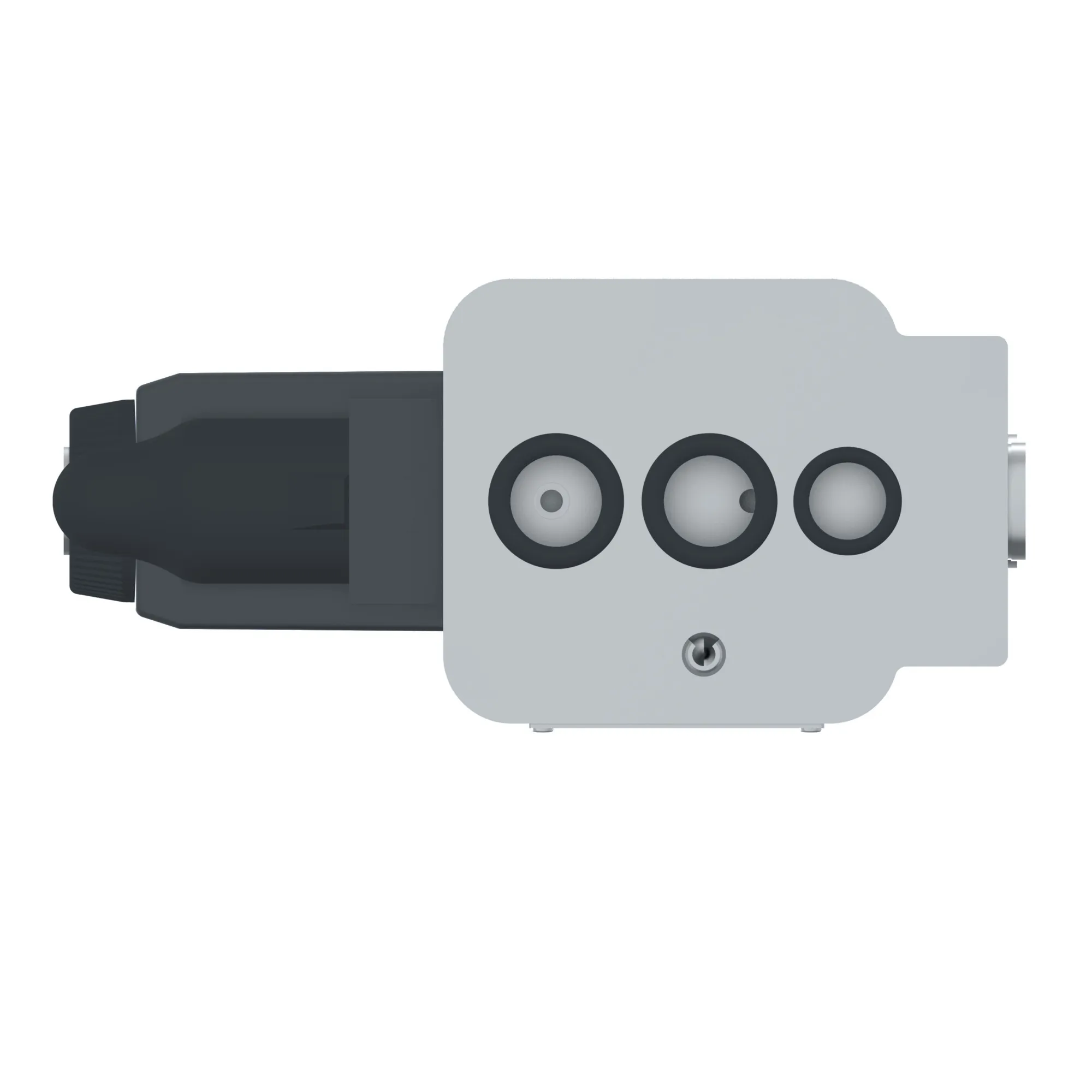

CG5V 8FW D VM U H7 11, CG5V8FWDVMUH711 – 02-108881
Specification
| Actuation Type | Solenoid operated |
|---|---|
| Adjustment Range | 3-210 bar (44-3000 psi) |
| Adjustment Type | Screw with locknut |
| Brand | Vickers by Danfoss |
| Coil Voltage | 24 VDC |
| Design Series | 11 Series |
| Electrical Connection | ISO4400 (Din 43650) Connector |
| Flow Rate Lpm | 400.0 |
| Flow Rate Usgpm | 106.0 |
| Indicator Light | No |
| Interface | ISO6264 AR-08-2-A |
| Maximum Pressure Bar | 350 |
| Maximum Pressure Psi | 5000 |
| Model Code 1 | CG5V8FWDVMUH711 |
| Product Height In | 8.000 |
| Product Height Mm | 203.200 |
| Product Length In | 7.100 |
| Product Length Mm | 180.340 |
| Product Width In | 4.200 |
| Product Width Mm | 106.680 mm |
| Stage | Two stage |
| Valve Mount Type | Subplate mounted |
| Valve Type | Relief valve |
