Danfoss (Drives) 02-108635

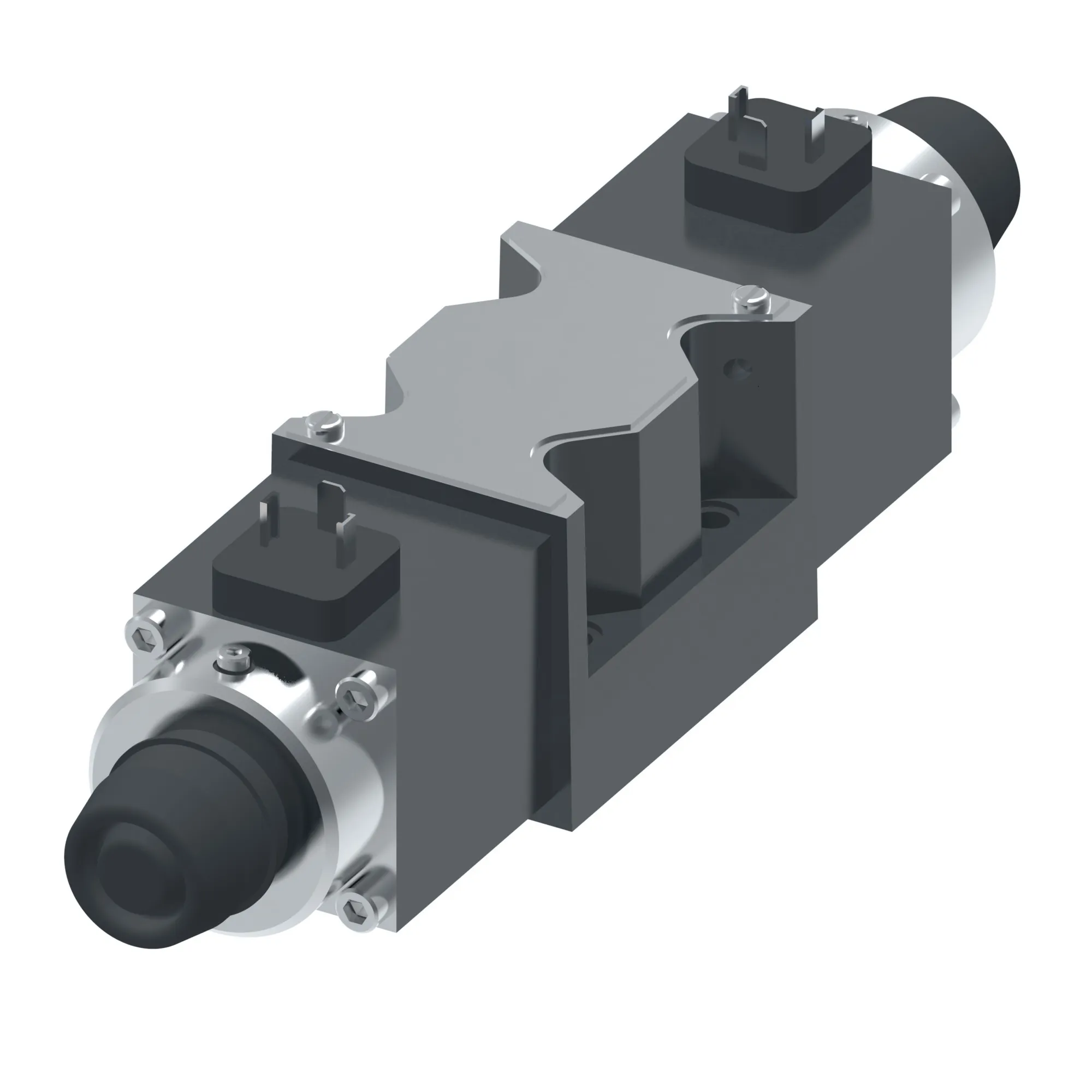

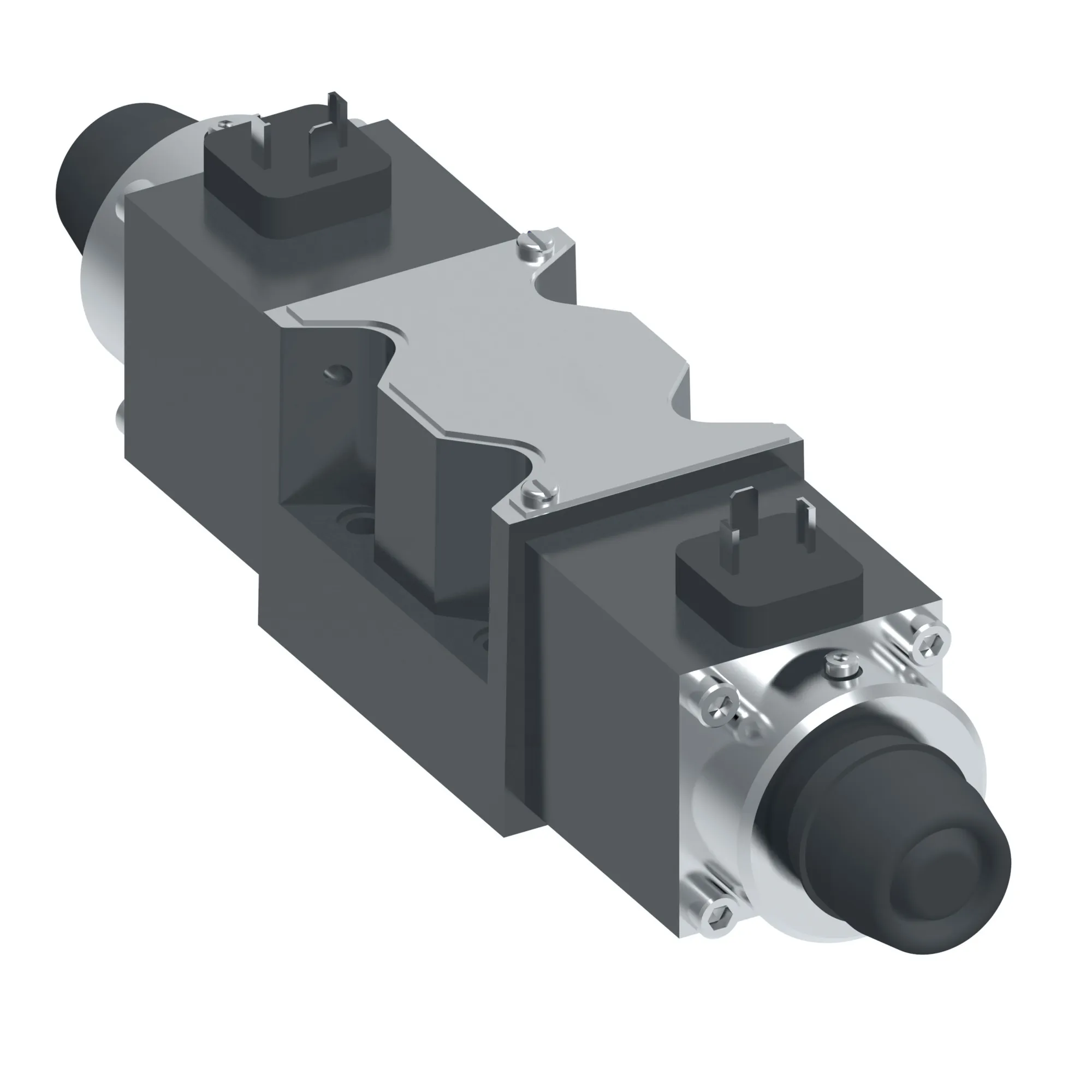

VALVE KDG4V-5-33C50N-Z-M-U-G7-30, KDG4V533C50NZMUG730 – 02-108635
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
VALVE KDG4V-5-33C50N-Z-M-U-G7-30, KDG4V533C50NZMUG730 – 02-108635
Specification
| A Port Flow Lpm | 50.00 |
|---|---|
| A Port Flow Usgpm | 13.20 |
| Actuation Type | Solenoid controlled |
| B Port Flow Lpm | 50.00 |
| B Port Flow Usgpm | 13.20 |
| Brand | Vickers by Danfoss |
| Build Orientation | Standard as per ANSI B93 9 |
| Build Type | Spring centered |
| Coil Voltage | 12 Volt DC |
| Command Input | None |
| Communication Protocol | None |
| Design Series | 30 Series |
| Electrical Connection | ISO 4400 (DIN 43650) connector |
| Feedback Sensor | No |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid Compatibility | Antiwear hydraulic oils |
| Interface | ISO4401-05/NFPA D05/CETOP 5 |
| Manual Override | None |
| Maximum Pressure Bar | 315 |
| Maximum Pressure Psi | 4500 |
| Metering | Meter in / meter out |
| Model Code 1 | KDG4V533C50NZMUG730 |
| On Board Electronics | No |
| Performance | Standard |
| Profx Compatible | No |
| Reducer Module | No |
| Reverse Flow Check | No |
| Seal Type | Viton |
| Special Features | None |
| Spool Type | P blocked, A & B to tank |
| Stage | Single stage |
| Symmetric Flow | Yes |
| Tank Port Rating Bar | 210 |
| Tank Port Rating Psi | 3000 |
| Valve Mount Type | Subplate |
| Valve Type | Proportional directional |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
