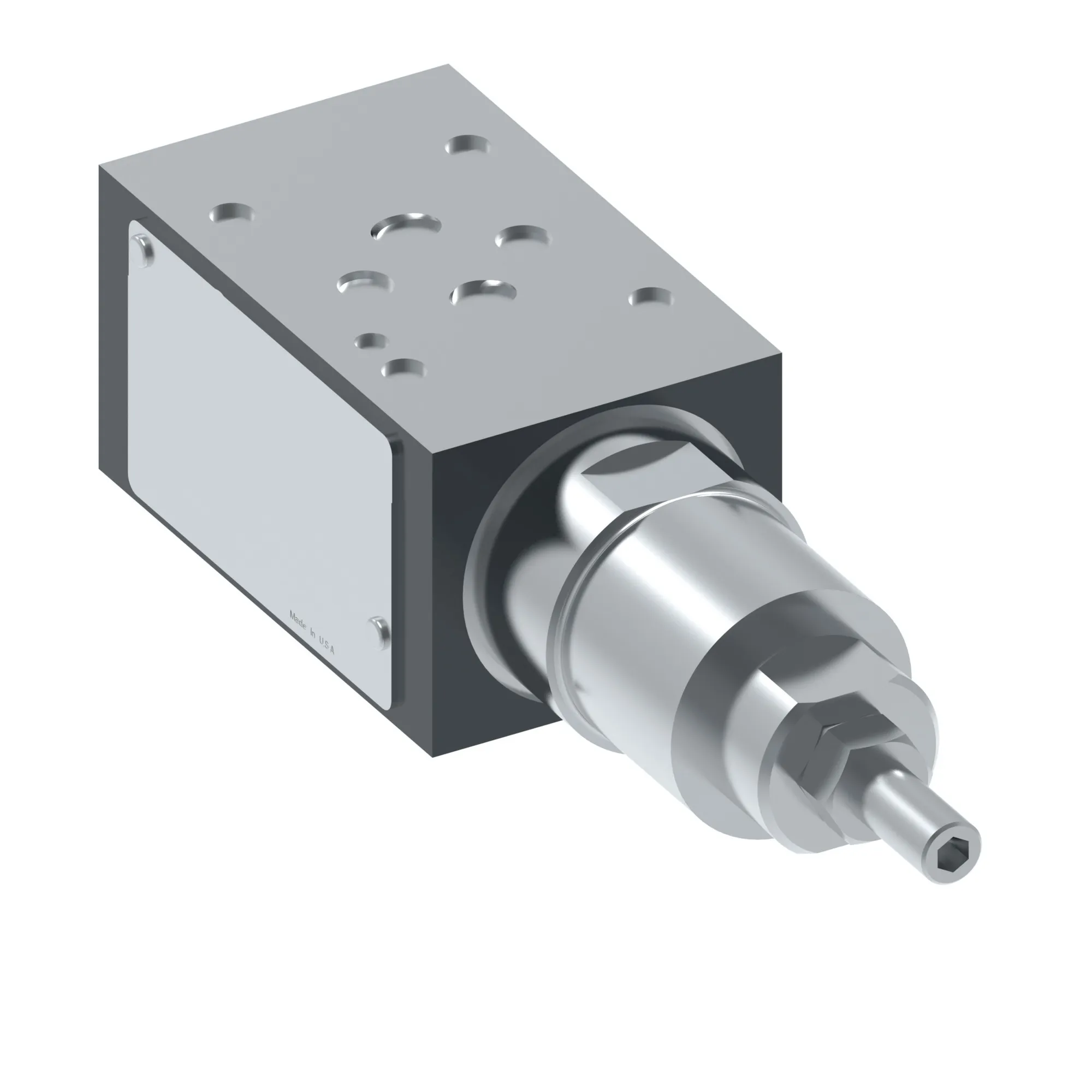

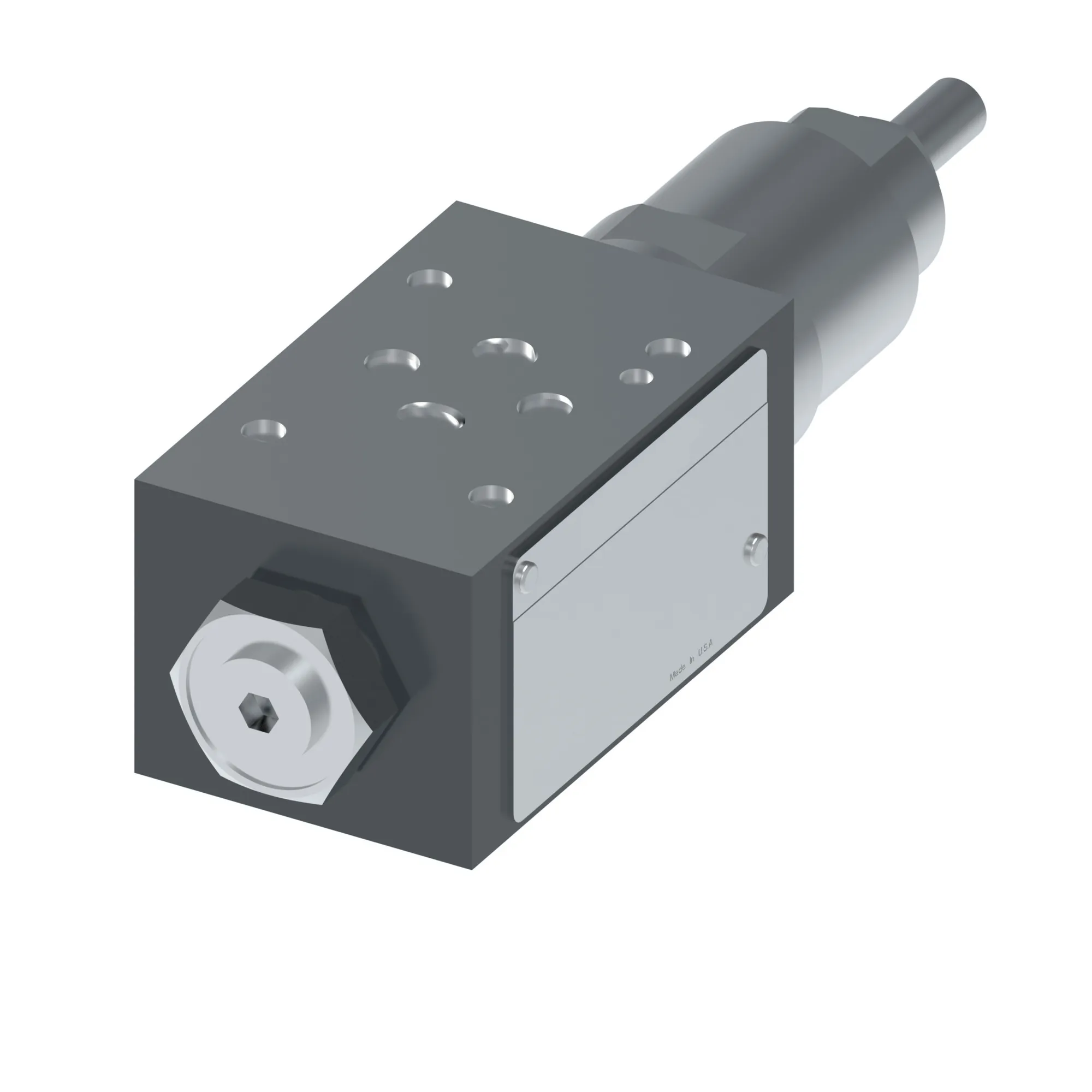

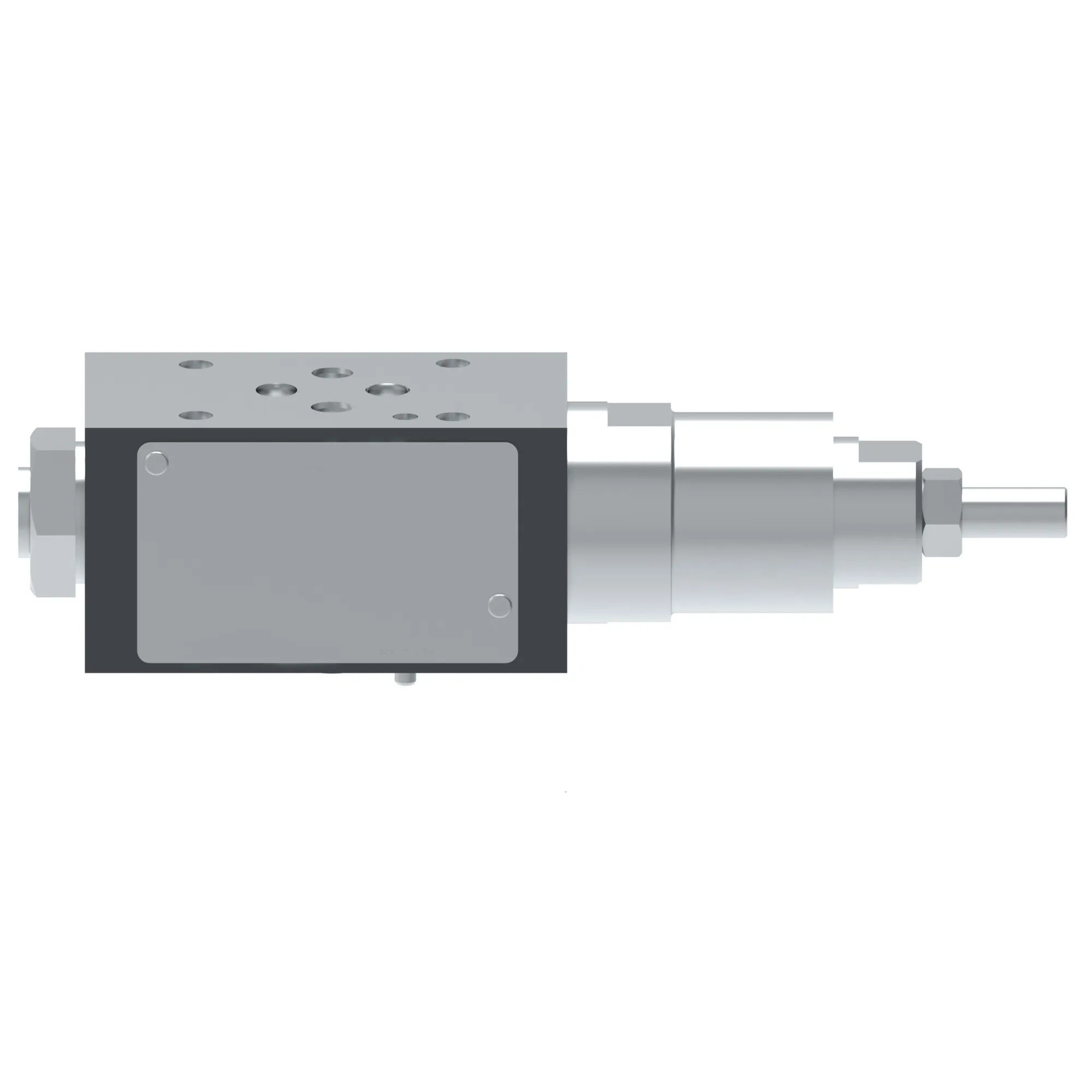

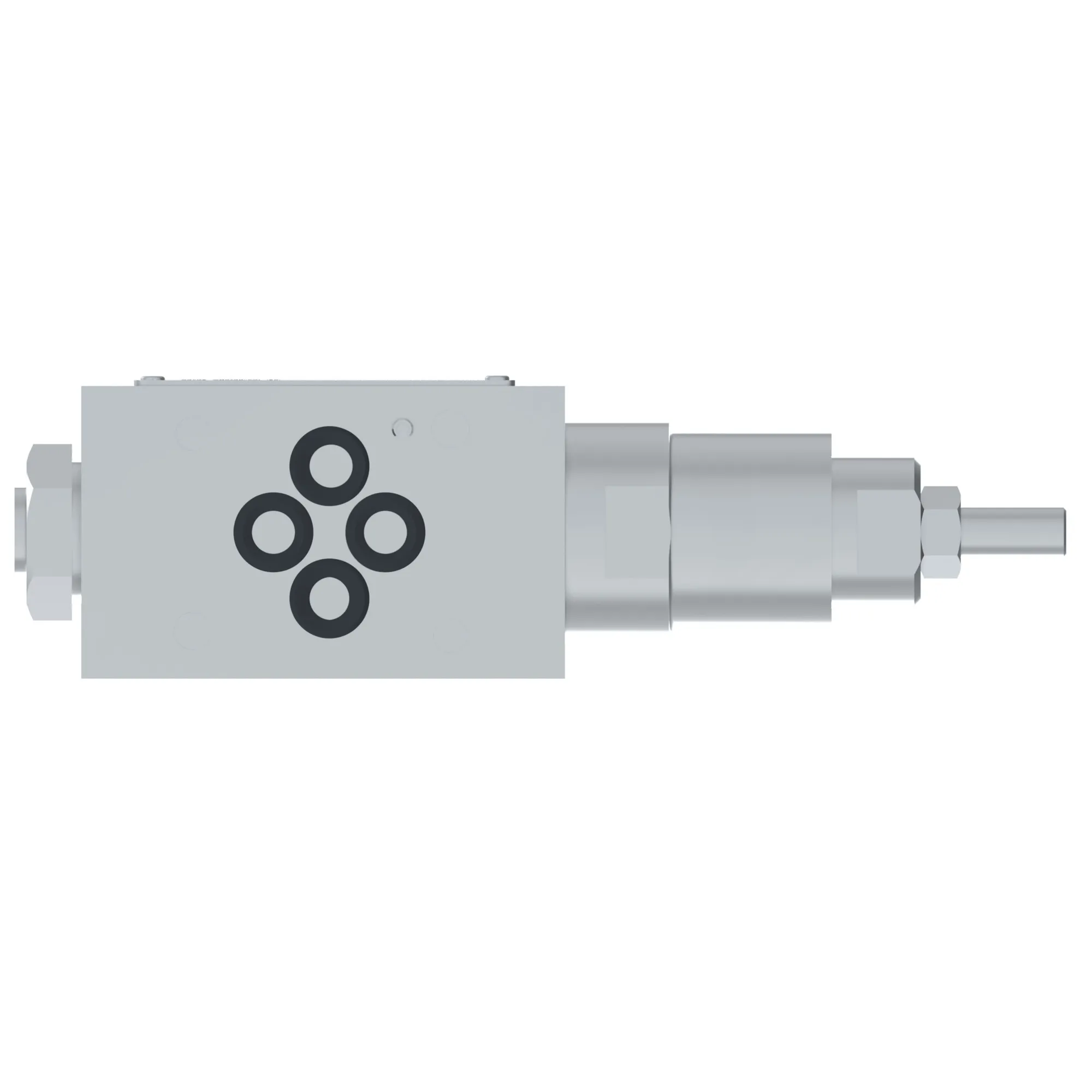

Danfoss (Drives) 02-108383
DGMR1-3-PP-CW-S-40, DGMR13PPCWS40 – 02-108383
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DGMR1-3-PP-CW-S-40, DGMR13PPCWS40 – 02-108383
Specification
| Actuation Type | Pressure operated |
|---|---|
| Adjustment Type | Screw and locknut |
| Brand | Vickers by Danfoss |
| Design Series | 40 Series |
| Flow Rate Upto Lpm | 60 |
| Flow Rate Upto Usgpm | 16.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Function Ports | P port controlled by pressure in P port |
| Gauge Port Thread Type | SAE 4 (7/16″-20 UNF-2B) |
| Interface | ISO4401-03 |
| Maximum Pressure Upto Bar | 315 |
| Maximum Pressure Upto Psi | 4500 |
| Model Code 1 | DGMR13PPCWS40 |
| Performance | Standard |
| Pressure Adjustment Range | 10-140 bar (145-2000 psi) |
| Product Height In | 2.360 |
| Product Height Mm | 59.944 |
| Product Length In | 6.650 |
| Product Length Mm | 168.910 |
| Product Width In | 2.820 |
| Product Width Mm | 71.628 mm |
| Seal Type | Viton |
| Special Features | None |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Sequence valve |
| Working Temp Max C | 80 |
| Working Temp Max F | 176 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
