Danfoss (Drives) 02-108133
DGMC-3-BT-GW-41, DGMC3BTGW41 – 02-108133
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

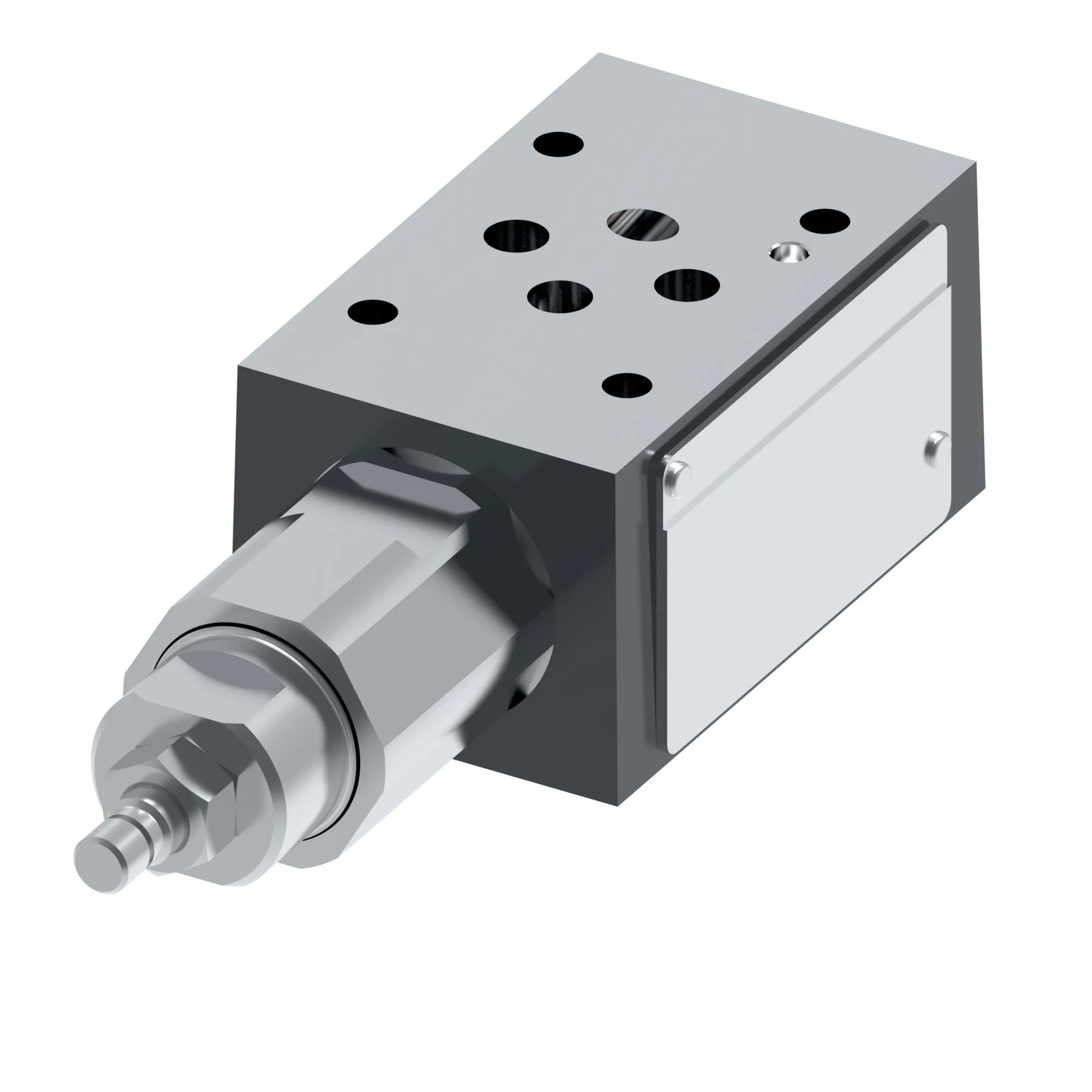

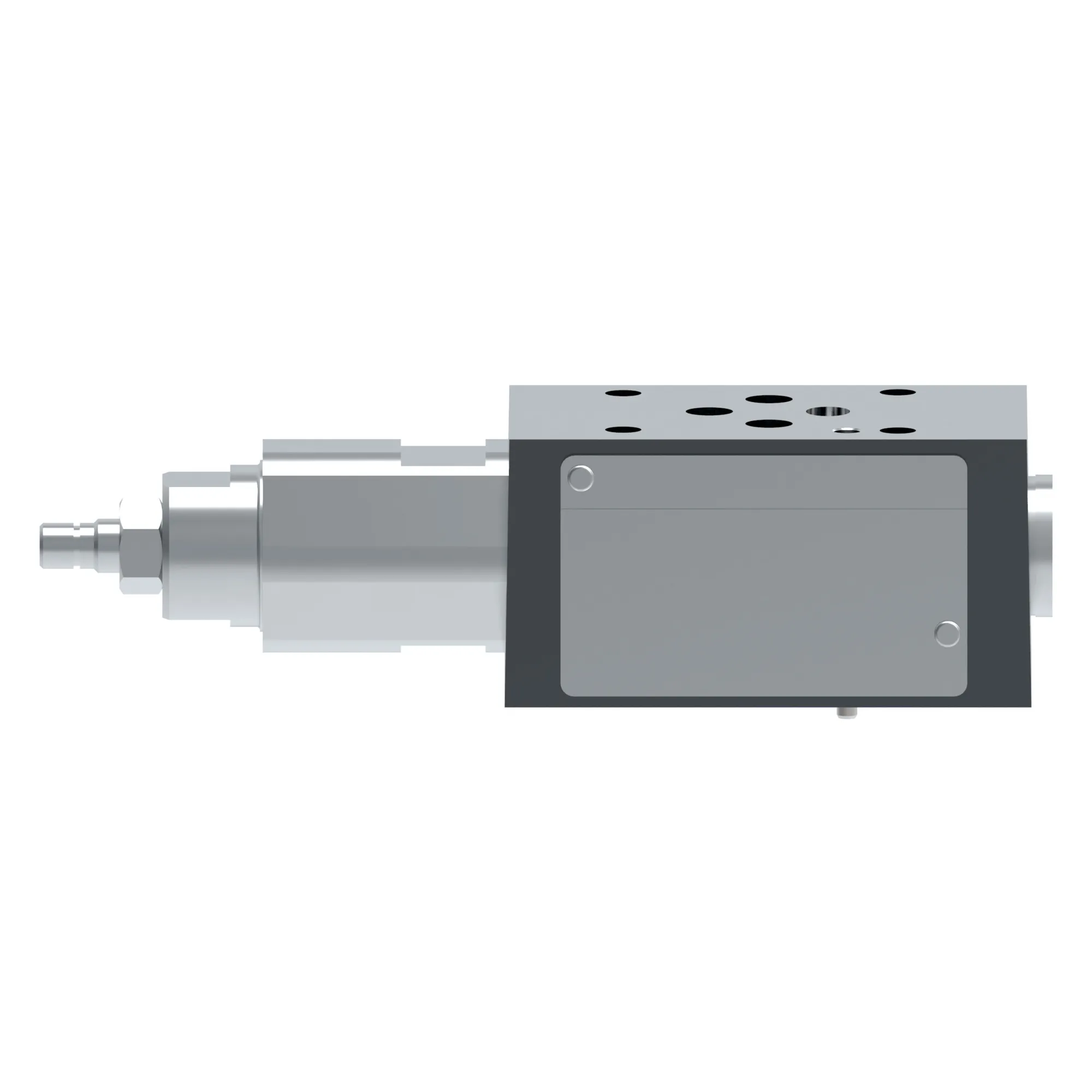

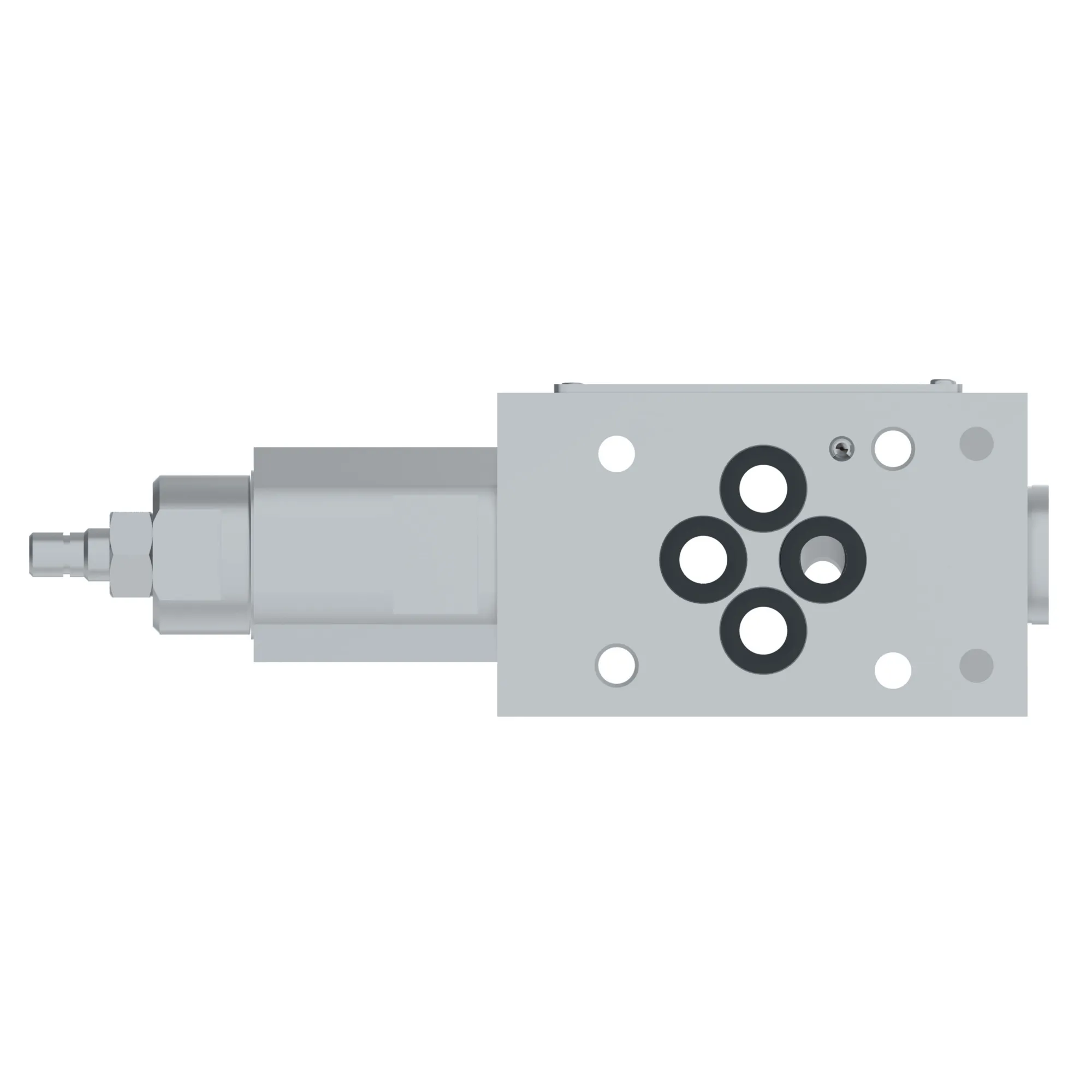

DGMC-3-BT-GW-41, DGMC3BTGW41 – 02-108133
Specification
| Actuation Type | Pressure operated |
|---|---|
| Adjustment Type | Screw and locknut |
| Brand | Vickers by Danfoss |
| Design Series | 41 Series |
| Discharge 1 | Discharge into T |
| First Function | Pressure limited in B |
| Flow Rate Upto Lpm | 60 |
| Flow Rate Upto Usgpm | 16.0 |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid Compatibility | Petroleum oils |
| Interface | ISO4401-03 |
| Maximum Pressure Upto Bar | 315 |
| Maximum Pressure Upto Psi | 4500 |
| Model Code 1 | DGMC3BTGW41 |
| Performance | Standard |
| Pressure Adjustment Range | 50-315 bar (725-4500 psi) |
| Product Height In | 1.570 |
| Product Height Mm | 39.878 |
| Product Length In | 6.200 |
| Product Length Mm | 157.480 |
| Product Width In | 1.870 |
| Product Width Mm | 47.498 mm |
| Proposition 65 | Cancer and Reproductive Harm |
| Seal Type | Viton |
| Special Features | None |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Single relief valve |
| Working Temp Max C | 80 |
| Working Temp Max F | 176 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
