Danfoss (Drives) 02-108095

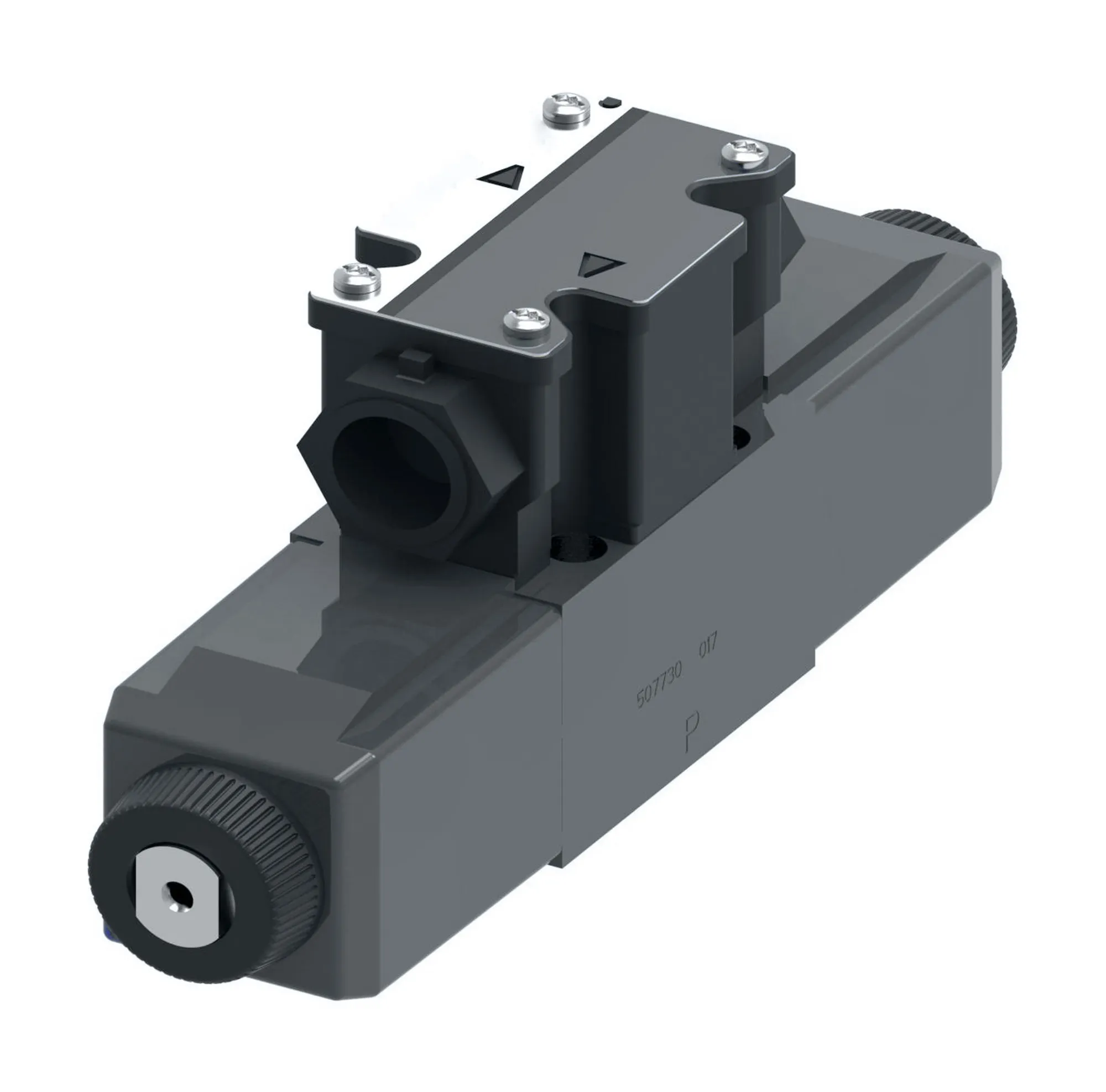

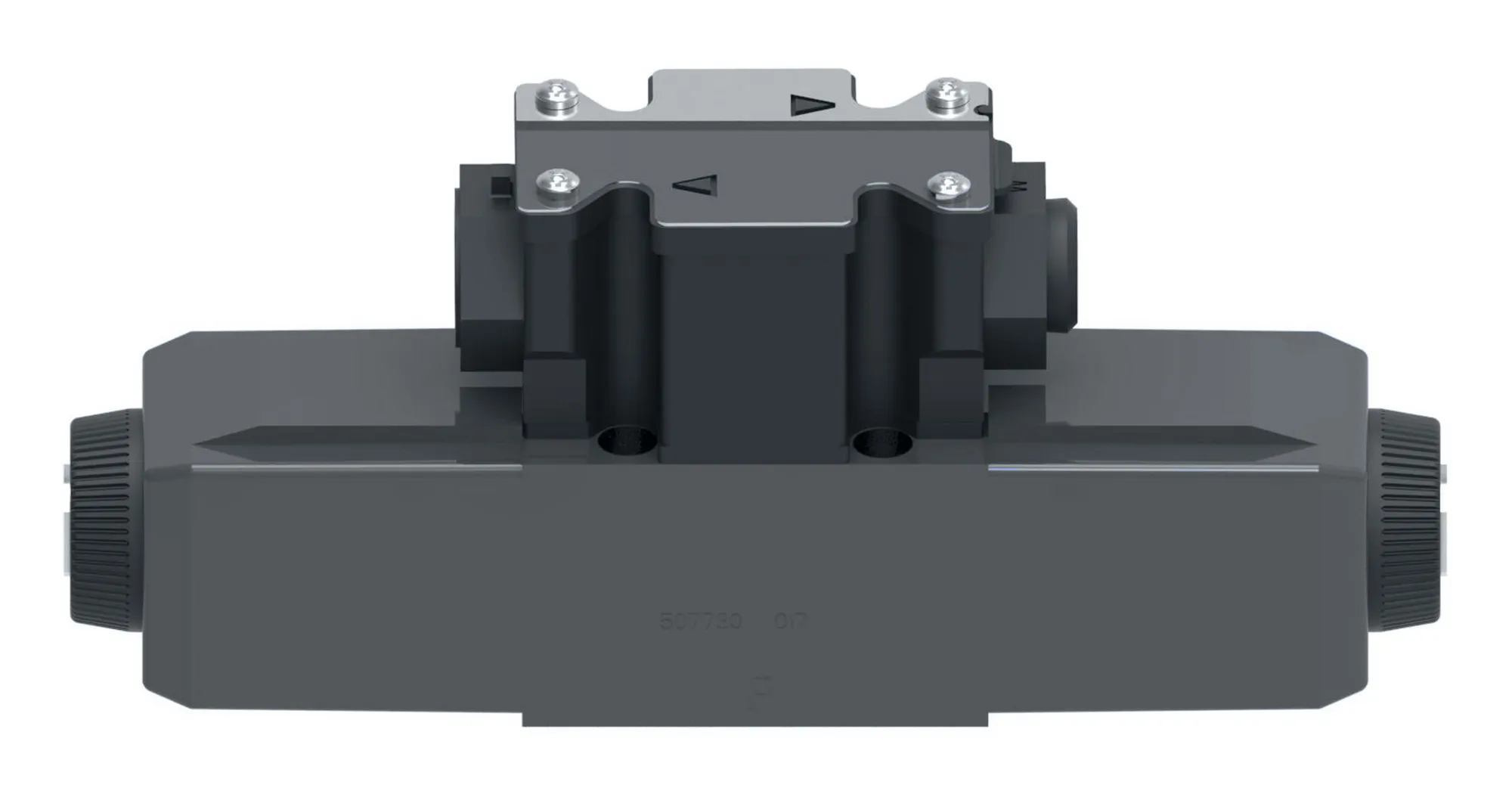

DG4V 3 6C M FW D6 60, DG4V36CMFWD660 – 02-108095
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DG4V 3 6C M FW D6 60, DG4V36CMFWD660 – 02-108095
Specification
| Actuation Type | Solenoid operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 220 VAC 50 Hz/240 VAC 60 Hz |
| Design Series | 60 Series |
| Electrical Connection | Flying lead 1/2″ NPT housing |
| Energ Time | 15-23 ms |
| Flow Rate Upto Gpm | 21.0 |
| Flow Rate Upto Lpm | 80.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum Oils |
| Indicator Light | No |

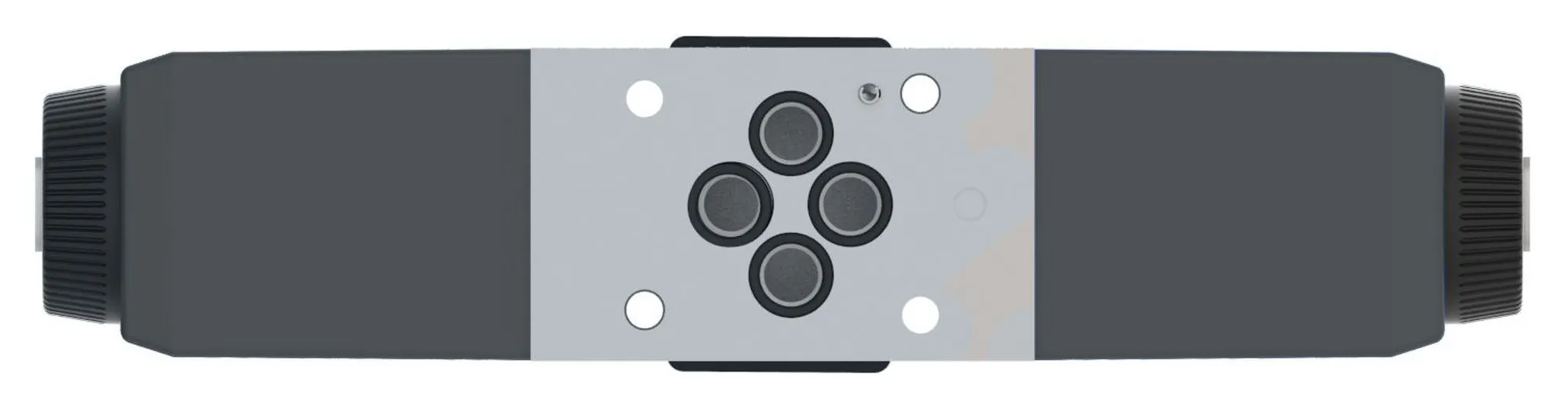

| Interface | ISO4401-03 |
| Manual Override | Plain |
| Model Code 1 | DG4V36CMFWD660 |
| Performance | High performance |
| Power Consumption | 61VA 50HZ – 58VA 60HZ |
| Pressure Ratiing Psi | 5000.00 |
| Pressure Rating Bar | 350.00 |
| Seal Type | Viton |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Special Features | None |
| Spool Position Monitor | No |
| Spool Type | Spool 6 |
| Spring Arrangement | Spring centred |
| Stage | Single stage |
| Surge Suppr Damper | No |
| Tank Port Rating Bar | 210.0 |
| Tank Port Rating Psi | 3000 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
