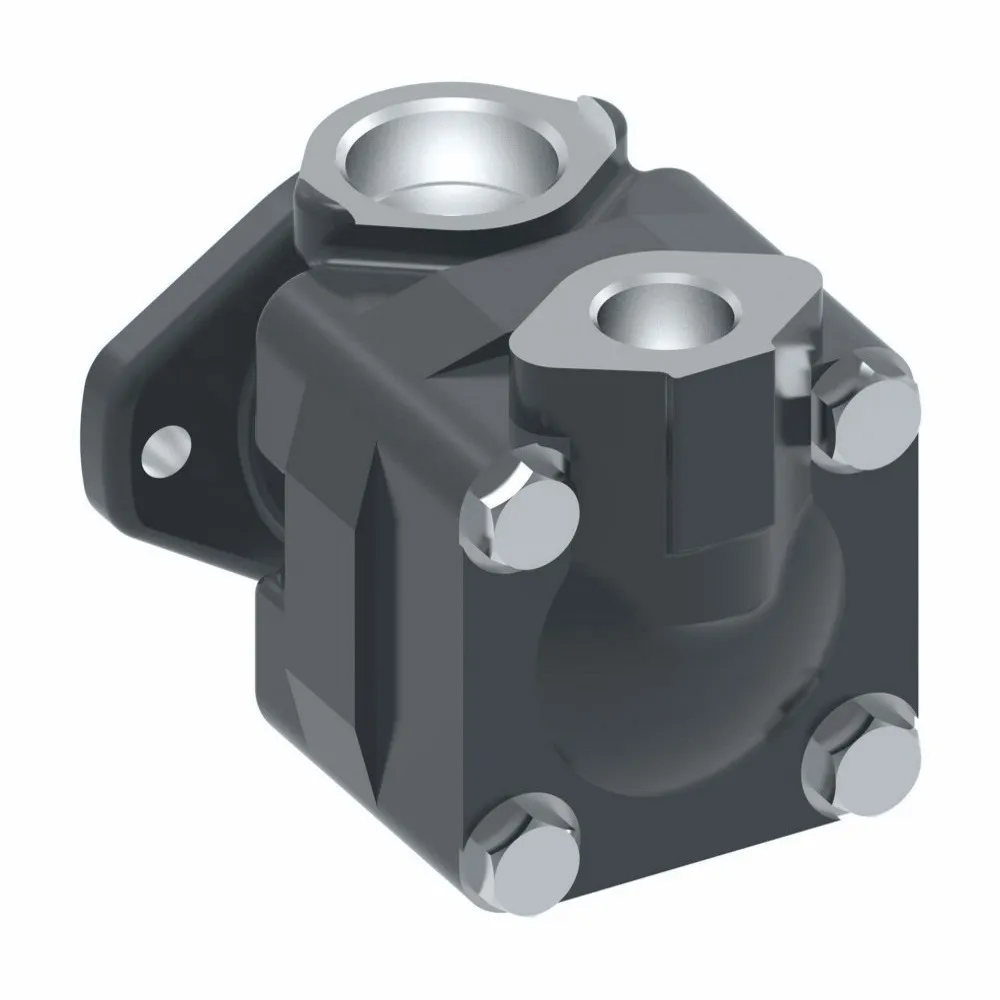

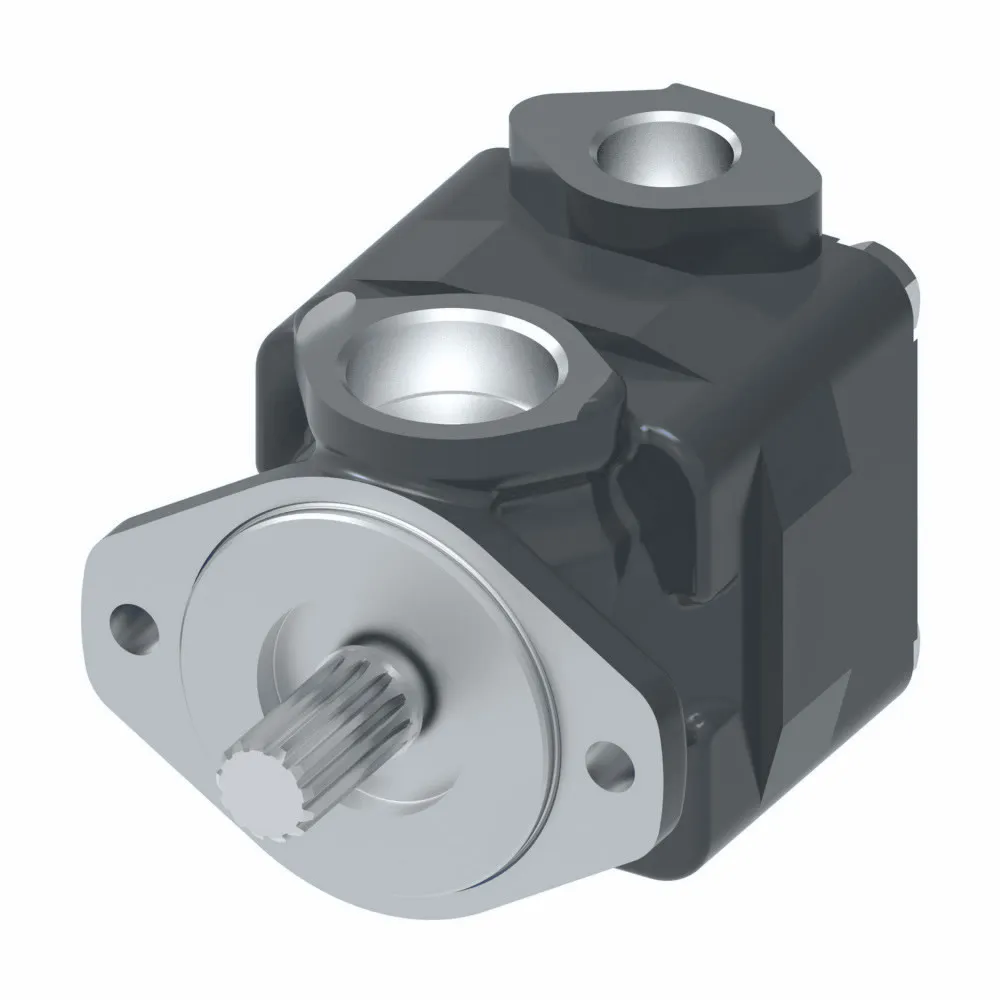

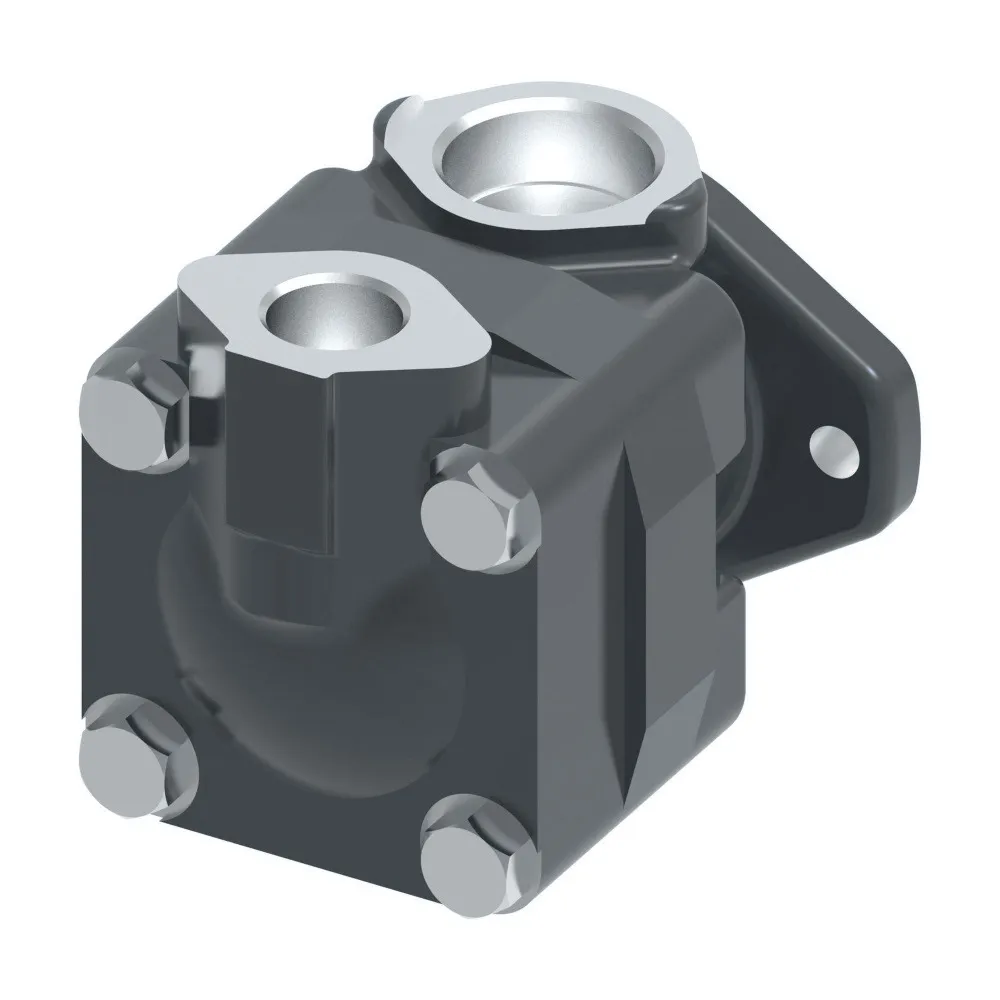

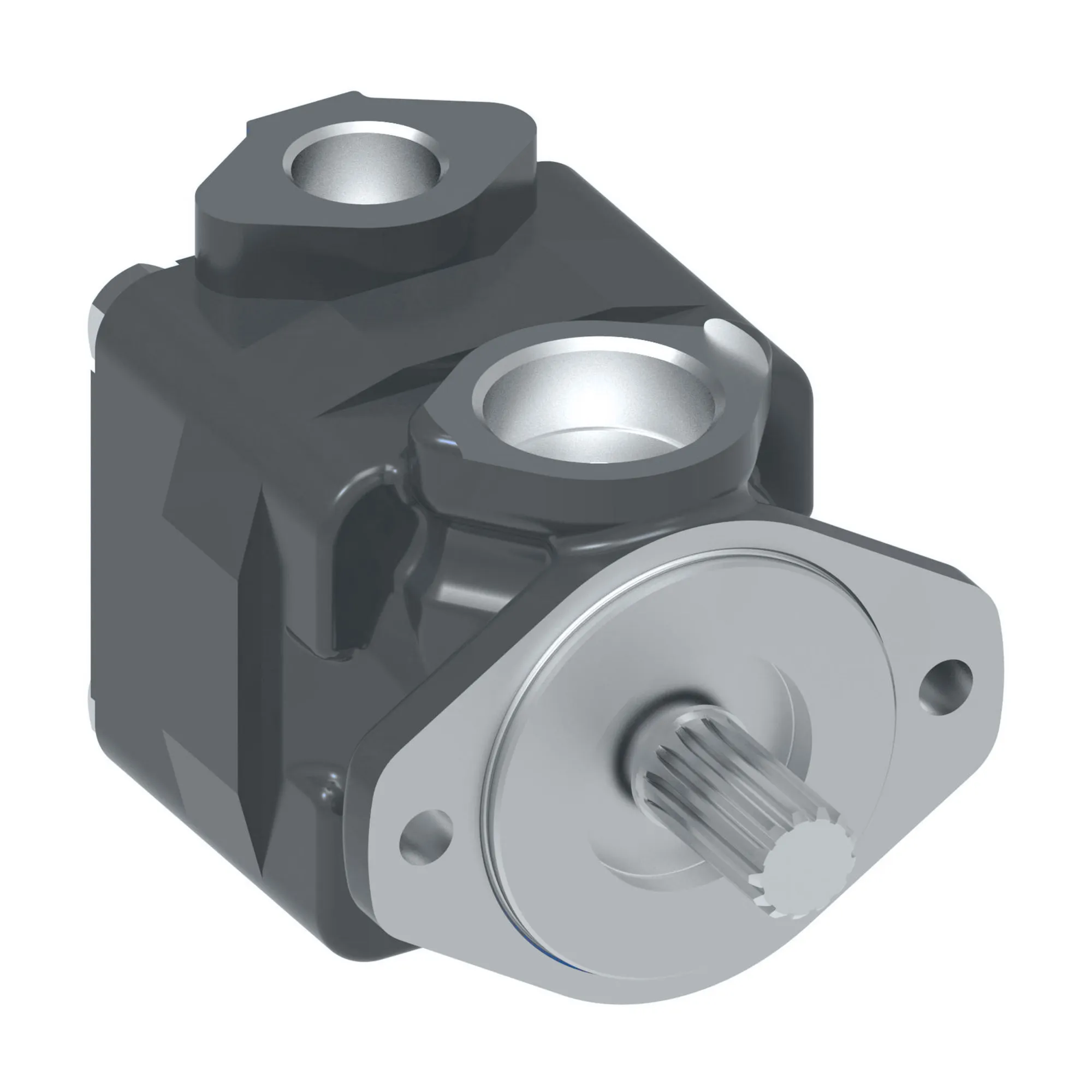

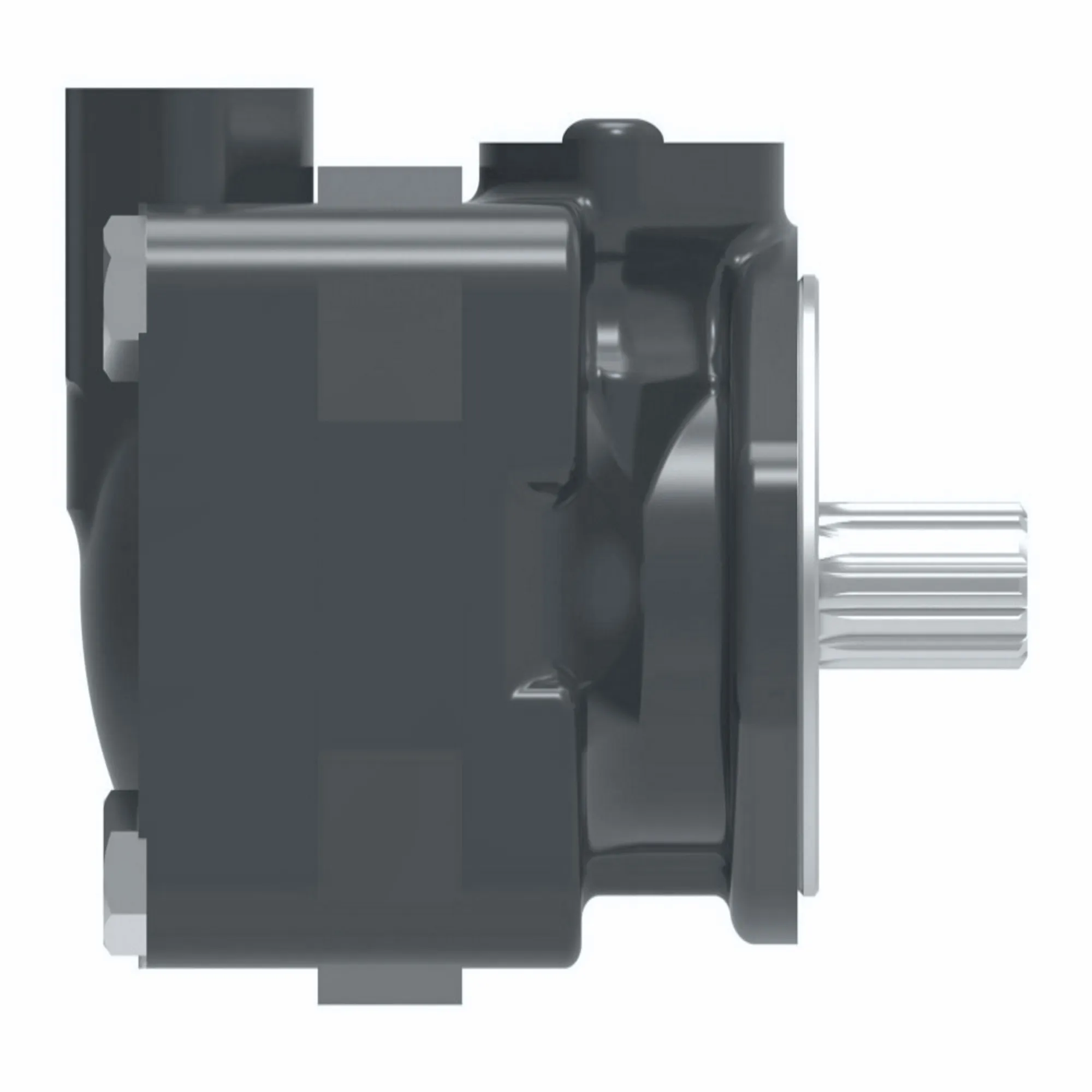

Danfoss (Drives) 02-102070-3
V20 1S13S 62C11, V20 1S13S 62C11 – 02-102070-3
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
V20 1S13S 62C11, V20 1S13S 62C11 – 02-102070-3
Specification
| Seals Type | STANDARD SEAL |
|---|---|
| Pump Type | VANE PUMP |
| Series | SERIES DESIGNATION |
| Cover Type | STANDARD COVER |
| Mounting Type | 2 BOLT FLANGE SAE-A SIZE |
| Inlet Port Type | 1.625-12UN-2B THREAD |
| Ring Capacity | 13 GPM |
| Outlet Port Type | COVER D,COVER STANDARD – 1.062-12 UN-2B THREAD. F COVER – PRESSURE PORT -.750-16 UN-2B THREAD , TANK PORT-1.0625-12 UN-2B THREAD |
| Shaft Seal And Bearing | SINGLE LIP SEAL&SEALED BEARING |
| Shaft Type | 9TEETH 16/32 MAJOR DIA 0.608 EXTENSION-1.245 |
| Outletcover Port Orientation | INLINE WITH INLET PORT |
| Design Code | DESIGN CODE FOR STANDARD |
| Shaft Rotation | RH CW ROTATION VIEWED FROM SHAFT END |
| Brand | Vickers by Danfoss |
| Ipm Frame Size | V20 Single Pump |
| Model Code 1 | V20 1S13S 62C11 |
