Danfoss (Drives) 016-0490-002

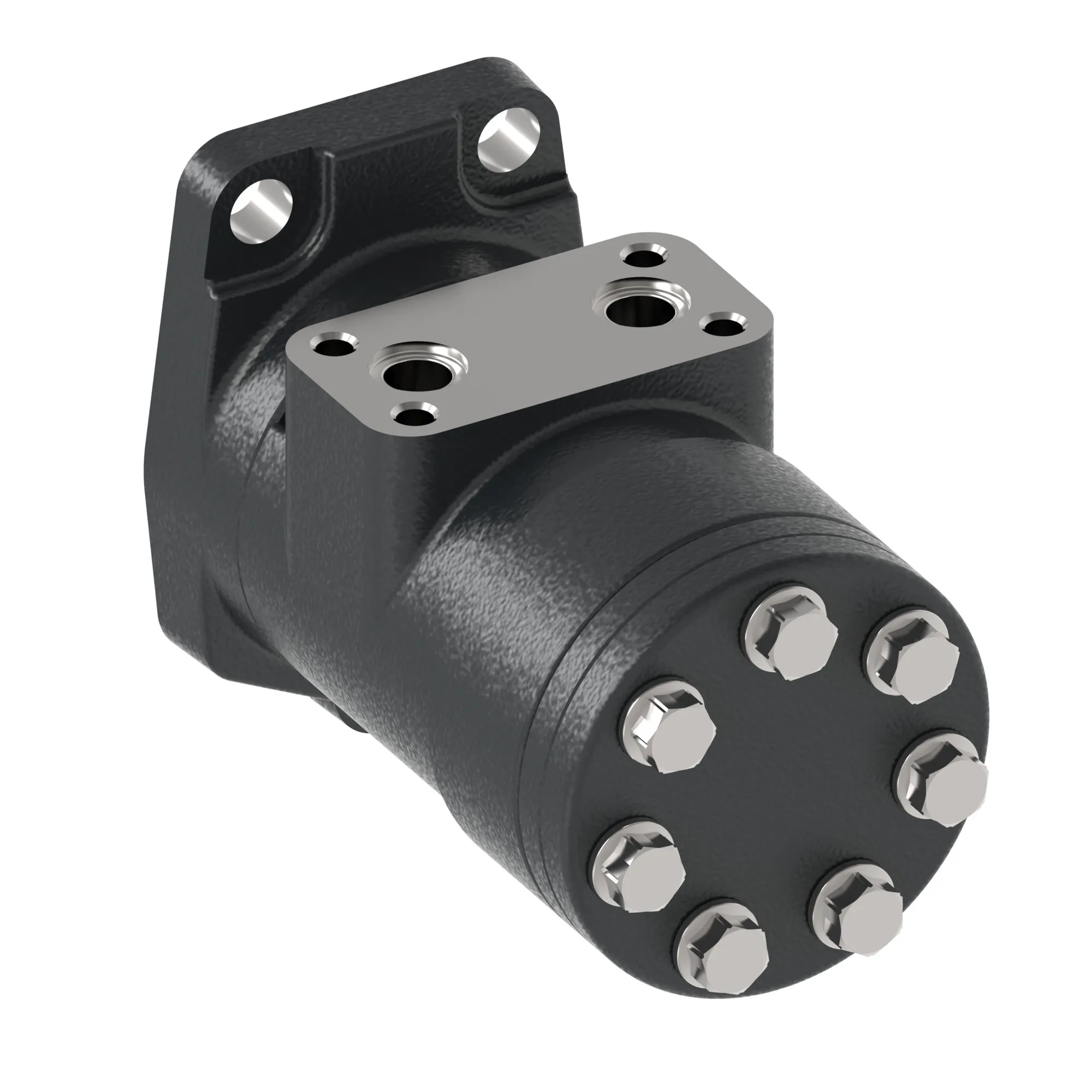

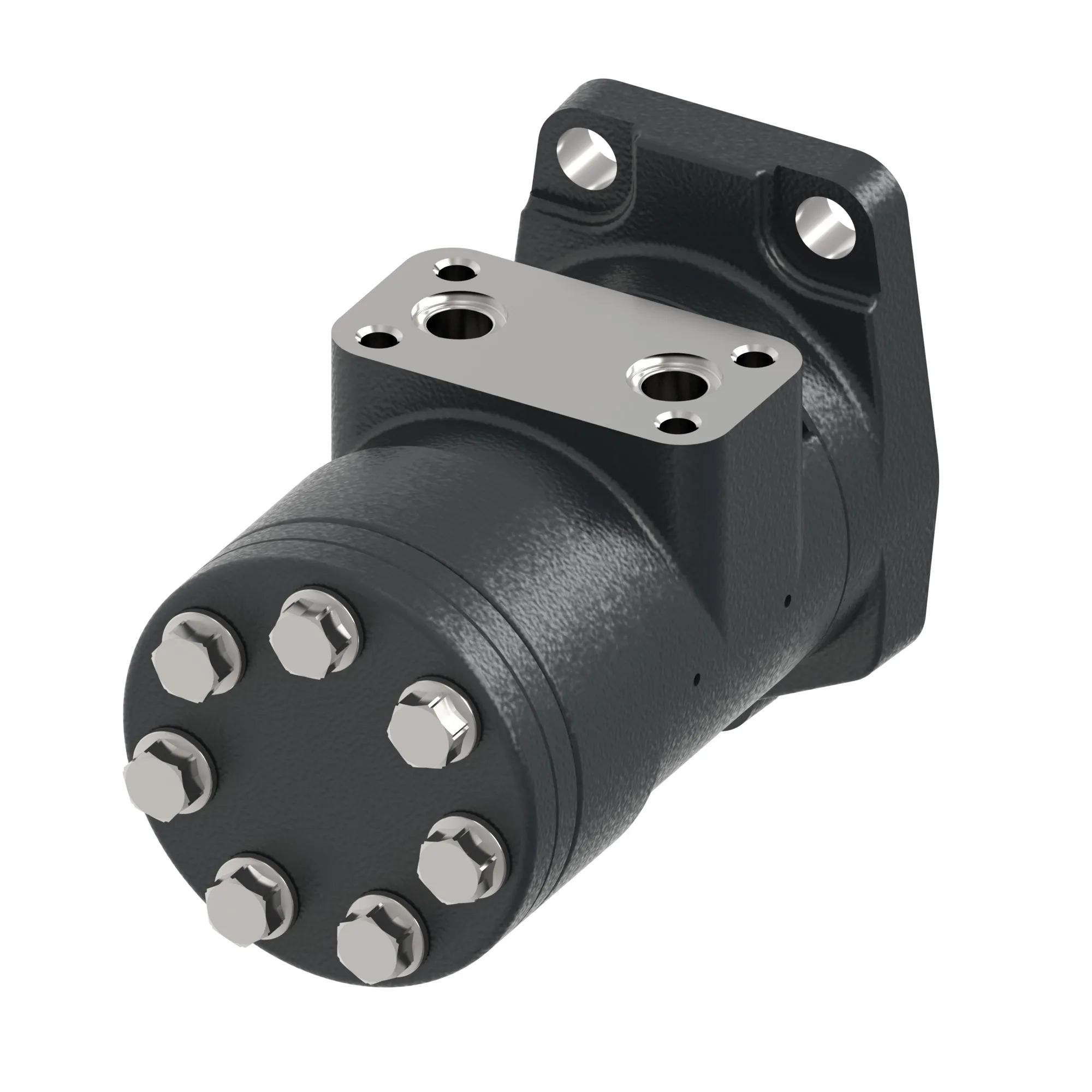

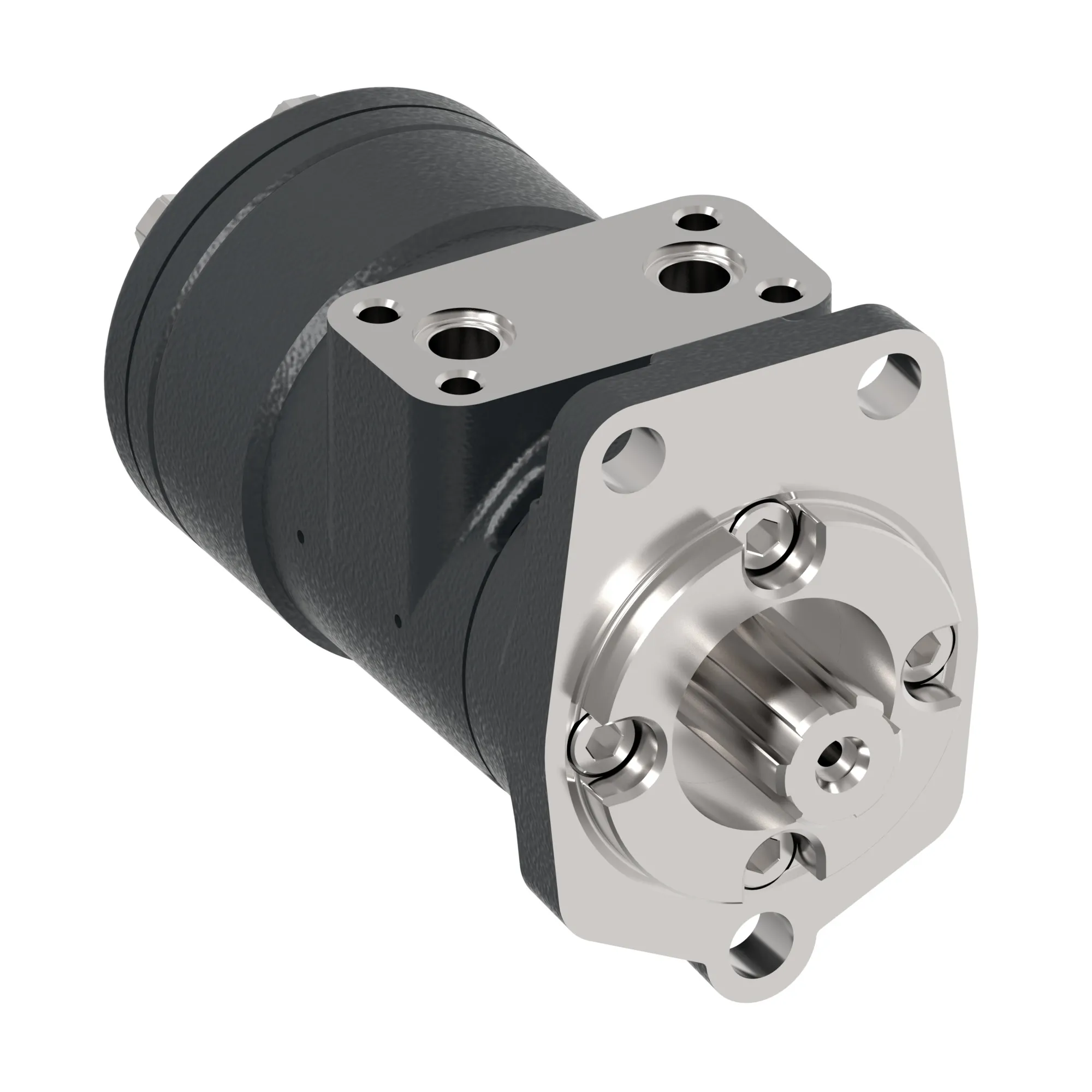

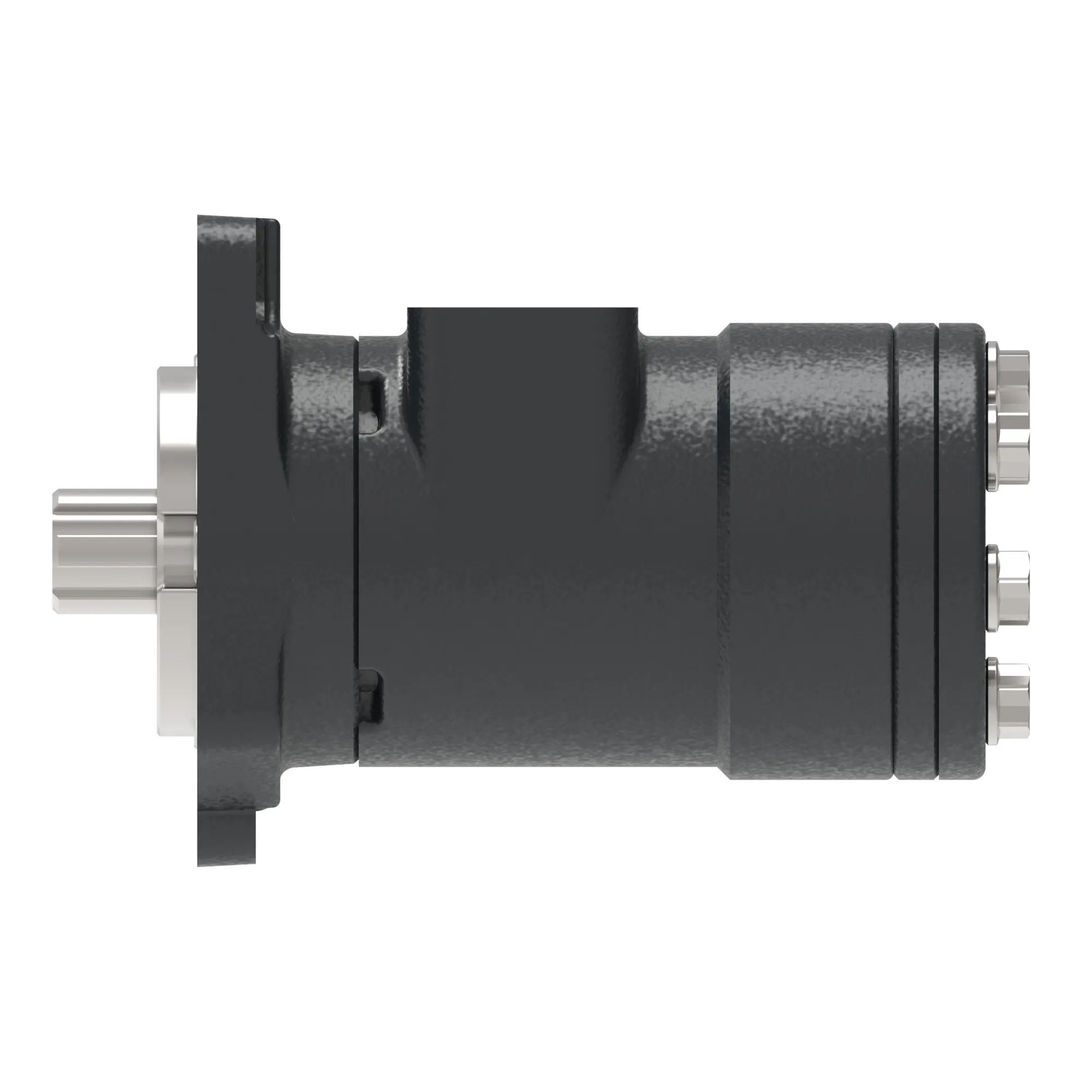

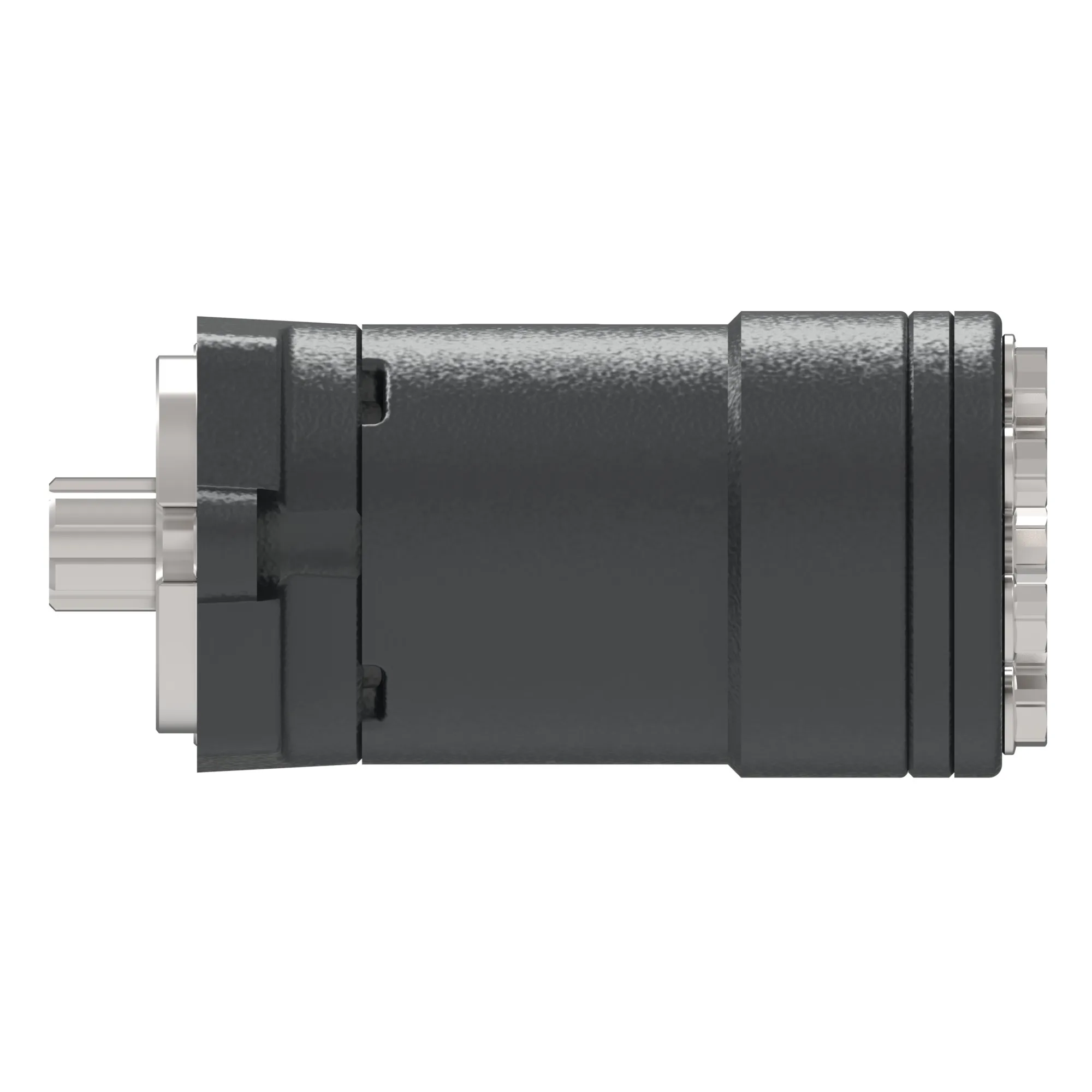

MOTOR-ORBITAL,XLH SERIES 36 [2.2], MCH036AR04AN020040A030C06B – 016-0490-002
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,XLH SERIES 36 [2.2], MCH036AR04AN020040A030C06B – 016-0490-002
Specification
| Model Code | MCH036AR04AN020040A030C06B |
|---|---|
| Motor Series | XLH Series |
| Valve System | Spool valve |
| Orbital Gearwheel Set Type | Gerotor |
| Motor Size | 35 |
| Geometric Displacement [Cm3/R [In3/R]] | 37.3 [2.28] |
| Motor Type | Standard |
| Motor Function | Standard |
| Mounting Flange Type | Special |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 73.0 x 7.8, #, 12.8 [2.87 x 0.31, #, 0.50] – Spec. Component |
| Shaft Type | Splined |
| Shaft Dimension | Dia. 1 inch, SAE 6B J499, 1/4 – 20 UNC-2B thread in shaft end |
| Shaft Key | n/a |
| Main Port Thread Type | Manifold |
| Main Port Style | Sideport – aligned |
| Main Port Dimension | 4 x M8 x 1.25-6H mounting threads |
| Drain Port Dimension | None |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Painted, Black |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | PTFE (Teflon) |
| Seal Kit | No data available |
| Front Bearing Type | Journal bearing |
| Rear Bearing Type | Journal bearing |
| Orbital Gearwheel Set | Free running |
| Check Valve Function | No |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | No data available |
| Name Tag | Customized |
| Brand | Danfoss |
| Sub Brand | Xcel |
