Danfoss (Drives) 00400-16DZ

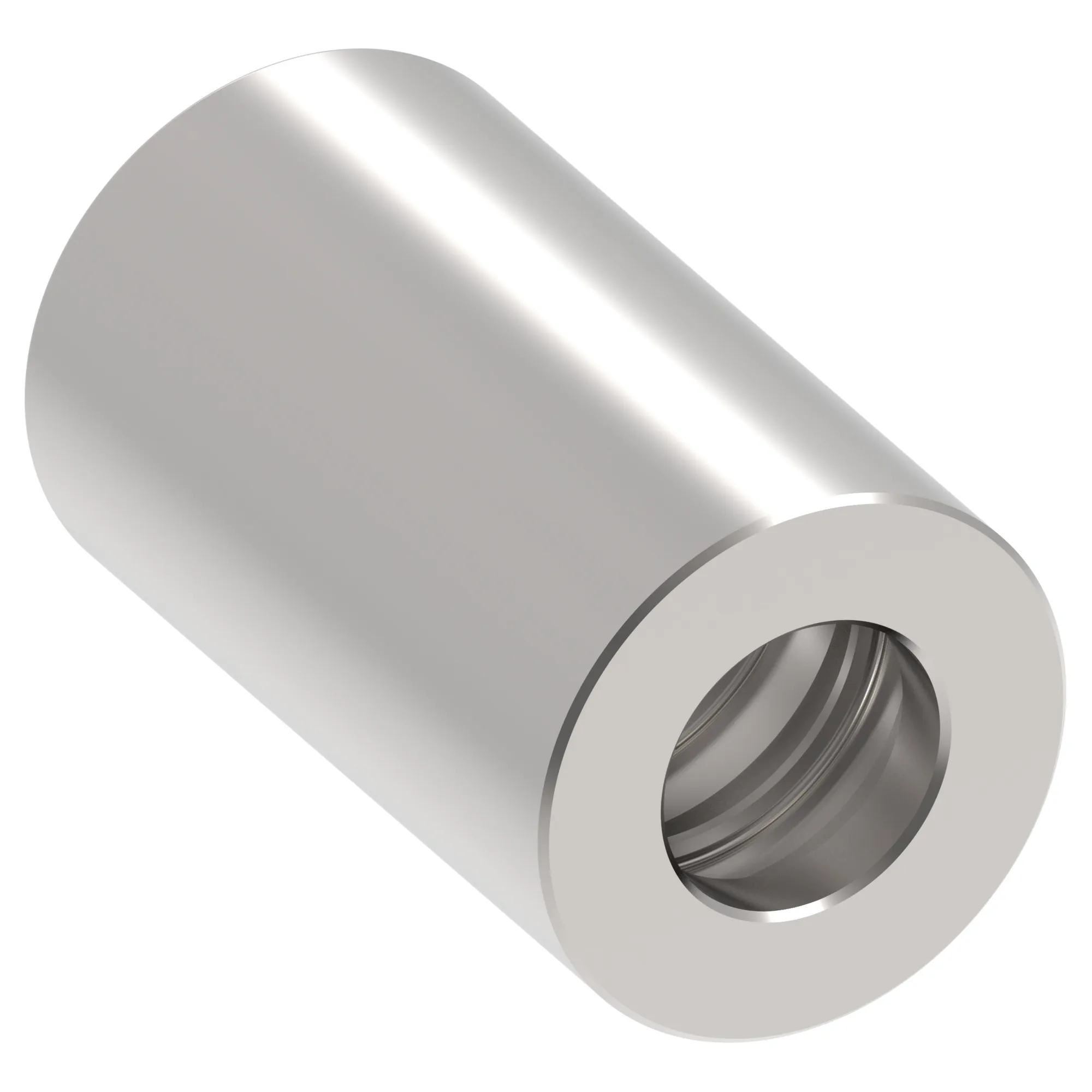

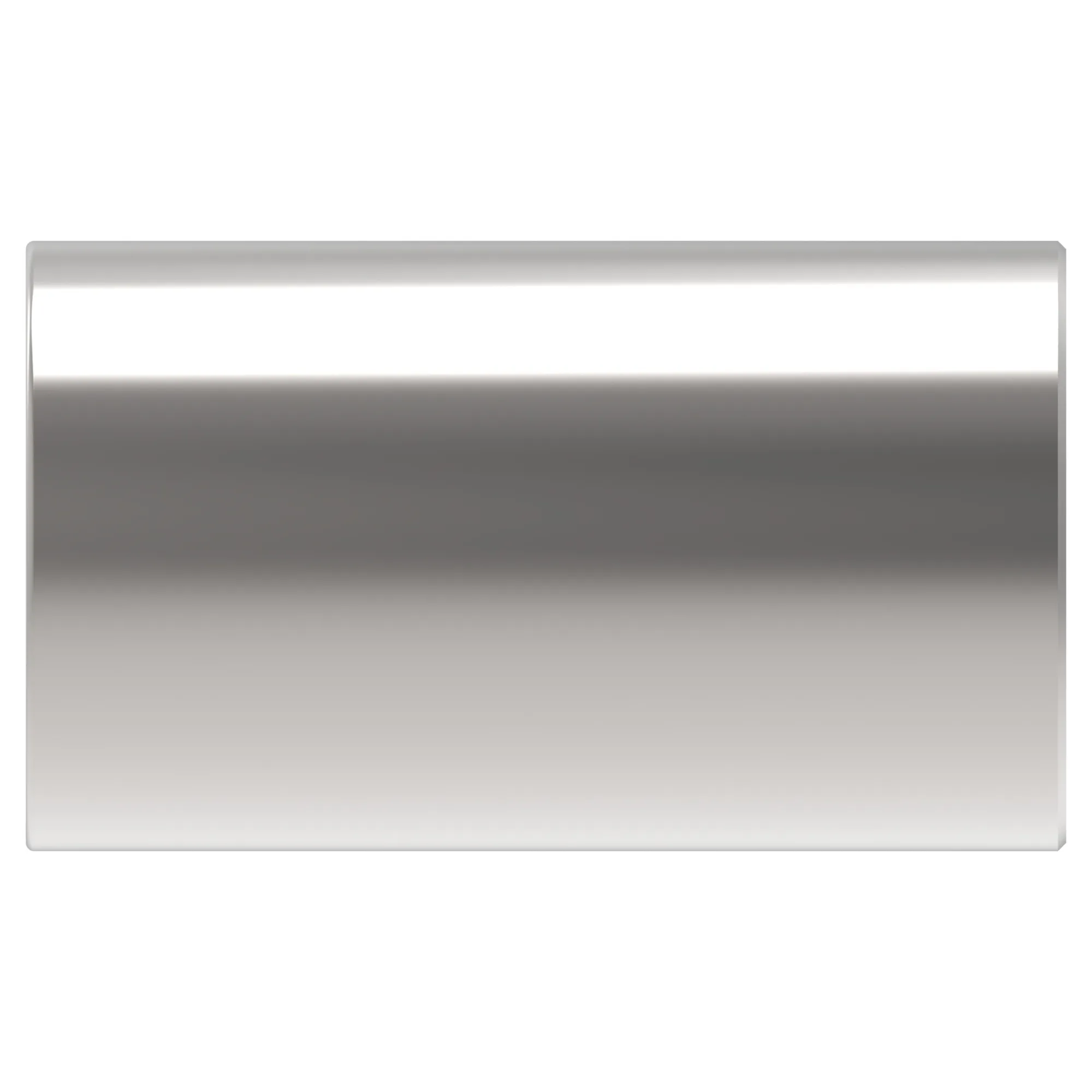

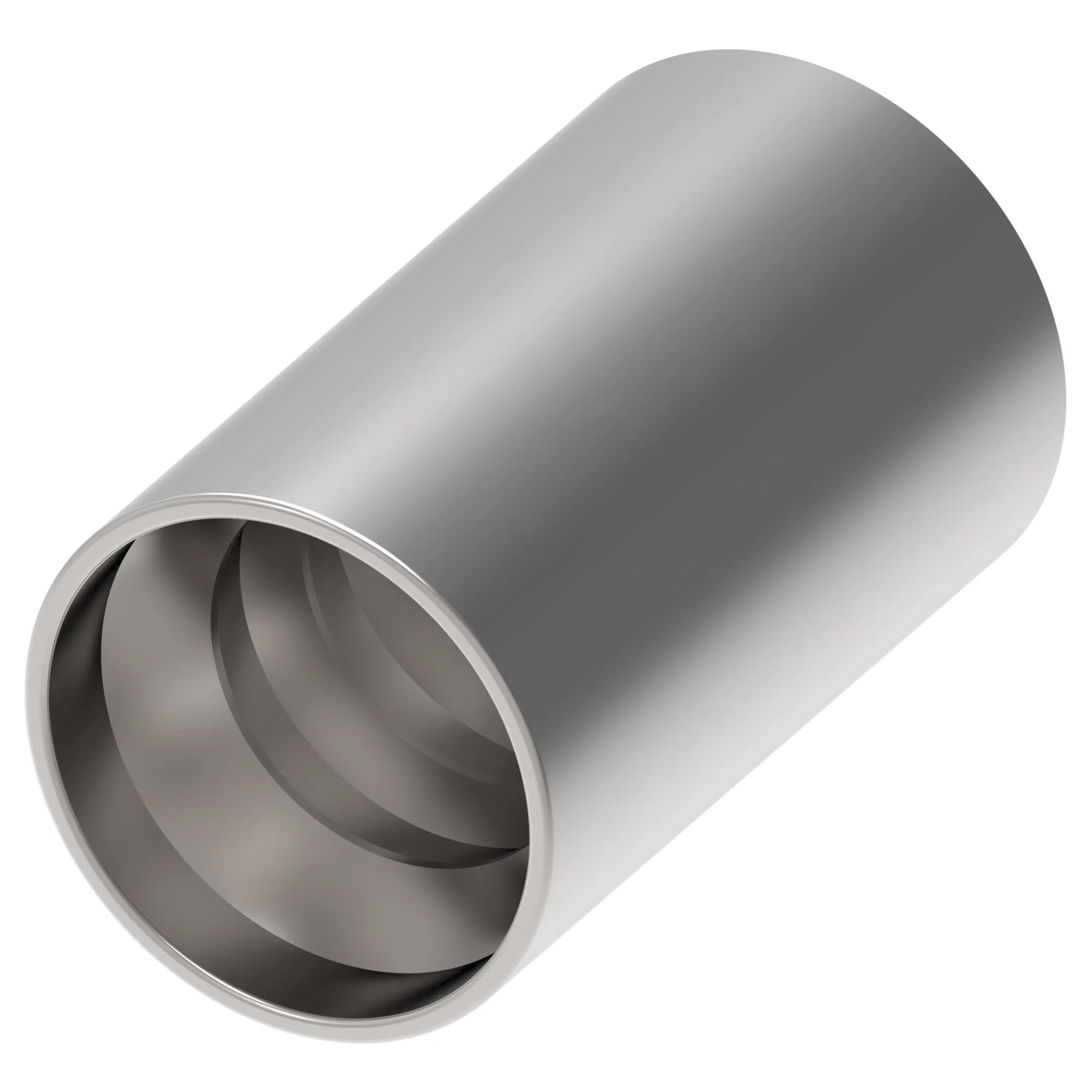

SOCKET-PERM, 2P/16, CS – 00400-16DZ
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
SOCKET-PERM, 2P/16, CS – 00400-16DZ
Specification
| A Dimension In | 2.200 |
|---|---|
| A Dimension Mm | 56.000 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 1.000 |
| Compatible Hose Id Mm | 25.400 |
| Construction Style | Crimp |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 0.000 |
| Hex Size 1 Mm | 0.000 |
| Hex Size 2 In | 0.000 |
| Hose Size | -16 |
| Inside Diameter In | 1.2200 |
| Inside Diameter Mm | 31.0000 |
| Product Height In | 1.830 |
| Product Height Mm | 46.500 |
| Product Length In | 2.204 |
| Product Length Mm | 56.000 |
| Product Material | Carbon steel |
| Product Width In | 1.830 |
| Product Width Mm | 46.500 mm |
| Series | Winner 2-Piece |
| Thread Sealant | No |
| Working Temperature Max C | 100 |
| Working Temperature Max F | 212 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
