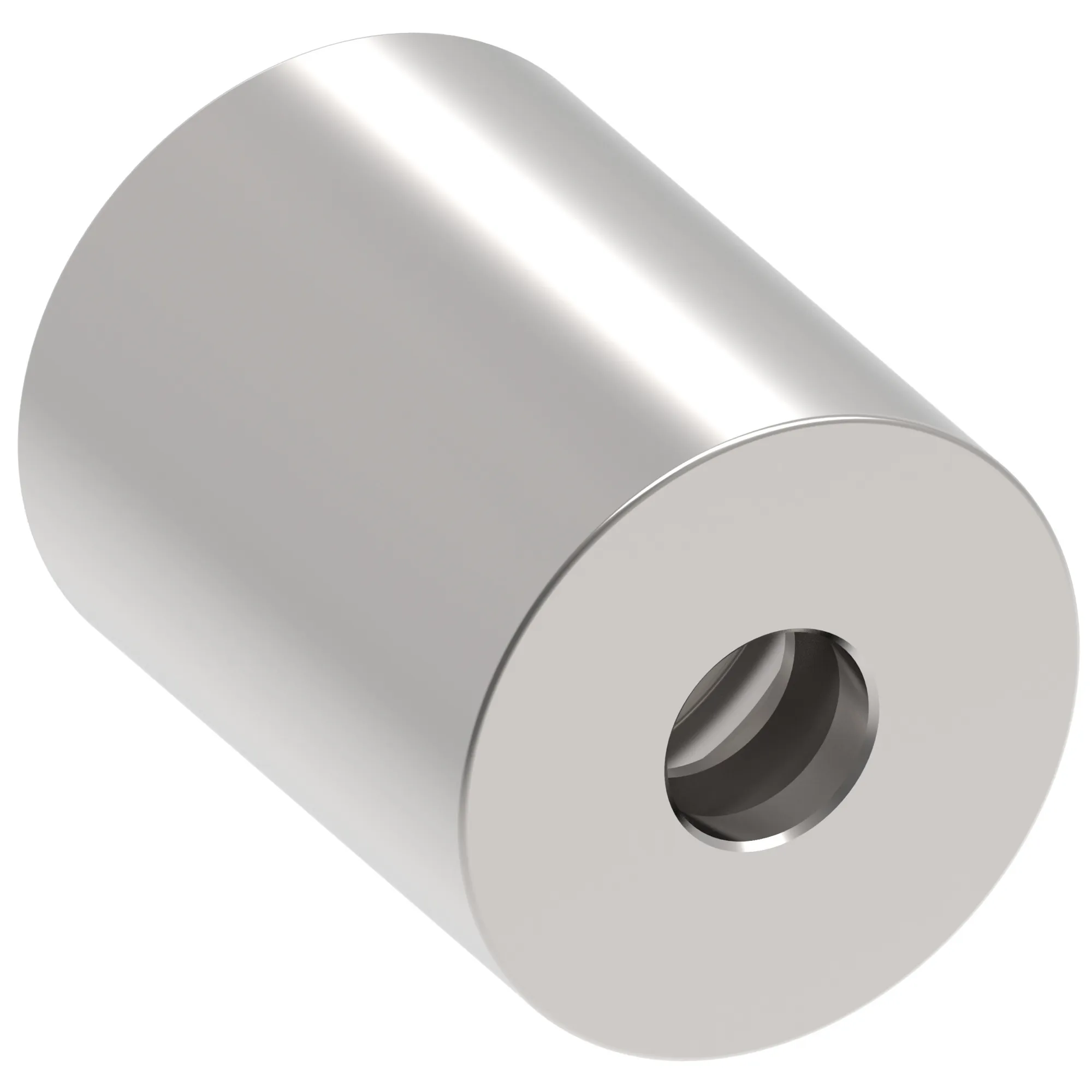

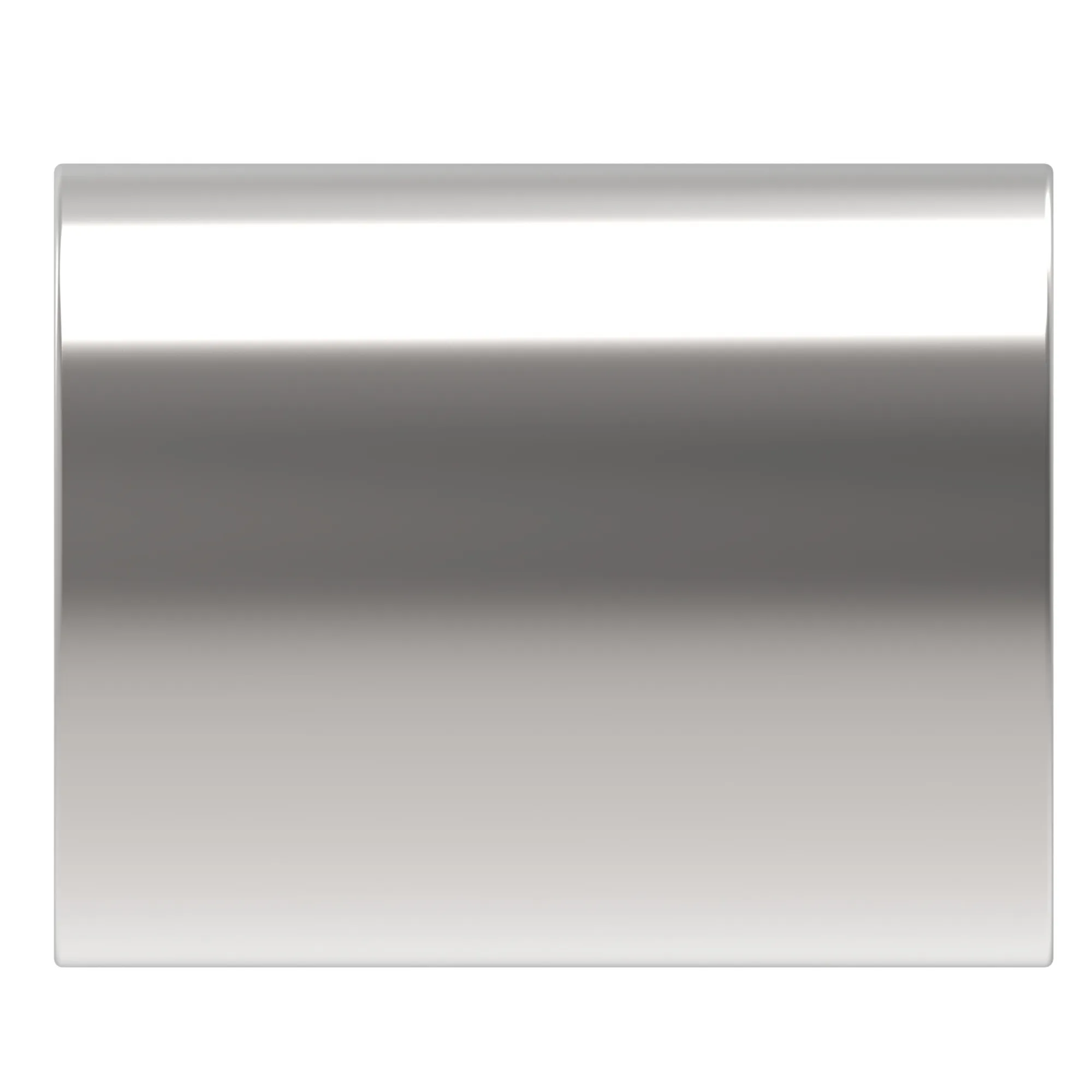

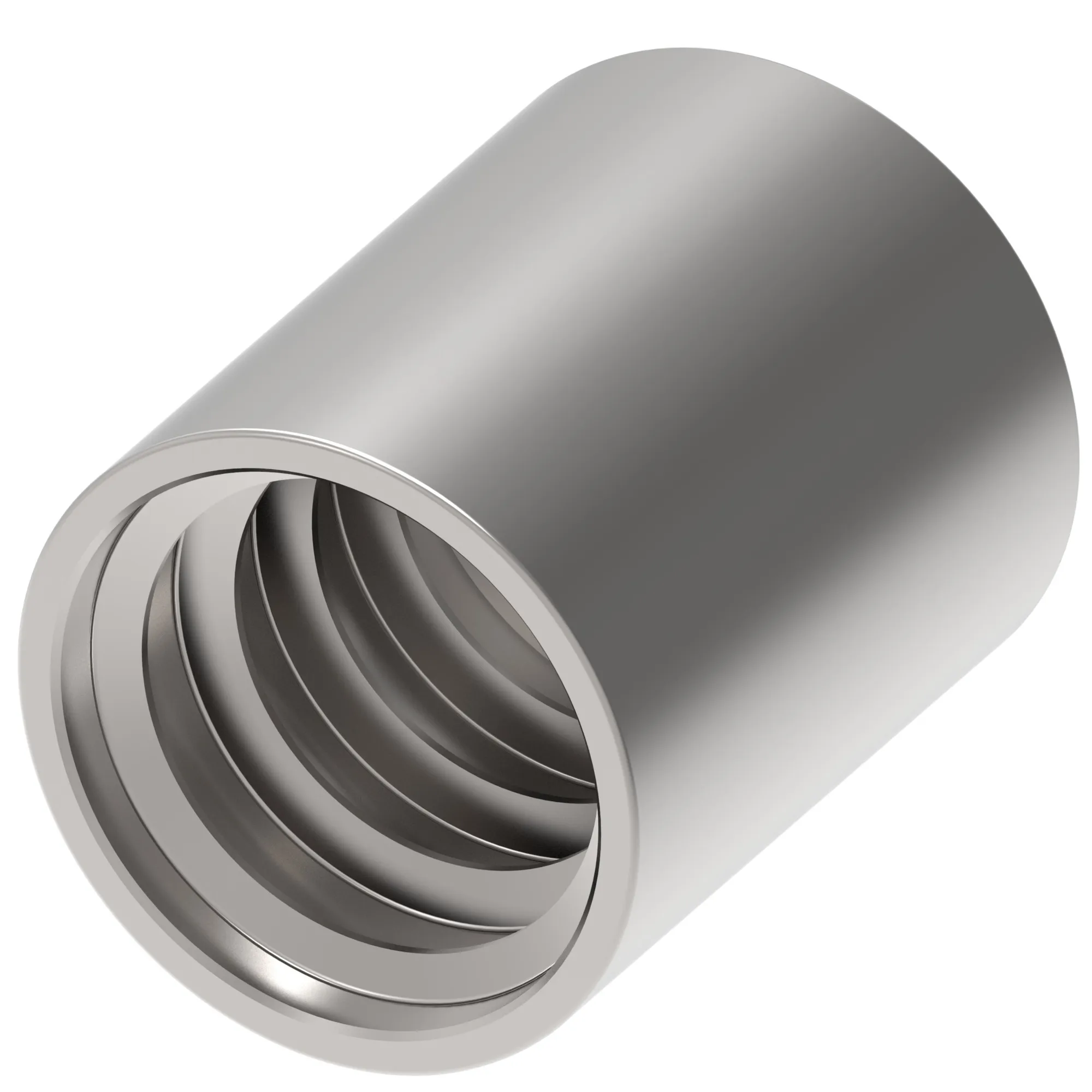

Danfoss (Drives) 00110-06AZ
SOCKET-PERM, 2P/06, CS – 00110-06AZ
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
SOCKET-PERM, 2P/06, CS – 00110-06AZ
Specification
| A Dimension In | 1.181 |
|---|---|
| A Dimension Mm | 30.000 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.380 |
| Compatible Hose Id Mm | 9.500 |
| Construction Style | Crimp |
| Finish Plating | Zinc plating |
| Hose Size | -6 |
| Inside Diameter In | 0.5670 |
| Inside Diameter Mm | 14.4000 |
| Product Height In | 0.957 |
| Product Height Mm | 24.300 |
| Product Length In | 1.181 |
| Product Length Mm | 30.000 |
| Product Material | Carbon steel |
| Product Width In | 0.957 |
| Product Width Mm | 24.300 mm |
| Series | Winner 2-Piece |
| Thread Sealant | No |
| Working Temperature Max C | 100 |
| Working Temperature Max F | 212 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
