Beckhoff ZK7A65-3673-0xxx

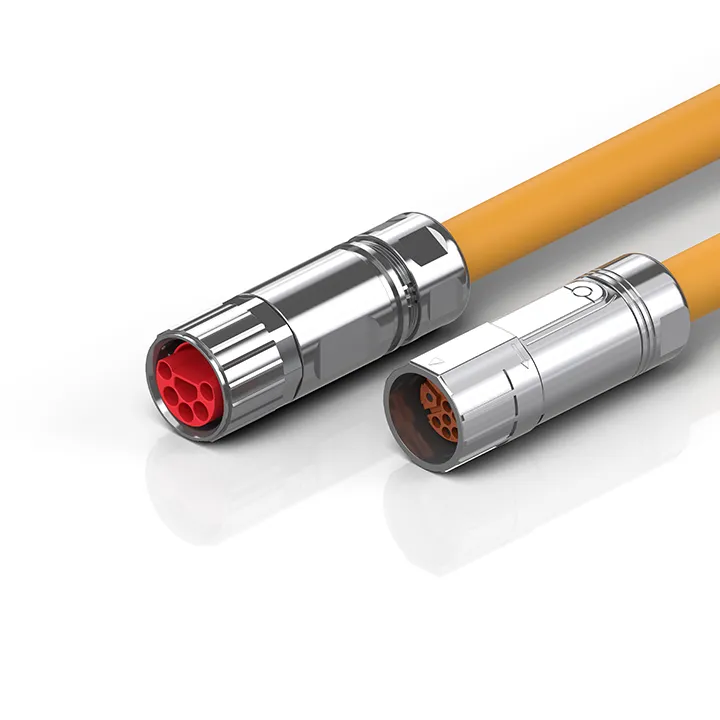

Motor cable, IP67, (4 G 4 +(2 x 1.0 mm²)+(2 x AWG22)), PUR, orange, drag-chain suitable, B23, mechanical coding 1, plug, straight, male+male, 6+2 pin – M23, plug, straight, female, 9
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Motor cable, IP67, (4 G 4 +(2 x 1.0 mm²)+(2 x AWG22)), PUR, orange, drag-chain suitable, B23, mechanical coding 1, plug, straight, male+male, 6+2 pin – M23, plug, straight, female, 9
Specification
| Installation Size | M23 |
|---|---|
| Connector Type | plug |
| Contact Type | female |
| Number Of Positions (Face) | Power: 3+PE, Signal: 5 |
| Mating Cycles | 500 |
| Wire Termination | crimp connection |
| Operating Voltage | max. 1000 V AC (UL), Uo/U 600/1000 V (VDE) |
| Cross Section (Power) | 4.00 mm² (approx. AWG12) |
| Cross Section (Signal) | AWG22 (approx. 0.34 mm²) |
| Use | drag-chain suitable |
| Material Jacket | TPU (thermoplastic polyurethane) |
| Outer Cable Diameter | 15.9 mm ± 0.4 mm (0.6259″ ± 0.0157″) |
| Min. Bending Radius, Fixed Installation | 5 x outer cable diameter |
| Max. Number Of Cycles | 5 million |
| Jacket Color | orange |
| A1 | 95.00 mm |
| A2 | 29.00 mm |
| B1 | 79.00 mm |
| B2 | 28.00 mm |
